For Sale by Champion Machinery Inc
Surplus Record Dealer Since 2003
Location: Fort Mill, SC
Contact Trey Sprouse
Phone Number: 803...> Show Phone Number 803-548-8000
Let the seller know you found their listing on Surplus Record!
Description
Details:
Features:
- Chuck Size 24"
- Max Swing Over Saddle 41.34"
- Spindle Motor 50 / 40 HP AC
- Spindle Speed 2000 RPM
- Spindle Nose A2-20
- Tools 80
- Milling Spindle Motor 50 / 40 HP
- Milling Spindle Speed 5000 RPM
- Milling Spindle Torque 372 ft. lbs.
- Rapid Traverse Rates 1575 IPM
- X-Axis 42.52"
- Z-Axis 165.94"
- Y-Axis + / - 12.99"
- C-Axis Index (L & R) .001 Degrees
- B-Axis Travel -30 to 210 Degrees
- Machine Weight 95,000 LBS
- Distance Between Spindles 178.9"
- Max Tool Diameter 5.31" / 11.81"
- Max Tool Length 23.6"
- Max Tool Weight 66 lbs.
- Max Turning Diameter 41.34"
- Spindle Taper Capto C8
- W-Axis 133.66"
Features:

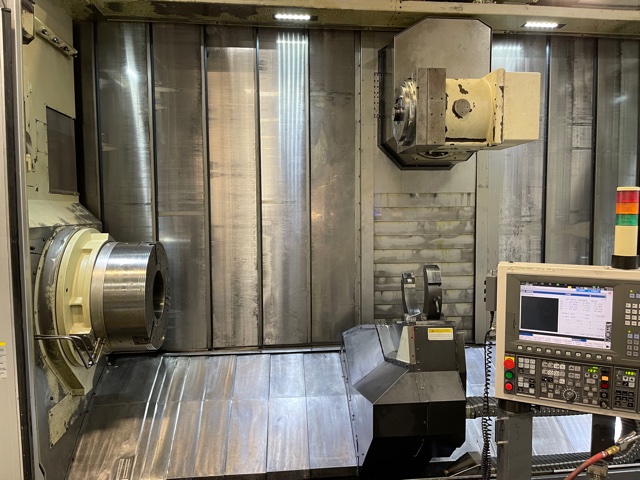

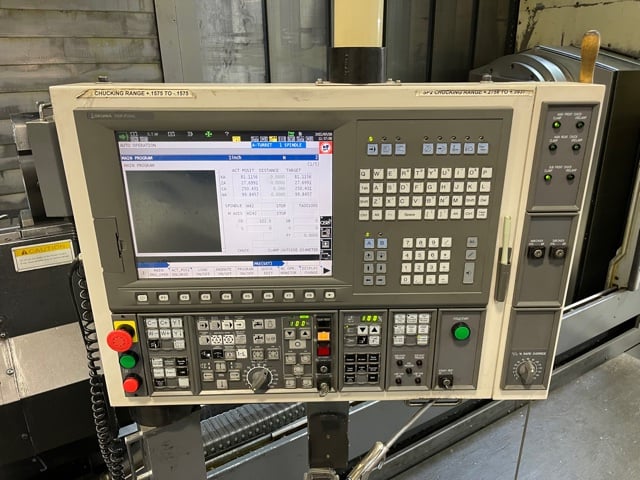

- OSP-P200L CNC Control
- 15" Color TFT

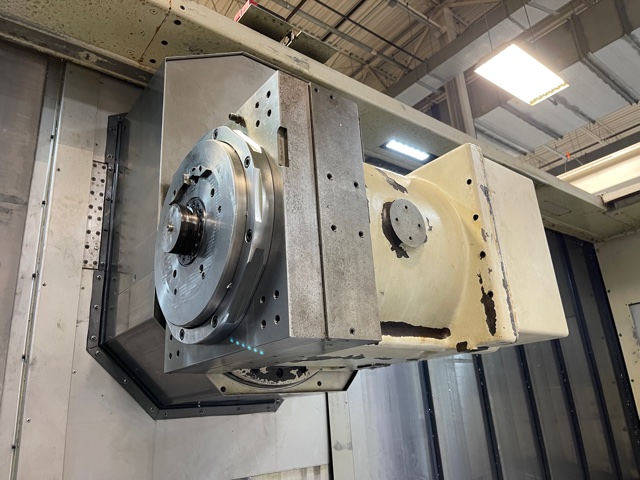

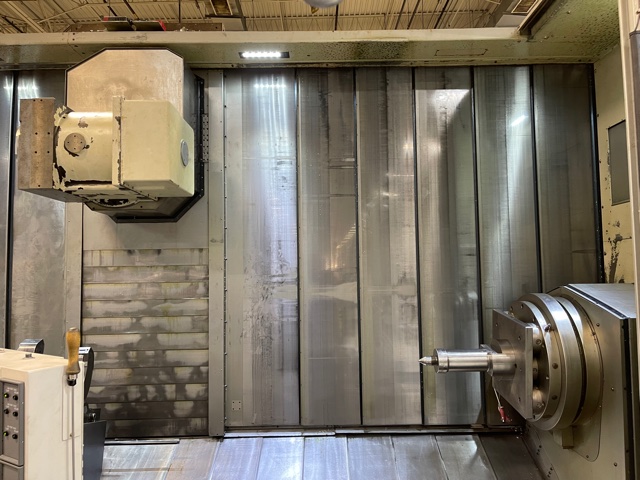

- B-Axis Upper Tool Spindle Full 5-Axis Contouring

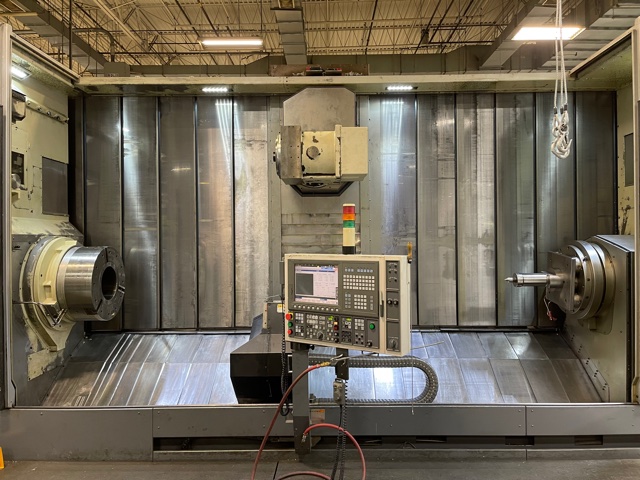

- Twin Opposed Spindles

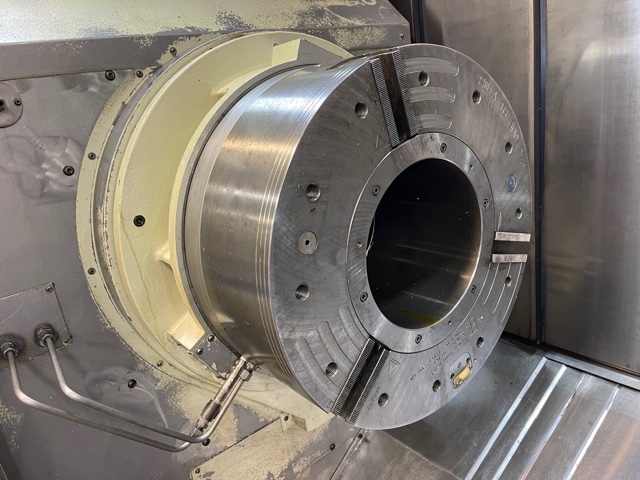

- Schunk Rota TB 600-275 LH Self-Contained Pneumatic 3-Jaw Chuck
- 24" Hydraulic Chuck (Right Spindle)
- 80 Tool Magazine (Capto C8)
- Through Spindle Coolant (MP Systems 1000 psi)

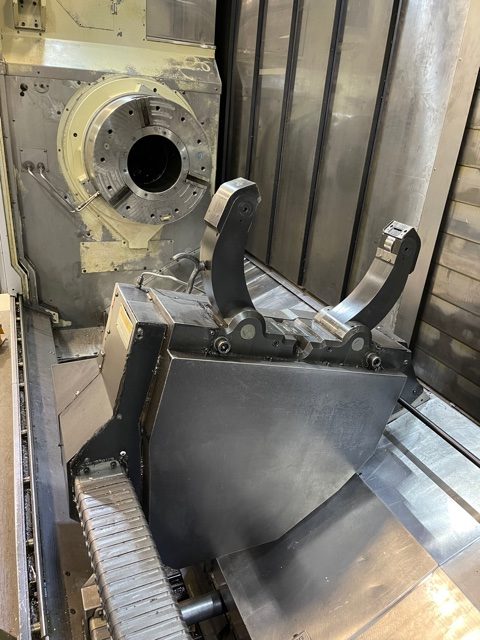

- SWM Autoblock Programmable Hydraulic Steady Rest
- Enomoto Chip Conveyor (Side Exit)
- (3) Long Boring Bar Attachment
- Actual Long Boring Bar with Replaceable Capto C8 Heads
- Multi-Tap Transformer
- Three Color Tower Light
- Spindle Chiller Unit
- Remote Jog Handle
- Hi-G Control
- 500 Sets of Tool Offsets
- Tape Data In/Out
- Plane Conversion
- Profile Generation
- B-Axis Interpolation
- Rigid Tapping
- Helical Cutting
- Slant Cutting
- Home Position
- Spindle Fluctuate
- NC Torque Limiter
- GM Code Macros
- Center Computation
- Touch Setter
- Touch Sensor
- Y-Axis Gauging
- Optical Sensor
- Pitch Error Compensation
- Tool Life Management
- Tool Wear Compensation
- Inch/Metric Switchable
- Cycle Time Calculation
- Cycle Time Renew
- Tool Center Control
- Super Nurbs
- Super Hi-NC
- Thermal Compensation L2
- Servo Link NC
- Lap 4
- Nose Radius 2B
- User Task 2
- Expanded Auto Chamfering
- Collision Avoidance System
- Programming Help
- 3D Animation
- NC Work Counter
- NC Work Monitor
- Cycle Time Check
- Load Monitor
- Mac Man
- DNC-T1 & T-3
- Spindle Orientation
- M-Axis Orient
- Custom API
- Machining Mode
- Axis Active Stop
- Override Special
- Load Monitor
- B-Axis .001 Degrees
- B-Axis Interpolation
- Auto Door
- Manufacture Date July 2010
- 80,532 Power On Time
- 26,801 NC Running Time
- 3375 Spindle Revolution Time
- 14,931 Cutting Time
Get Your Price from Champion Machinery Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Mighty Viper #VT-50B/3000, CNC turning center, 39.3" swing, 33.85" diameter, 24" chuck, 12.25" bore, 120" centers, 600 RPM, 2013
Category: CNC Lathes and Turning Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Mighty Viper
Model: VT-50B/3000
Year: 2013
CNC lathe in used condition. s 39.37" swing and 33.85" max cutting diameter. Includes 24" chucks, Fanuc control, chip conveyor, programmable tailstock, and RIP steady rest. 120" distance between centers, 600 RPM spindle speed., Swing 39.37", Max Cutting Diameter 33.85", Distance Between Centers 120", Machining Length ...more
JUST ADDED!

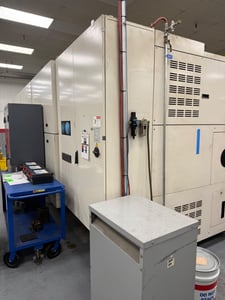

Daewoo Doosan #Puma-700LM, CNC turning center, 40.5" swing, 24" chuck, 6.5" bar, 141.7" centers, 126" length, A2-15, 12 turret, live tool, Fanuc 21ITB, 2006
