Manufacturer: Daewoo Doosan
Model: PUMA-700LM
Year: 2006
Swing: 40.5
Chuck: 24
Bar Capacity: 6.5
Centers: 141.7
Stock # 10261
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description

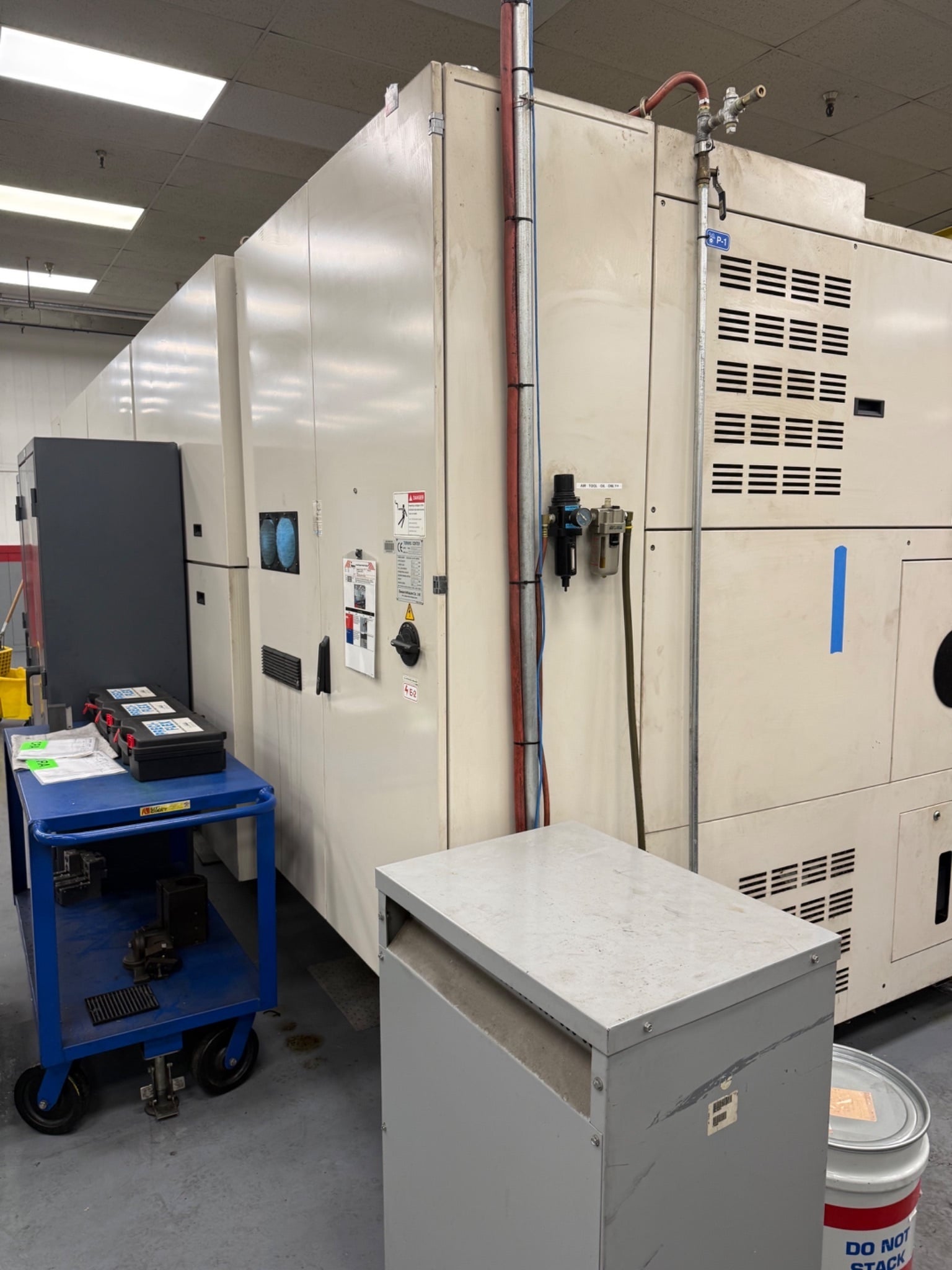

2006 DOOSAN PUMA 700LM
SPECIFICATIONS:
Swing Over Bed....................... 40.5"
Machining Length..................... 126"
Distance Between Centers............. 141.7"
Turning Diameter, Shaft Diameter..... 31.5"
Chuck Size 1......................... 24"
Spindle Nose 1....................... A2-15
Spindle Bore Diameter 1.............. 7.12"
Spindle Bar Capacity 1............... 6.5"
Spindle Speeds 1..................... 1,500 RPM
Spindle Horsepower 1................. 60 hp
X1 - Axis Travel..................... 18.5"
Z1 - Axis Travel..................... 127.36"
C1 - Axis Travel..................... .001
Rapid Traverse Rate - X1............. 400 in/min.
Rapid Traverse Rate - Z1............. 630 in/min.
Turret Configuration 1.............. 12
Turret Rotary Tool Spindle Speed 1... 3,000 RPM
Turret Rotary Tool Horse Power 1..... 15 hp
Tailstock Quill Diameter............. 5.9"
Tailstock Quill Travel............... 5.9"
Programmable Tailstock............... YES
Tailstock Travel..................... 124"
# Axis............................... 3
Bar Capacity......................... 6.5"
Tailstock............................ 'Yes'
Live Tooling......................... 'Yes'
Sub Spindle.......................... 'No'
EQUIPPED WITH:
FANUC 21ITB CNC CONTROL
HYDRAULIC STEADY REST
CHIP CONVEYOR
SPECIFICATIONS:
Swing Over Bed....................... 40.5"
Machining Length..................... 126"
Distance Between Centers............. 141.7"
Turning Diameter, Shaft Diameter..... 31.5"
Chuck Size 1......................... 24"
Spindle Nose 1....................... A2-15
Spindle Bore Diameter 1.............. 7.12"
Spindle Bar Capacity 1............... 6.5"
Spindle Speeds 1..................... 1,500 RPM
Spindle Horsepower 1................. 60 hp
X1 - Axis Travel..................... 18.5"
Z1 - Axis Travel..................... 127.36"
C1 - Axis Travel..................... .001
Rapid Traverse Rate - X1............. 400 in/min.
Rapid Traverse Rate - Z1............. 630 in/min.
Turret Configuration 1.............. 12
Turret Rotary Tool Spindle Speed 1... 3,000 RPM
Turret Rotary Tool Horse Power 1..... 15 hp
Tailstock Quill Diameter............. 5.9"
Tailstock Quill Travel............... 5.9"
Programmable Tailstock............... YES
Tailstock Travel..................... 124"
# Axis............................... 3
Bar Capacity......................... 6.5"
Tailstock............................ 'Yes'
Live Tooling......................... 'Yes'
Sub Spindle.......................... 'No'
EQUIPPED WITH:
FANUC 21ITB CNC CONTROL
HYDRAULIC STEADY REST
CHIP CONVEYOR
