Manufacturer: Okuma
Model: MULTUS-B250II-1SW/750
Year: 2022
Chuck: 8
Bar Capacity: 2.0
Stock # 29173
For Sale by Champion Machinery Inc
Surplus Record Dealer Since 2003
Trey Sprouse
803-54...> Show Seller's Phone Number 803-548-8000 Let the seller know you found their listing on Surplus Record!
Description
Details:
Features:
- Chuck Size 8"
- Max Diameter Bar Capacity 2.6"
- Spindle Motor 30 / 20 HP
- Spindle Speed 5000 RPM
- Spindle Nose A2-6
- Spindle Bore 3.15"
- Tools 60
- Sub Spindle Chuck Size 6"
- Sub Spindle Motor 15 / 10 HP
- Sub Spindle Nose 140 mm Flat
- Sub Spindle Speed 6000 RPM
- Rapid Traverse Rates (X & Z / Y / W) 1575 / 1023 / 787 ipm
- X-Axis Travel 19.69"
- Z-Axis Travel 31.5"
- Y-Axis 7.87"
- C-Axis Index (Left & Right Spindles) .001 Degrees
- Distance Between Spindles 40.55"
- H1 Index 0.001 Degrees
- H1 Spindle Speed 50 - 12000 RPM
- H1 Swivel 225 Degrees
- Max Tool Diameter 3.54" / 5.12"
- Max Tool Length 7.87"
- Max Tool Weight 8.8 lbs.
- Max Turning Diameter 23.62"
- W-Axis Travel (Sub Spindle) 31.89"
Features:
- OKUMA OSP-P300SA-H CNC Control
- 12.1" Color TFT
- USB Port
- H1 Upper Tool Spindle
- Programmable Sub Spindle
- Kitagawa 8 BB208 Hydraulic Chuck Left
- Kitagawa 6 B206 Hydraulic Chuck Right
- NC B-Axis with Contouring (0.001 Degrees)

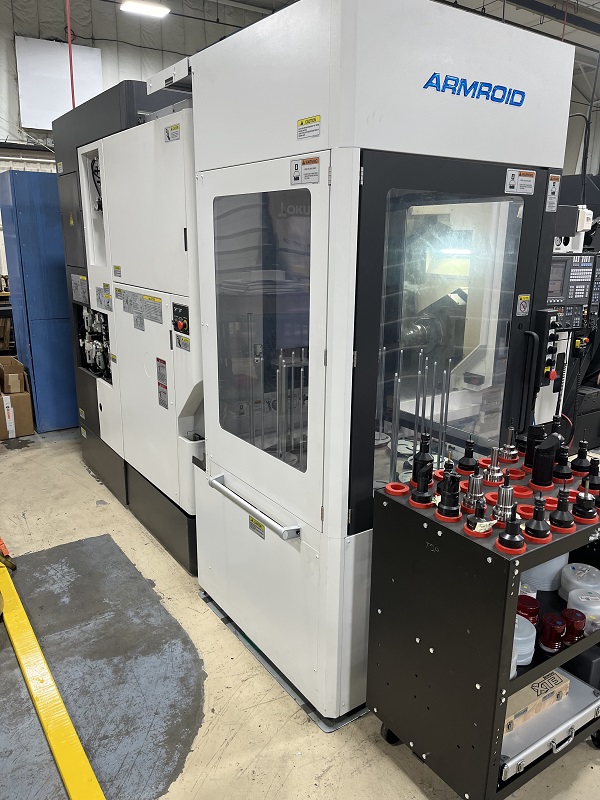

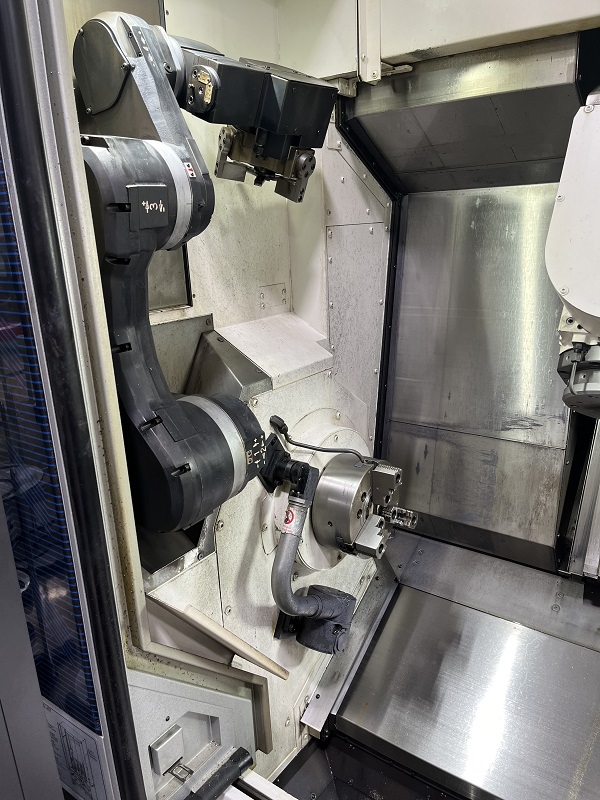

- Armroid A201 Robot 3-Jaw Spec
- Work Stocker 6 Station Lift Up Type
- End Effector Stocker 3 Station
- End Effector Work Support Roller
- 5-Axis Machining Kit
- High Precision C-Axis Both Spindles
- Spindle Motor Upgrade 30 HP Left
- 60 Tool Magazine (Capto C6)
- Auto Gauging Renishaw RMP600 RMI-Q Capto C6
- Renishaw Inspection Plus Software with GUI - Lathe
- Y-Axis Gauging with Slope Gauging
- Z-Axis Auto Zero Offset Function Both Spindles
- C-Axis Auto Zero Offset Function Both Spindles
- Touchsetter Auto Touch Sensor Gauging Interface Renishaw RMI-Q
- Lathe Tool Index Function Multi Edge 12 Position
- Chip Conveyor Right Discharge Drum Filter High 750
- C-Axis Torque Skip Function Both Spindles
- Constant Surface Speed for Y-Axis
- Additional Light OKUMA Logo
- Coolant Splash Gun
- Lubrication Monitor B-2
- User Task III
- 10 MB Program Cap
- Three Color Tower Light
- Lathe Tool Index
- Lathe Tool THD Clamp
- Tool Clamp Output Hold
- HI-G Control
- PFC II
- (10) Sets Work Coordinates
- (500) Sets Tool Offsets
- One Touch IGF Advanced
- Tape Data In / Out
- Home Position B
- Plane Conversion
- Profile Generation
- Synchronized Tapping
- Helical Cutting
- Slant Cutting
- Home Position
- Spindle Fluctuate
- NC Torque Limiter
- GM Code Macro
- Center Compensation
- Tool Center Control
- Super-NURBS Hi
- Super Hi-NC
- Super-NURBS Rac
- Inverse Time Feed
- G00 Linear Feed
- B-Axis Interpolation
- Turret Position Clamp
- 0.0001M Control
- Lap 4
- Nose Radius 2B
- User Task 3
- Expanded Auto Chamfer
- Arc Thread Cutting
- C Zero Offset
- Y Gauging
- Optical Sensor
- Pitch Error Compensation
- Tool Life Management
- Tool Wear Compensation
- Tool Offset System
- Inch / Metric Switchable
- Cycle Time Calculation
- NC Work Counter
- Cycel Time R New
- NC Work Monitor
- Cycle Time Check
- Load Monitor
- Mac Man
- DNC T-1
- DNC DT
- Hi-Cut Pro
- Thermal Compensation L2
- Spindle Orientation
- M-Axis Orient
- Spindle Max IL
- Coordinate Conversion
- Coordinate Calculate
- Program Message
- Custom-API
- Use Tool Display
- Machining Mode
- Nose-R Direction Change
- Base Operating System
- Tool Mac Information
- Offset Base Fix
- Axis Active Stop
- Variable Lost Motion
- Servo Navi L
- CE Marking
- CE Marking Stop
- New Operation Panel
- Servo Link NC
- Servo Link Spindle
- Not New R Spec
- Collision Avoidance System
- Program Help
- Help
- 3D Animation
- Animation
- Y-Mode Touch Setter
- 3D Coordinate Conversion
- Hi-Speed Restart
- Sup VL Dip Reg
- Robot Dandori Display
- Cycle Mode Set
- Short Rapid Droop
- EES Motor
- Con Back Spindle
- Super Easy Set
- Tool Direction
- Tool Direction Compensation
- TCPC Machine Co
- TCPC Sub Spindle
- Super Prof Gene
- Rapid Feed Speed Set
- Work Weight Set
- C-Axis Manual Coordinate
- SDF Separate NC
- SDF Separate SP
- MFU
- Spindle Collision Detection
- Rotary Notch Fil
- Gather Aging
- Machine Diagnostics
- Eco Suite
- Eco Suite Plus
- OSP Suite
- Thermal Compensation OilCon
- Mac Time Short
- Spindle Out Monitor
- Suite Without Widget
- Remaining Time Display
- Chuck Grasp Confirmation
- Y-Axis Turning
- Easy Operation Panel
- Multi Operation Panel
- EOP Animation Scale-Up
- Base Zero Z V Measure
- Road TCP
- Adjustable Path Align
- Position Smoothing
- Coolant Level Check
- Safety Tape SW
- Chuck IL RLS
- 2 Chuck PDL 1SP
- 2 Chuck PDL 2SP
- Oil Cooler Alarm A
- Ex Brake Release
- Spindle Orientation Electric
- First Spindle Oil Cooler
- Second Spindle Oil Cooler
- Coolant Through Spindle
- M-Axis Orientation
- B-Axis Position LOMP
- ATC Type H
- Mechanical Lock Door 1
- Override Special
- Load Monitor
- Air Pressure Detection
- Program Stop Special
- Oil Level Detection
- Thru Airblow IL
- B-Panel
- OSP Chip Convere
- High Pressure Coolant Unit 3
- C-Axis Brake Torque Limiter
- Coolant L/M Change
- Touch Setter
- Touch Setter Motor
- Touch Sensor
- Optical Sensor
- Door IL S
- Auto Door
- DnC-B
- Chip Conveyor Check
- Portable PH
- B-Axis Turret
- Turret Type H1
- TR Pendulum Control
- B-Axis Interpolation
- Slant-Y Axis
- MG Door Mechanical Lock
- NC Turret with Brake
- New CEMK
- Thermal Oil Cooler
- EE Manual Change
- Armroid Client
- EES Type-B
- Armroid CO Hand
- First Spindle C Gain Cut
- Second Spindle C Gain Cut
- PH Type B
- Spindle Diagnostics
- Manufacture Date May 2022
- New Replacement Cost $731,151

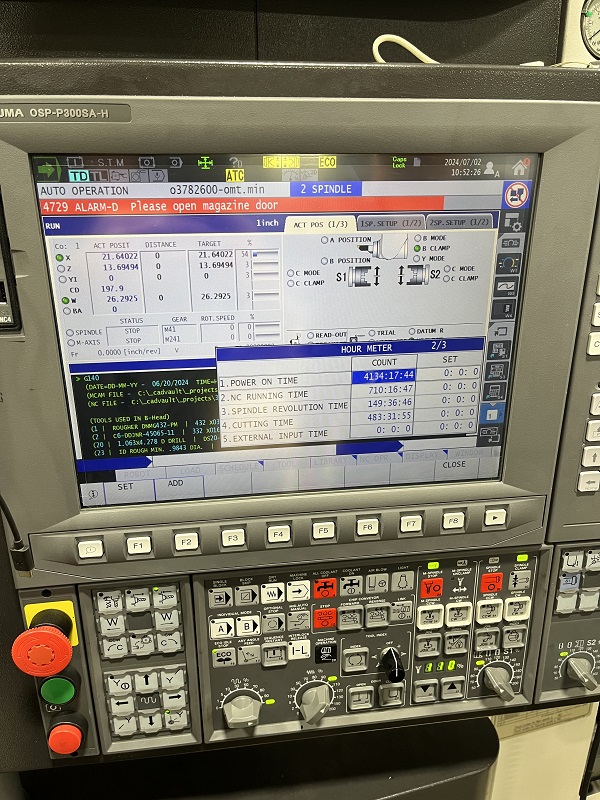

- 4134 Power On Time
- 710 NC Running Time
- 149 Spindle Revolution Time
- 483 Cutting Time
Get Your Price from Champion Machinery Inc!
Buyers Who Viewed This Listing Also Viewed …
Okuma #Multus-B250II-1SW/750, CNC lathe, 24.8" swing, 10" chuck, 3.1" bar, 35.4" centers, A2-6, 5000 RPM, 30 HP, B-Axis, 2022
Category: CNC Lathes and Turning Centers
Seller: Machinery Resources Intl
Location: Simi Valley, CA
Mfr: Okuma
Model: MULTUS-B250II-1SW/750
Year: 2022
2022 Okuma Multus B250II-1SW/750 CNC Lathe with B-Axis | AB 7612206, SWING OVER SADDLE: 24.8", DISTANCE BETWEEN CENTERS: 35.43", X-AXIS TRAVEL: 22.83", Y-AXIS TRAVEL: +/- 3.15", Z-AXIS TRAVEL: 35.51", W-AXIS TRAVEL: 39.37", B-AXIS TRAVEL: 30 TO +195 DEGREE, B-AXIS INDEXING: 0.001 DEGREE, MAIN SPINDLE CHUCK SIZE: 10" ...more
JUST ADDED!
Femco #HL-25, CNC lathe, 17.7" swing, 8" chuck, 2" bar, 9.84" dia., 23.62" lgth, 20 HP, 4800 RPM, tailstock, chip conveyor, 2008
Category: CNC Lathes and Turning Centers
Seller: PM Machines
Location: Santa Ana, CA
Mfr: Femco
Model: HL-25
Year: 2008
2008 FEMCO HL-25, Swing. 17.72", Machining Length. 23.62", Chuck Size. 8", Bar Capacity. 2.04", Power. 20 hp, Max RPM. 4,800 RPM, Turning Dia. 9.84", Tailstock. Yes, Chip Conveyor, Toolholder Package, 8" Chuck.
JUST ADDED!

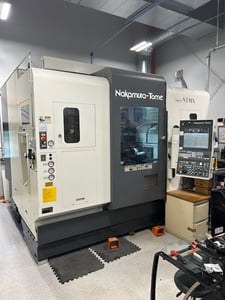

Nakamura -Tome #Super-NTMX, CNC turning center, 8" chuck, 2" bar, 7.87" dia., 30.71" lgth, 10 HP, 12k RPM, 6-Axis, 2014
