For Sale by Premier Equipment Inc
Description

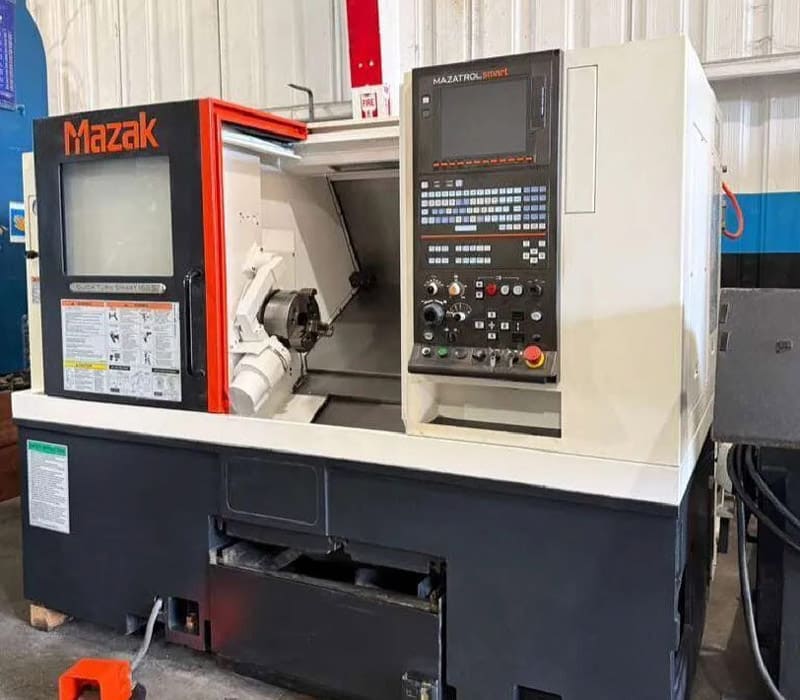

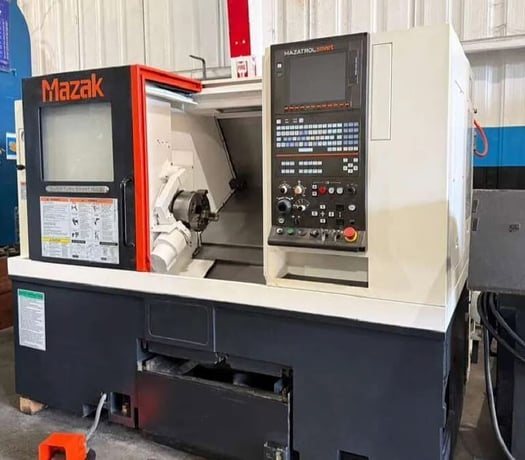

MAZAK QT SMART 150S CNC TURNING CENTER
SPECIFICATIONS:
Capacity:
Max Turning Diameter : 13.00″
Max Turning Length : 20.47″
Max Swing Over Bed: 22.83″
Max Bar Capacity : 2.04″
Travels:
X Axis Travel : 7.87″
Z Axis Travel : 22.00″
Feedrate:
Rapid Traverse X Axis: 1299 IPM
Rapid Traverse Z Axis: 1417 IPM
Spindle:
Spindle Bore: 2.40″
Spindle Nose: A2-6
Spindle Speed: 5,000 RPM
Spindle Power: 20 HP
Turret:
Turret Capacity: 8 Stations
Turning Tool Shank Size: 1.0″
Boring Bar Shank Diameter: 1.57″
Turret Index Time: 0.2 Seconds
Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Diameter : 4.33″
Tailstock Quill Travel : 3.93″
General:
Power Source: 27 kva / 400v / 50/60 Hz / 3-Phase
Overall Dimensions: 86.16″ X 63″ X 67″ High Approx.
Weight: 8,360 lbs. Approx.
EQUIPPED WITH:
Mazatrol Smart CNC Control)
8″ 3- Jaw Kitagawa B-208 Chuck
Automatic Tool Presetter
Tailstock
Foot Operated Control for Chuck
Chip Conveyor
(3) Boring Tool Holders Mounted on Turret (As Shown in the images)
