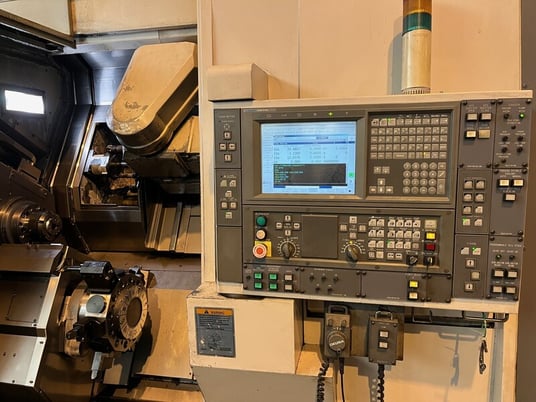

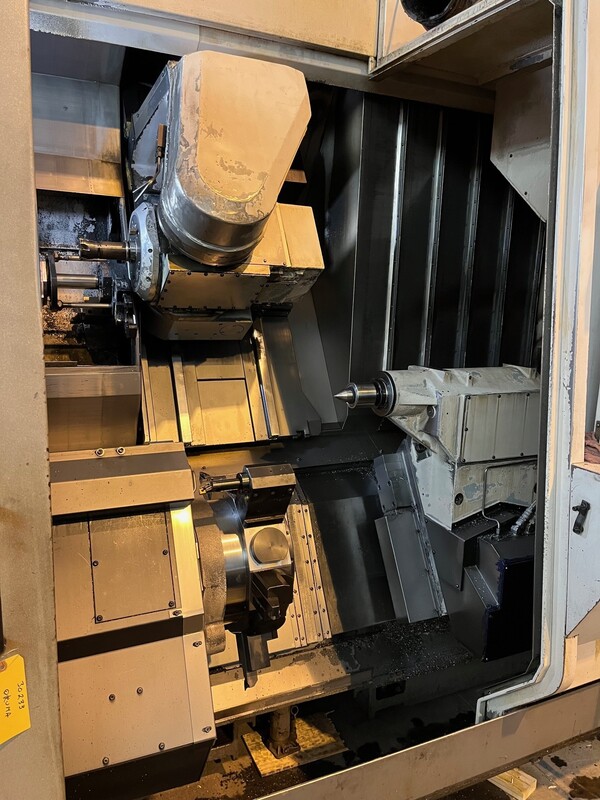

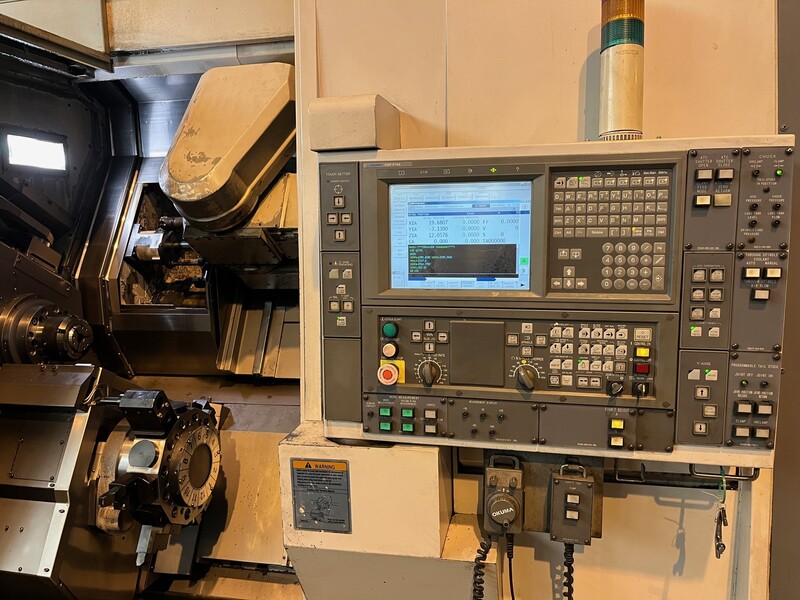

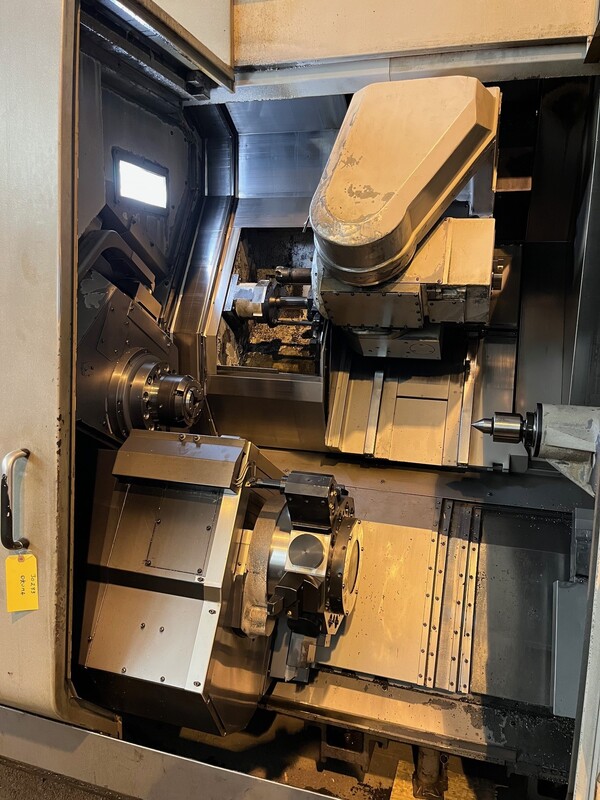

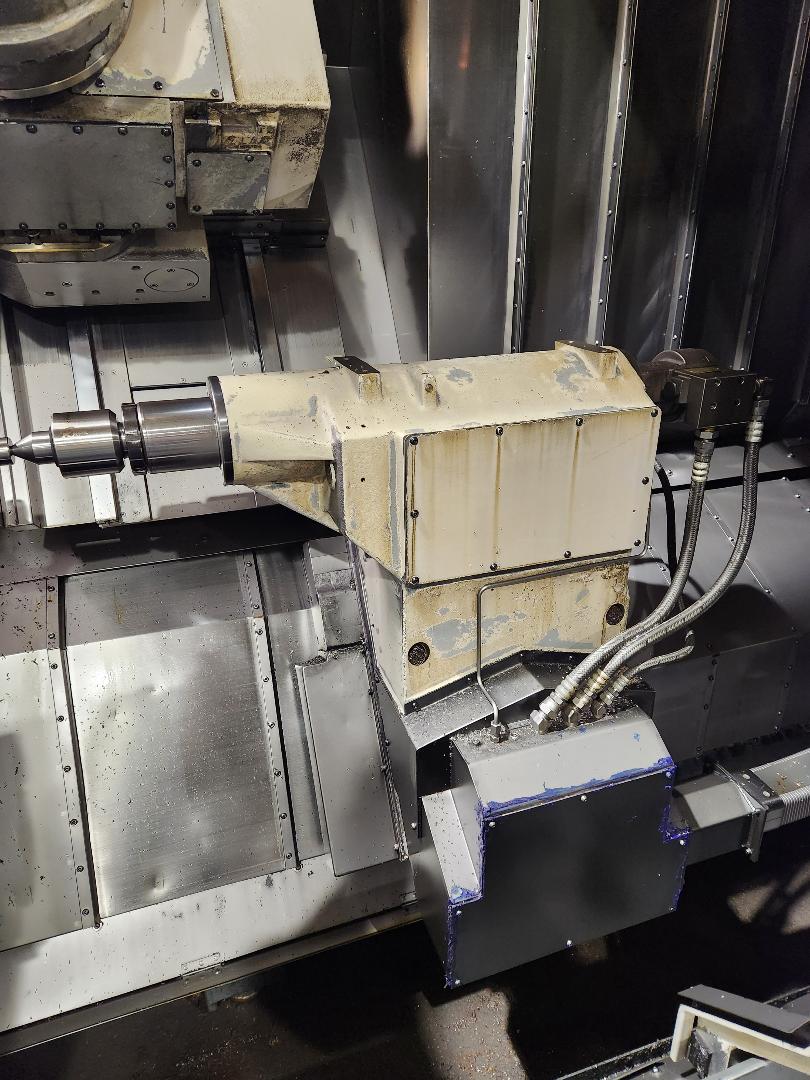

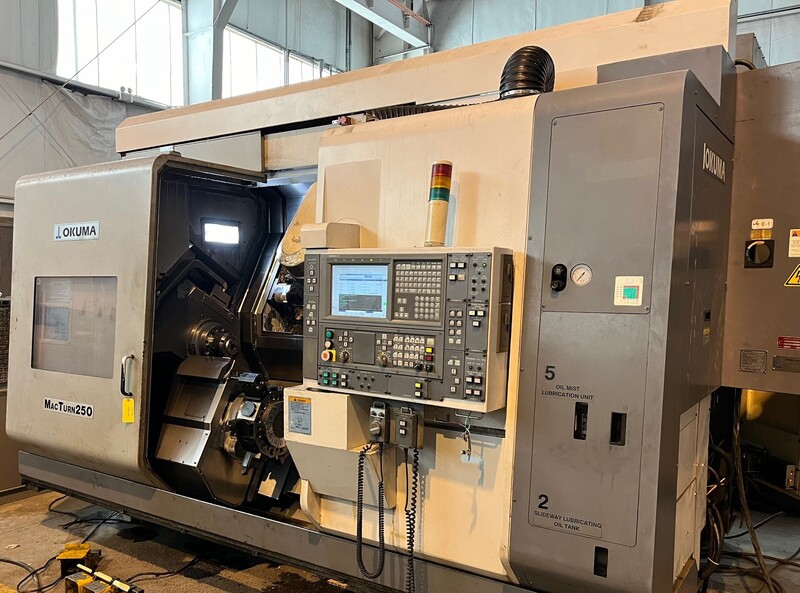

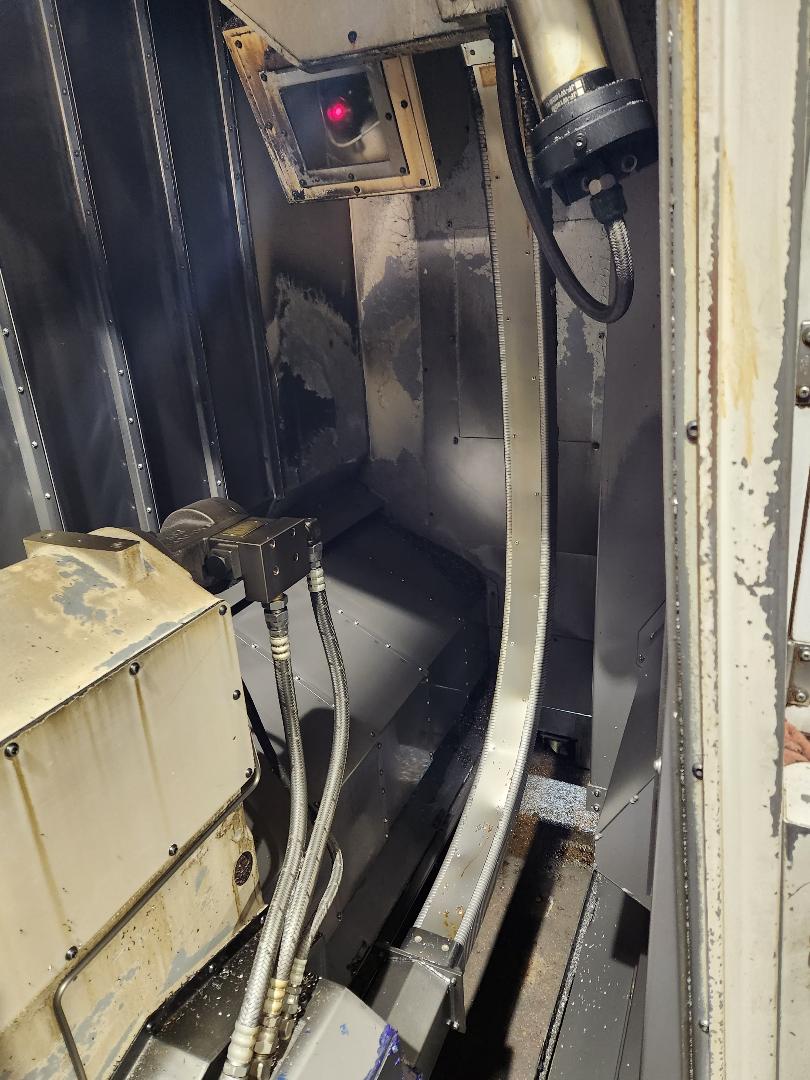

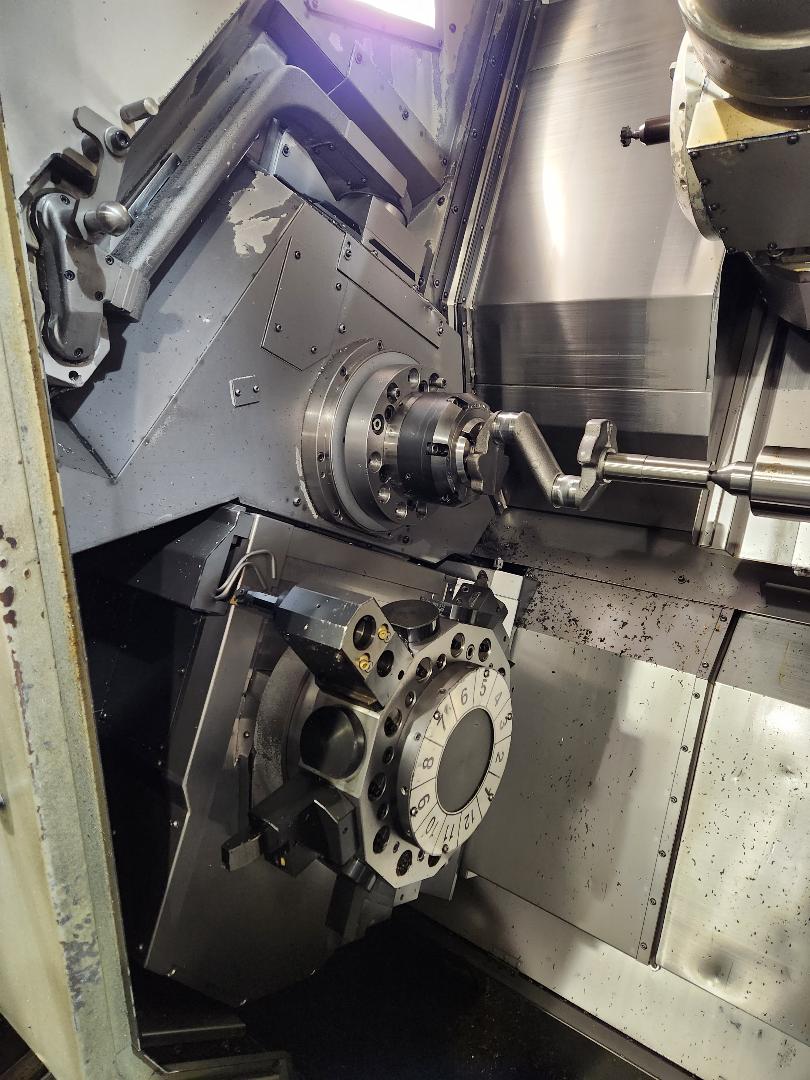

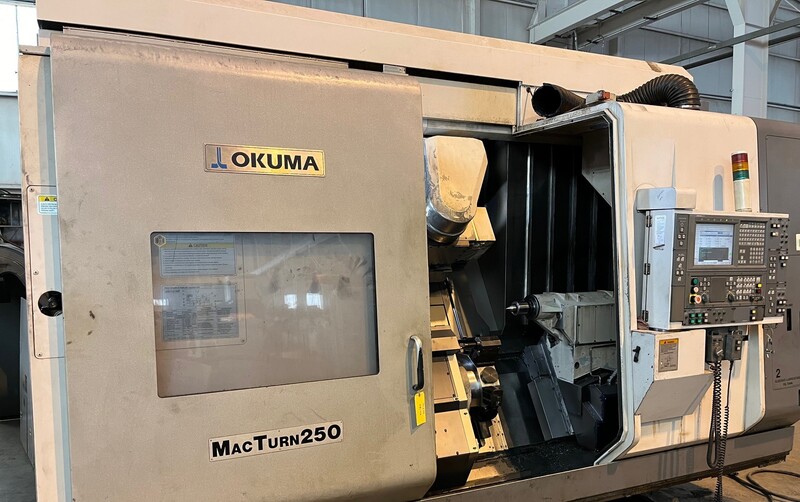

OKUMA "MACTURN 250-2S/1000" BIG-BORE 5-AXIS CNC TURNING CENTER W/LIVE MILLING New 2005, Serial No 116135, Model Macturn 250-2S/1000 OKUMA "MACTURN 250-2S/1000" BIG-BORE 5-AXIS CNC TURNING CENTER W/LIVE MILLING New 2005, Serial No 116135, Model Macturn 250-2S/1000 EQUIPPED WITH: OSP-P100L CNC Control w/CRT 44-Position Automatic Tool Changer 5-Axis Machine Design 3.15" Spindle Bore - A2-8 Spindle Nose Collet-Type Chuck w/Kitagawa Hydraulic Actuator Renishaw Automatic Gauging C-Axis Zero Offset Countermeasure For Collision Between H1 Turret And Tailstock Tailstock - Lift-Up Chip Conveyor CATALOG SPECIFICATIONS: Spindle Bore Diameter 3.15" Bar Diameter Capacity 2.75" Swing Over Bed, Maximum 21.65" Swing Over Saddle 20.87" Work Diameter, Maximum 21.65" Work Length, Maximum 39.37" X-Axis Travel, XA Turret 18.70" X-Axis Travel, XB Turret 6.30" Z-Axis Travel, ZA Turret 40.06" Z-Axis Travel, ZB Turret 45.47" Y-Axis Range 160 (+80 to -80) Y-Axis Range 6.30 (+3.15 to -3.15) C-Axis Rotation, Range 360-DEGREES C-Axis Rotary Control Angle 0.001-DEGREES B-Axis Angle 210-DEGREES B-Axis Indexing 1-DEGREE Main Spindle Speeds, Range to 5000 RPM Milling Spindle Speeds, Range to 6000 RPM Tailstock Quill Diameter 3.54" Tailstock Bore Taper 5 MT Tailstock Quill Travel 5.91" Main Spindle Horsepower 30/20 HP Milling Spindle Horsepower 15/10/7.5 HP Overall Dimensions, L x W 170" x 100" Overall Height 114" Weight Approximately 25300 LBS F.O.B. OUR WAREHOUSE
THE OKUMA MACTURN 250-2S/1000 IS A BIG-BORE 5-AXIS CNC TURNING CENTER LIVE MILLING CAPABILITIES AND AN OSP-P100L CNC CONTROL. IT S A 30-POSITION AUTOMATIC TOOL CHANGER AND A 5-AXIS MACHINE DESIGN, INCLUDING 360-DEGREE C-AXIS ROTATION (0.001-DEGREE CONTROL ANGLE) AND A 210-DEGREE B-AXIS ANGLE (1-DEGREE INDEXING)., KEY ...more
