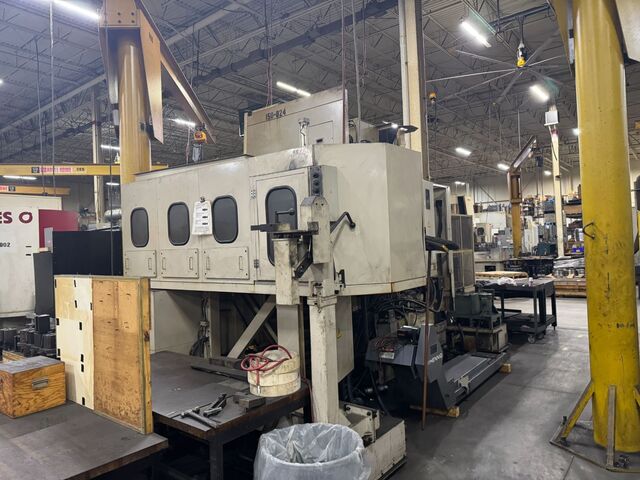

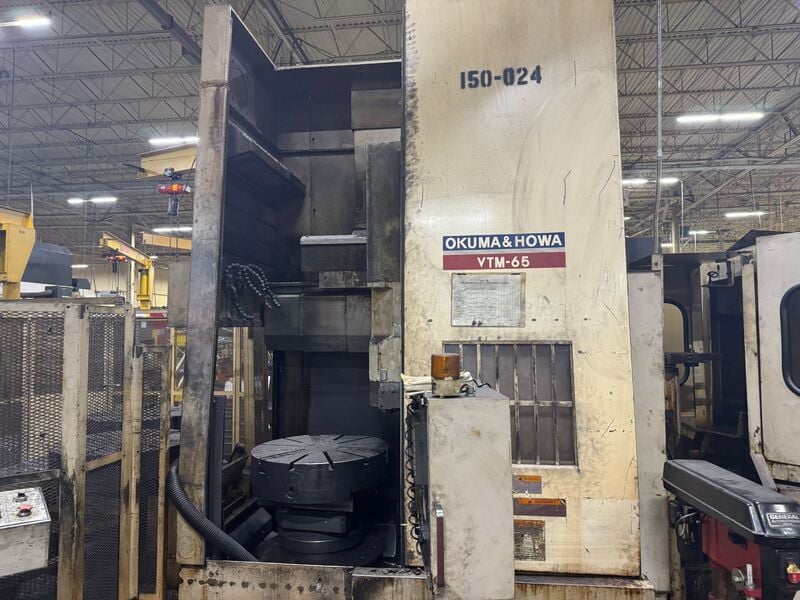

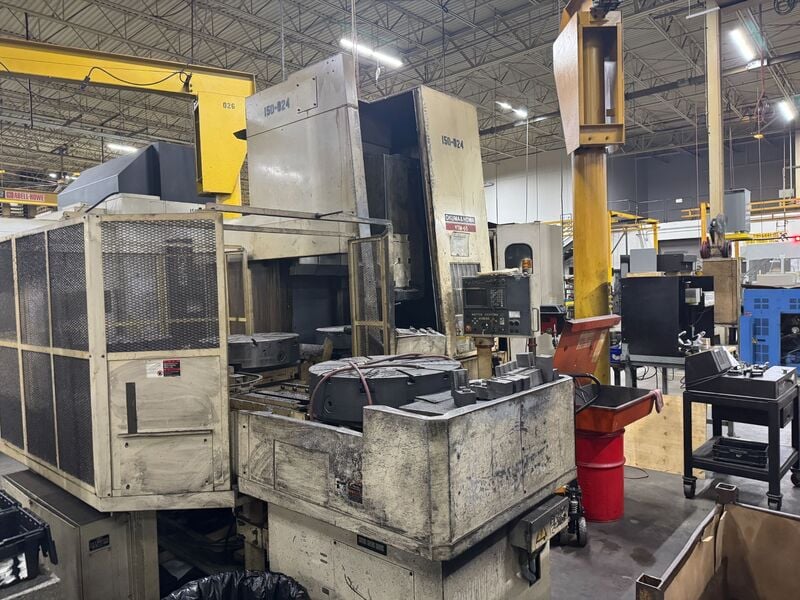

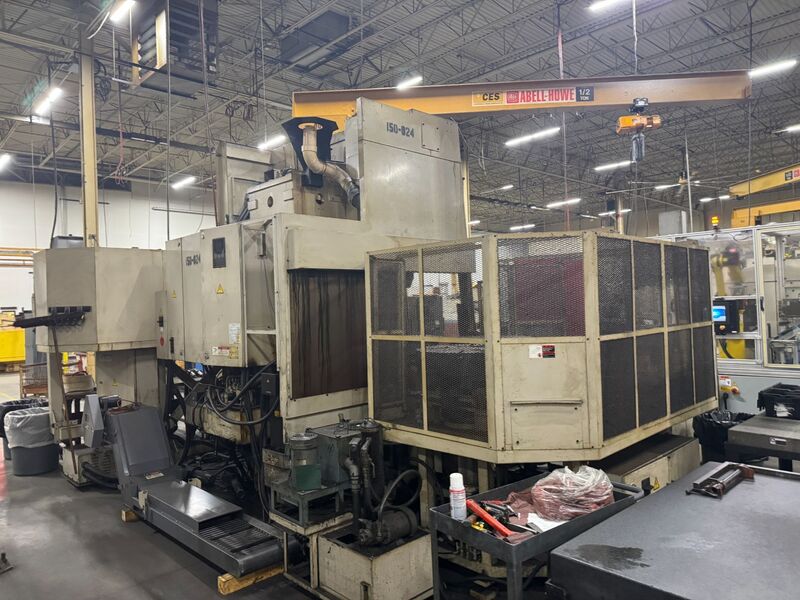

Okuma-Howa #VTM-65, CNC vertical turning, milling, boring center, 39.4" swing, 29.5" table diameter, 1999

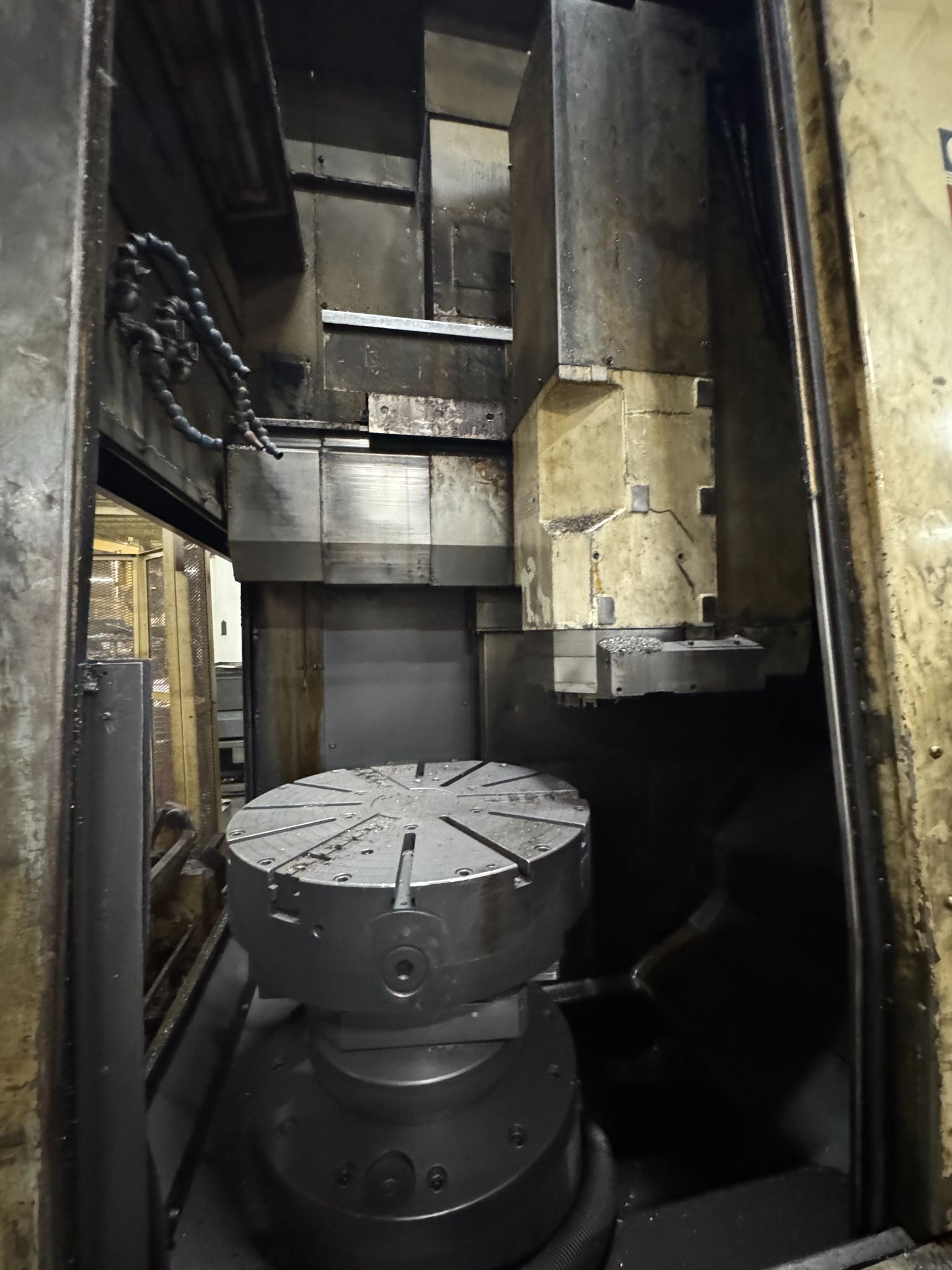

VTM-65 3-axis vertical turning center combines the benefits of a vertical lathe with those of a machining center. The 50-taper 36-tool magazine enables this machine to offer both turning and milling operations on a single platform. It is the ideal machine for efficient low-volume parts production, including valve bodies and work that requires heavy milling. The box-way construction and wide, angular slideways on each axis provide high rigidity for accurate machining. A vertical axis counterbalance assures smooth, stable feed at all speeds. The headstock is fixed to the base, minimizing the influence of thermal changes and vibration on cutting accuracy. In addition, the VTM-65 is available with a wide range of standard accessories, including a spindle orientation function.
Specifications:
Maximum Swing Diameter: 29.53"
Maximum Machining Diameter: 25.59"
Maximum Machining Length: 25"
Maximum Workpiece Load: 1,760#
X-Axis: 19.69"
Z-Axis: 25"
C-Axis: 360 Degrees
Speed: 1,250 min.1
Type of Spindle Nose: JIS A2-11
Maximum Tools: 36
Work Spindle Motor: 40/30 HP
Milling Tool Motor: 10/7.5 HP
Height: 161.42"
Floor Space (L x W): 160.08" x 119.29"
Weight: 24,200#
