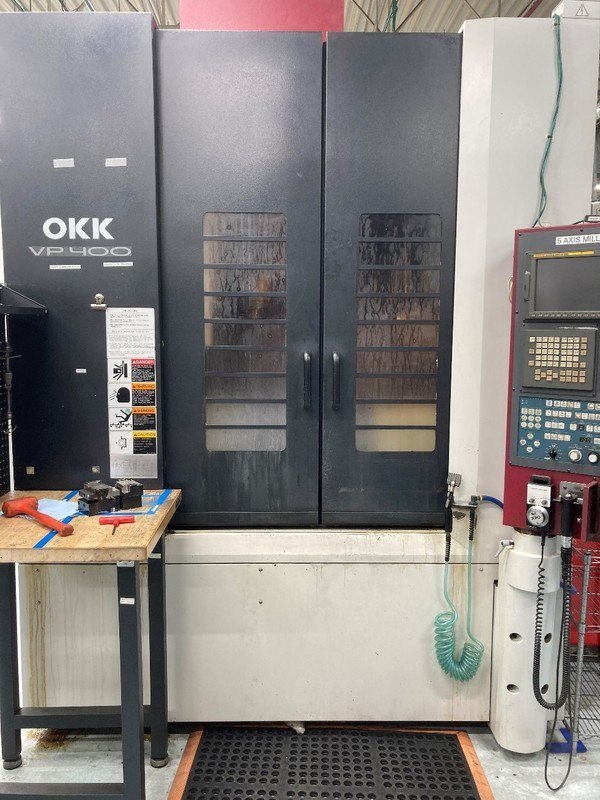

OKK #VP-400, CNC vertical machining center, 20 automatic tool changer, 23" X, 16" Y, 18" Z, 12000 RPM, 10 HP,Dual-Platter Trunnion, 2010, (2 available)

OKK VP400 Vertical Machnining Center
New - 2010
Serial No. 355
SPECIFICATIONS:
Travels:
- X-Axis............23.62"
- Y-Axis............16.14"
- Z-Axis............18.11"
Table:
- Distance from Surface to Spindle Nose............5.91" - 24.02"
- Work Surface Area............35.43" x 16.14"
- Workpiece Weight - Maximum............1,100 Lbs.
Spindle:
- Speed - Infinitely Variable............100 - 12,000 RPM
- Nose............BT40
- Motor............10/7.5HP (30 Min./Continuous)
Speed:
- Rapid Traverse Rate............1,890 IPM (X, Y) 1,417 IPM (Z)
- Cutting Feed Rate............1,417 IPM
Electrics:
- Power Supply............28 kVA
- Supply Voltage............AC200V(+/-10%) / AC220V(+/-10%³)
- Supply Frequency................50/60(+/-1) / 60 (+/-1)
Automatic Tool Changer:
- Capacity............20
- Tool Diameter - Maximum...........4.33"
- Tool Length - Maximum............11.81"
- Tool Weight - Maximum............15.4 Lbs.
- Selection Method............Memory Random
- Tool-to-Tool............1.2 sec.
- Cut-to-Cut............3.8 sec.
Spindle Cooling Oil Tank Capacity............13.2 Gal.
Coolant Tank Capacity............74 Gal.
Required Floor Space (w/Maintenance Area)............118.11" x 129.92"
Machine Dimensions - Actual............136" L x 80" W x 117" H
Chip Conveyor Dimensions - Actual............133" L x 31" W x 67" H
Chiller Dimensions - Actual............36" L x 32" W x 46" H
Machine Weight - Catalog............18,600 Lbs.
EQUIPPED WITH:

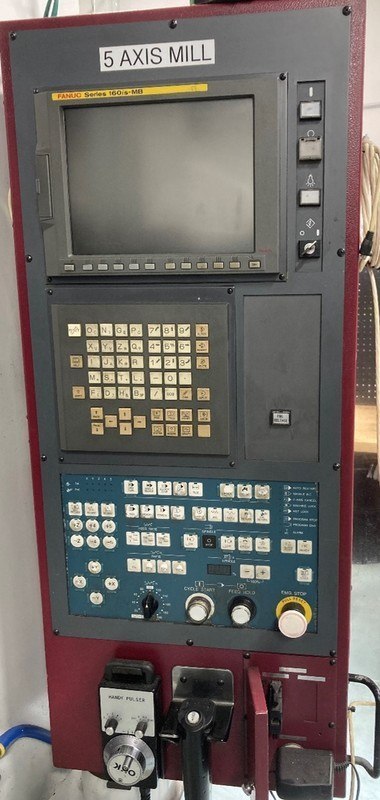

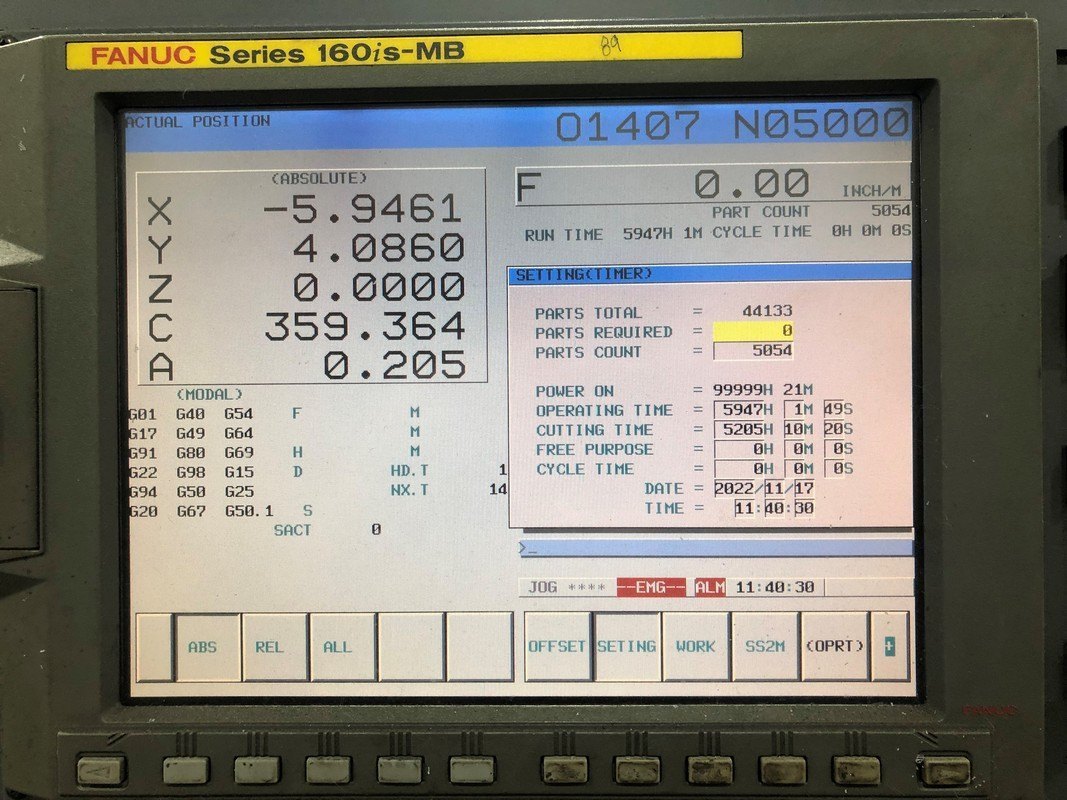

Fanuc 160is - MB Control

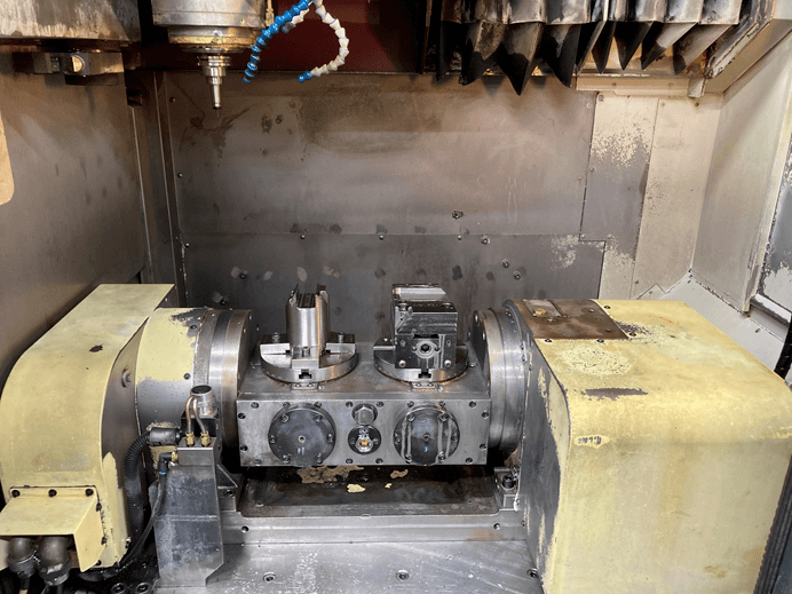

Nikken Model 5AX-2MT-170-200FA Dual platter rotary trunnion table
Coolant filtration system

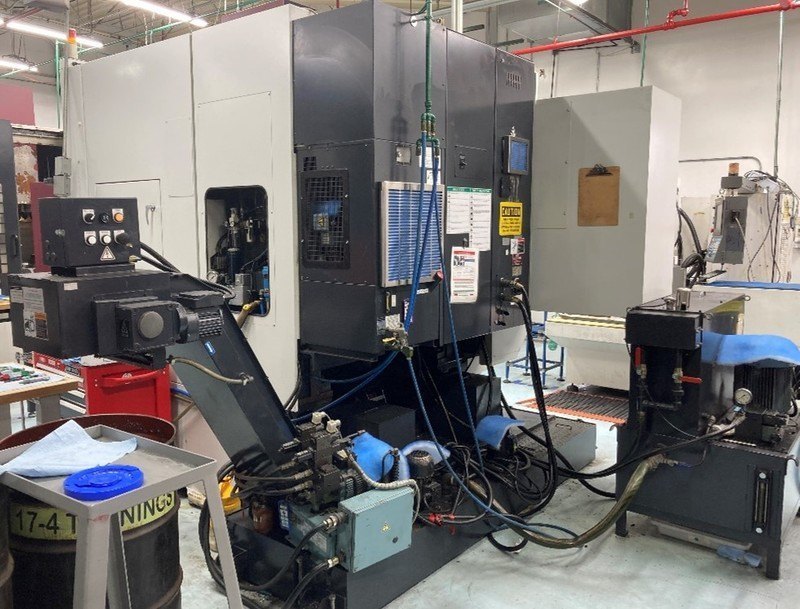

Chip conveyor
*Preliminary specifications, pending confirmation.
