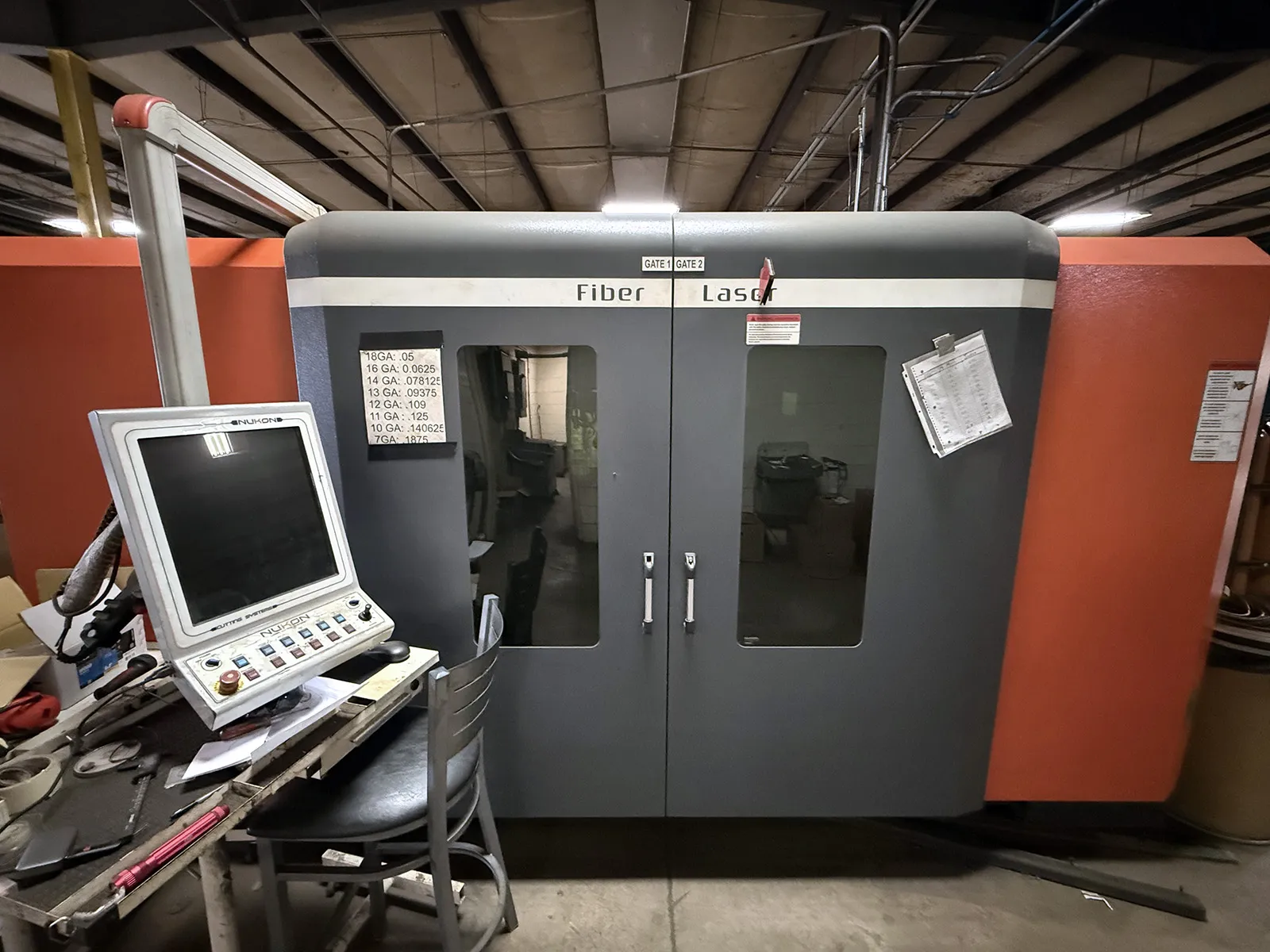

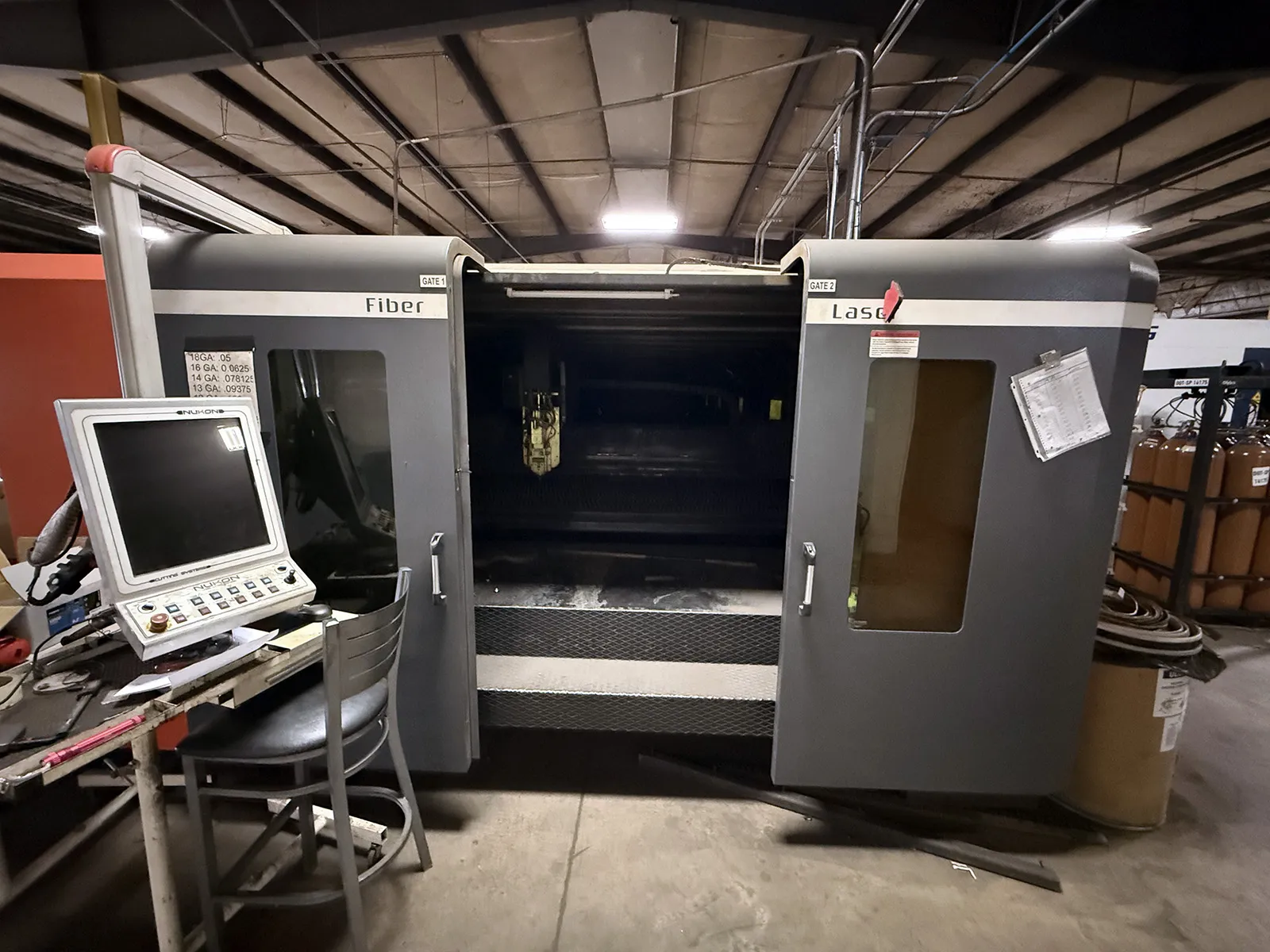

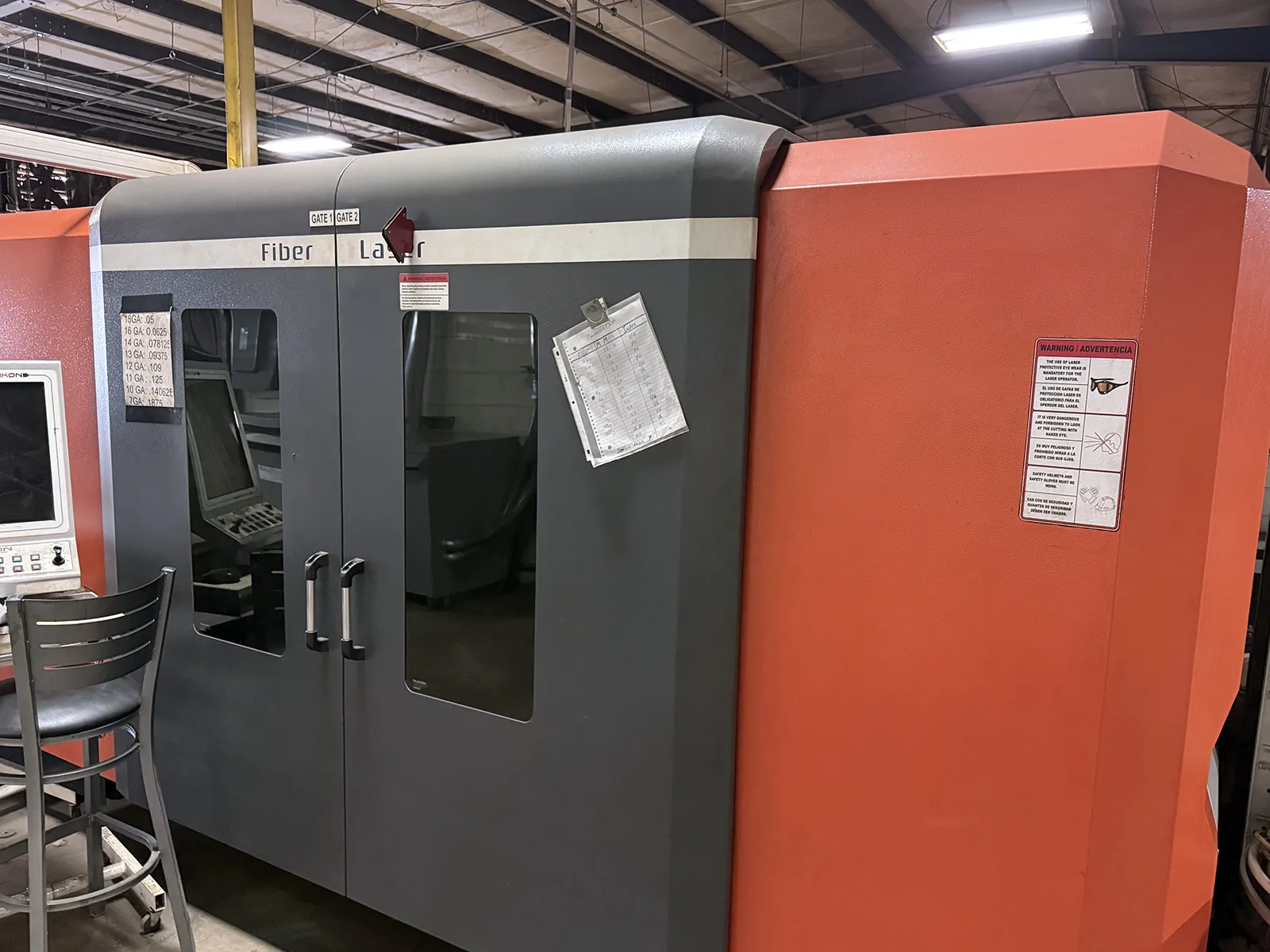

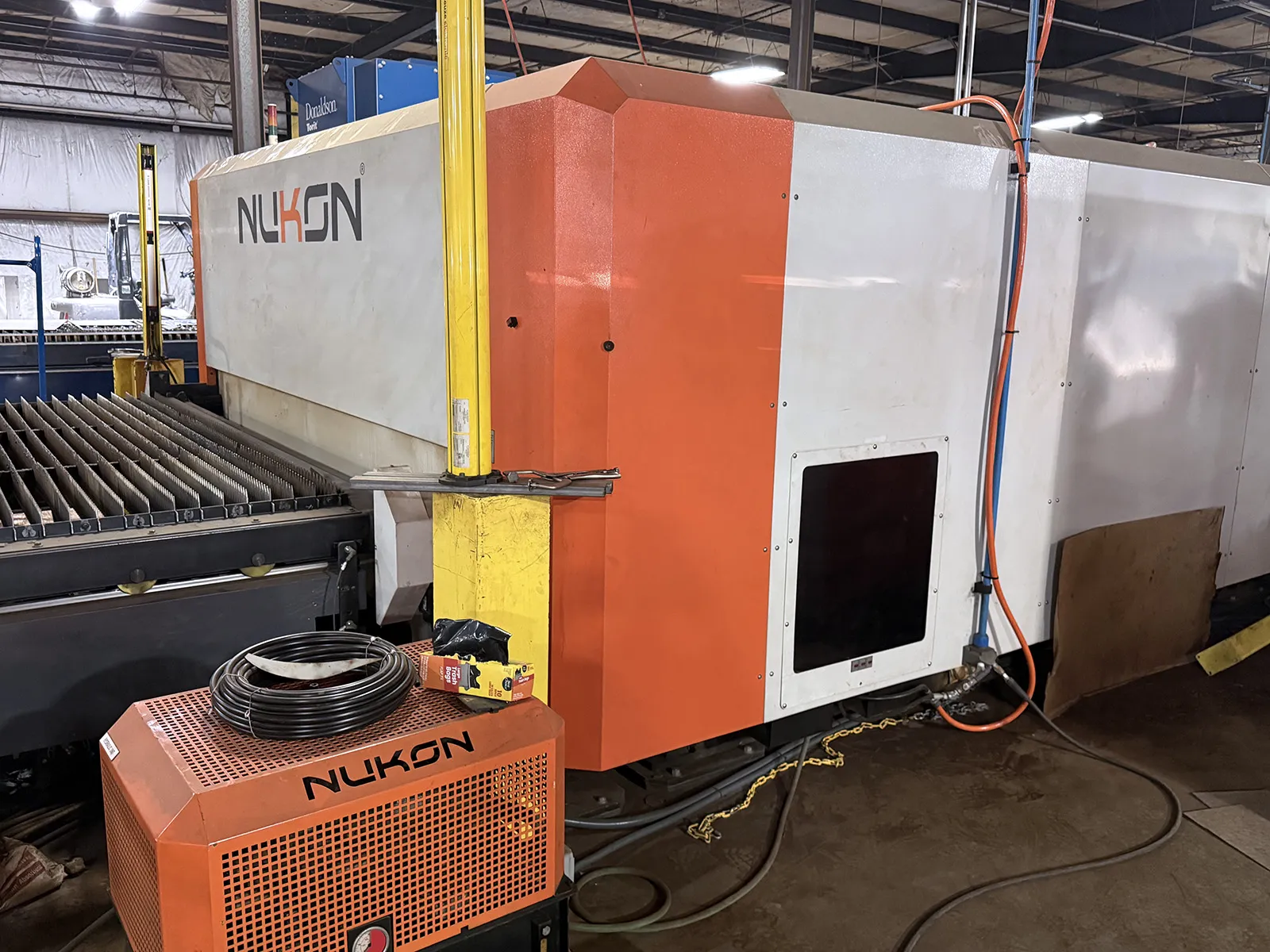

Nukon #12525, CNC fiber laser, 4 kW, 8' x 40' dual shuttle table, 0.787" mild steel capacity, 2016

The Nukon 12525 4kW Fiber Laser with 8' x 40' dual tables (2016) is a high-performance CNC laser cutting system built for large-format, high-speed sheet metal fabrication. Designed for precision cutting and continuous production, it delivers exceptional efficiency for manufacturing complex metal components in agriculture, automotive, defense, and industrial shelving industries. Its dual-table configuration maximizes productivity by reducing downtime, making it an ideal solution for demanding industrial fabrication environments.
Table Size: 8'x 40'
Travels
Sheet / table size: 99.61" × 474.41"
Axis Travels
X Axis: 474.41"
Y Axis: 99.61"
Z axis: 5.71"
Working table height: 35.43"
Performance
Acceleration: 472.44 in/s
Max axis speed (X/Y simultaneous): 4,133.86 in/min
Positioning accuracy (Pa): 0.00394"
Max loading capacity: 30,865 lb
Shuttle table change time: 125 sec
Control panel: 19" multitouch screen
Assist gas pressure
Assist gas pressure - O: ~218 psi (15 bar)
Assist gas pressure - N: ~363 psi (25 bar)
Power consumption (4 kW column): 32 kVA, 380400V, 3-phase 10%
Cutting Capacity
Mild Steel: 0.787" (20 mm)
Stainless Steel: 0.472" (12 mm) / up to 0.591" (15 mm*)
Aluminum: 0.394" (10 mm) / up to 0.472" (12 mm*)
Brass: 0.236" (6 mm) / up to 0.315" (8 mm*)
Copper: 0.236" (6 mm) / up to 0.315" (8 mm*)
APPROX MACHINE WEIGHT: 110,231 lb
