Nordson EX-007 Hot Melt Adhesive Extruder – P/N 6096909

Specifications

• Manufacturer: Nordson
• Model: EX-007
• Part Number: 6096909

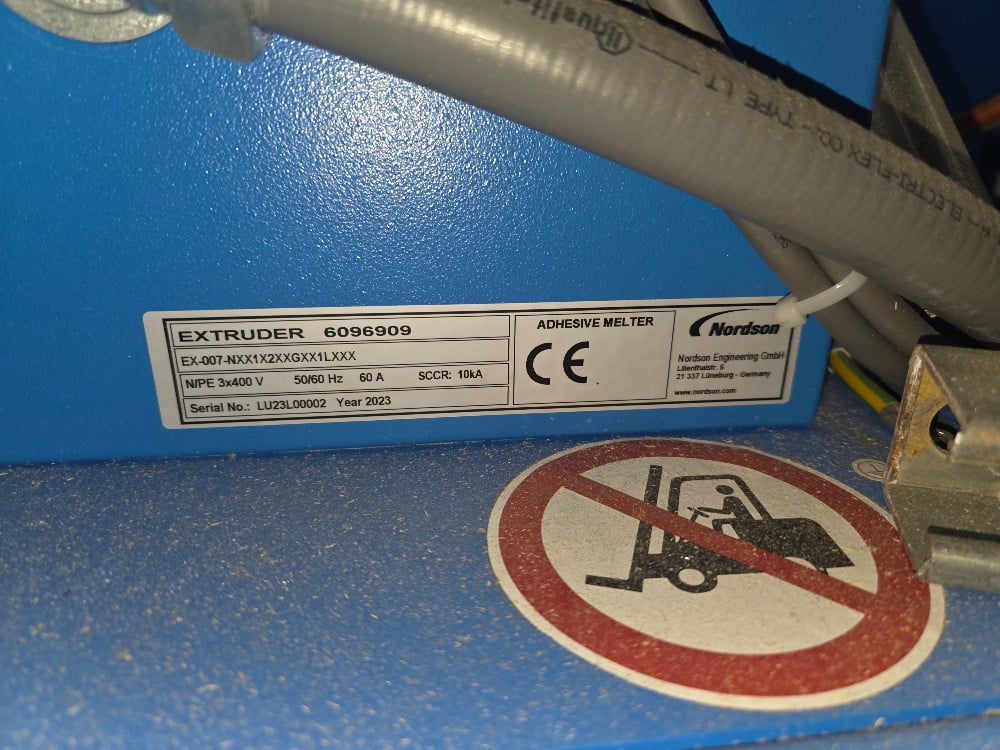

• Configuration: EX-007-NXX1X2XXGXX1LXXX
• Temperature Sensor: NI 120
• Maximum Temperature: 200°C
• Hose Connection: 8 mm
• Hose/Gun Connections: 1 H&G
• Hopper Level Sensors: 2
  • Hopper Empty
  • Hopper Nearly Empty
• Protective Grid: Yes
• Display: Large Screen
• Controls: Hardwired I/O
• Power Supply: 3x400VAC + N + PE, 50 Hz
• Cooling Device: Not Included
• Recommended Cooling Device: Nordson P/N 7528555
• Maximum Melt/Delivery Capability: Approximately 7 kg/hr

Condition

Used industrial equipment.

Removed from industrial production equipment.

Unit was operational when removed from service.

Please review all photos carefully for actual condition and included components. Only the equipment pictured and specifically described in this listing is included.

Description

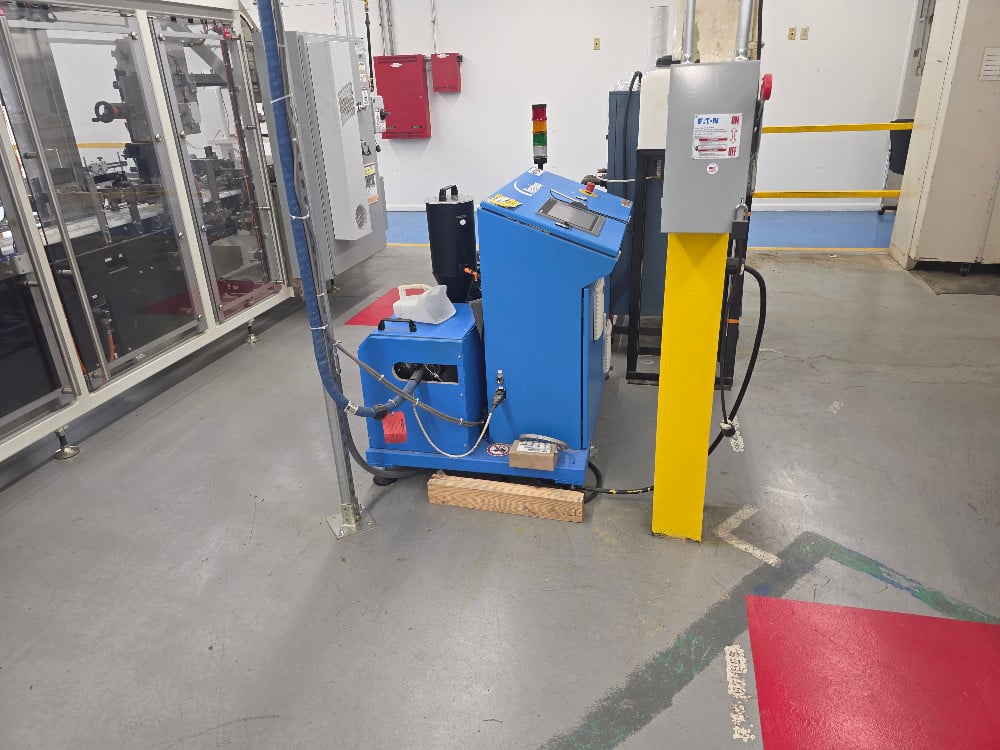

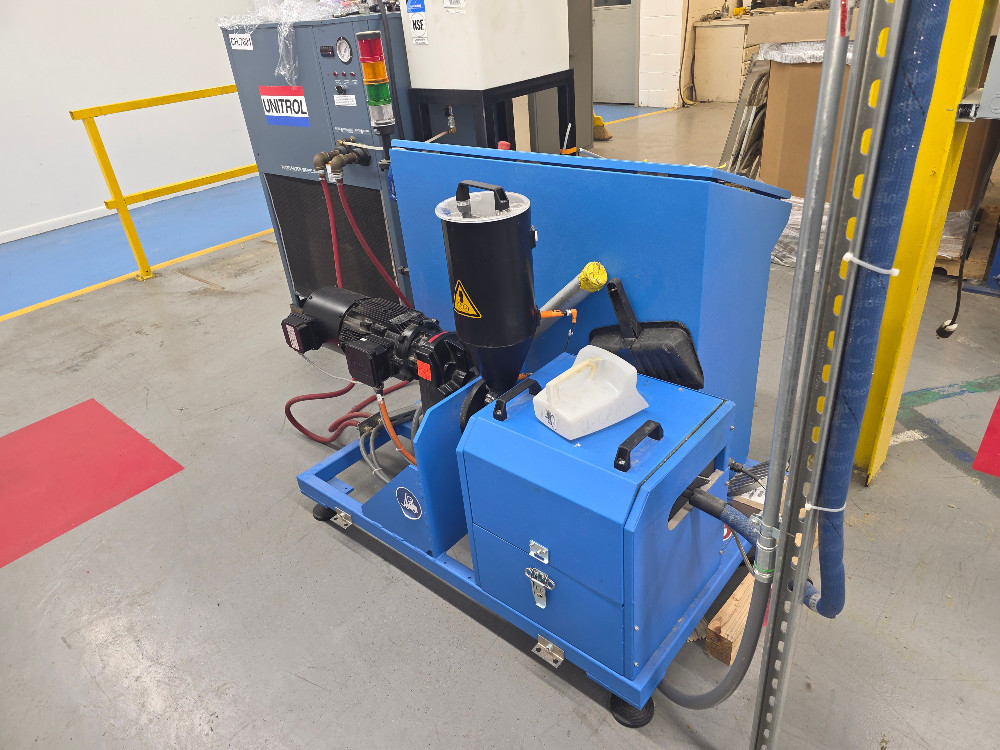

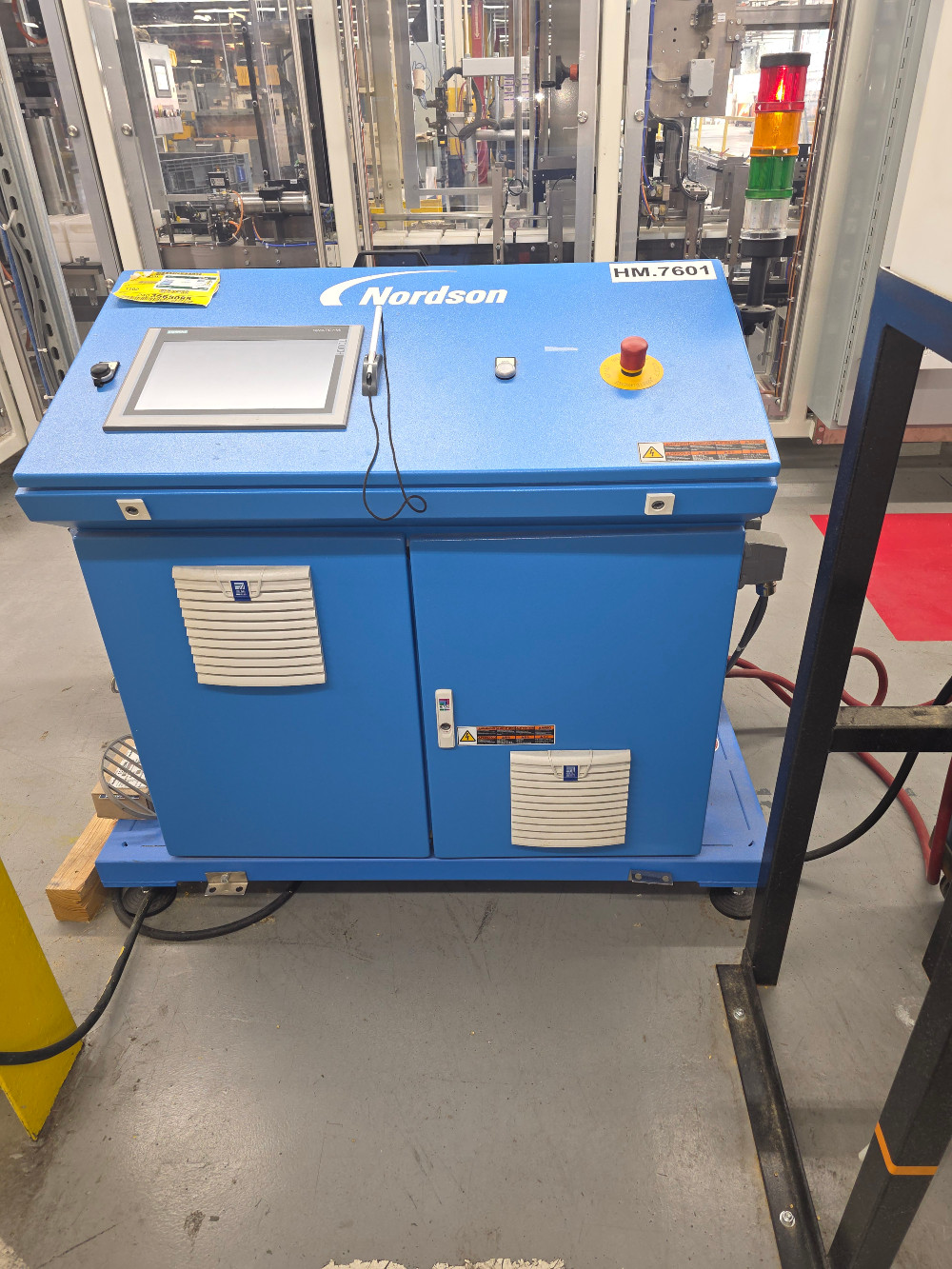

Nordson EX-007 industrial hot melt adhesive extruder, Part Number 6096909.

This unit is designed to melt and deliver adhesive on demand. The original Nordson application documentation specified the EX-007 for a production application using Henkel PA2192B polyamide hot melt adhesive at an application temperature of 410–464°F.

The EX-007 is rated in the original application documentation for approximately 7 kg/hr maximum melt/delivery capacity. The application itself required approximately 3.7 kg/hr.

Important: This listing is for ONE (1) Nordson EX-007 extruder only. Guns, hoses, applicators, cooling system/chiller, and other accessories are not included.

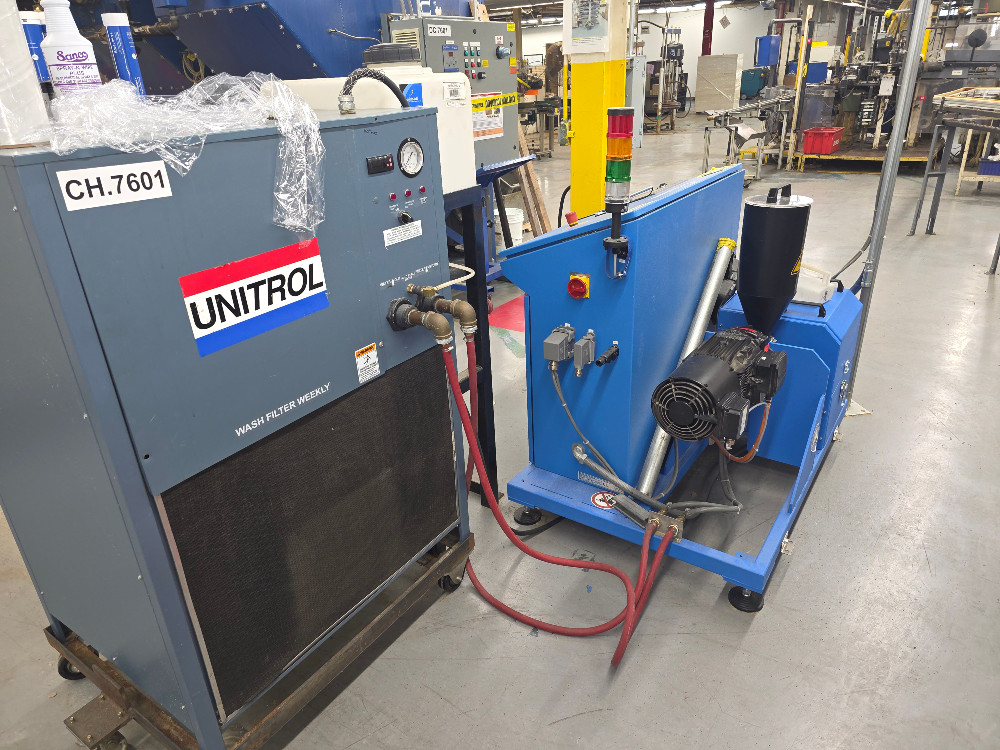

The EX-007 requires an external chiller or water supply capable of maintaining approximately 20°C at the extruder chilling collar. The original system was supplied without a cooling device.
