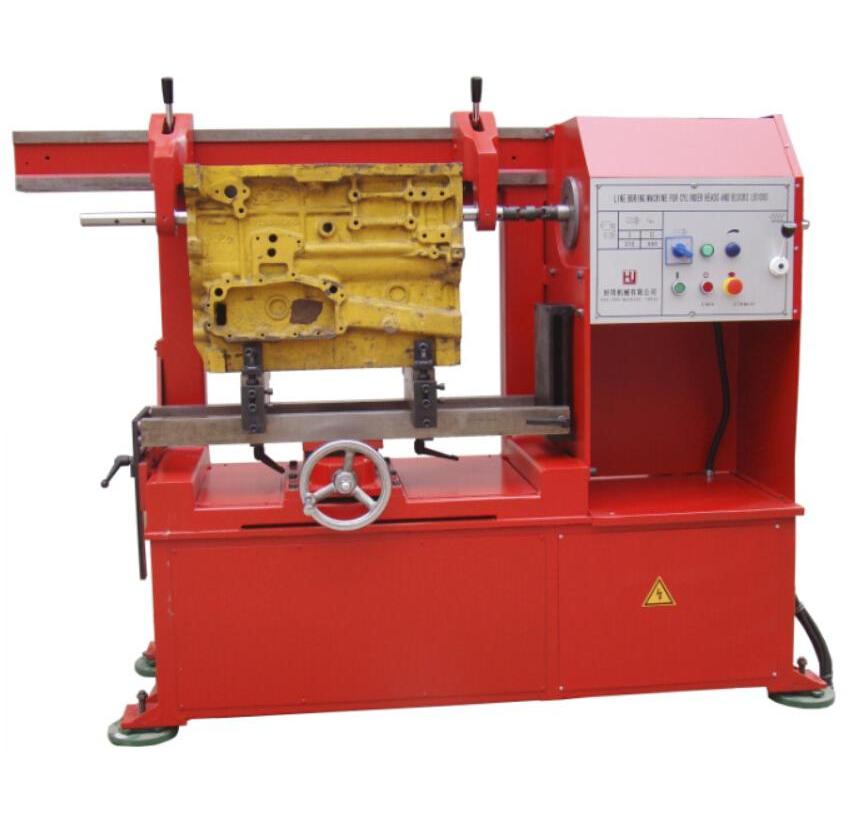

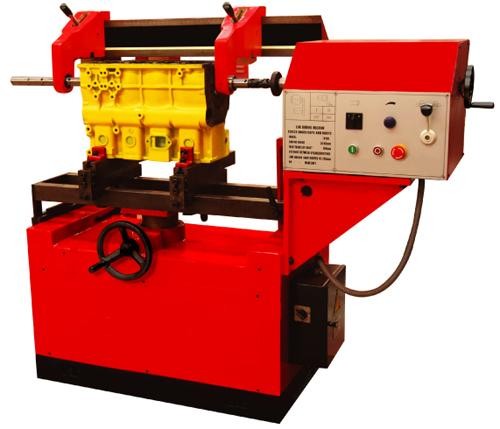

No. LB1000 SJMC, horizontal boring machine, 100mm stroke, 1000mm length

This machine was specially designed for boring Middle & Small engine blocks, crankshaft bush and camshaft bush; It also can be used for con rod bush with special fixture. The boring carriage adopts guideway moving, center of main shaft already adjusted in advance, vertical column go up and down, Make the work piece to find positive and accurate. Good rigidity, spindle feeding stepless, boring with high accuracy. It purposed used in automotive service and repair filed.

Model	LB1000
Diameter range for bed boring, mm	24-110
Maximum length of the part for boring, mm	1000
Maximum stroke of the boring bar, mm	100
Boring speed, rpm	58-373
Boring shaft feed, mm/r	0.044; 0.167
Motor power, kW	0.75/0.55
Machine dimensions (L*W*H), mm	1850*600*1375
Package dimensions (L*W*H), mm	1980*750*1700
Net weight / gross weight, kg	600/700
Production time, working days	60
