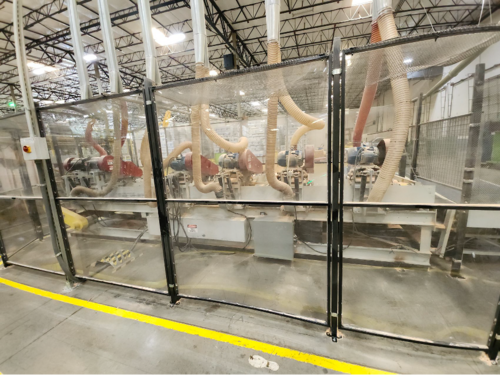

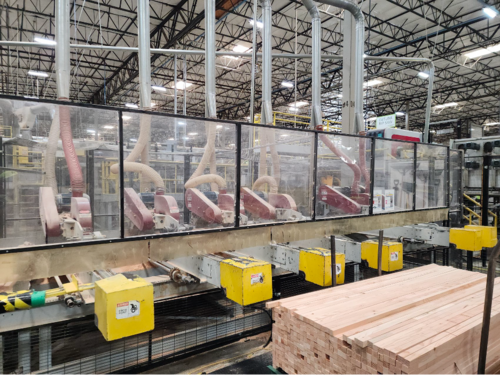

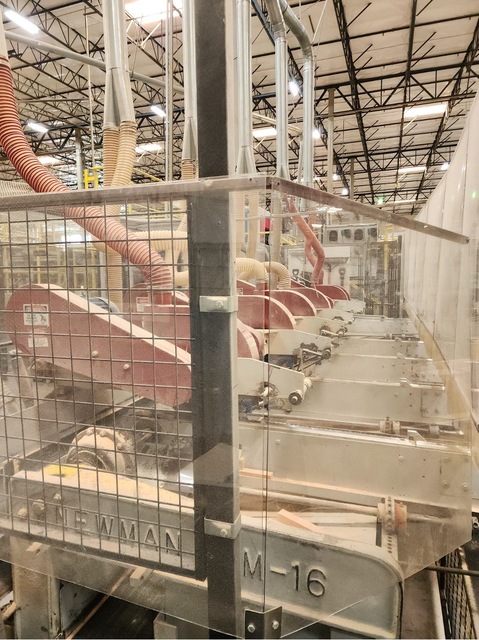

Newman #KM16, Multiple Head Trim Saw, 16' L max, 4" thick, 3000 RPM arbor, 60 PPM

Length range 18 in (457 mm) to 16 ft (4.88 m) standard; 20–24
ft (6.10–7.32 m) optional
Max. stock thickness 4 in (102 mm)
Max. pass length 20 ft (6.10 m)
Accuracy 1/32 in (0.7 mm) or better
Production rate Up to 60 pieces per minute
Feed speed Variable, 20–60 CPM
S AW U N I T S
Type Overhead, V-belt driven, quick-change arbors
Arbor motor 7-1/2 HP (5.6 kW), 1800 RPM, 3/60/230–460 V
— each unit
Arbor speed 3000 RPM, ball-bearing mounted
Adjustment Hand cranks with individual friction locks
Hold-downs Self-adjusting, with lock-up heads per unit
Saw blades 18 in (457 mm) dia., 1-1/4 in (32 mm) bore, 5°
negative hook, .050 in (1.3 mm) side clearance
F E E D & C O N V E Y O R S
Feed drive 1-1/2 HP (1.1 kW) gear motor with variable
frequency drive
Feed chain #60 roller chain, two chains; four drags per chain, 2-1/4 in (57 mm) high at 27 in (686 mm) intervals
Lumber conveyor 12 in (305 mm) wide, 1-1/2 HP (1.1 kW) gear motor with VFD
Scrap conveyor 12 in (305 mm) wide, 1-1/2 HP (1.1 kW)
Belt direction Built to original specification
C O N S T R U C T I O N & I N S TA L L AT I O N
Frame Welded heavy-duty 6 in (152 mm) channel and
angle iron
Dust collection Ports at each saw unit; upgraded hold-down / collection system
Floor space 22 ft × 6 ft 9 in (6.71 m × 2.03 m)
Working height 36 in (0.91 m)
Overall height 5 ft (1.52 m)
Shipping weight Approx. 7,000 lb (3,200 kg)
Electrical 480 V, 3-phase, 60 Hz as installed
