Manufacturer: Kent
Model: SGS-1224AHD
Year: 1994
Width/Cross: 12.0
Length/Longit.: 24.0
Stock # 177927
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

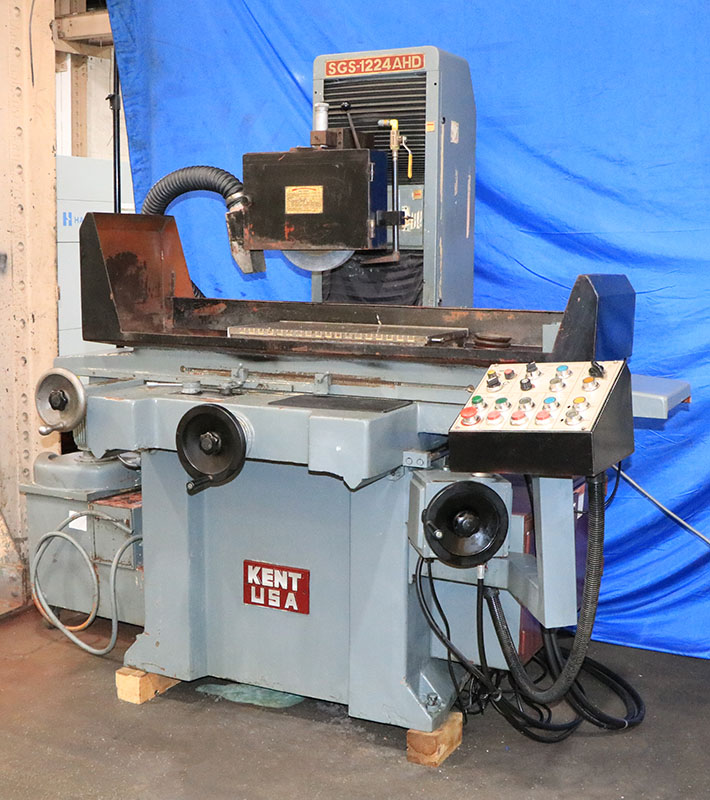

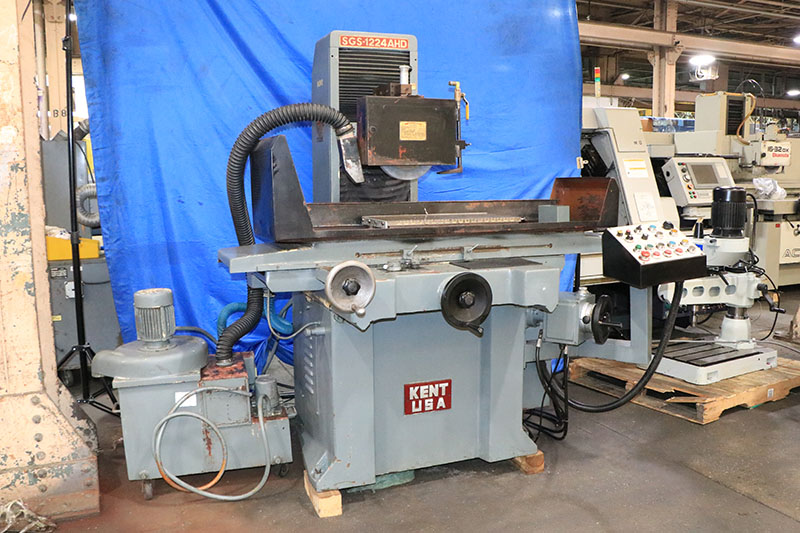

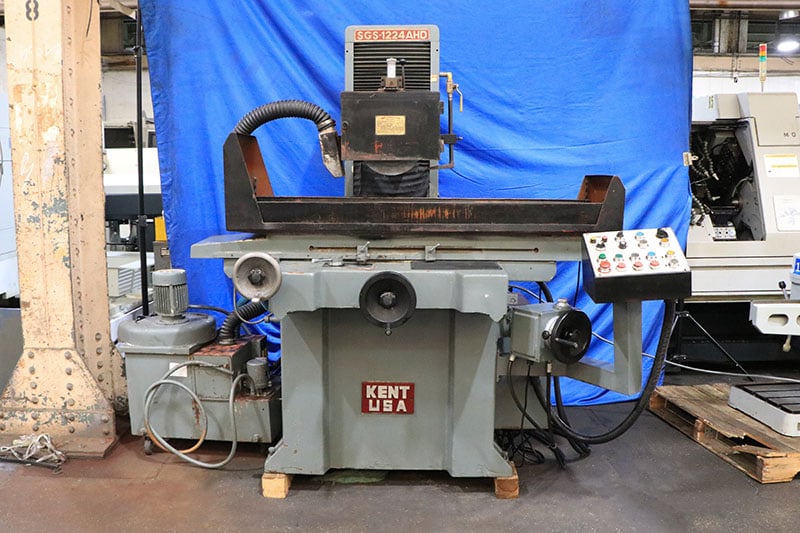

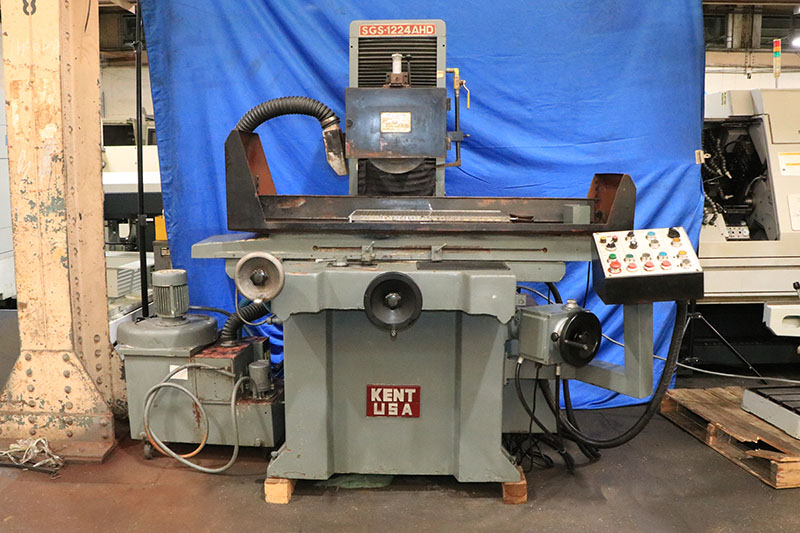

12" X 24" KENT HYDRAULIC SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: SGS-1224AHD… S/N: 459019… NEW: 1994
MAX. GRINDING CAPACITY ............... 12" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ... 23- 1/2"
LONGITUDINAL TABLE TRAVEL ............ 28"
CROSS TRAVEL ......................... 13- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
AUTOMATIC CROSSFEED INCREMENT ........ 0 TO 5/8"
RAPID CROSS TRAVERSE RATE ............″5" IPM
AUTO INCREMENTAL DOWNFEED ............ 0.001" TO .0001"
DOWNFEED HANDWHEEL PER GRADUATION .... 0.0005"
PER REVOLUTION ....................... 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ... 0.001"
PER REVOLUTION ............. ......... 0.2"
SPINDLE MOTOR ........................ 5 H.P.
STANDARD GRINDING WHEEL .............. 14"D x 1.5" x 5"
APPROX. WEIGHT ....................... 4,180 LBS
EQUIPPED WITH:
AUTO INCREMENTAL DOWNFEED (SURFACE& PLUNGE)
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED

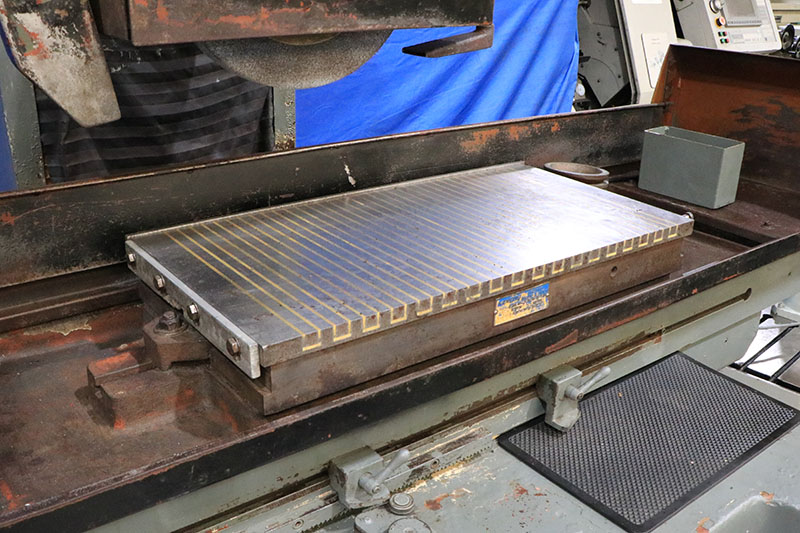

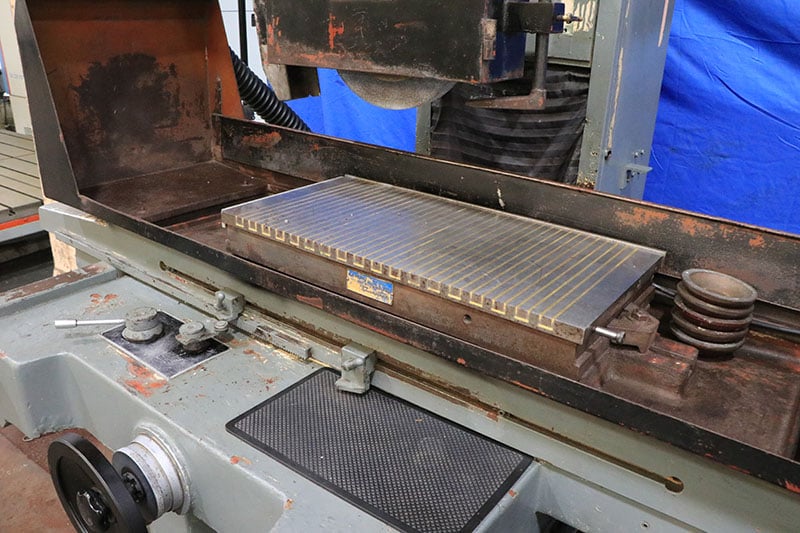

12" X 24" KANETSU STD. DIVISION, CROSS POLE,
ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL
COMBINATION COOLANT SYSTEM… DUST COLLECTOR
MEEHANITE CASTING
VEE… FLAT TURCITE WAYS FOR SMOOTH LONGITUDINAL TRAVEL
CENTRALIZED LUBRICATION SYSTEM
EXTERNAL HYDRAULIC SYSTEM
MOTORS ARE″/60/220-440 VOLTS
MACHINE IS WIRED PRESENTLY FOR″/60/440 VOLTS
LINK TO VIDEO: https://youtu.be/RxnTkklrPEk?si=u8qbq-KHaKFmsUfr
** ORIGINAL PAINT, EXCELLENT CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
