Description

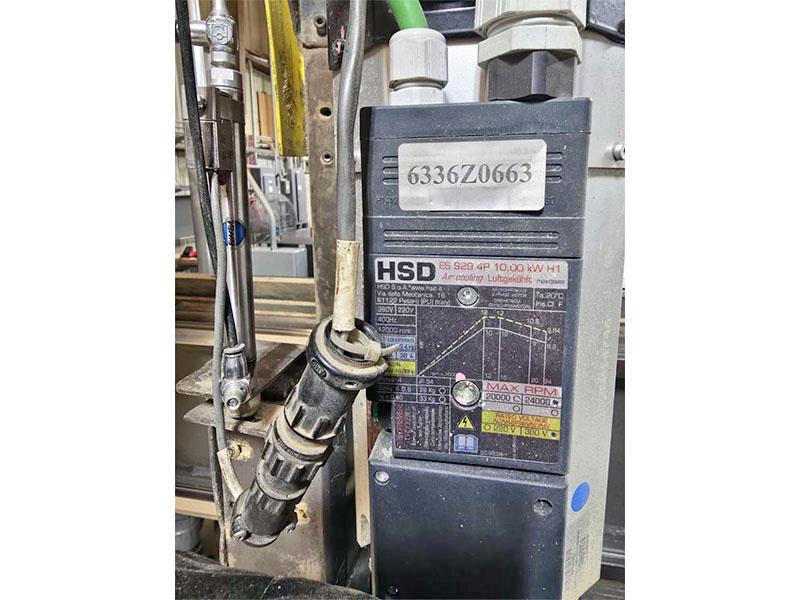

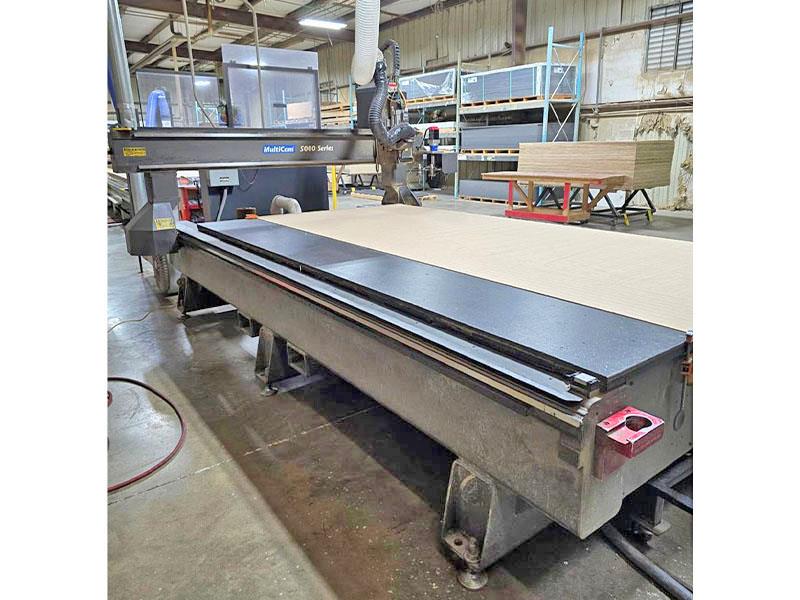

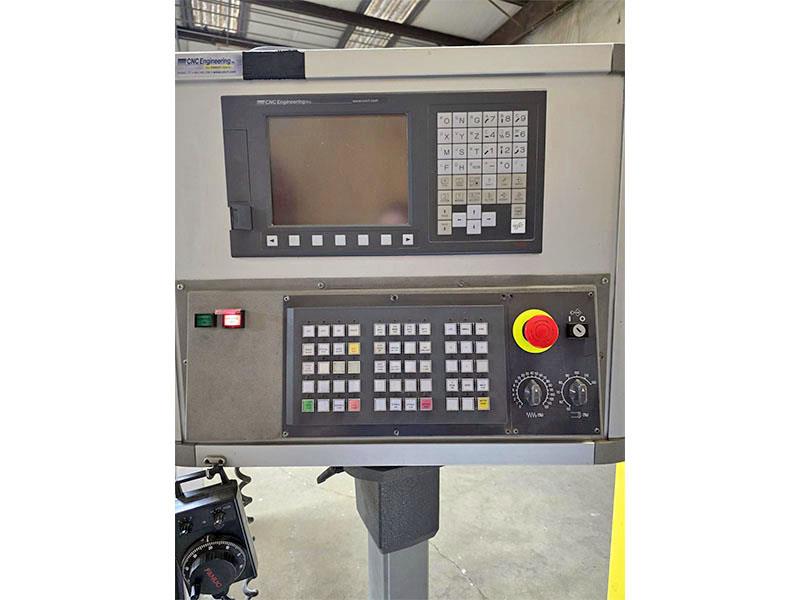

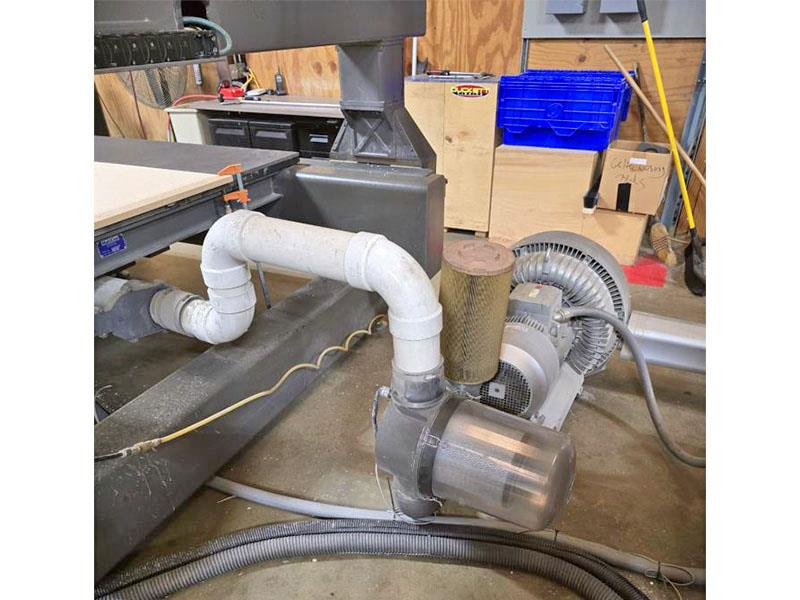

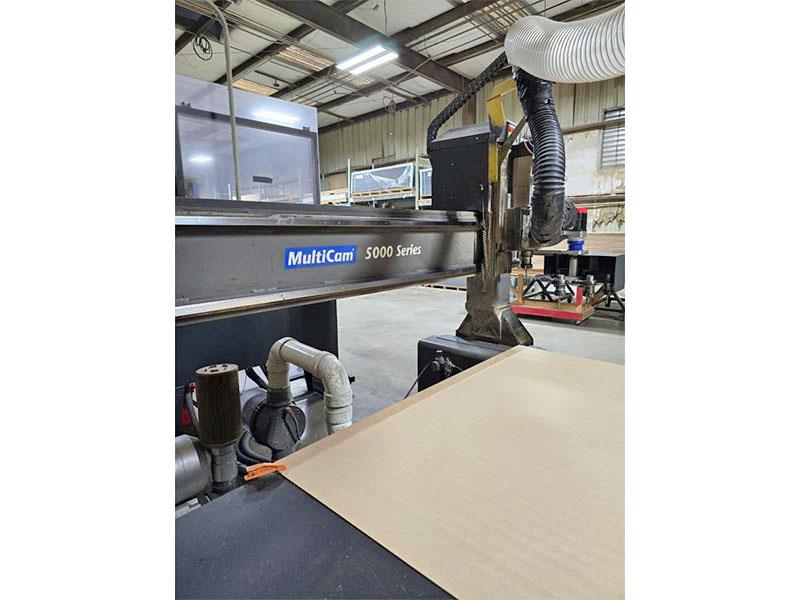

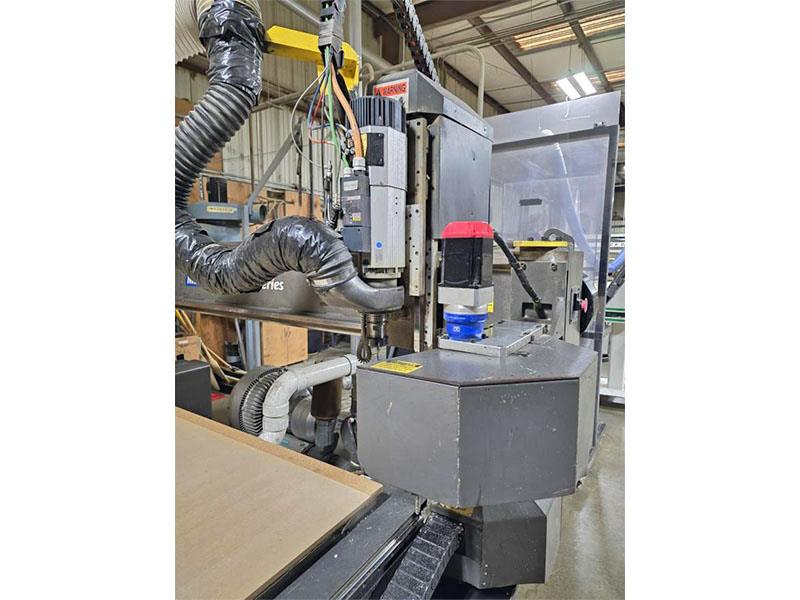

MULTICAM - 5000 5-305-R: CNC Router - 6' x 12' & with ATC80" x 144" Fixed table; moving gantry machine in a front-to-back configuration with: Multi-zone vacuum table supported by: (1) 20 HP Vacuum Pump. Equipped with: -- (1) 113.6 HP HSD HSK (New in 2020) type routing spindle; liquid cooled with: "Ride-a-long" 8-pos. tool carousel; variable speed by inverter up to 24,000 RPM. -- Full table coverage on X- & Y-axis; rack & pinion gantry drive with: Brushless Servo motors using: Integrated 25 mm linear roller bearing rack system. -- 8" Z-Axis travel via lead screw drive; 1,200 IPM max. cutting feed; 2,400 IPM max. rapid traverse rate on X- & Y-axis. Control -- FANUC "Oi" Series CNC Controller (new in 2019). Stand-alone system based on: AMD "SC520" microprocessor with: 64-Bit motion algorithms using FPGA technology that excels in: High speed; continuous motion.(5,000) Vectors/Sec sustained calculation & execution rate and (1,000) line "look ahead". -- The Controller includes: Keypad interface with hot keys for repetitious functions; DNC access to host computer. -- Includes: Memory for instant job replay; 32-bit processor; 8 MB RAM; 2 MB flash memory; interprets HPGL and M & G codes; RS-232 interface for PC communication. Complete with: -- Documentation. -- Assorted tool holders. -- 20 HP Vacuum Pump. -- Remote control.

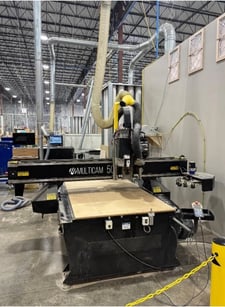

Used Multicam 5000 Series (2006) CNC Router for Sale. This 3-axis machine offers a 60″ x 120″ table with a high pressure phenolic cutting surface, pop-up material location pins, and 4″ riser blocks. The 11 HP spindle runs to 24,000 RPM and is served by a 12-position tool changer. Motion is handled by ...more
