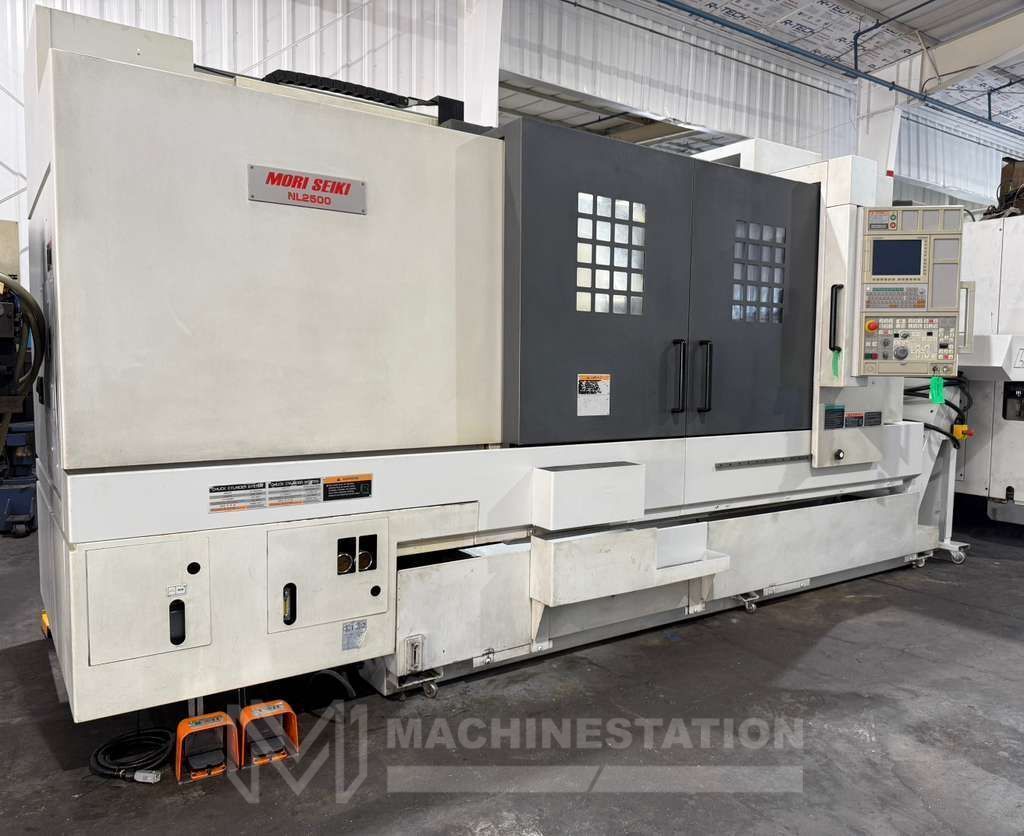

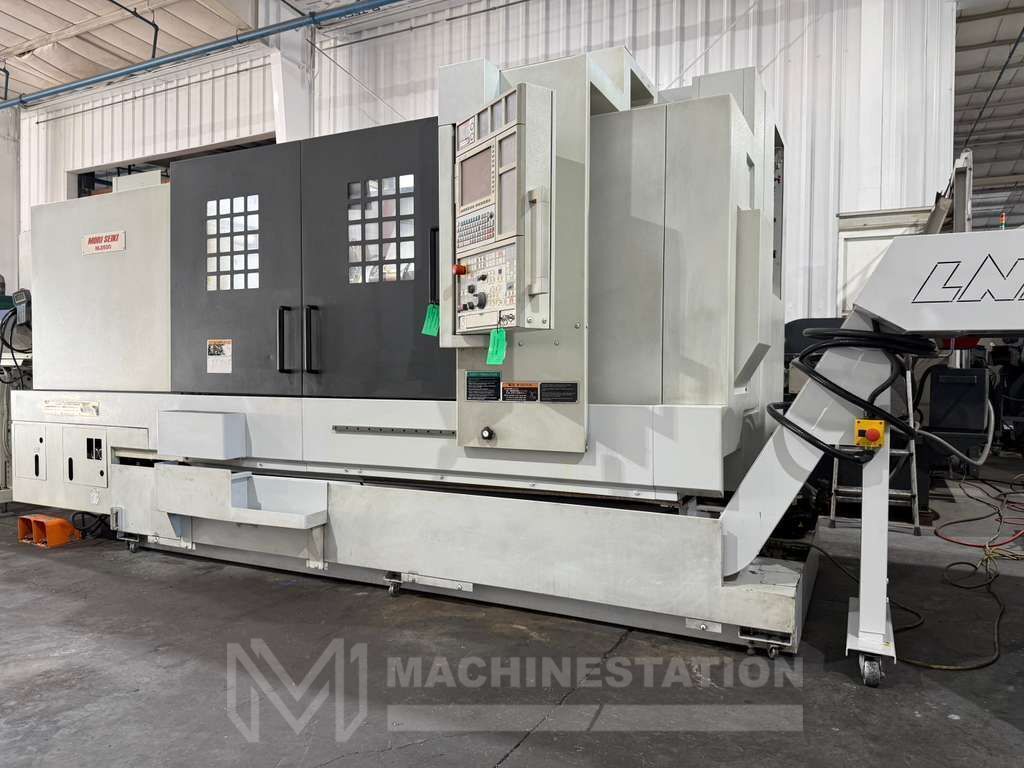

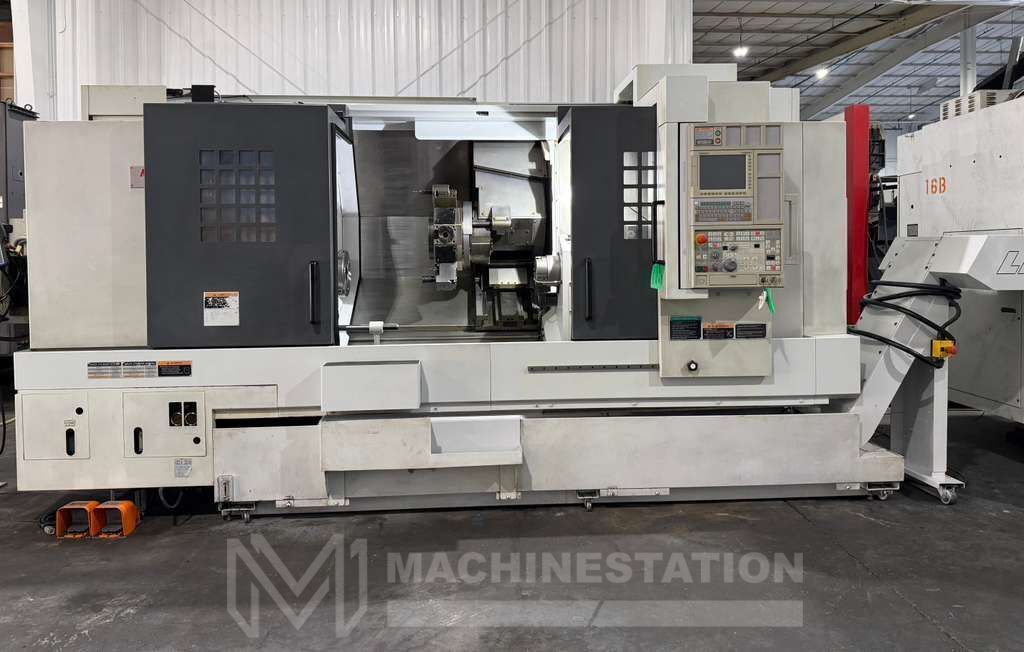

Manufacturer: Mori Seiki
Model: NL-2500SY/1250
Year: 2011
Swing: 29.7
Bar Capacity: 3.1
Stock # 112892
1 / 10
Click to zoom in
1 / 10
For Sale by MachineStation
Surplus Record Dealer Since 2022
Location: Lake Elsinore, CA
Contact Sales Dept.
Phone Number: 909...> Show Phone Number 909-919-9600
Let the seller know you found their listing on Surplus Record!
Description
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

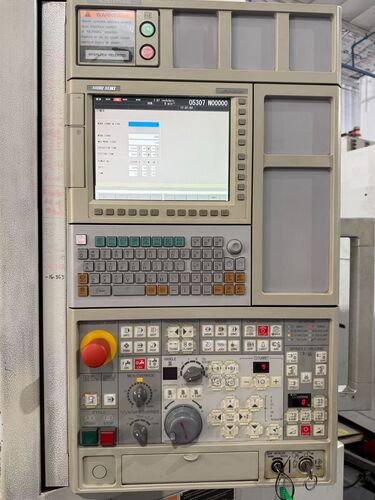

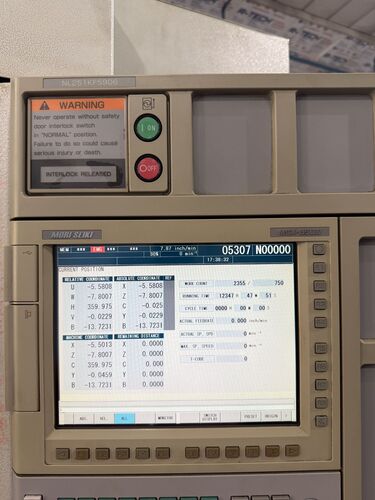

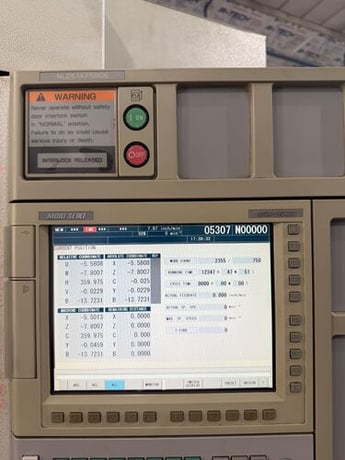

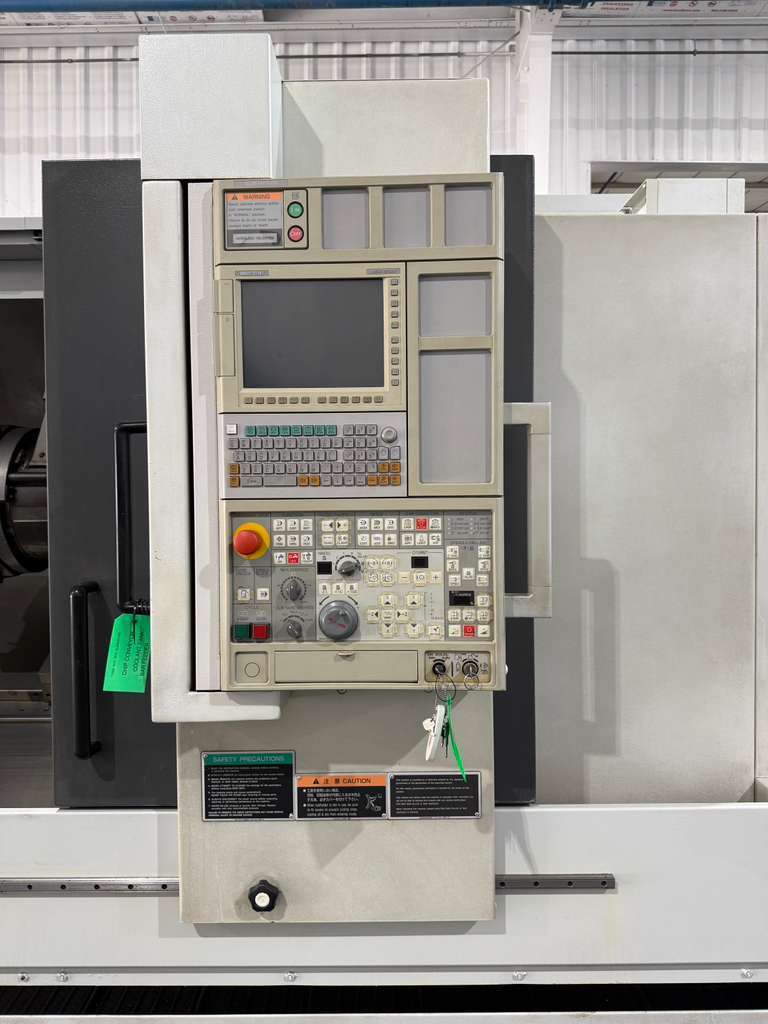

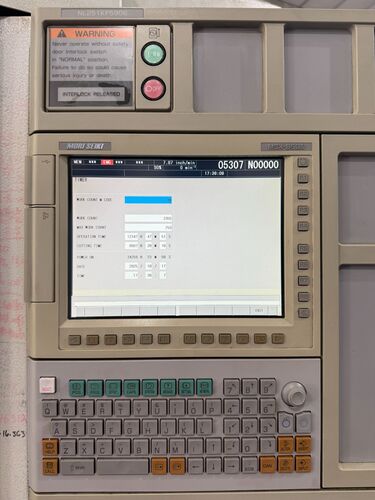

Mori Seiki MSX-850IV CNC Control
8,607 Hours Cutting Time
Heavy Duty Box Way Construction
25 HP Main Spindle Power
PCMCIA Card Slot
Rigid Tapping
Coolant System
Automatic Lubrication System
Capacity:
Max Turning Diameter: 14.0"
Max Turning Length: 51.1"
Swing Over Cross Slide: 29.7"
Max Bar Capacity: 3.1"
Travels:
X Axis Travel: 10.2"
Y Axis Travel: 3.9" (±2.0)
Z Axis Travel: 53.0"
B Axis Travel (Sub Spindle): 50.6"
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM
Rapid Traverse Rate Y Axis: 394 IPM
Rapid Traverse Rate B Axis: 787 IPM
Main Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6"
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.7"
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP

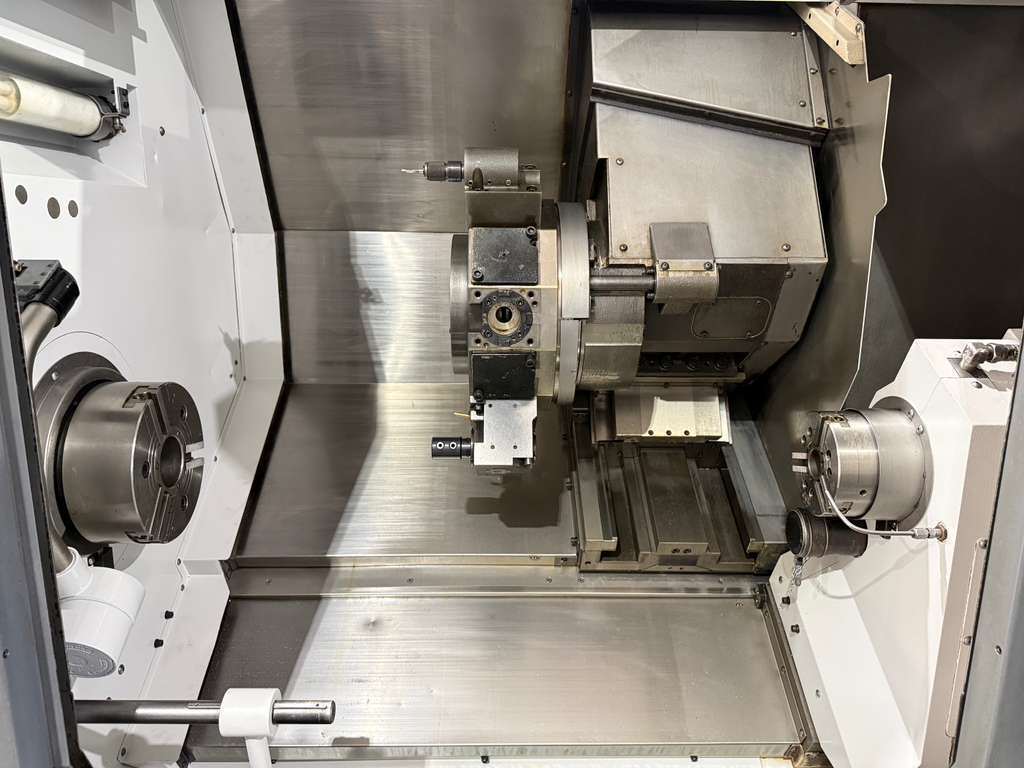

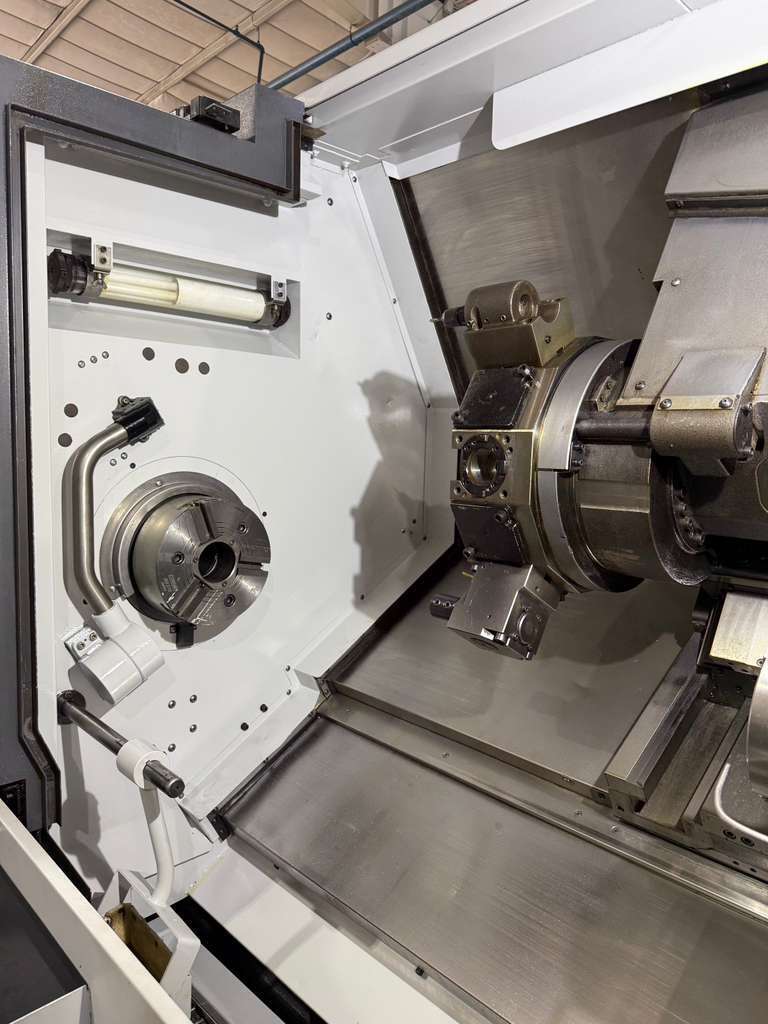

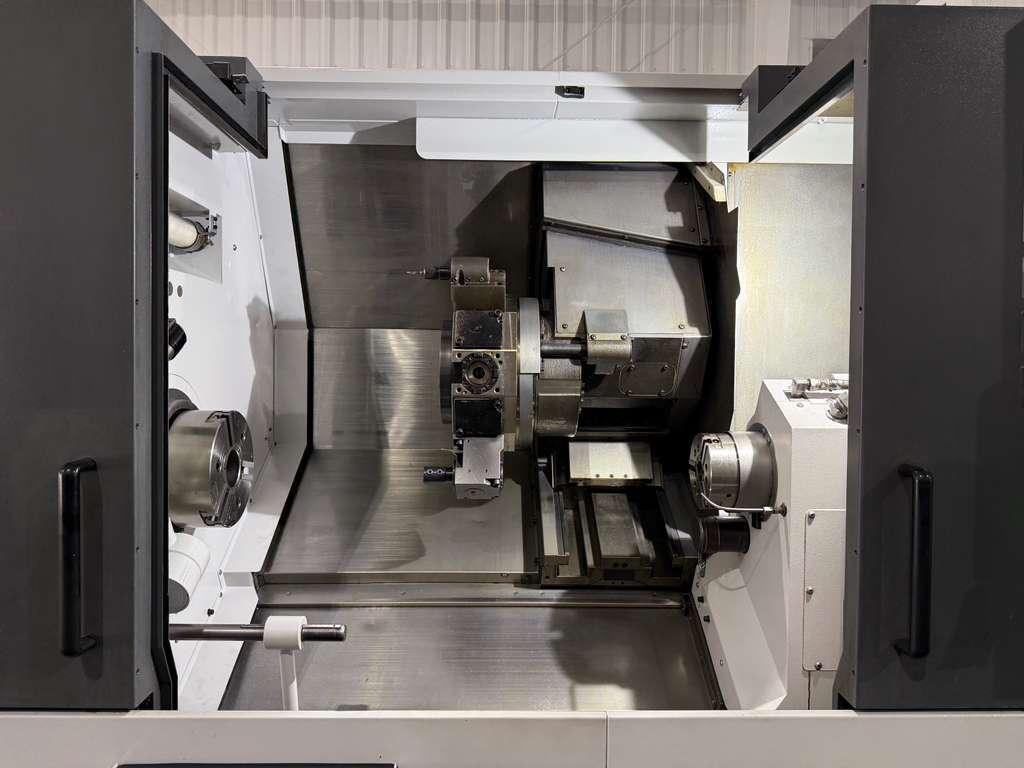

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Turret Type: BMT 60
General:
Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 50 kva
Overall Dimensions: 171" x 85" x 88" High
Weight : 16,750 lbs Approx.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Mori Seiki MSX-850IV CNC Control
8,607 Hours Cutting Time
Heavy Duty Box Way Construction
25 HP Main Spindle Power
PCMCIA Card Slot
Rigid Tapping
Coolant System
Automatic Lubrication System
Capacity:
Max Turning Diameter: 14.0"
Max Turning Length: 51.1"
Swing Over Cross Slide: 29.7"
Max Bar Capacity: 3.1"
Travels:
X Axis Travel: 10.2"
Y Axis Travel: 3.9" (±2.0)
Z Axis Travel: 53.0"
B Axis Travel (Sub Spindle): 50.6"
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM
Rapid Traverse Rate Y Axis: 394 IPM
Rapid Traverse Rate B Axis: 787 IPM
Main Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6"
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.7"
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Turret Type: BMT 60
General:
Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 50 kva
Overall Dimensions: 171" x 85" x 88" High
Weight : 16,750 lbs Approx.
