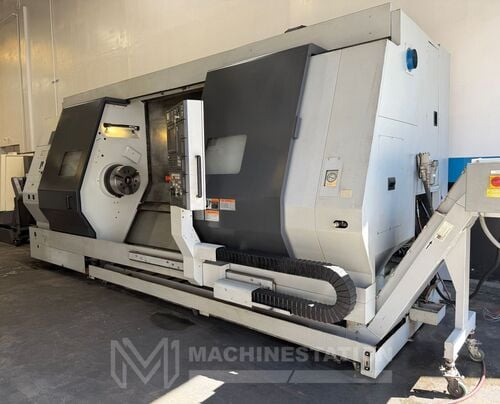

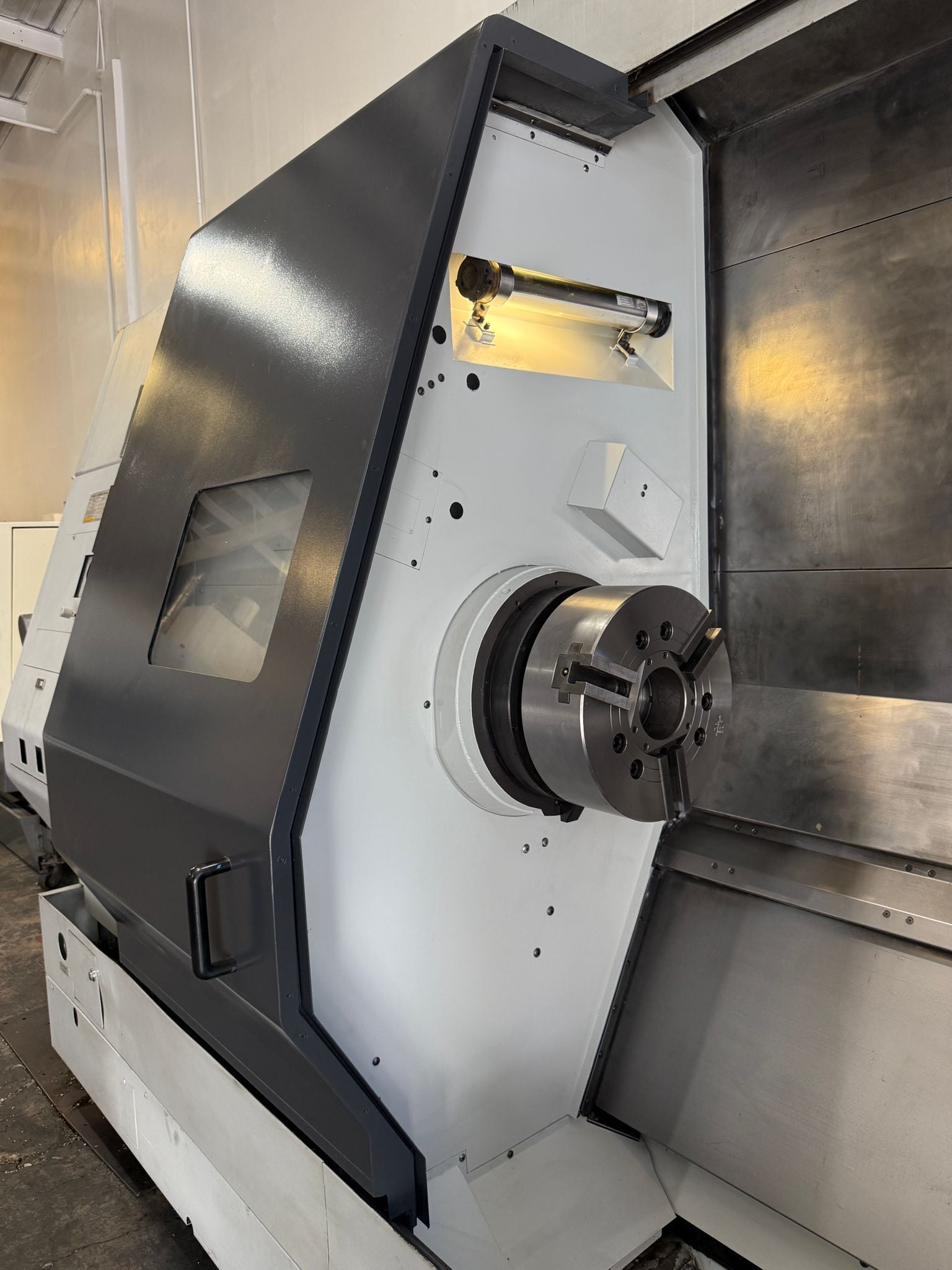

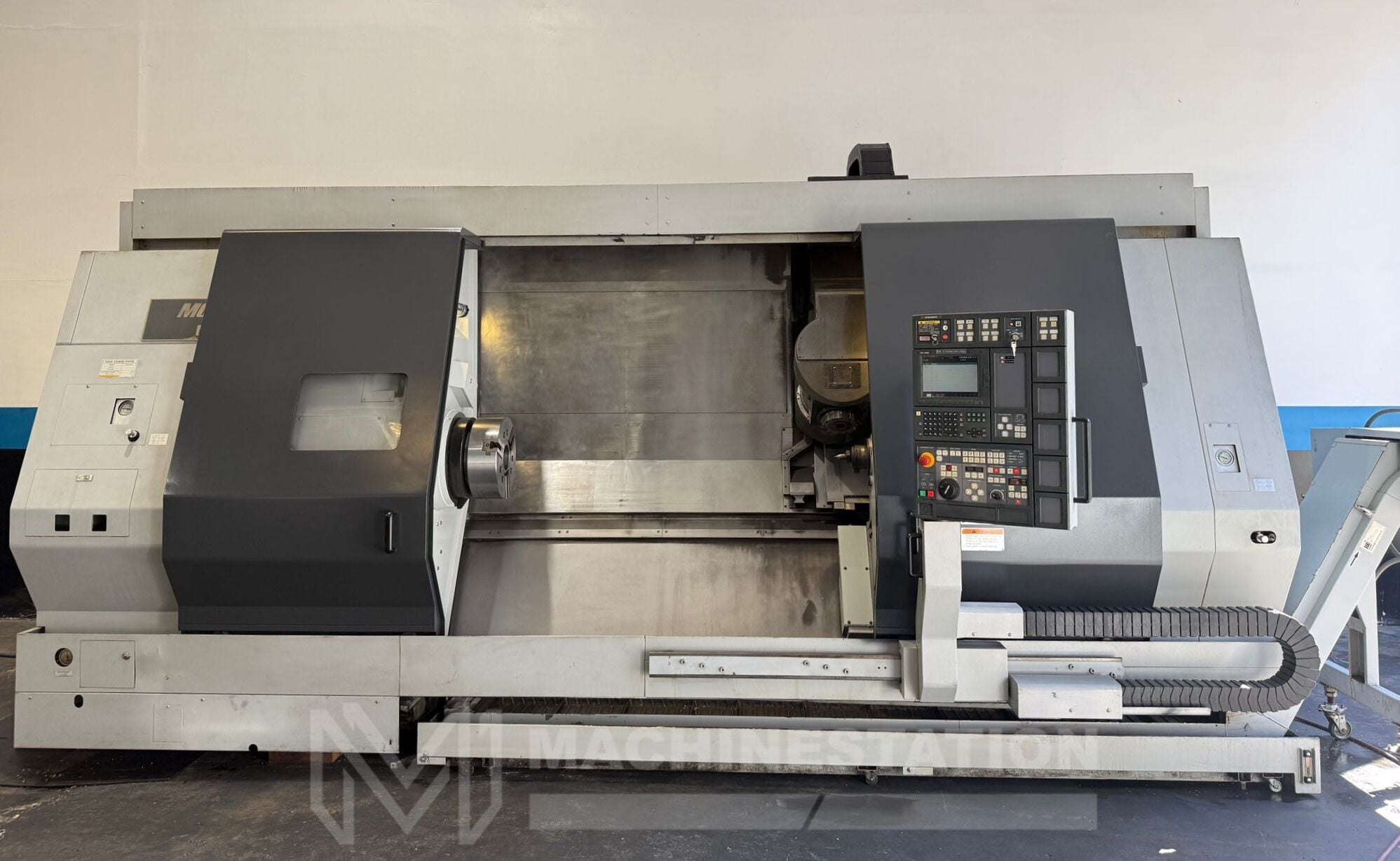

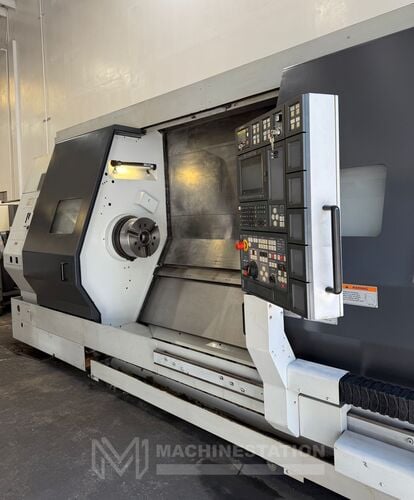

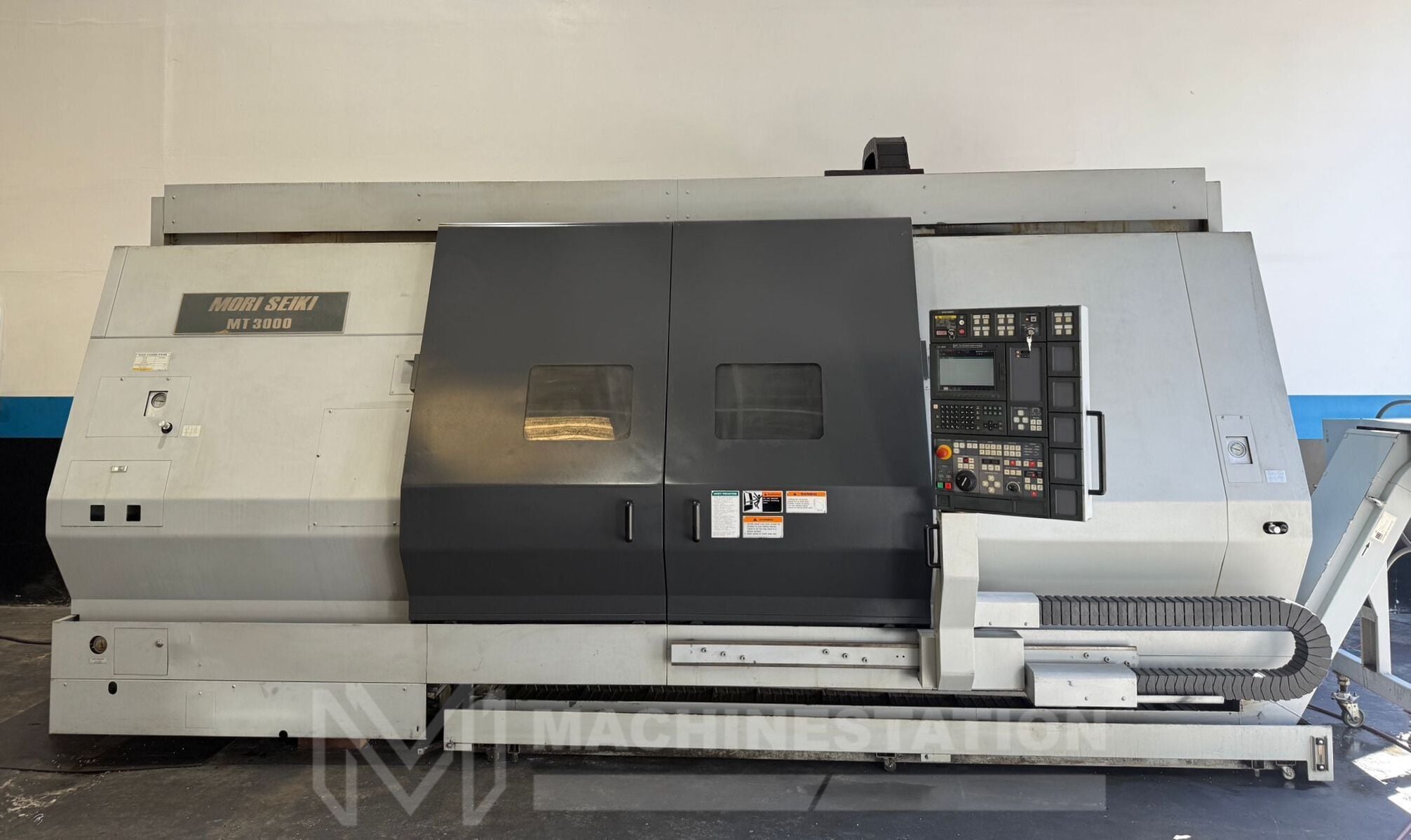

Mori Seiki #MT-3000/1500, multi-axis CNC turning center, 31.5" swing, 15" 3-jaw chuck, 3.5" bar, 22.44" dia., 60" lgth, MSG-501, rigid tap, tailstock, tool presetter, 2003

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

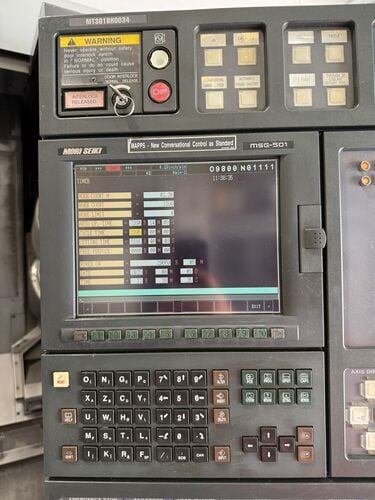

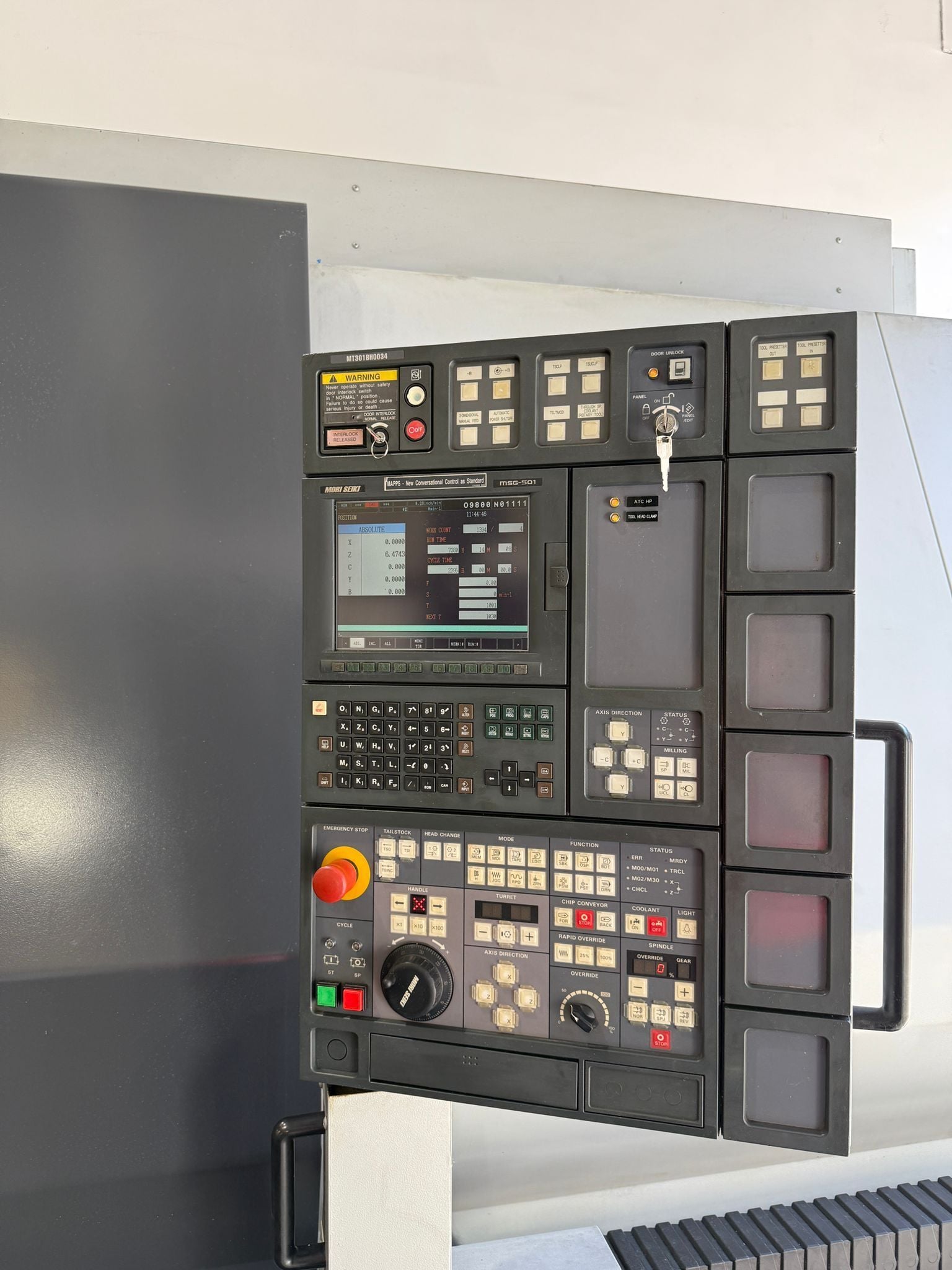

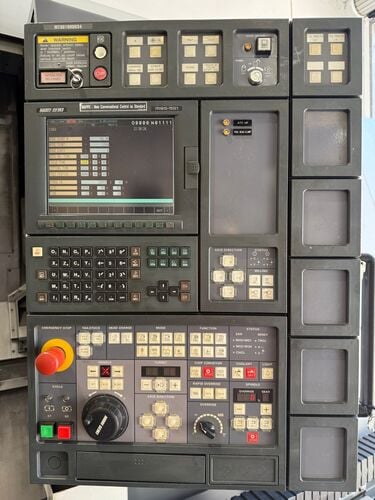

Mori Seiki MSG-501 (Fanuc) CNC Control
Linear Ways Construction
8,191 Hours Cutting Time
Rigid Tapping
Coolant Tank
Capacity:
Max Turning Diameter: 22.44"
Max Turning Length: 60.00"
Max Swing Over Bed: 31.50"
Max Bar Capacity: 3.50"
Travel:
X Axis Travel: 25.0"
Z Axis Travel: 62.7"
Y Axis Travel: 8.6" (+/- 4.3")
B Axis Travel: -120° / +105°
C Axis: 360° (0.001°)
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 945 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.1"
Bar Capacity: 3.5"
Spindle Speed: 30 3,000 RPM
Spindle Power: 40 HP

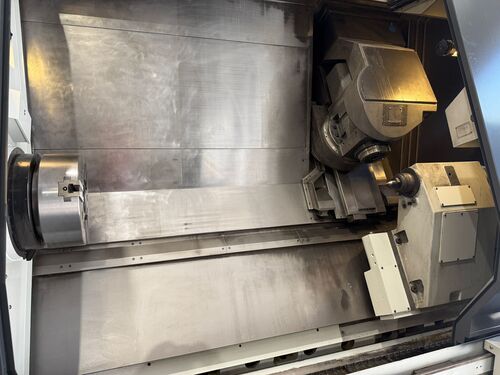

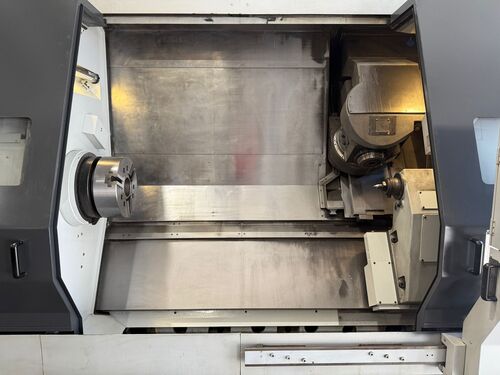

Milling Head:
Single Station Pendulum Head with 44 ATC
B Axis Indexing: -120° / +105°, 0.001 Degree
Tool Type: CAPTO C6
Tool Spindle Speed: 8,000 RPM
Tool Spindle Motor: 15 HP
Automatic Tool Changer:
Capacity: 44 Tools
Tool Type: CAPTO C6
Max Tool Diameter: 3.54" 4.72"
Max Tool Length: 11.81"
Max Tool Weight: 17.63 lbs
Tool Change Time: 4.2 Seconds
Tailstock:
Tailstock Taper: MT-5
Tailstock Quil Diameter: 4.33"
Tailstock Quil Travel: 5.90"
General:
Power Source: 220v / 3-Phase / 60 Hz
Power Requirement: 76 kva
Overall Dimensions: 227" x 120" x 130" High Approx.
Weight: 34,170 lbs Approx.
