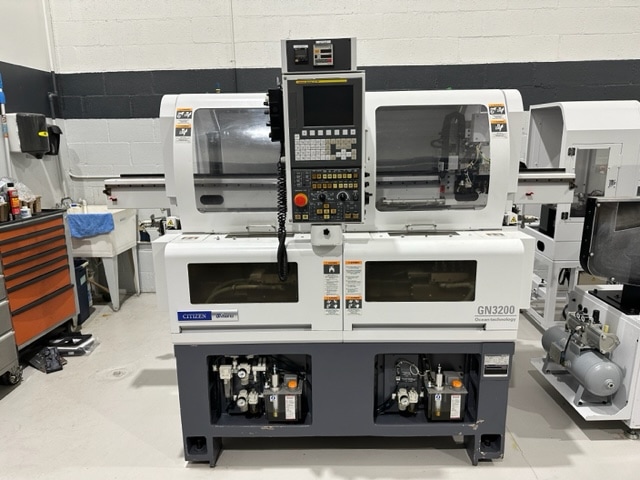

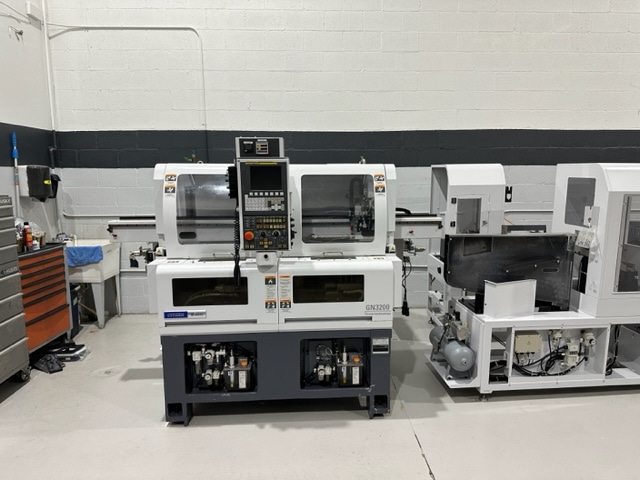

Miyano #GN-3200W-2F3, CNC Swiss Lathe, Fanuc Oi-Tf, 180 mm X, 200 mm Z, 20 mm drill shank diameter, 2.2/1.5 kW, 2020

Miyano Gn3200w 2f3 Cnc Swiss Type Lathe
Specifications (Subject to Buyer Verification):
Machining Capacity and Chuck System
Power Chuck Pneumatic 3″(4″) Precision Chuck
Diaphragm Chuck Pneumatic 4″
Maximum Diameter of Collet Chuck Stationary(with Pad) 35mm Dia.
Pull Type(with Pad) 40mm Dia.
Maximum Machining Length 50mm
Spindle
No Of Turret 2
Spindle Motor(15min./Cont.) L/R-Spindle 2.2/1.5 Kw
Spindle Speed Range L/R-Spindle 80 – 8,000min-1
Turret
No of Turret 2
Type of Turret Horizontal Linear Turret
Shank Height Of Square Turning Tool 10mm Sq., 12mm Sq., 16mm Sq.
Diameter of Drill Shank 20mm Dia.
Slide Travel X1 Axis, X2 Axis 180mm
Z1 Axis, Z2 Axis 200mm
Machine Dimensions
Machine Height 1,600mm
Spindle Center Height 875mm
Floor Space(Width × Length) 1,400mm×1,477mm
Machine Weight 2,650kg

Equipped with (Subject To Buyer Verification):
Fanuc

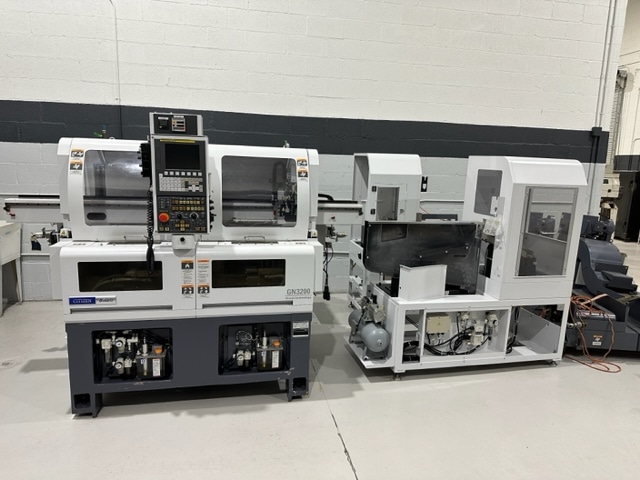

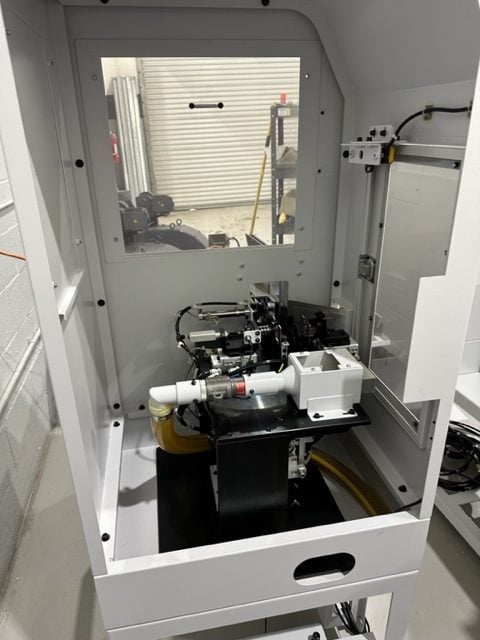

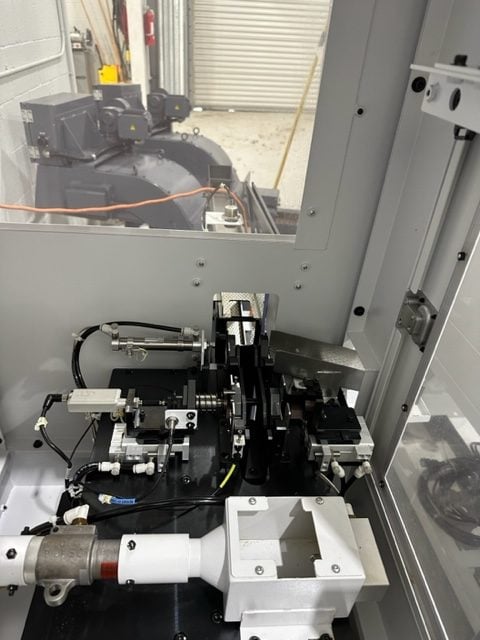

Feed and Stacking Unit
Mandrel Chucks
Tool Holders
Chip Conveyors

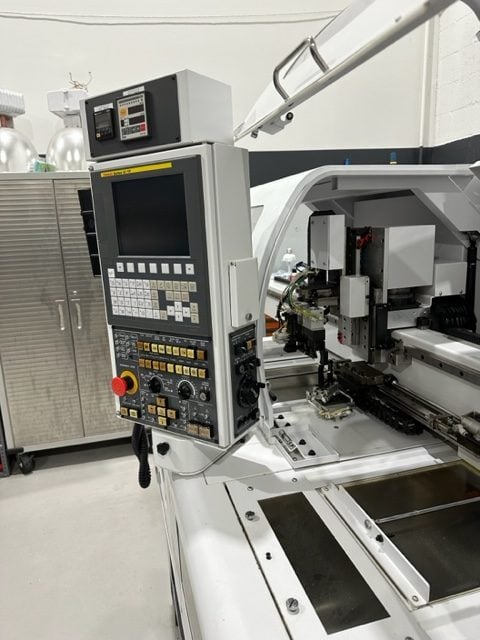

Fanuc Cnc Controller, Oi-Tf

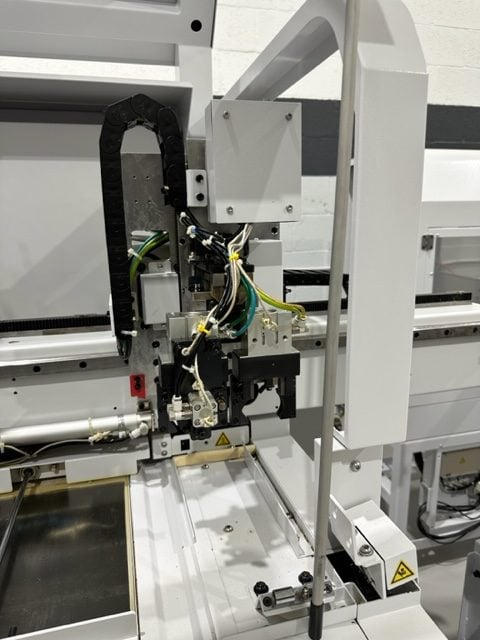

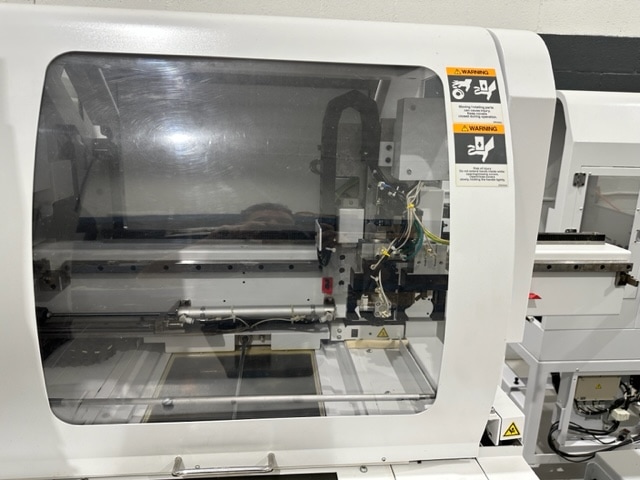

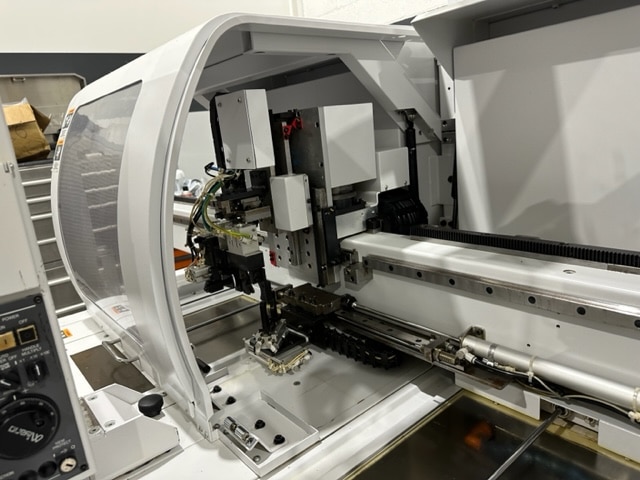

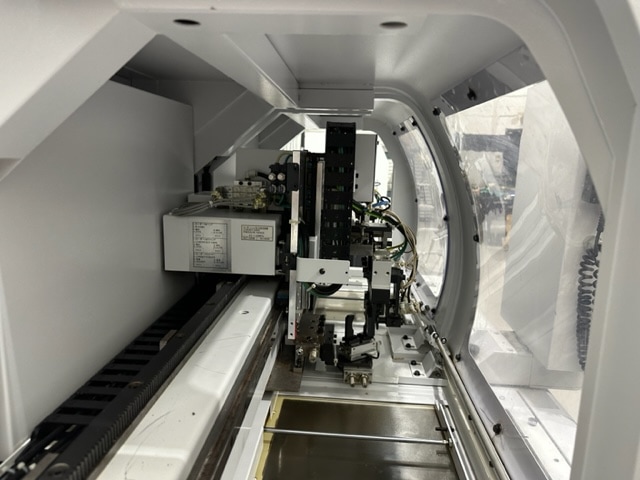

Twin Gantry
C- Axis
