Description

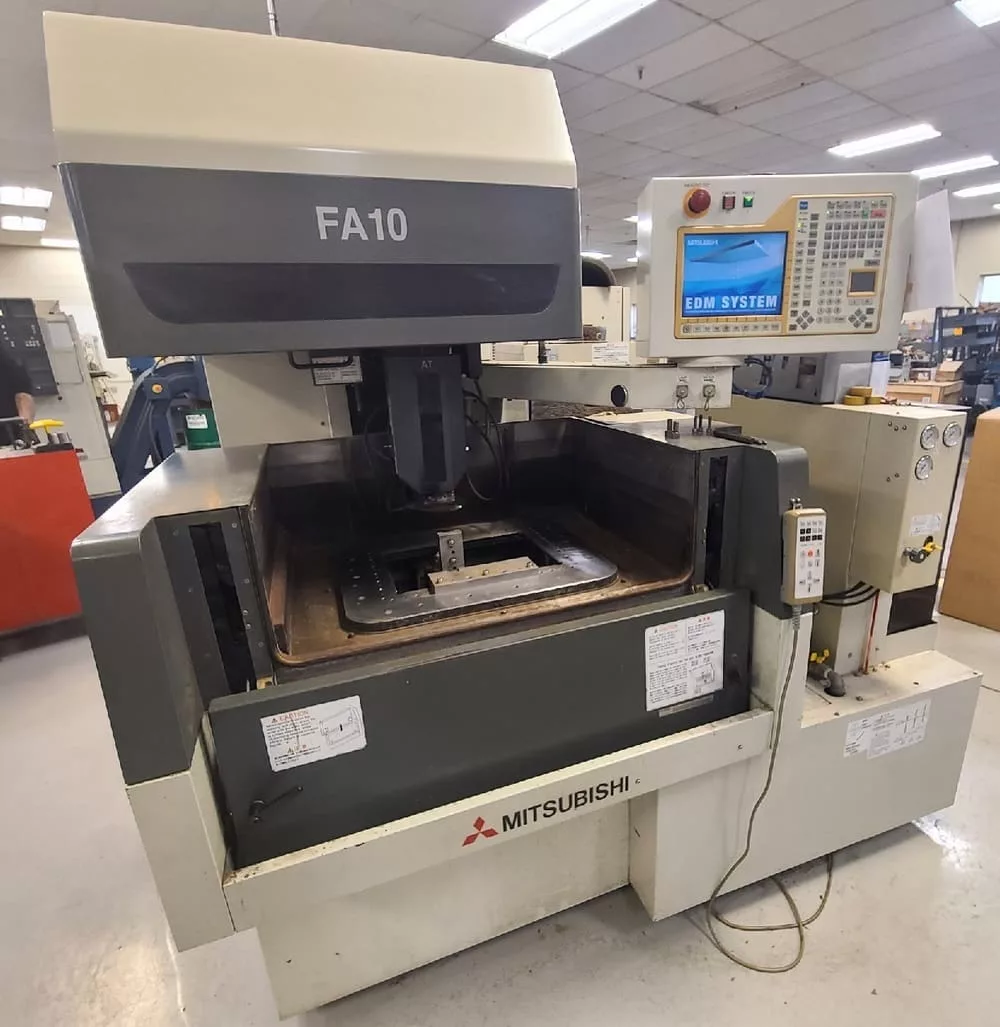

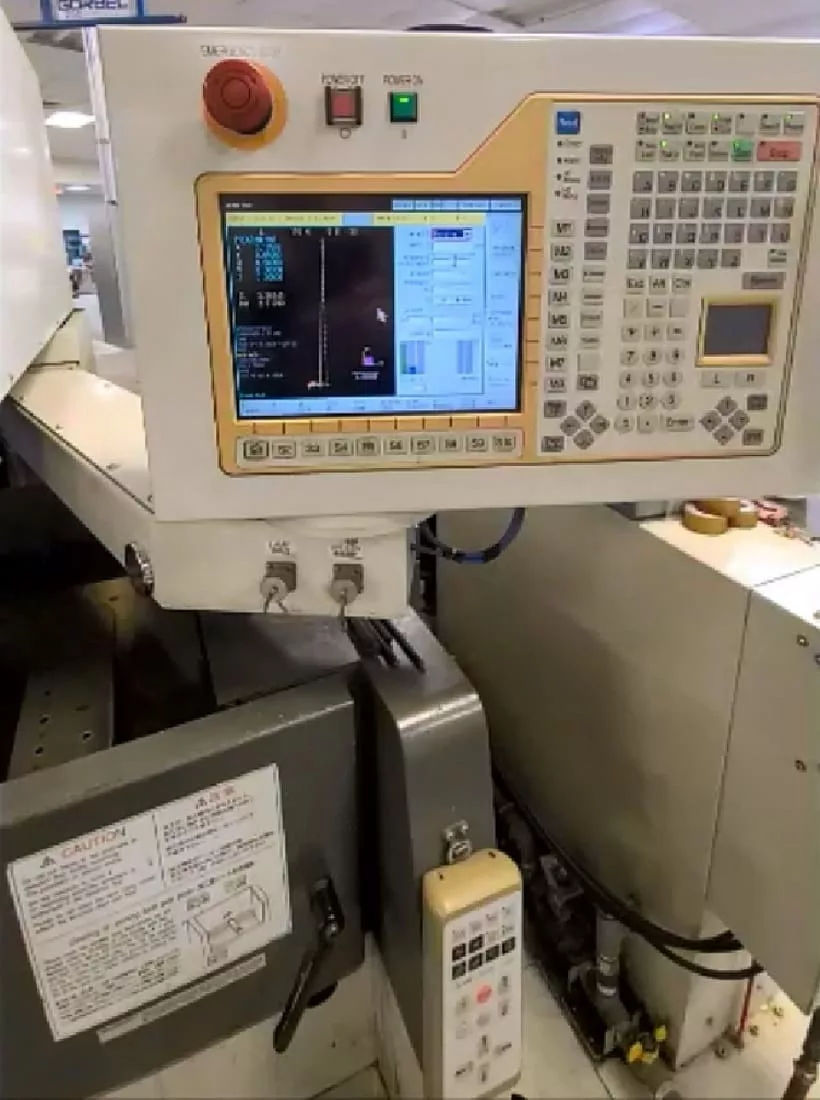

Used Mitsubishi FA10 (2002) EDM for Sale. This wire EDM machine offers 13.8″ of X-axis travel, 9.8″ of Y-axis travel and 8.6″ of Z-axis travel, with 1.25″ x 1.25″ U/V axis travel and taper cutting to +/- 30 degrees. Wire diameter range is .006″ to .012″. Control is a Mitsubishi 64 Bit PC with color CRT and 3D graphics. Equipped with linear motion guideways, auto lube system, auto wire threading, auto-lock vertical tank door mechanism, automatic fluid level control, chiller, filtration system, fine resolution encoder feedback, full 4-sided work table, hand pendant controller, moving column design, Power Master Control, submerged machining capability and wire chopper. Approximate dimensions are 77.7″ x 81.6″ x 80.71″ at roughly 4,400 lbs. This Mitsubishi can be seen under power for an inspection. Activate Pricing or Request a Quote.
| X-Axis Travel | 13.8" |
|---|---|
| Y-Axis Travel | 9.8" |
| Z-Axis Travel | 8.6" |
| Control | Mitsubishi 64 Bit PC |
| U/V Axis Travel | 1.25" x 1.25" |
| Degree Taper Cutting | +/- 30 Degree |
| Wire Diameter Range | .006 - .012" |
| Approx Dimensions | 77.7'' x 81.6'' x 80.71'' |
| Approx Weight | 4,400 Lbs |
Inquire Further with KD Machinery!
