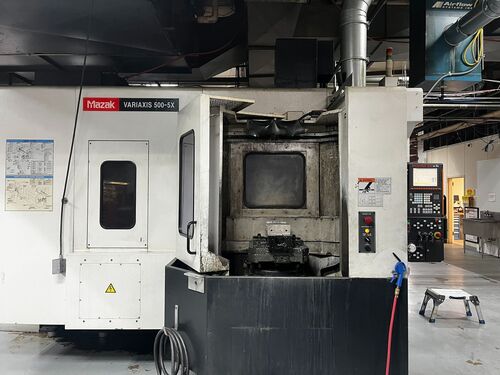

Mazak #Variaxis-500-5X, CNC vertical machining center, 120 automatic tool changer, 20" X, 20" Y, 18.1" Z, 12000 RPM, 30HP, CT40, PC-Fusion Control, 2004

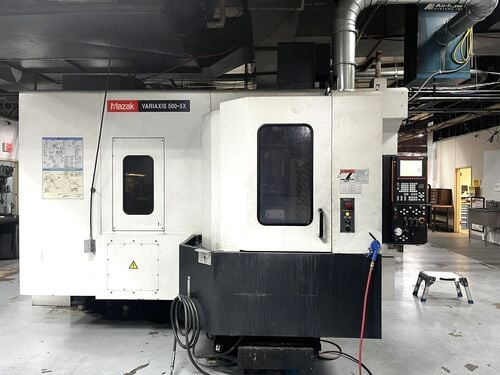

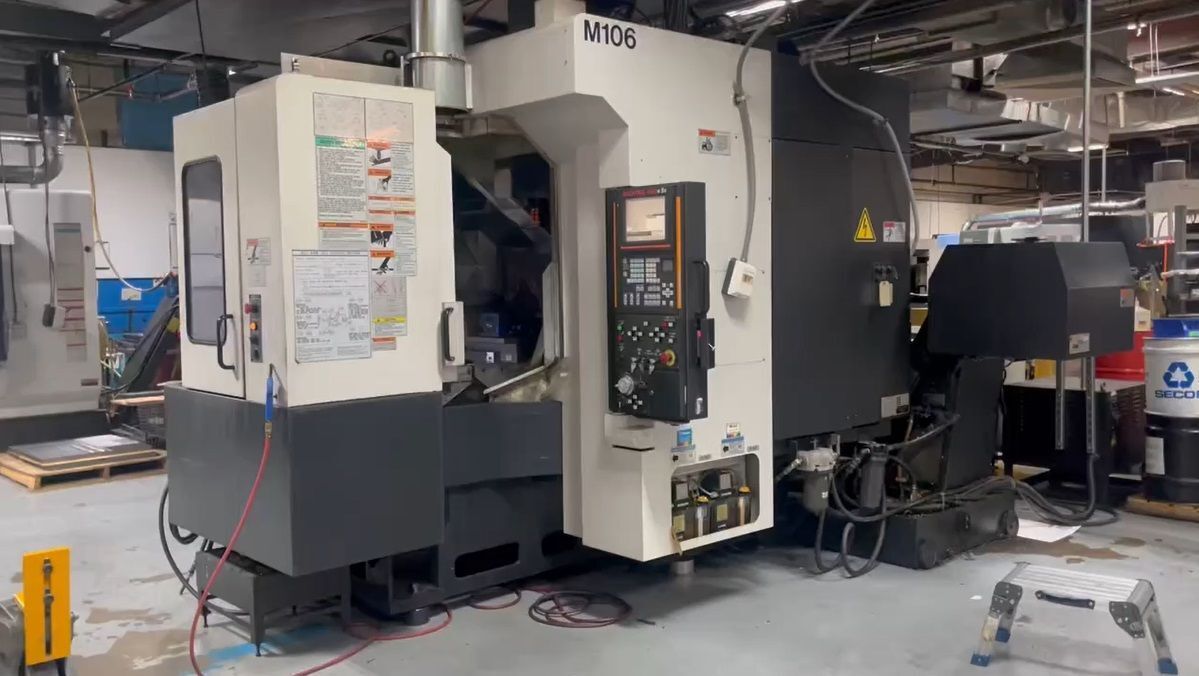

2004 MAZAK VARIAXIS 500-5X
SPECIFICATIONS:
TABLE LENGTH.......... 19.7"
TABLE WIDTH........... 15.7"
NUMBER OF PALLETS..... 2
TABLE CAPACITY........ 661 lb
X-AXIS TRAVEL......... 20.08"
Y-AXIS TRAVEL......... 20.08"
Z-AXIS TRAVEL......... 18.11"
A-AXIS ROTATION....... 120 DEGREES, +/-30 DEGREES
C-AXIS ROTATION....... 360,000 POSITIONS
SPINDLE SPEED......... 12,000 RPM
SPINDLE MOTOR......... 30 hp
SPINDLE TAPER......... CAT 40
TOOL CAPACITY (ATC)... 120
MAX RAPIDS............ 1,969 in/min.
EQUIPPED WITH:

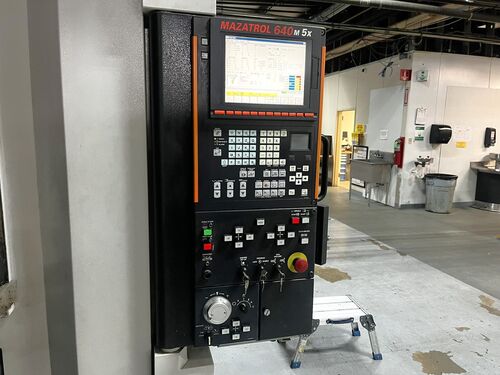

MAZATROL PC-FUSION CNC 640M 5X CONTROL WITH MS WIN 2000 PRO
DIE-MOLD PACKAGE WITH ETHERNET OPERATION-5X
- PROTOCOL B RS-232C
- MAZACC 3D HIGH-SPEED SOFTWARE PACKAGE
- FINE SPLINE INTERPOLATION (EIA)
- EHTERNET OPERATION FUNCTION
- HIGH-SPEED PC-CARD (K6-233MHZ)
INCH/METRIC CONVERSION
PCMCIA INTERFACE (2 SLOT)
3.5" FDD UNIT
NETWORK INTERFACE (FOR LAN & MODEM)
DYNAMIC COMPENSATION 2 (EIA/ISO)
PREP FOR VISUAL TOOL ID/DATA MGT
PREP COOLANT THROUGH SPINDLE (SUPER FLOW)
COOLANT THROUGH SPINDLE @ 71 PSI
PREP MAZAK MONITORING SYSTEM B OPTICAL TYPE MP10
2 PALLET CHANGER
WORKPIECE AIR BLAST
FLOOD COOLANT @ 64 PSI / 8 GAL
DELUGE COOLANT SYSTEM 60L/MIN
AUTO POWER ON/OFF & WARM-UP
SIGNAL TOWER (3 COLORS LIGHTS)
ADDITIONAL WORK LIGHT
CHIP CONVEYOR RIGHT SIDE DISP (CONSEP)
AUTO PECKING CYCLE WITH LOAD DETECTION
EIA/ISO CONV (REQ EIA/ISO INPUT)
ADDITIONAL M-CODE FUNCTION (3M-CODES)
COST FOR ABOVE EQUIPPED SYSTEM IF PURCHASED NEW: $295,000
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
