Mazak #QTN-Nexus-350II / 1500, CNC lathe, 26.8" swing, 12" chuck, 4" bar, 16.5" dia., 59.6" lgth, A2-11, 12 turret, 3300 RPM, 40 HP, Mazatrol 640T, tailstock, 2006

For sale: 2006 MAZAK QTN NEXUS 350II/1500 CNC Universal Turning Center. Features 26.8" swing, 59.6" machining length, 40 hp spindle, and programmable tailstock. Equipped with MAZATROL 640T control, chip conveyor, and more. Ideal for precise 2-axis machining!
2006 MAZAK NEXUS QTN 350II / 1500
SPECIFICATIONS:
Swing Over Bed..................... 26.8"
Machining Length................... 59.6"
Chuck Size 1....................... 12"
Spindle Nose 1..................... A2 - 11
Spindle Bar Capacity 1............. 4"
Turning Diameter, Shaft Diameter... 16.5"
Spindle Speeds 1................... 3,300 RPM
Spindle Horsepower 1............... 40 hp
Spindle Bore Diameter 1............ 4.4"
X1 - Axis Travel................... 10.63"
Z1 - Axis Travel................... 59.03"
Rapid Traverse Rate - X1........... 787 in/min.
Rapid Traverse Rate - Z1........... 984 in/min.
Gear Ranges........................ 2
Turret Configuration 1............ 12
Tailstock Quill Diameter........... 3.94"
Tailstock Taper.................... MT 5
Programmable Tailstock............. YES
Tailstock Travel................... 55.8"
# Axis............................. 2
Live Tooling....................... 'No'
Sub Spindle........................ 'No'
Control............................ CNC (MAZATROL 640T CNC COLOR CONVERSATIONAL CONTROL)
Weight............................. 17,900
EQUIPPED WITH:

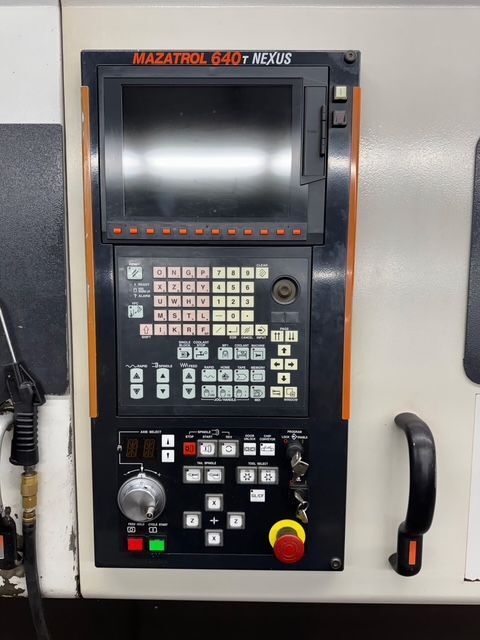

MAZATROL 640T CNC COLOR CONVERSATIONAL CONTROL
AUTOMATIC TOOL EYE
CHIP CONVEYOR
EIA/ISO PROGRAMMING
SPIRAL
MT 5 BUILT IN LIVE CENTER
HIGH PRESSURE COOLANT
EIA 3-D COMP
ROTATION, GEOMETRIC, AND SCALING
EXT DATA I/O
THREAD
VARIABLE 600 SETS
EIA HELICAL TAP
EIA PATTERN CYCLE
TILTED WORK PLANE
INVERSE TIME
PROGRAMMABLE TAILSTOCK
PITCH ERROR COMP
