Manufacturer: Mazak
Model: NEXUS-QTN-200
Year: 2002
Swing: 24.0
Bar Capacity: 2.5
Centers: 22.0
Stock # 9790
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Mike Oracko
224-53...> Show Seller's Phone Number 224-537-0982 Let the seller know you found their listing on Surplus Record!
Description

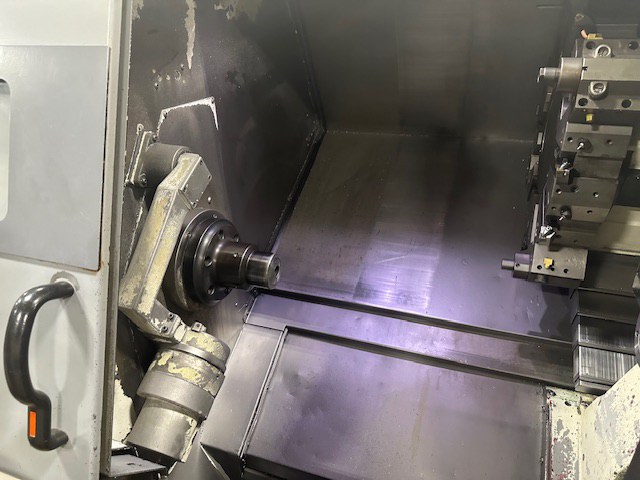

MAZAK QTN NEXUS 200 CNC Universal Lathe, 2002 model. Features 24" swing over bed, 20.1" machining length, and 14" turning diameter. Equipped with MAZATROL FUSION 640T, auto tool setter, and 12-position turret. Includes tooling cabinet and accessories.
2002 MAZAK NEXUS QTN 200
SPECIFICATIONS:
Swing Over Bed....................... 24"
Machining Length..................... 20.1"
Distance Between Centers............. 22"
Distance Between Spindles............ 0"
Spindle Nose 1....................... A2 -6
Spindle Bar Capacity 1............... 2.5"
Turning Diameter, Shaft Diameter..... 14"
Spindle Speeds 1..................... 5,000 RPM
Spindle Horsepower 1................. 35 hp
Spindle Bore Diameter 1.............. 3"
X1 - Axis Travel..................... 7.5"
Z1 - Axis Travel..................... 21.12"
Rapid Traverse Rate - X1............. 1,181 in/min.
Rapid Traverse Rate - Z1............. 1,299 in/min.
Spindle Torque....................... 0
Gear Ranges.......................... 0
Turret Configuration 1.............. 12
Turret Rotary Tool Spindle Speed 1... 0 RPM
Turret Rotary Tool Horse Power 1..... 0 hp
Tailstock Taper...................... MT 5
Programmable Tailstock............... YES
Tailstock Travel..................... 21.75"
# Axis............................... 2
Bar Capacity......................... 2.5"
Tailstock............................ 'Yes'
Live Tooling......................... 'No'
Sub Spindle.......................... 'No'
Control.............................. CNC (FUSION 640T)
Weight............................... 10,800
EQUIPPED WITH:
MAZATROL FUSION 640T CNC COLOR CONVERSATIONAL CONTROL
BACKGROUND PATH CHECK
AUTO TOOL SETTER
12 POSITION TURRET
COLLET NOSE
CHIP CONVEYOR
MIST COLLECT SYSTEM
CHUCK OPEN CLOSE CONFIRMATION
2002 MAZAK NEXUS QTN 200
SPECIFICATIONS:
Swing Over Bed....................... 24"
Machining Length..................... 20.1"
Distance Between Centers............. 22"
Distance Between Spindles............ 0"
Spindle Nose 1....................... A2 -6
Spindle Bar Capacity 1............... 2.5"
Turning Diameter, Shaft Diameter..... 14"
Spindle Speeds 1..................... 5,000 RPM
Spindle Horsepower 1................. 35 hp
Spindle Bore Diameter 1.............. 3"
X1 - Axis Travel..................... 7.5"
Z1 - Axis Travel..................... 21.12"
Rapid Traverse Rate - X1............. 1,181 in/min.
Rapid Traverse Rate - Z1............. 1,299 in/min.
Spindle Torque....................... 0
Gear Ranges.......................... 0
Turret Configuration 1.............. 12
Turret Rotary Tool Spindle Speed 1... 0 RPM
Turret Rotary Tool Horse Power 1..... 0 hp
Tailstock Taper...................... MT 5
Programmable Tailstock............... YES
Tailstock Travel..................... 21.75"
# Axis............................... 2
Bar Capacity......................... 2.5"
Tailstock............................ 'Yes'
Live Tooling......................... 'No'
Sub Spindle.......................... 'No'
Control.............................. CNC (FUSION 640T)
Weight............................... 10,800
EQUIPPED WITH:
MAZATROL FUSION 640T CNC COLOR CONVERSATIONAL CONTROL
BACKGROUND PATH CHECK
AUTO TOOL SETTER
12 POSITION TURRET
COLLET NOSE
CHIP CONVEYOR
MIST COLLECT SYSTEM
CHUCK OPEN CLOSE CONFIRMATION
Get Your Price from Used CNC LLC!
