Description

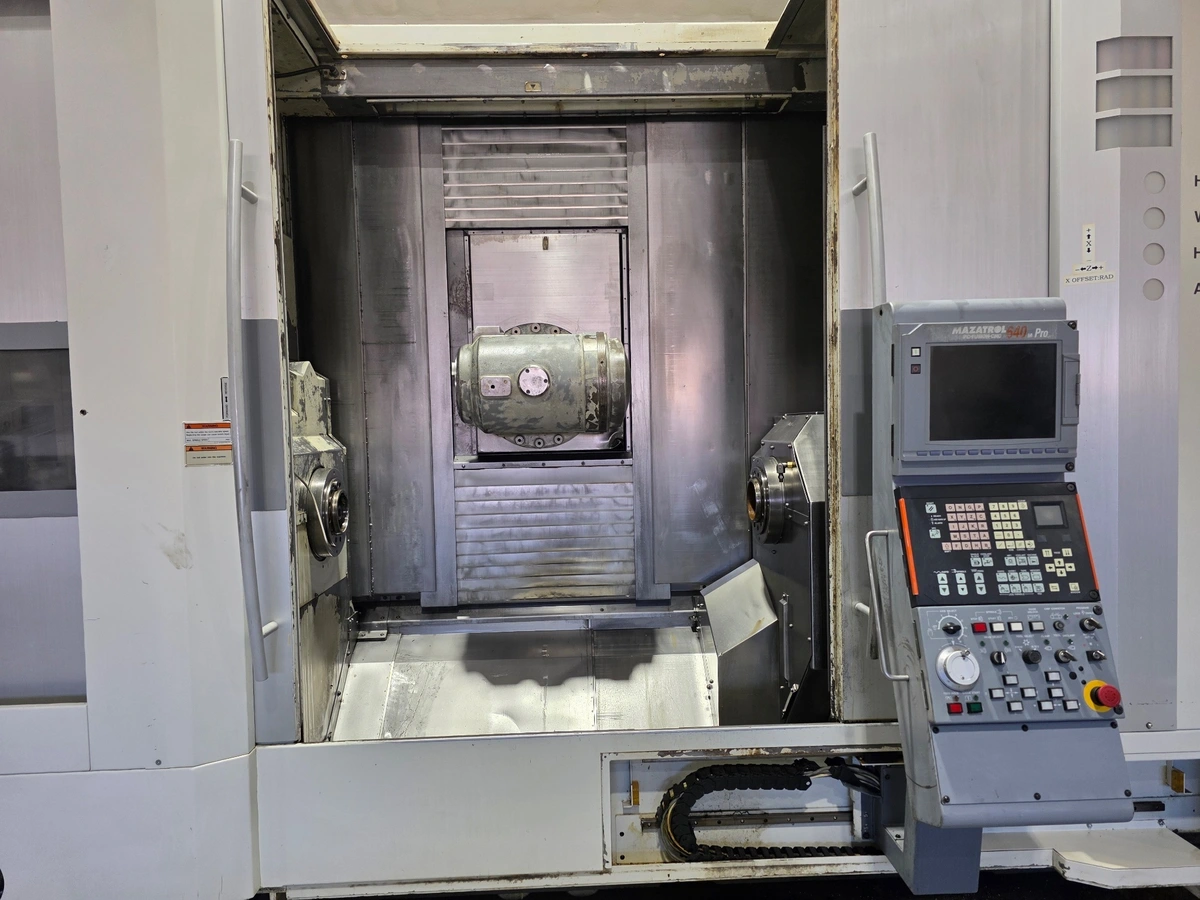

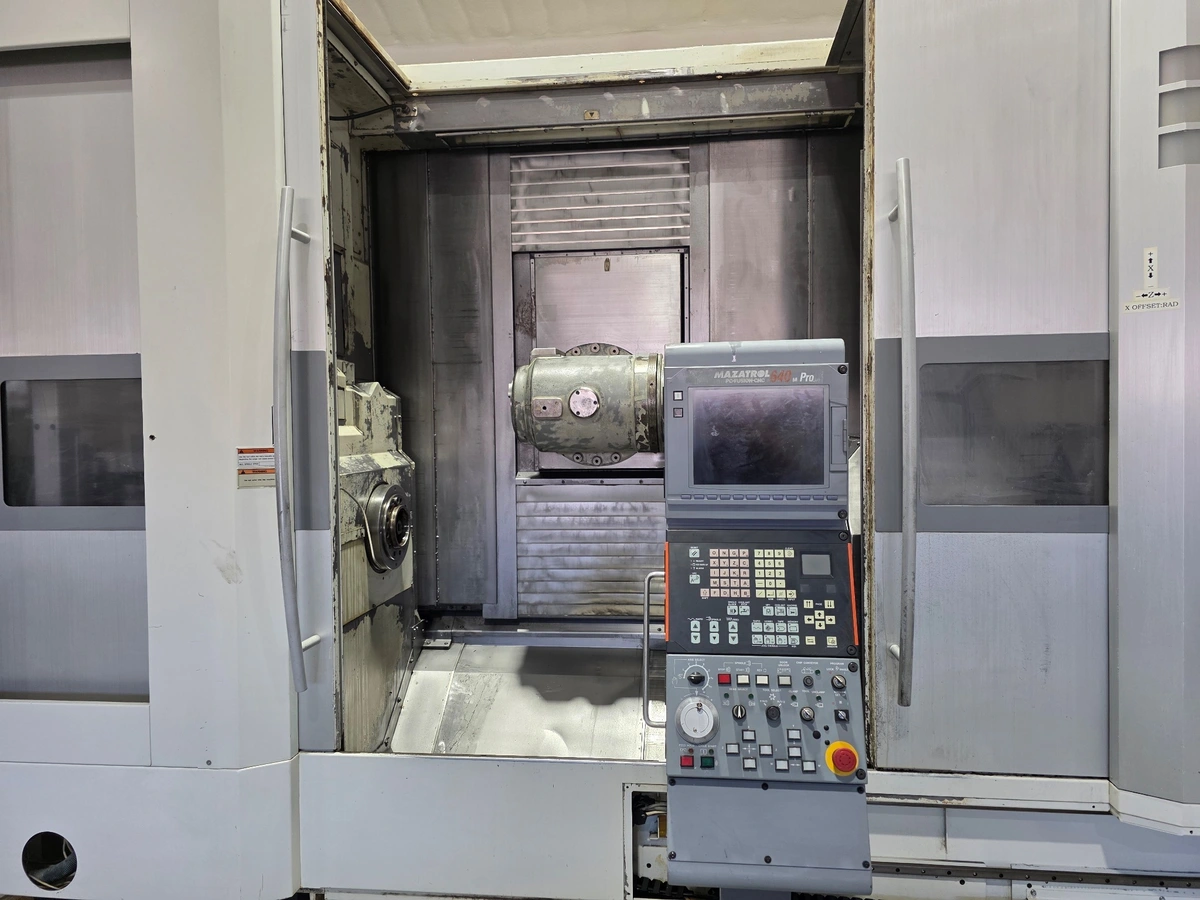

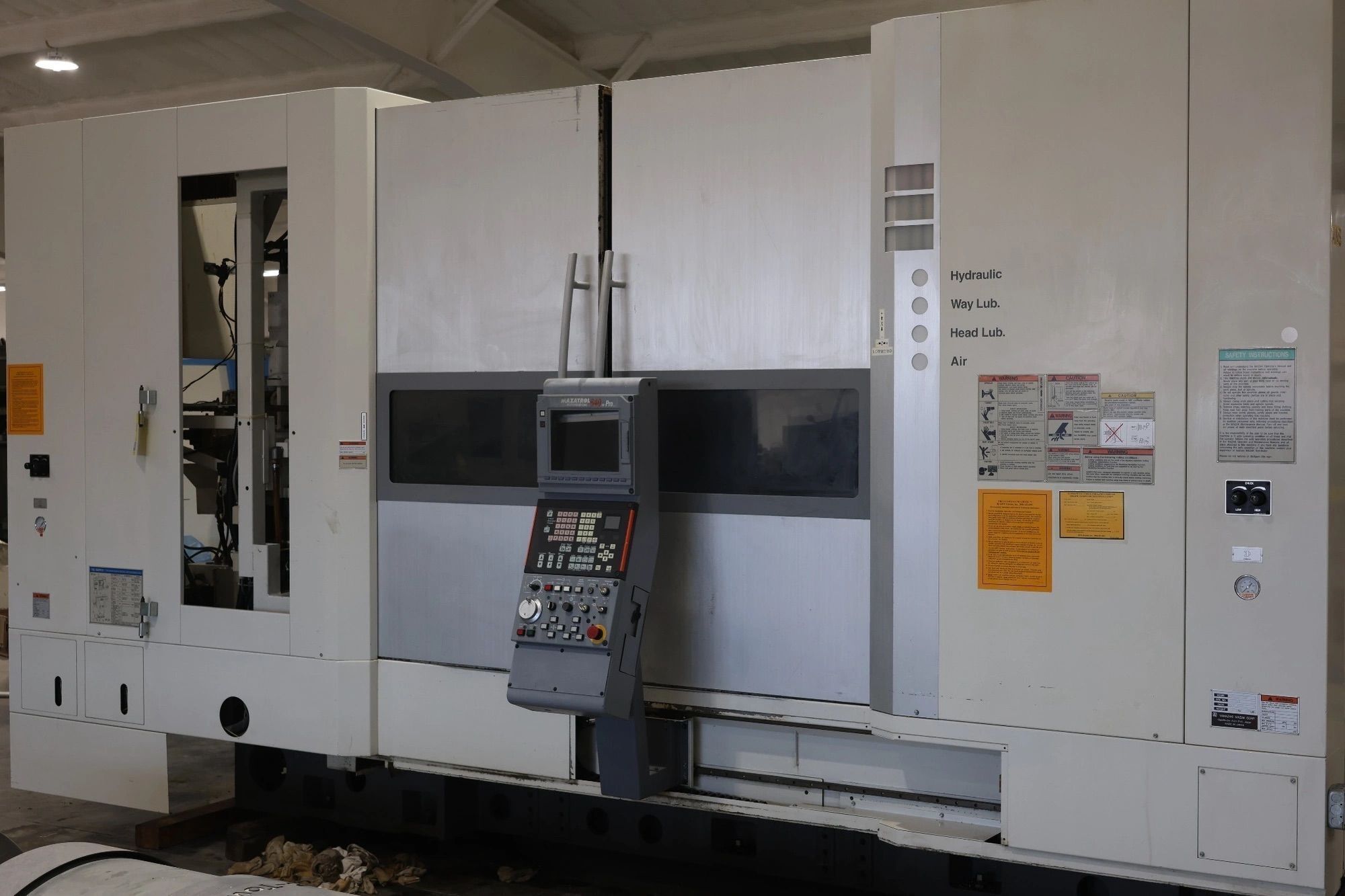

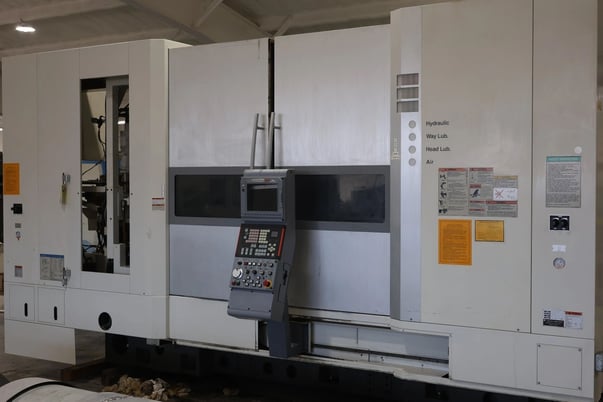

2002 MAZAK INTEGREX E-410HS, 5-axis CNC lathe with Mazatrol Matrix control. Features include 610 mm max turning diameter, 1,500 mm length, 4,000 RPM spindle, and 40-tool capacity.

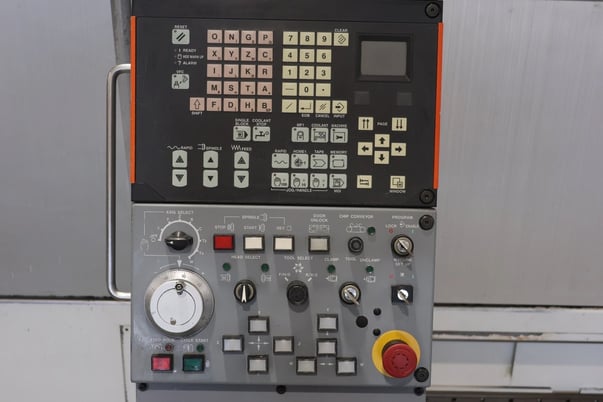

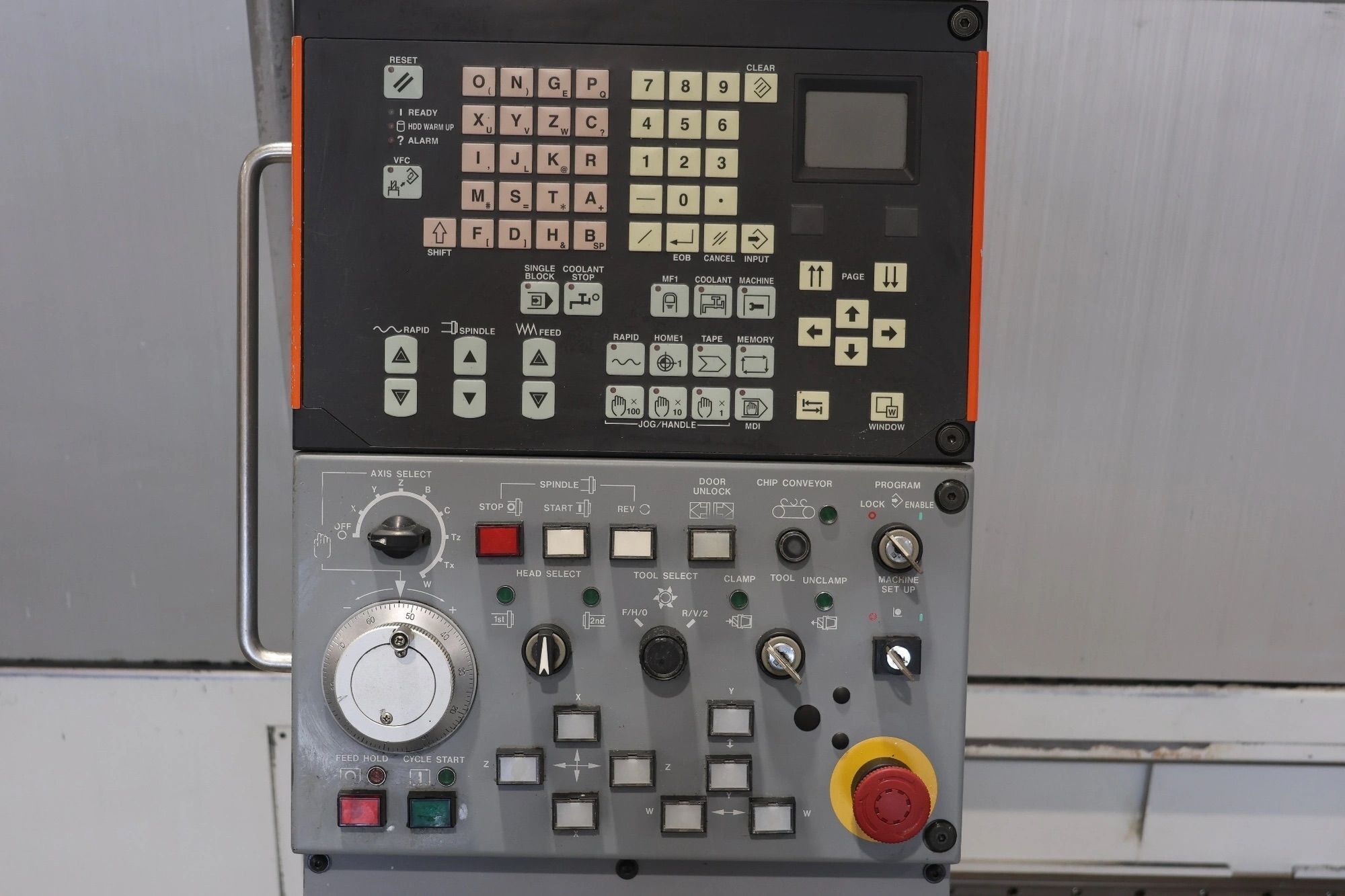

Control System: Mazatrol Matrix
Max Turning Diameter: 610 mm (24.016 inches)
Max Turning Length: 1,500 mm (59.06 inches)
X-Axis Travel: 740 mm (29.134 inches)
Y-Axis Travel: 410 mm (16.142 inches)
Z-Axis Travel: 1,388 mm (54.646 inches)
C-Axis: 360 positioning
B-Axis: 270 (-30 to +210)
Spindle Speed: Up to 4,000 RPM
Spindle Power: 26 kW
Subspindle Speed: Up to 4,000 RPM
Subspindle Power: 26 kW

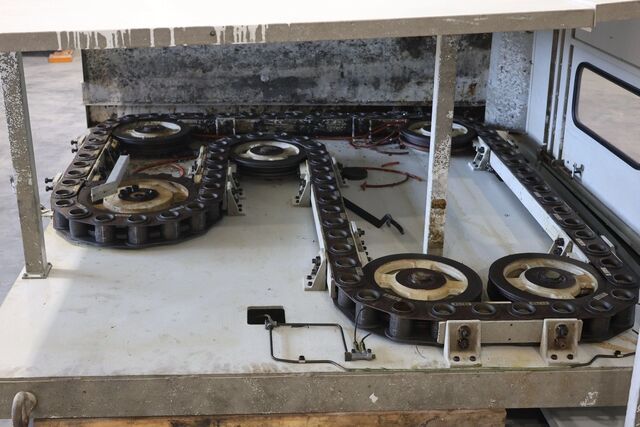

Tool Changer Capacity: 40 tools
Live Tool Speed: Up to 12,000 RPM
Live Tool Power: 22 kW
Spindle Bore: 88 mm (3.465 inches)
Tool System: Capto C6
Control System: Mazatrol Matrix
Max Turning Diameter: 610 mm (24.016 inches)
Max Turning Length: 1,500 mm (59.06 inches)
X-Axis Travel: 740 mm (29.134 inches)
Y-Axis Travel: 410 mm (16.142 inches)
Z-Axis Travel: 1,388 mm (54.646 inches)
C-Axis: 360 positioning
B-Axis: 270 (-30 to +210)
Spindle Speed: Up to 4,000 RPM
Spindle Power: 26 kW
Subspindle Speed: Up to 4,000 RPM
Subspindle Power: 26 kW
Tool Changer Capacity: 40 tools
Live Tool Speed: Up to 12,000 RPM
Live Tool Power: 22 kW
Spindle Bore: 88 mm (3.465 inches)
Tool System: Capto C6
Get Your Price from Toolquip Inc!
