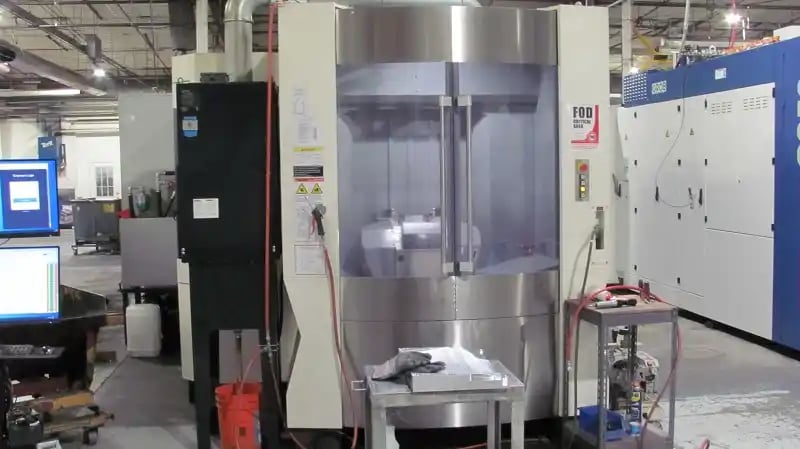

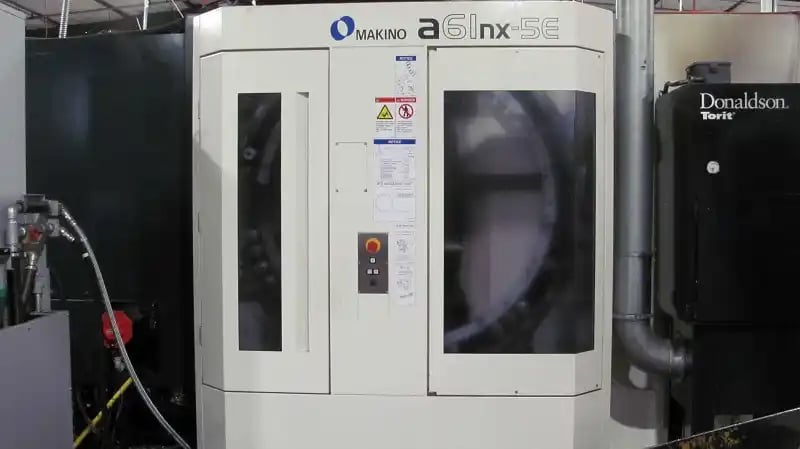

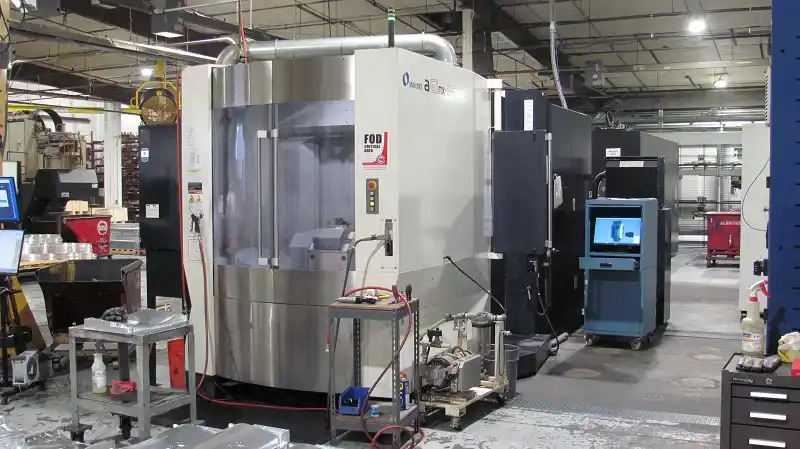

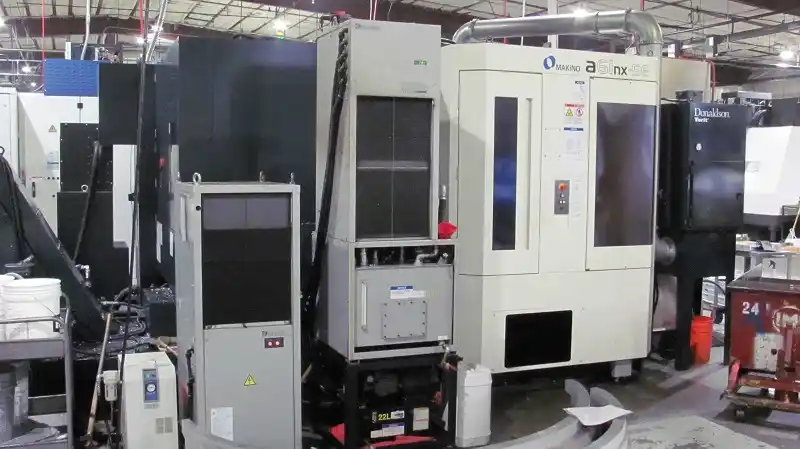

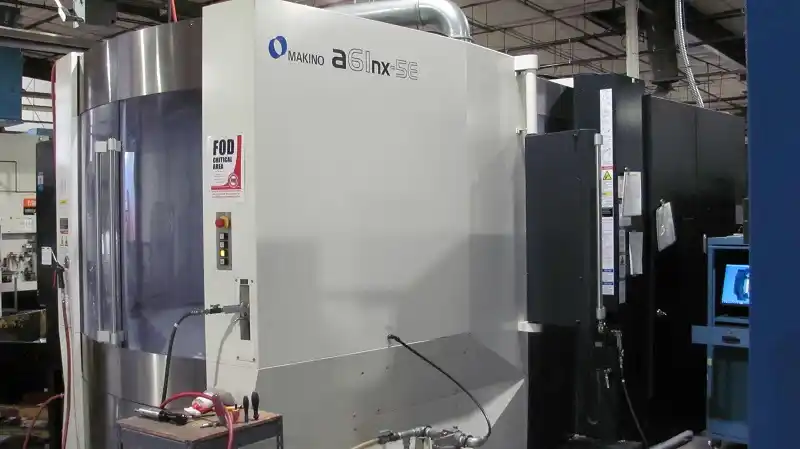

Makino #A61NX-5E, 60 automatic tool changer, 28.7" X, 28.7" Y, 26.8" Z, 24000 RPM, HSK-A63 taper, 80 HP, 5-Axis, Professional 5, Renishaw RMP600 probe, thru spindle coolant, 2016

Manufacturer: Makino
Model: A61NX-5E
Year: 2016
Automatic Tool Changer: 60
Longitudinal" X: 28.7
Cross" Y: 28.7
Vertical" Z: 26.8
RPM: 24000
Stock # S46122

For Sale by Perfection Machinery Sales

Platinum Level Dealer
Surplus Record Dealer Since 1964
  Sales Dept.
  847-42...> Show Seller's Phone Number 847-427-3333 Let the seller know you found their listing on Surplus Record!

Description

SPECIFICATIONS

X-Axis:
X-Axis:
28.7"
728.98mm
Y-Axis:
Y-Axis:
28.7"
728.98mm
Z-Axis:
Z-Axis:
26.8"
680.72mm
B-Axis:
B-Axis:
-110 to +180
-110 to +180
C-Axis Index:
C-Axis Index:
.0001
.0001
Max Feedrate:
Max Feedrate:
1969 IPM
50.01 m/min
Pallet Size:
Pallet Size:
15.75" x 15.75"
400.05mm x 400.05mm
No. of Pallets:
No. of Pallets:
2
2
Pallet Load Capacity:
Pallet Load Capacity:
300 lbs
136.05 kg
Spindle Motor:
Spindle Motor:
80 hp
59.66 kw
Spindle Nose to Table Center:
Spindle Nose to Table Center:
3.9" - 30.7"
99.06mm - 779.78mm
Spindle Speed:
Spindle Speed:
24,000 RPM
24,000 RPM
Spindle Taper:
Spindle Taper:
HSK-A63
HSK-A63
Tool Changer:
Tool Changer:
60-ATC
60-ATC
Rapid Traverse Rates (X & Y / Z):
Rapid Traverse Rates (X & Y / Z):
1890 IPM / 1693 IPM
48.01 m/min /43.00 m/min
Max Tool Diameter:
Max Tool Diameter:
2.76" / 6.7"
70.10mm / 170.18mm
Max Tool Length:
Max Tool Length:
20.1"
510.54mm
Max Tool Weight:
Max Tool Weight:
26.4 lbs
11.97 kg

Equipped With:

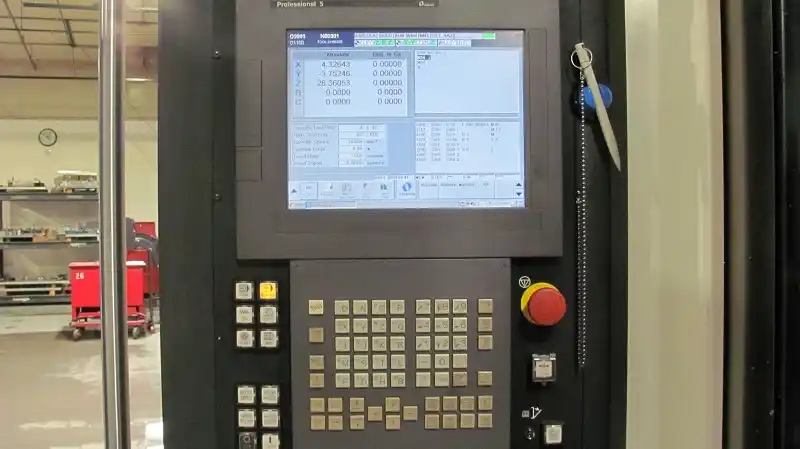

Professional 5 CNC Control
Professional 5 CNC Control
5-Axis Simultaneous Machining Capability
5-Axis Simultaneous Machining Capability

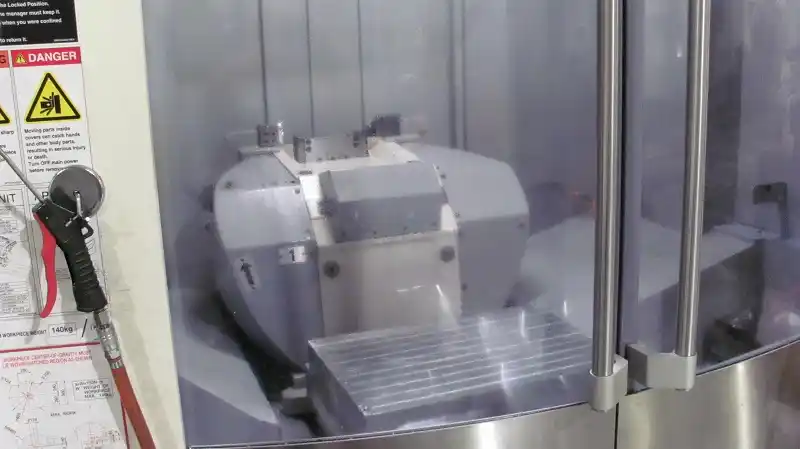

Integral Trunnion Tilt/Rotary Table
Integral Trunnion Tilt/Rotary Table
Through Spindle Coolant
Through Spindle Coolant
Renishaw RMP600 Workpiece Measuring Probe
Renishaw RMP600 Workpiece Measuring Probe
Resnishaw NC4S Laser ATLM
Resnishaw NC4S Laser ATLM

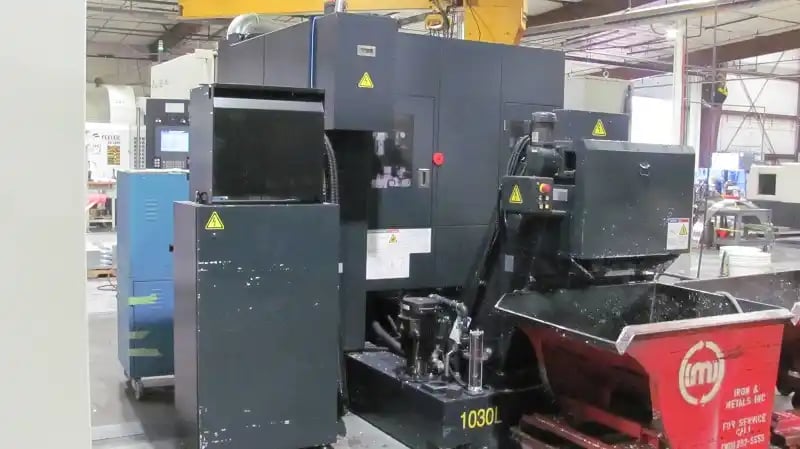

Chip Conveyor
Chip Conveyor
Vacuum Table with Condinsate Spearator
Vacuum Table with Condinsate Spearator
Automatic Air Blower Nozzle
Automatic Air Blower Nozzle
Workpiece Washing Gun
Workpiece Washing Gun

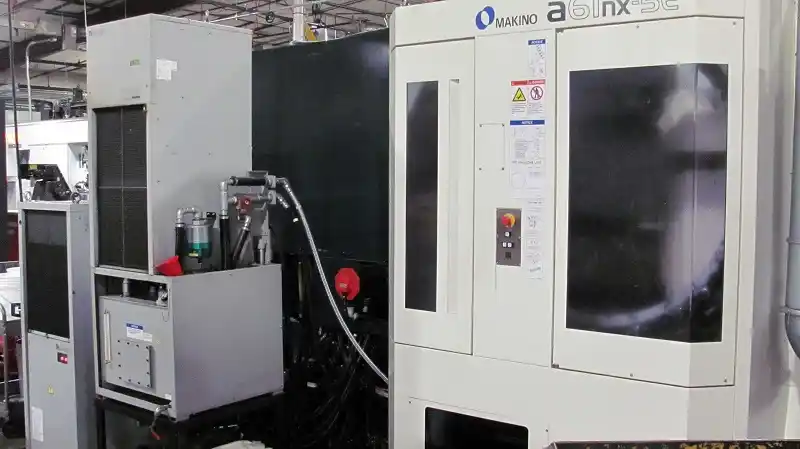

Spindle Chiller Unit
Spindle Chiller Unit
Remote Jog Handle
Remote Jog Handle
Donaldson Torit Mist Collector
Donaldson Torit Mist Collector
Dimensions & Weight:
Call Perfection Global for Dims, 0 Lbs
Dimensions & Weight:
0 Lbs, 0 Kg
As Is, Where Is
