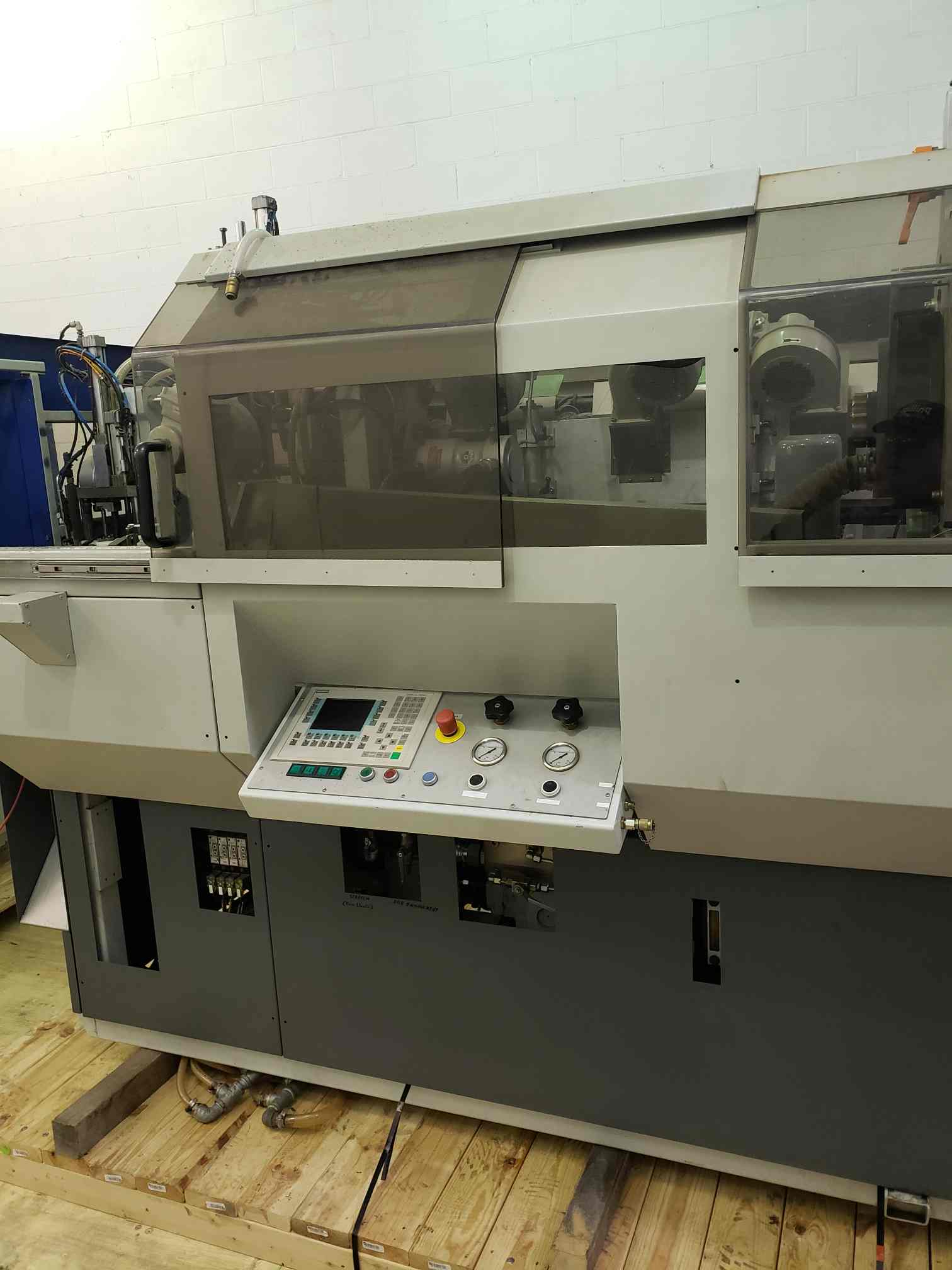

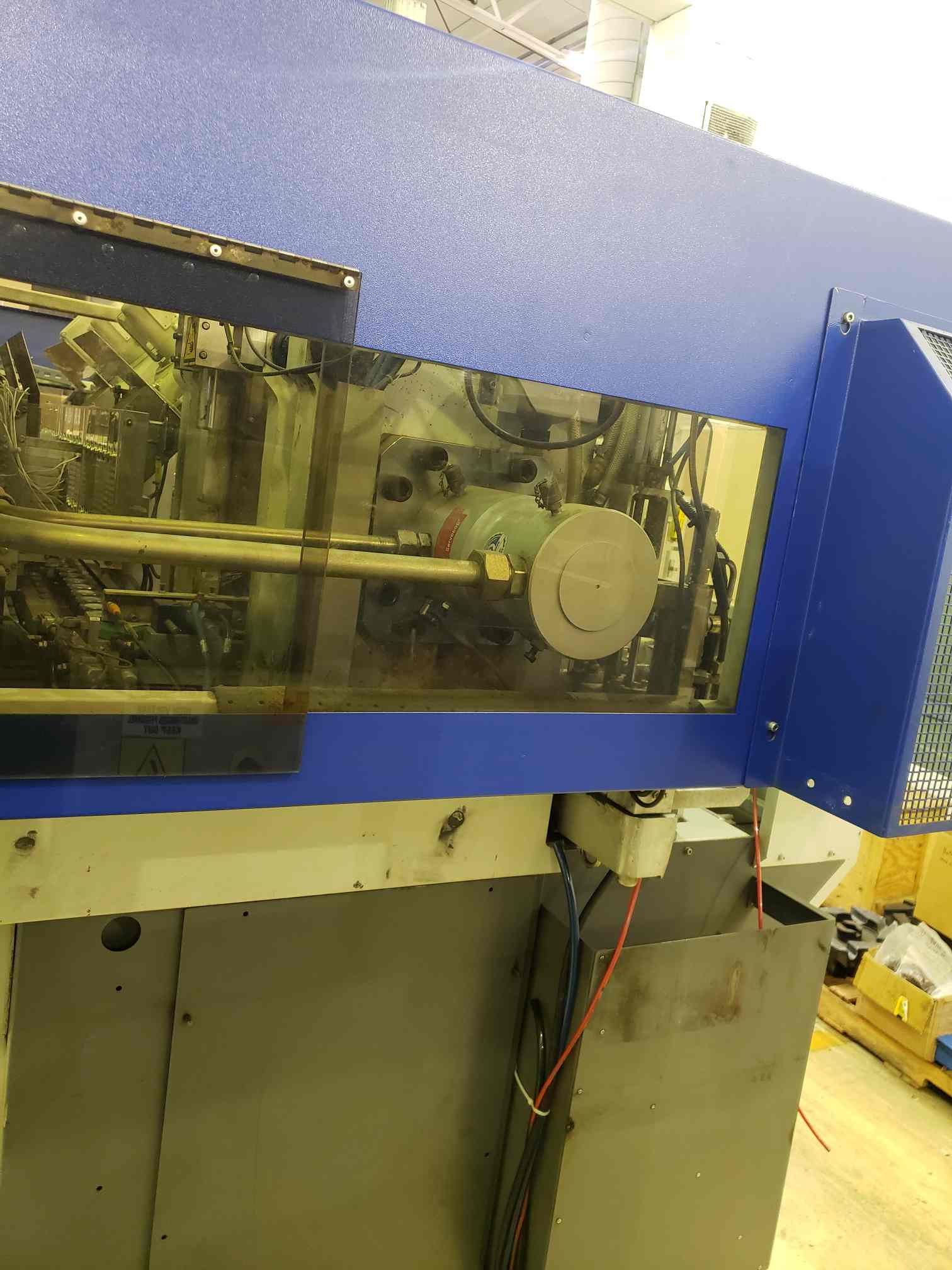

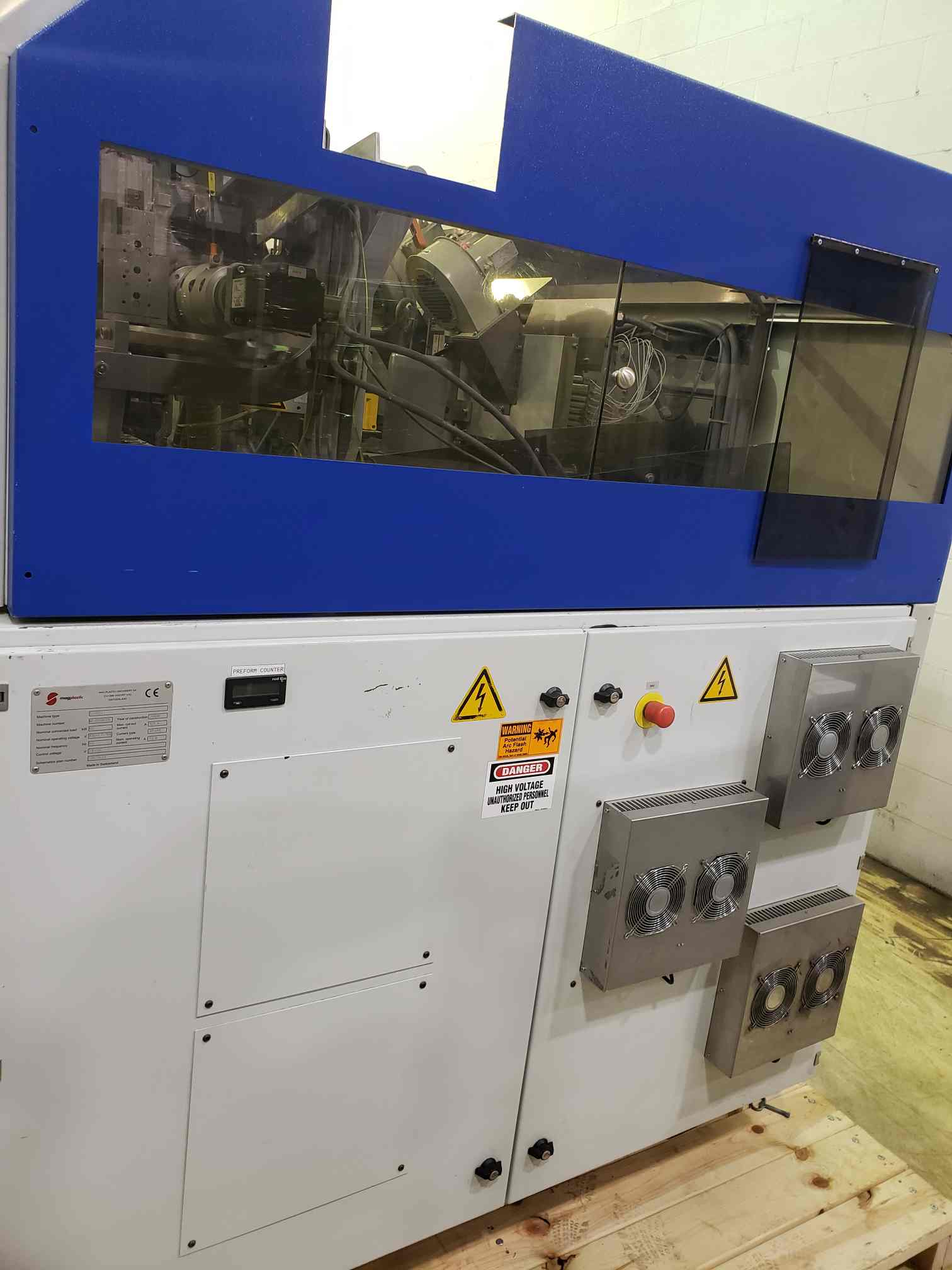

Magplastic #SSB-02 PET Bottle Blow Moulding Machine, 2008

Magplastic SSB02 PET Bottle Blow Moulding Machine, 2008
– Previously used for 1.75L, 1L, and .75L PET bottles

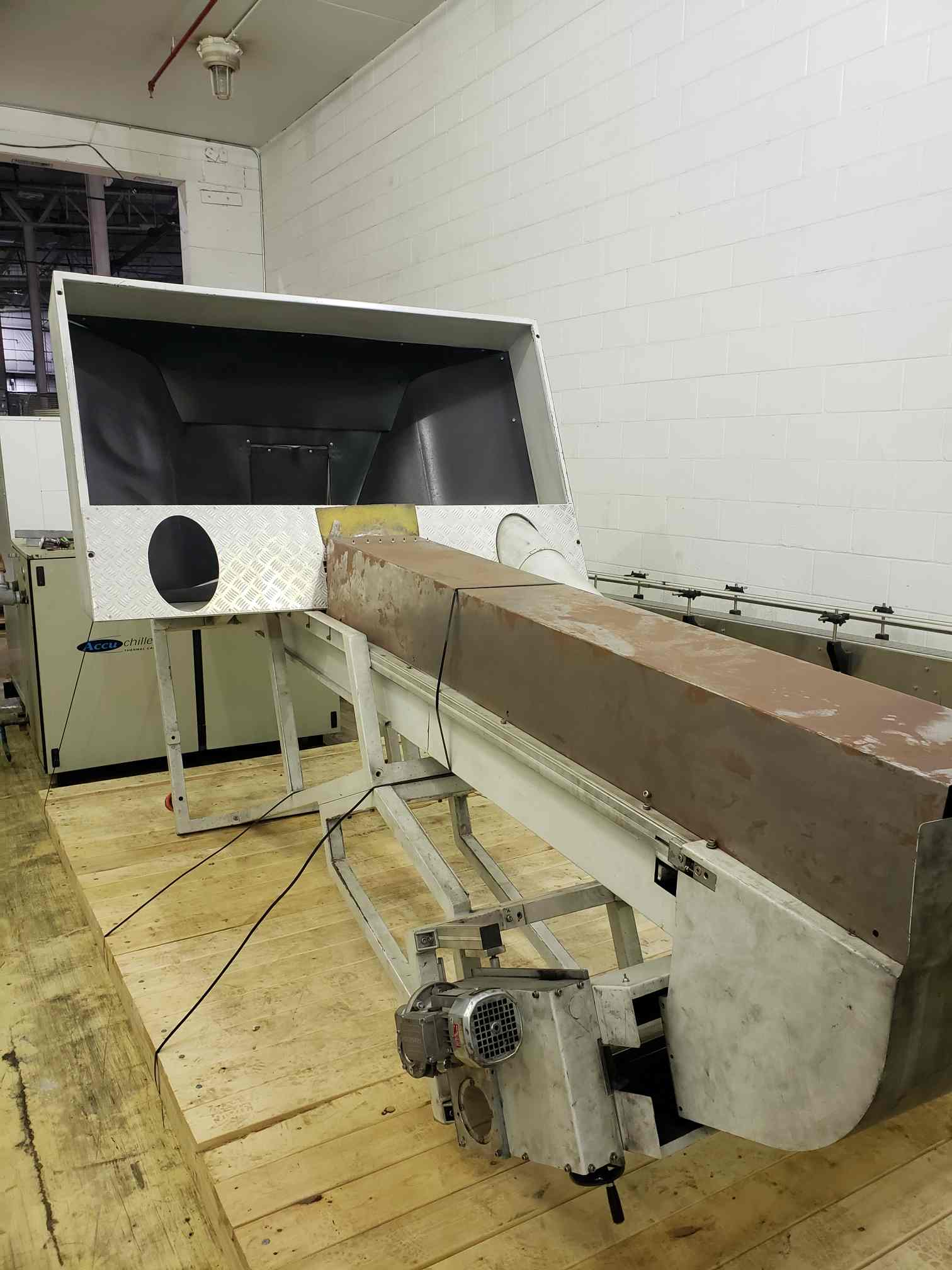

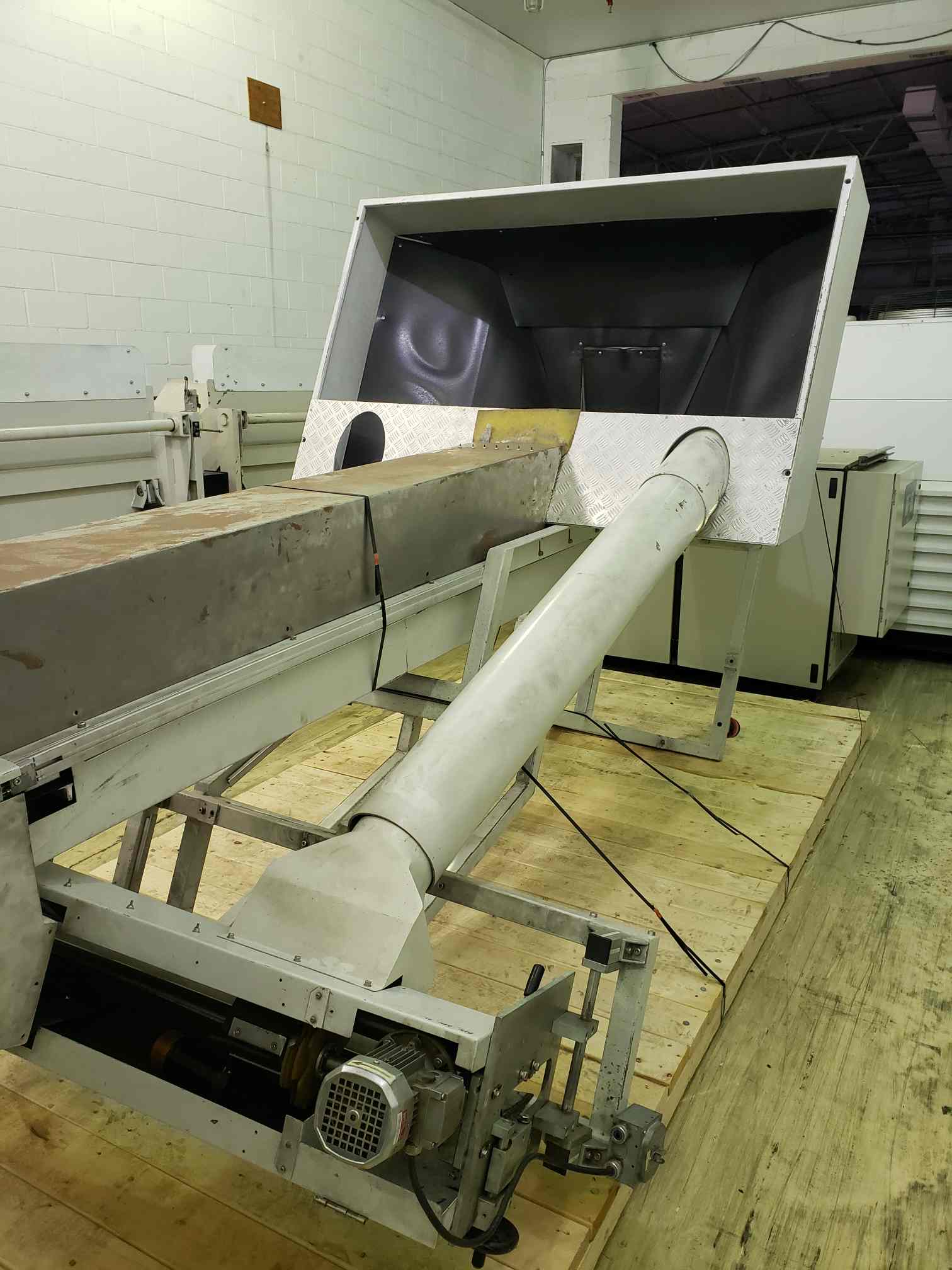

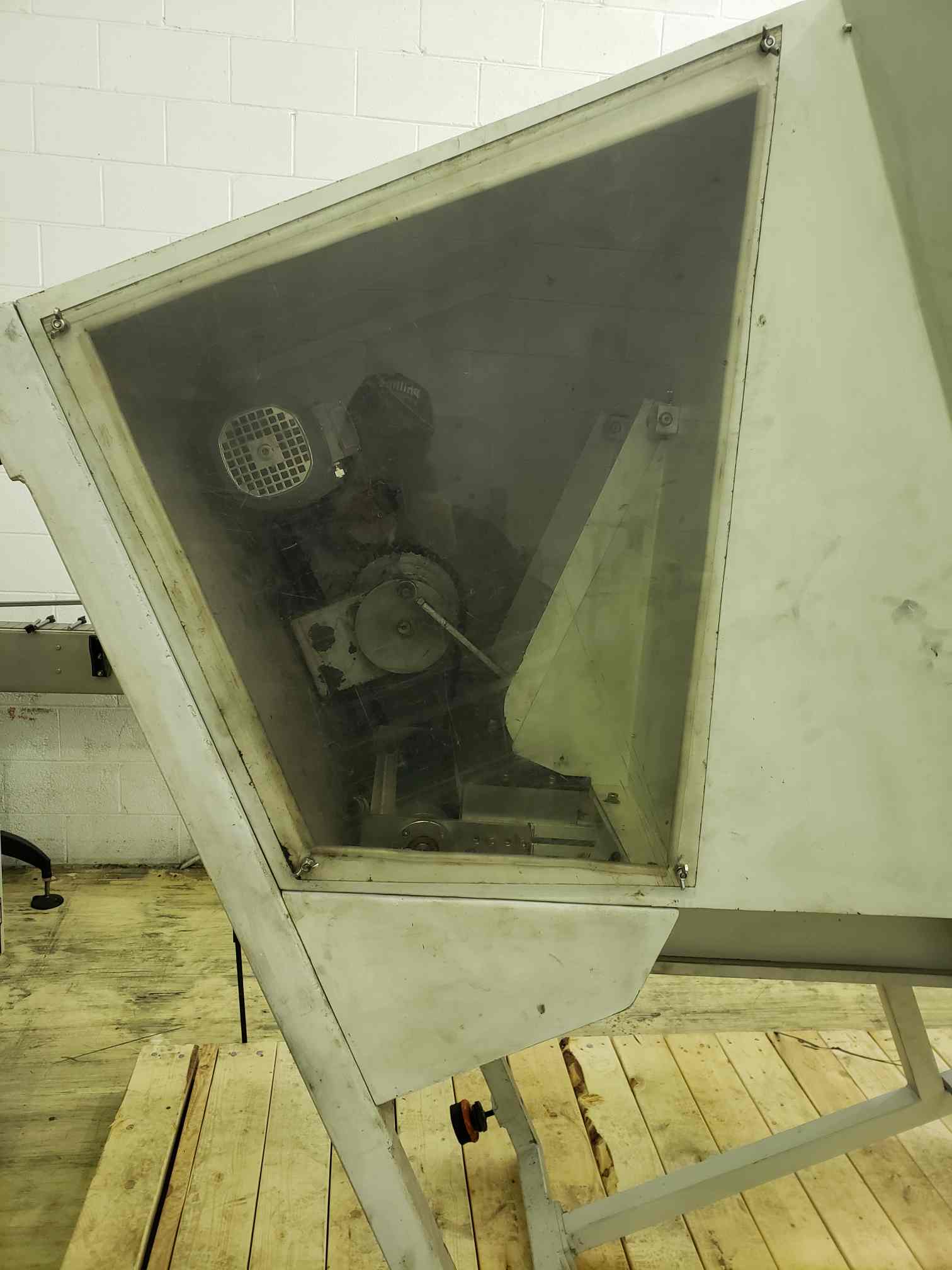

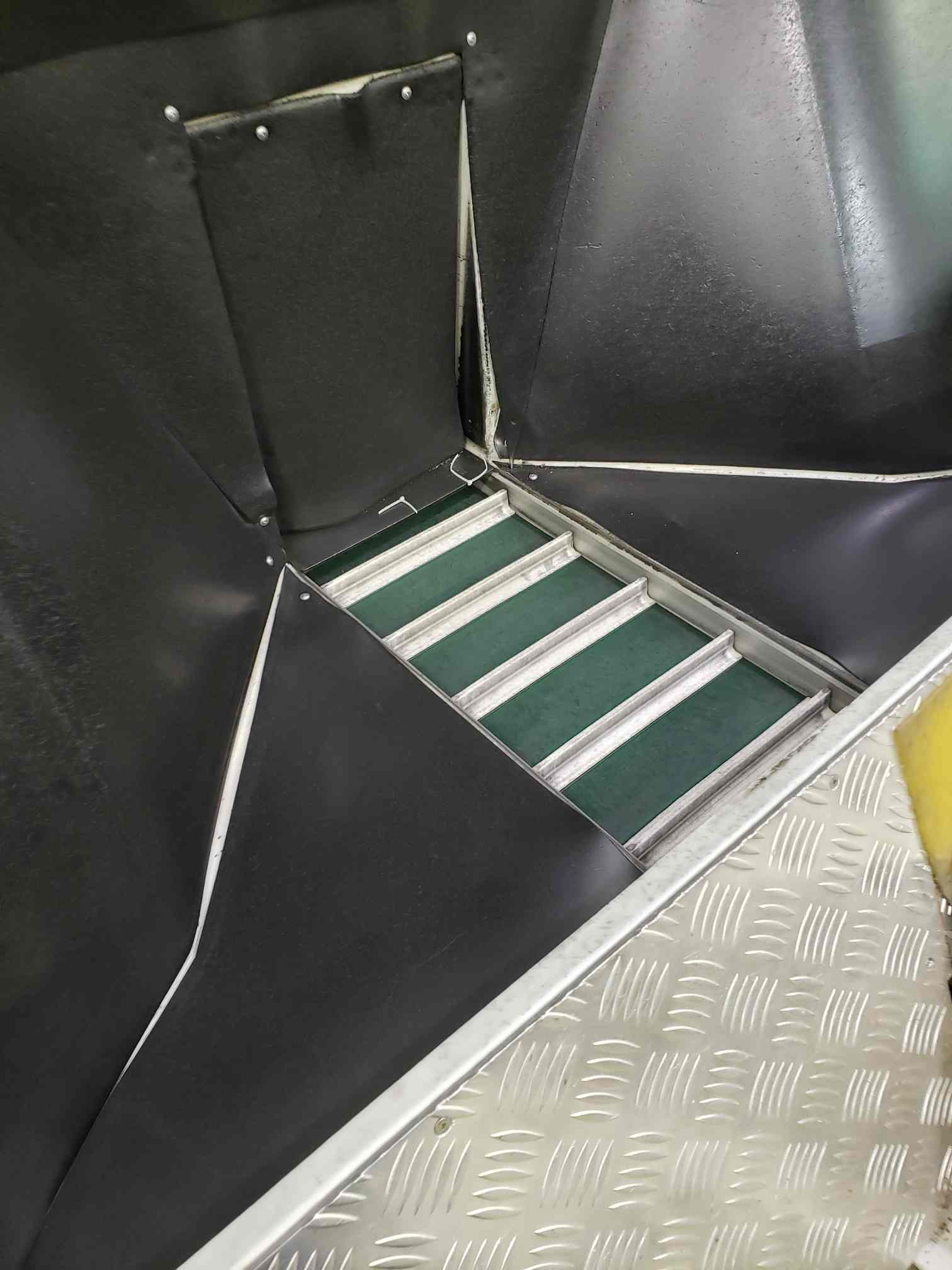

– System includes tote dumper, pre-form conveyor, and bottle blower

Machine technical data:
– Press closing force: 220 kN
– Average electrical power with heating fully engaged: 37 kW (up to 66 kW with options). True electrical consumption depends on bottle shape, preform length and thickness.
– Standard voltage / frequency: 3 x 400 to 480V equilibrated + E – 50Hz / 60Hz
– Permissible fluctuations: +/- 5%
– Distance between moulds: 118 mm

Heating system:
One pre-heating box:
– 9 lamps x 1500W
– Total power: 13,500 kW
– Adjustable regulation 2/3 of nominal power (1000 to 1500W)
One profiler heating box:
– 9 lamps x 1500W
– Total power: 13,5 kW
– 9 independently regulated zones

Air Supply
– Blowing air, “oil-free” (40** bar) : 2800 bt/h x 1 litre = 150 Nm3/h / 2800 bt/h x 2 litre = 320 Nm3/h
– Working air (7 to 10 bar): 65 Nm3/h
– Pressure range: 27 to 40 bar

Cooling water
– Water chiller capacity: approx. 15’000 kcal/h
– Water pressure range: 5 to 6 bar
– Water temperature range: 6 to 10 ° C (42°F to 50°F)
– Flow rate : 2.4 to 3.0 m3/h

Bottle Production
– Number of moulds : 2
– Production output : up to 2’800 bottled / hour depending on bottle size, shape and weight, altitude of production site

Additional pictures available upon request
