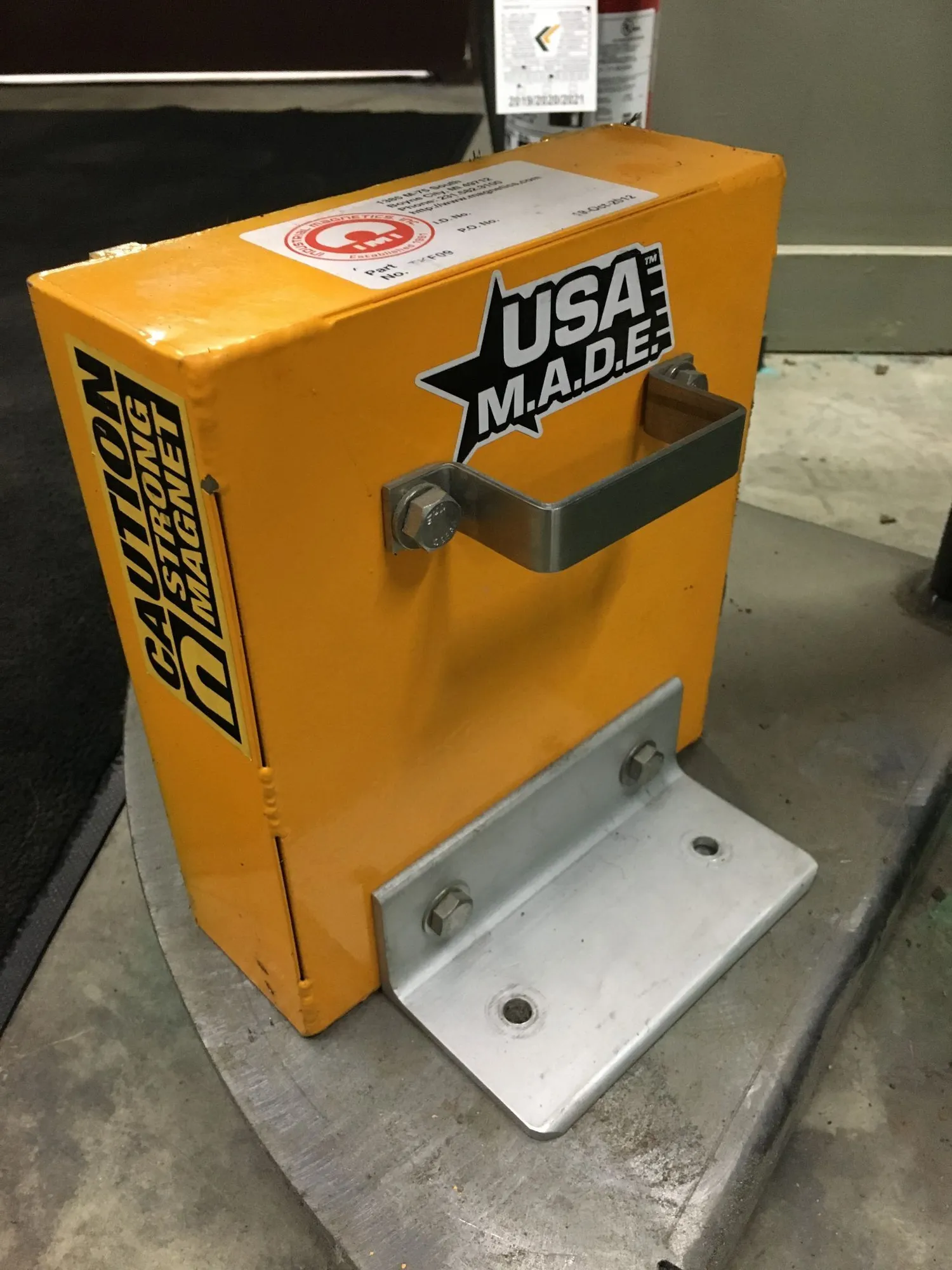

Mag-Mate #TKF09, Permanent Magnetic Sheet Fanner, 9", 7-12 Gauge, 43 lb.

$252 USD

Request Formal Quote

THE MAG-MATE TKF09 IS A HEAVY-DUTY PERMANENT MAGNETIC SHEET FANNER ENGINEERED TO EFFICIENTLY SEPARATE STACKED FERROUS STEEL SHEETS FOR SMOOTHER HANDLING, AUTOMATED PRESS-FEEDING, OR MANUAL MANIPULATION. DESIGNED TO MINIMIZE DOUBLE-BLANKING, PRYING, AND WORKER FATIGUE, THE DEVICE APPLIES A POWERFUL MAGNETIC FIELD THAT INDUCES LIKE POLARITY BETWEEN STACKED SHEETS, CAUSING THEM TO REPEL AND PUSH AWAY FROM ONE ANOTHER. THIS ALLOWS OPERATORS OR ROBOTIC SYSTEMS TO RELIABLY LIFT A SINGLE SHEET AT A TIME, EVEN WHEN DEALING WITH OILY OR STICKY MATERIALS.
CONSTRUCTED FOR DEMANDING INDUSTRIAL ENVIRONMENTS, THE UNIT FEATURES A DURABLE, FULLY ENCLOSED STAINLESS STEEL MAGNETIC FACE TO ENSURE LONG-LASTING RELIABILITY AND LOW MAINTENANCE WITH NO EXTERNAL POWER REQUIREMENTS. THE UNIT IS OPTIMIZED TO ACCOMMODATE SHEETS RANGING FROM 7 TO 12 GAUGE THICKNESSES. PHYSICALLY, THE TKF09 MODEL MEASURES 8-5/16 INCHES (OR APPROXIMATELY 8.3 INCHES) IN WIDTH, 9 INCHES (OR 9.2 INCHES) IN HEIGHT, AND 3 INCHES IN DEPTH, WITH A SUBSTANTIAL ITEM WEIGHT OF APPROXIMATELY 43 POUNDS TO PROVIDE STABILITY DURING CONTINUOUS MATERIAL HANDLING OPERATIONS.
