Lisec BSV-45, Spacer Bar Bending, 157.5" x 86.6" Frame Size, 60 - 2200 mm shape legs L, 250 mm min. size of one length to transport shape, 2007

Estimated monthly payment valid upon approved credit.

Request Formal Quote

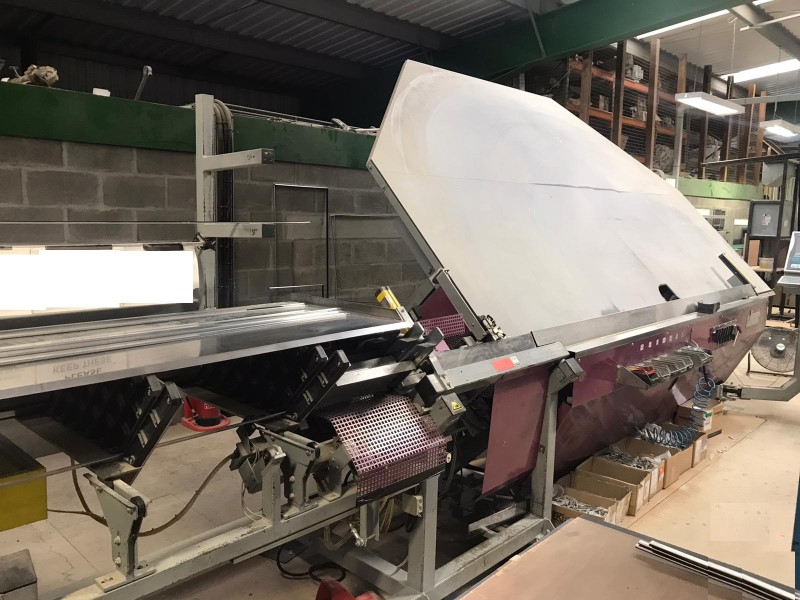

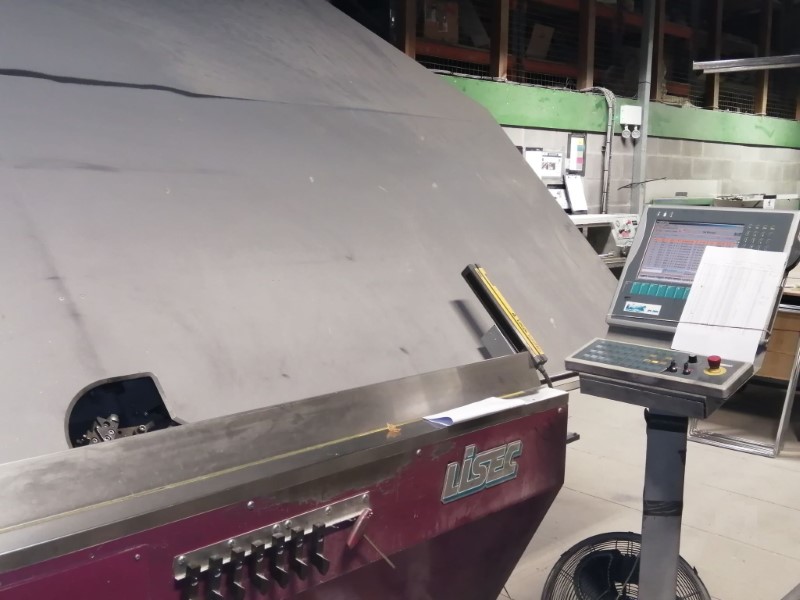

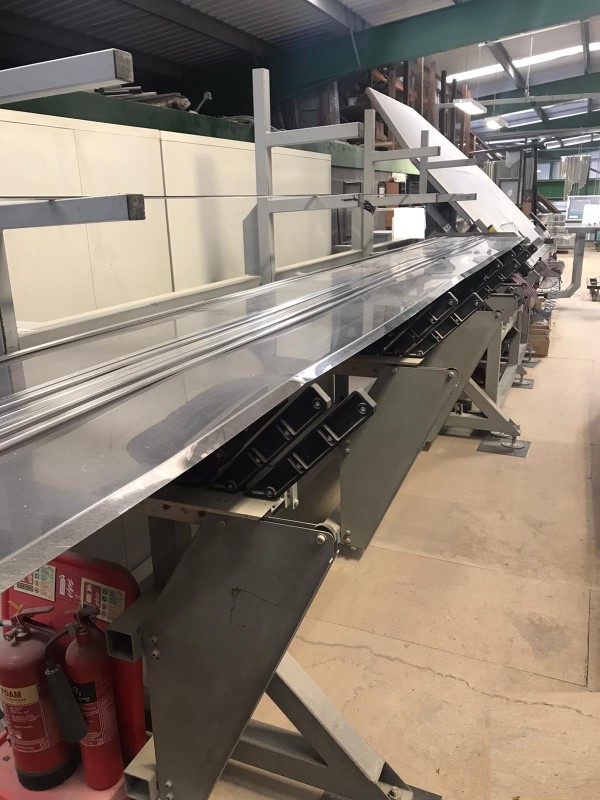

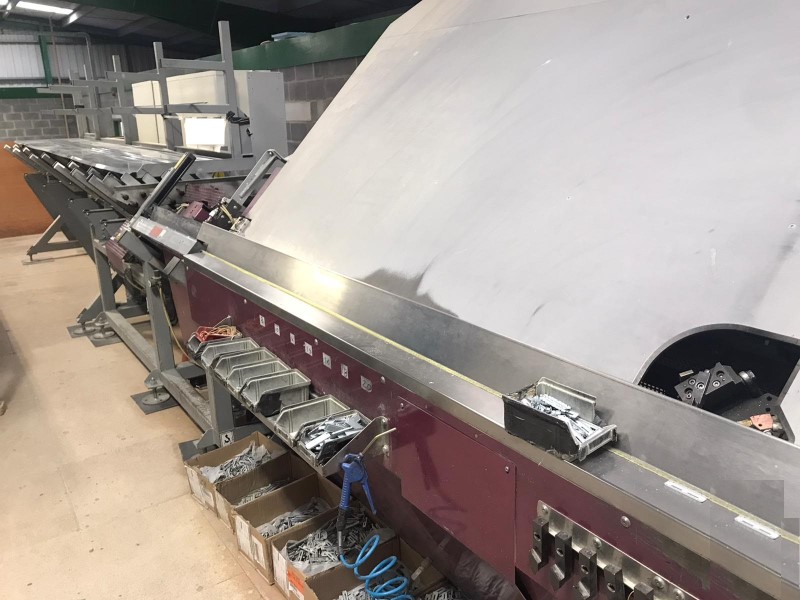

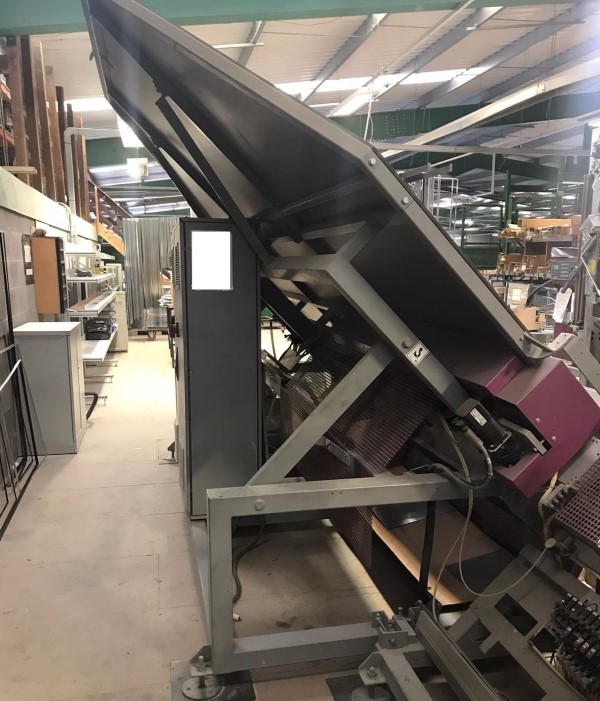

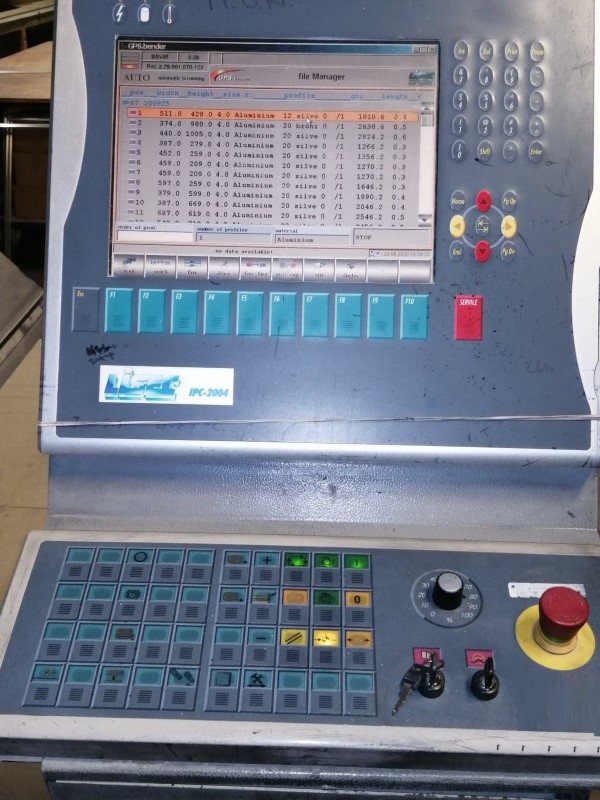

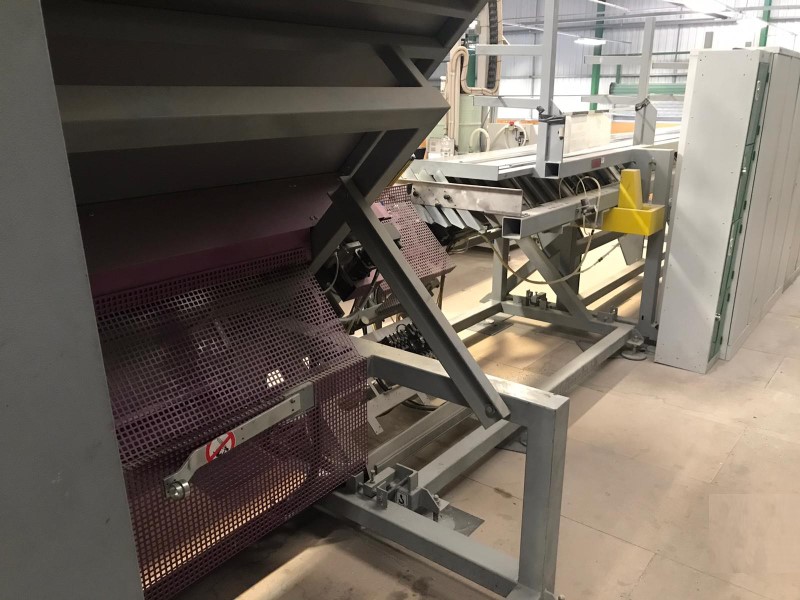

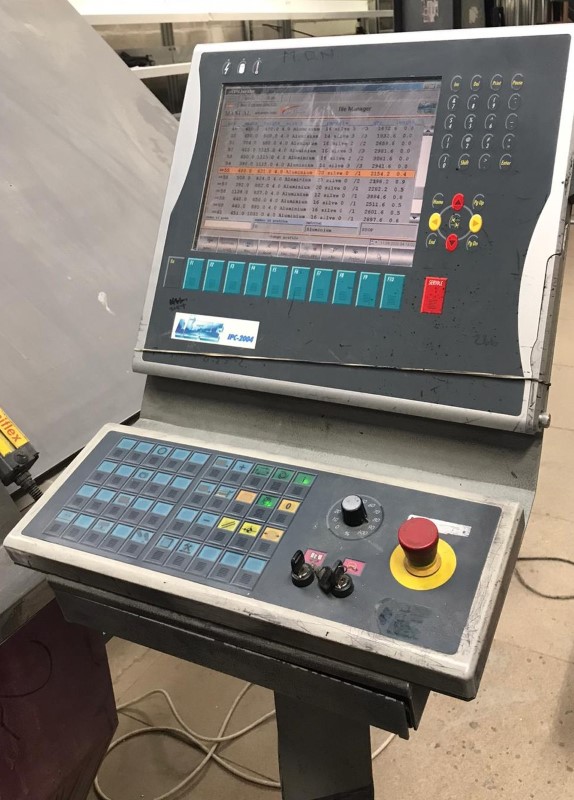

LISEC BSV-45A Automated Bending Machine For Spacer BarsBending machine with a work plate inclined at 45 designed to bend spacer bars to any angle. The machine is suitable for processing steel and aluminum profiles. The spacer frames can be filled with desiccant after being bent.The machine is equipped with an automatic plug device to connect the profile ends. The data measured can either be transferred online or be entered on the control terminal.The required data such as order no., item no., unit width, unit height, spacer width, depth of seal and quantity are entered on the computer (max. 250 items) and show on the monitor. Size data of shapes can be entered only by diskette or direct input. The basis for entering a shape is the LISEC shape catalogue.Specifications: -- Min. Frame size: 250 x 120 mm (9.8" x 4.7") -- Max. Frame size: 4000 x 2200 mm (157.5" x 86.6") -- Min. and Max. length of shape legs: 60 - 2,200 mm -- Minimum size of one length to transport shape: 250 mm -- Dimensions: 14800 x 1800 x 2800 mm (583" x 71" x 110")NOTE: Machine is in very good condition and ready for immediate shipment.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
