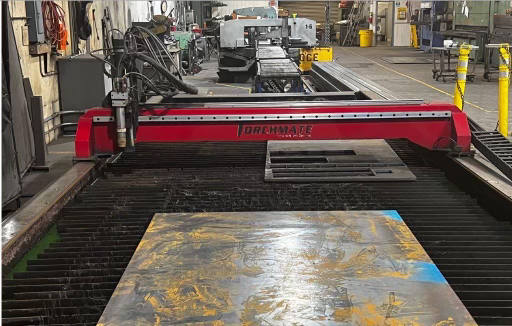

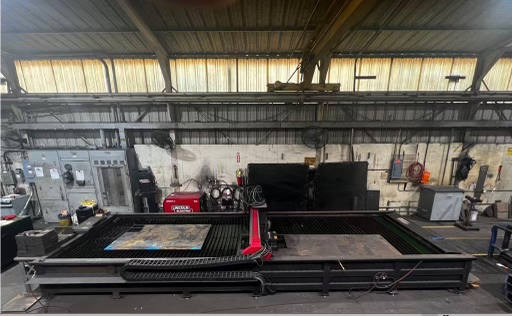

Lincoln #Torchmate, Electric Torchmate Burny Phantom II CNC Plasma, 6' x 22', 2019

Cutting Area: 6′ x 22′

Cutting Capacity
FlexCut 80
FlexCut 125

Drive System:
Rack and Pinion X/Y-Axis 5:1 Reduction
Ball Screw/Linear Stage Z-Axis

Traverse Speed: up to 572 IPM
Cut Speed: up to 572 IPM

Model Features:
DXF, DWG Direct Import
Adjustable Water Height on Water Table
Low Backlash 5:1 Gearboxes
Durable Finish
Angled Support Slats for Increased Life

Standard Equipment:
Water Table, Gantry, and Arc Voltage Height Control
Full Cable Carrier System

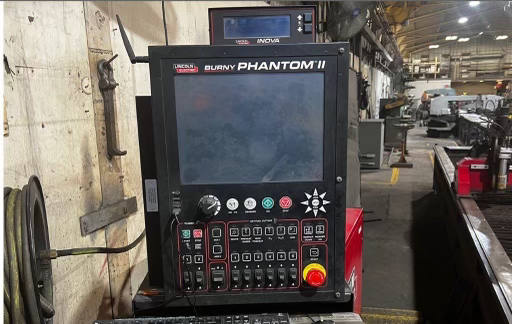

Visual Machine Designer Touchscreen Interface

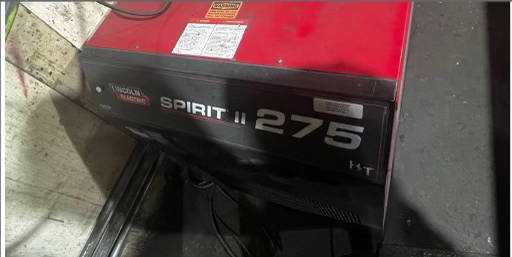

FlexCut 80 or FlexCut 125 Plasma Cutter

Electronics/ Motion System:
Two Y-Axis 380 oz. in. Step Motors
One X- Axis 380 oz. in. Step Motor
8 AMP Micro Stepping Drives
Motion Controller

Weight:
Approximately 3,739 lbs for 5′ x 10′ System with no Water

Input Air:
8 SCFM @ 90 PSI, Dry Air Filtered to Minimun 5 Micron

Equipped With:
Software: Sigma Nest, Torchmate CAD/CAM

Available Software:
BobCAD DXF Art Package
Torchmate CAD/CAM Professional Text Compose and Art Package

User Controls:
Full Featured Visual Machine Designer HMI
