Lehigh Fluid Power Hydraulic Cylinder JHD50

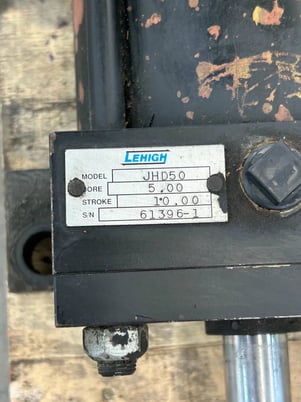

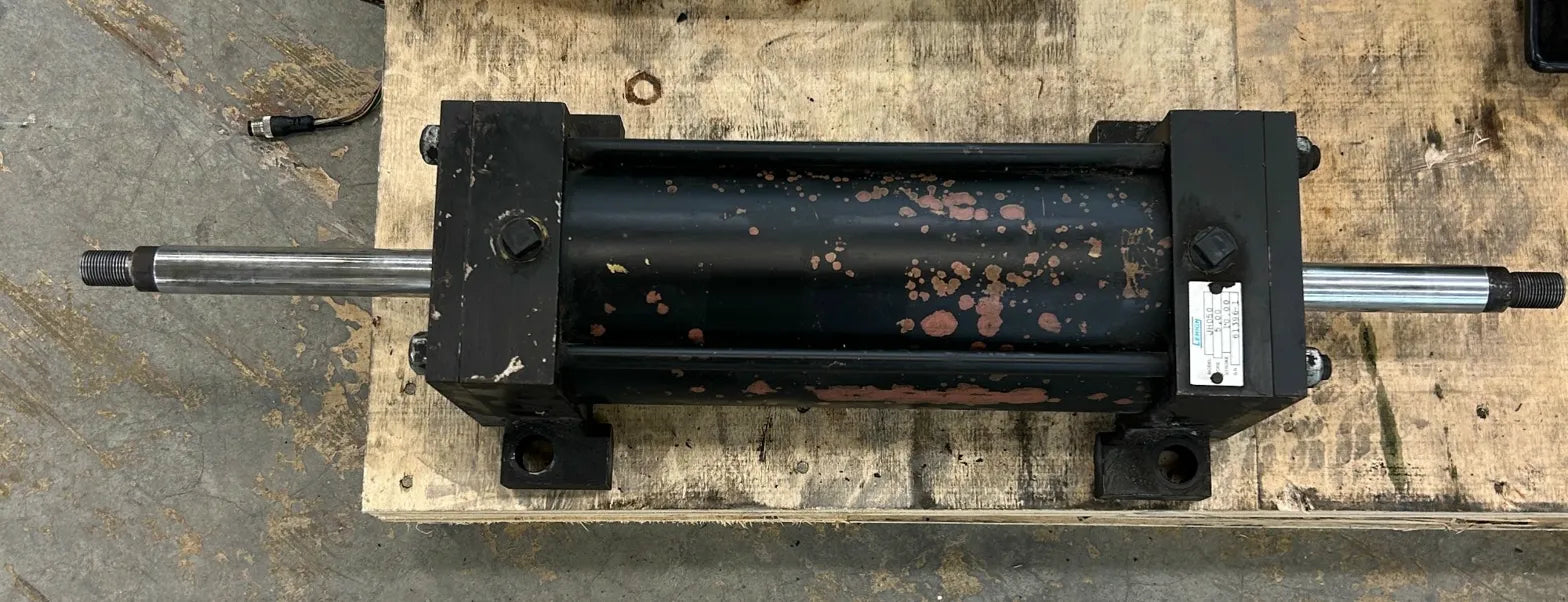

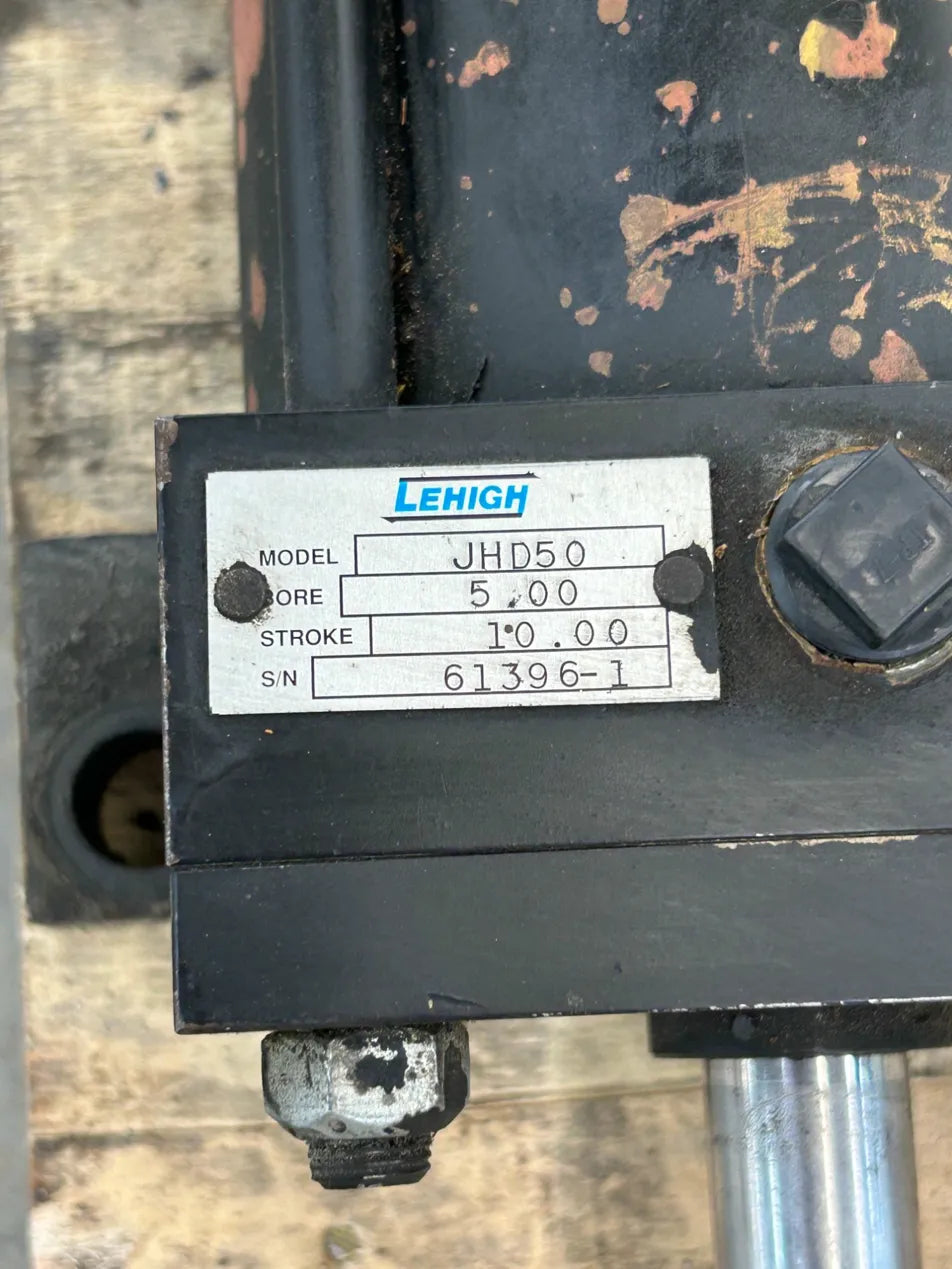

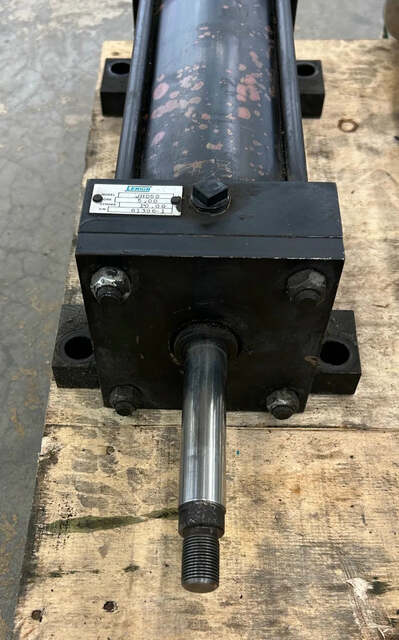

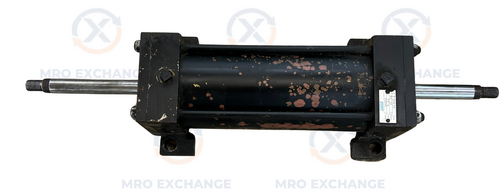

Used Lehigh Fluid Power JHD50 hydraulic cylinder with a 5.00 inch bore and 10.00 inch stroke, as shown on the nameplate. Serial number 61396-1. The JHD series is Lehigh Fluid Power's medium duty NFPA interchangeable tie-rod hydraulic cylinder line, manufactured in Lambertville, New Jersey. This unit features a double-rod-end configuration, with chrome-finished piston rods extending from both sides of the head and cap. The rectangular foot-mount flanges are integral to both end caps, providing a flat base mounting arrangement consistent with NFPA standards. Tie rod construction is visible on all four corners. The cylinder barrel is steel with a black painted exterior. Lehigh Fluid Power has manufactured NFPA tie-rod hydraulic cylinders since the mid-20th century and is recognized in the US industrial market for quality medium and high pressure fluid power components. The JHD series is NFPA interchangeable, making it dimensionally compatible with equivalent cylinders from other manufacturers sharing the same bore and mounting standard. This cylinder is appropriate for industrial press, clamping, positioning, and machine actuation applications requiring a 5 inch bore double-rod-end actuator. Per Lehigh published data, the JHD series at 5 inch bore carries a medium duty pressure rating. Ports, rod thread specification, and pressure rating are not confirmed from the visible photos.

Stock # 0226-762
