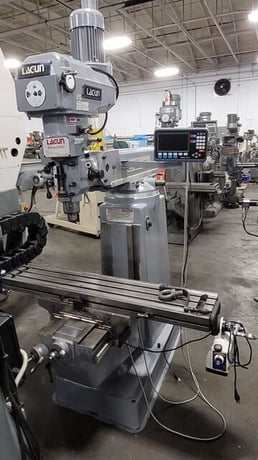

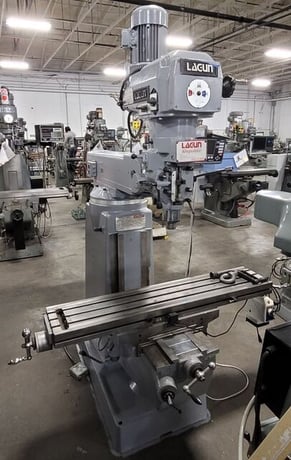

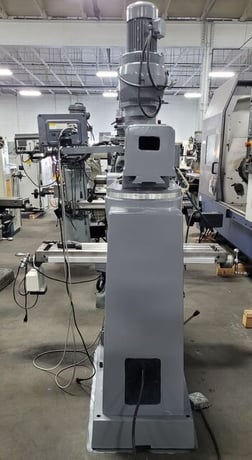

Lagun / Republic-Lagun #FTV-2, vertical mill, 10" x50"tbl., 3 HP, 38" X, 16" Y, 16" Z, R-8, 4250 RPM, new digital read out, X-Axis power feed

$6,750 USD

Request Formal Quote

Description:
Used Lagun/Republic FTV-2 Vertical Mill with 3HP motor, new DRO, and X Axis Power Feed. Features a 10" x 50" table, 37.99" long travel, and 15.98" cross travel. Taper R-8, variable speed up to 4,250 RPM. Includes internal coolant system and one shot lube.
Spec Sheet:

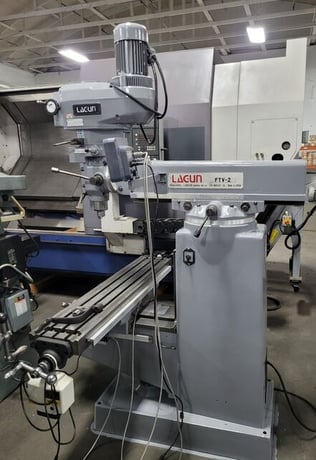

Lagun/Republic #FTV-2 Vertical Mill
X Axis Power Feed

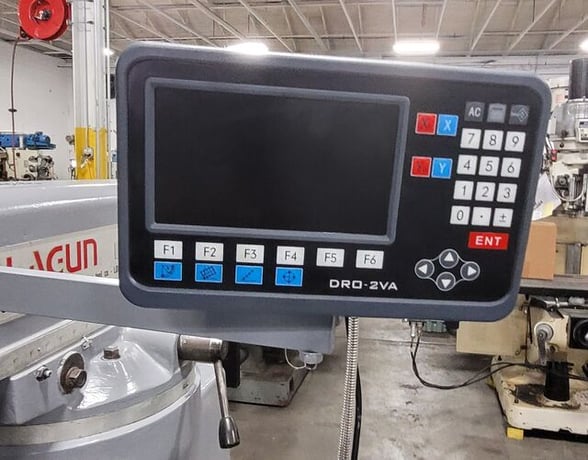

New DRO
S/N SE-39490
Variable Speed
10 x 50 power feed table
One Shot Lube
Internal Coolant System

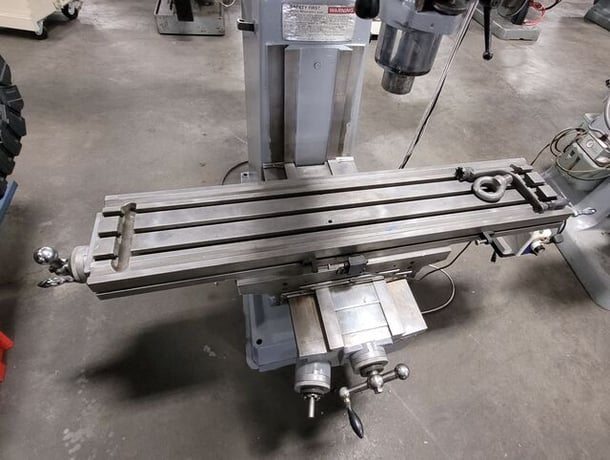

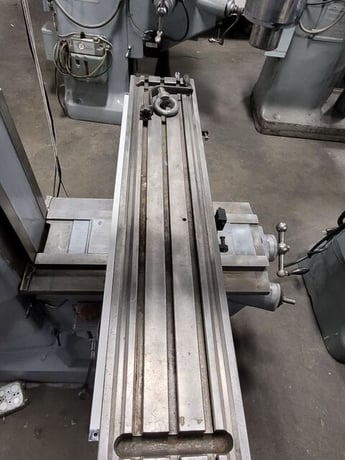

50 x 10 T-slotted table,
3HP,
Table size- 55.25 x 10 (1,403 x 254 mm)
T-slots- 3 on 2.51 centers (3 on 64 mm)
T-slot size- 0.63 (16 mm)
Maximum weight on table- 750 lbs. (340 kg) evenly distributed
Travels
Table travel X-axis, manual/ with power feed- 37.99 / 34.64 (965 / 880 mm)
Cross travel, Y axis- 15.98 (406 mm)
Knee travel, Z axis- 15.98 (406 mm)

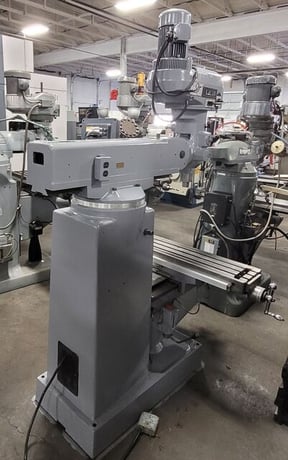

Ram travel- 22.44 (570 mm)
Head- Electron
Main motor- 3 HP
Mechanical infinite variable speed with (High-Low) manual settings
55 to 4,250 RPM. Low (55 to 490 RPM) High (490 to 4,250 RPM).
Head swivel (Left to right)- +/- 90
Head tilt (Front to back)- +/- 45
Distance, spindle to column-5 to 26.96 (127 to 685 mm)
Distance, spindle to table-0 to 17.99 (0 to 457 mm)
Quill
Power quill feeds-.0015, .00314, .00511 in./rev (0.04;0.08; 0.13mm/rev)
Spindle taper-R-8
Quill diameter-3.38 (86 mm)
Quill travel-5 (127 mm)
