Description
KUKA 6-Axis Industrial Robot TRA 1500W Fiber Laser Cutting System w/ 7th Axis Rotary Positioner 2021
Up for sale is a 2021 KUKA 6-axis industrial robotic fiber laser cutting system complete with TRA 1500W fiber laser cutting head and SZGH 7th axis rotary positioner. This is a full robotic laser cutting cell capable of complex multi-axis cutting on sheet metal, tube, pipe, and structural profiles — all in a single setup without repositioning.
The addition of the SZGH rotary positioner as a coordinated 7th axis allows the robot to cut around cylindrical and complex 3D parts continuously, significantly expanding the range of work this cell can handle versus a standard 6-axis setup.
Includes

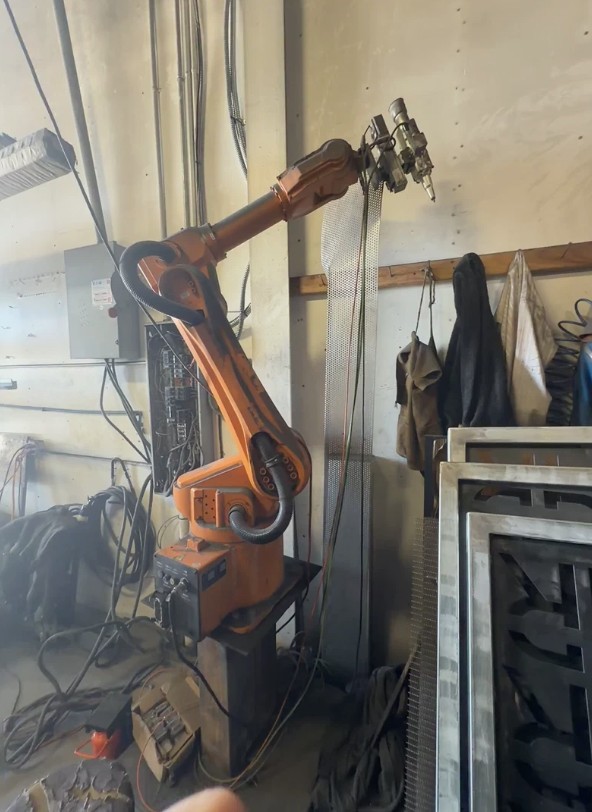

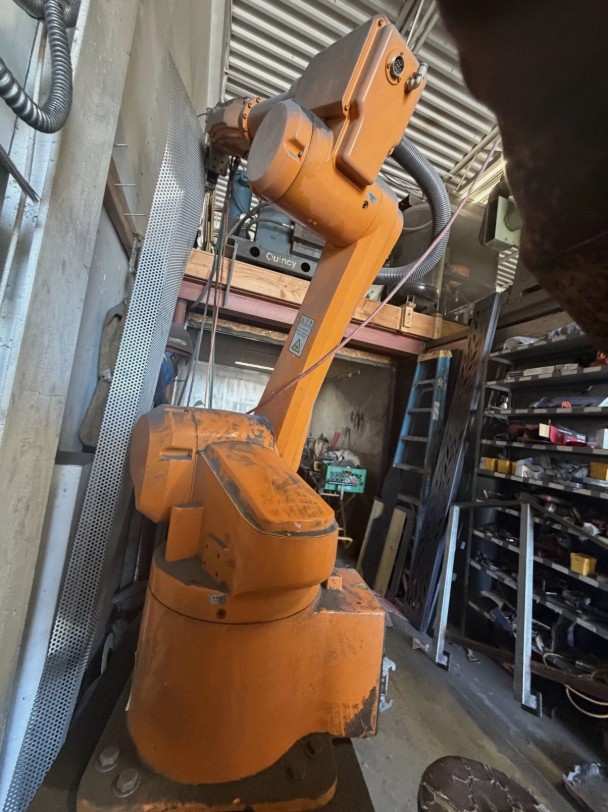

KUKA 6-axis industrial robot arm

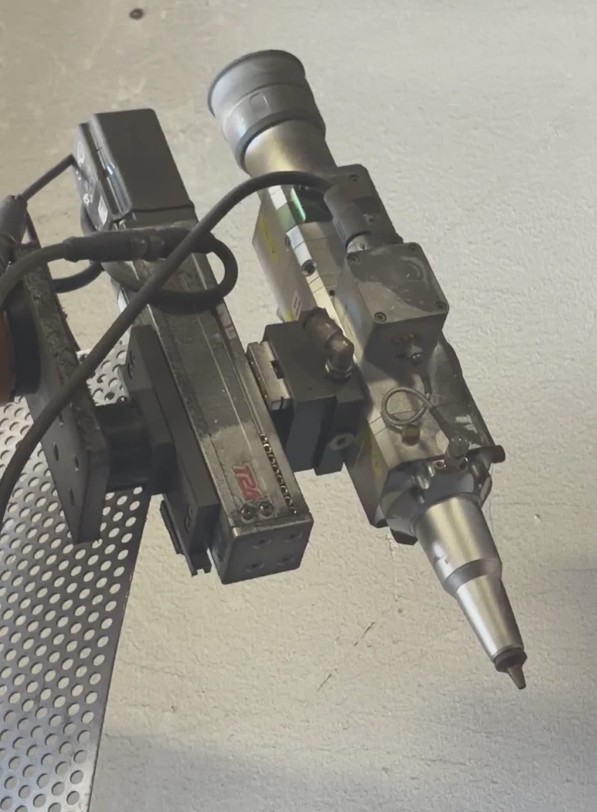

TRA 1500W fiber laser cutting head with capacitive height sensor and vision camera
