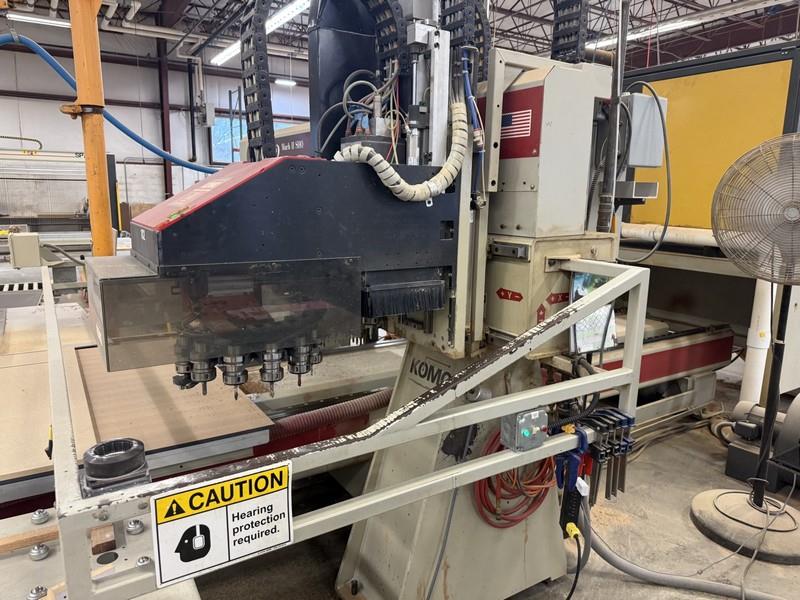

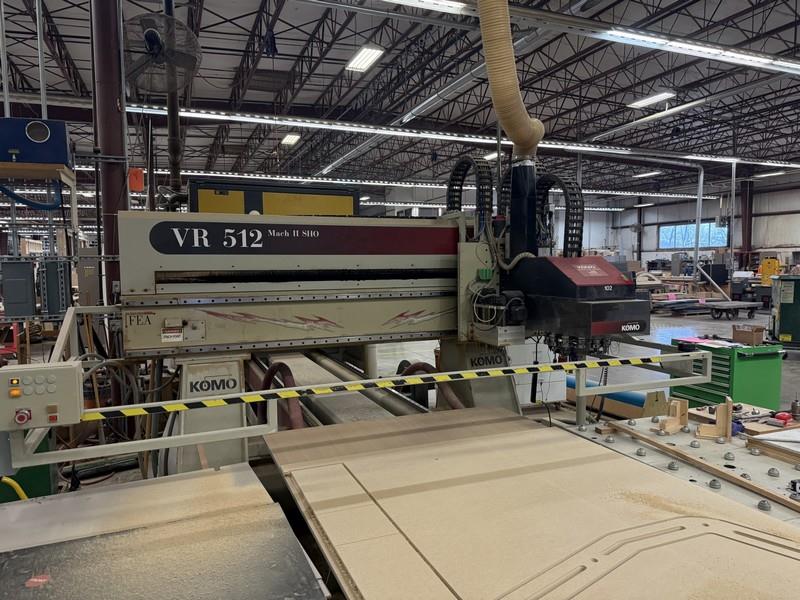

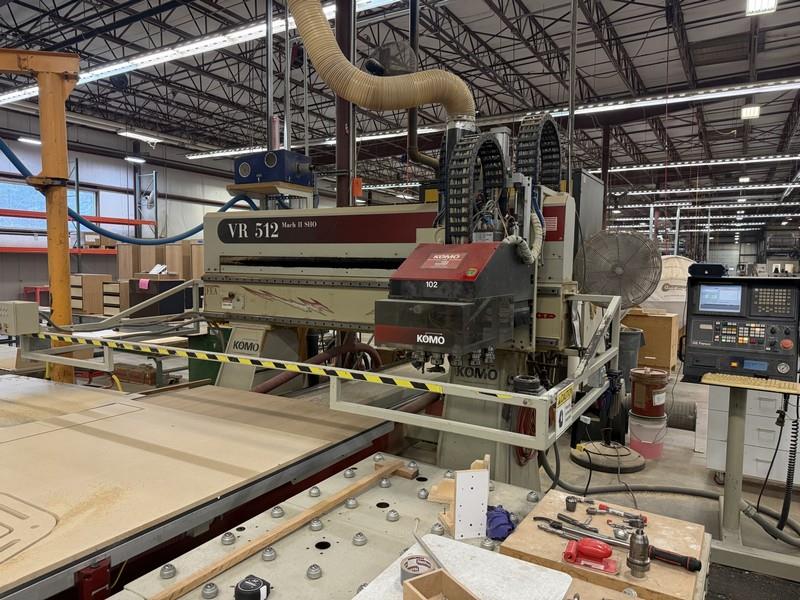

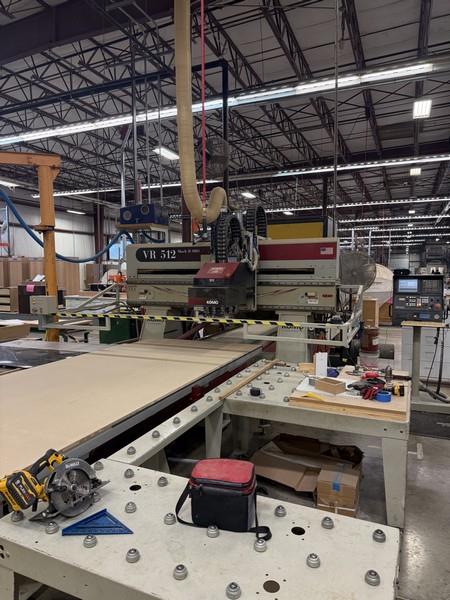

Komo #VR-512-Mach-II, CNC router, 5' x12'tbl., 12 ATC, 24k RPM, HSK-63F, 20 HP, 159" X, 84" Y, 11" Z, 2005

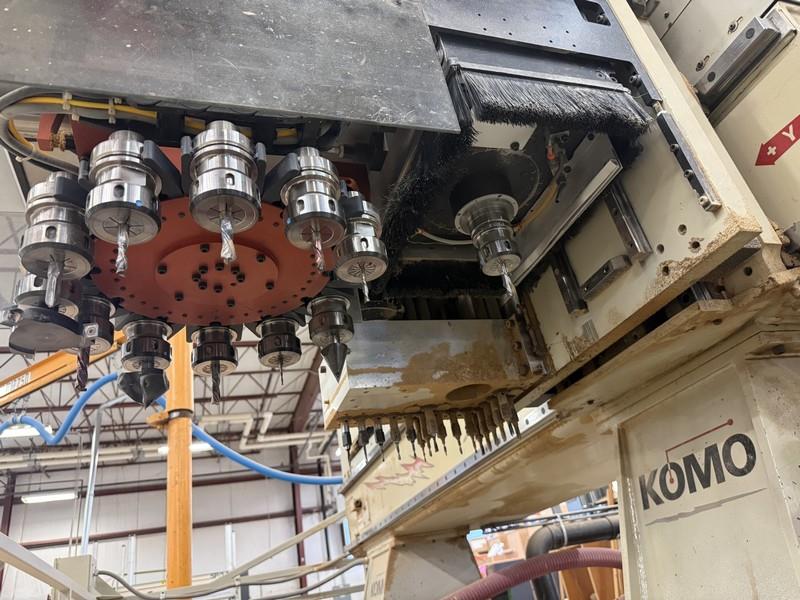

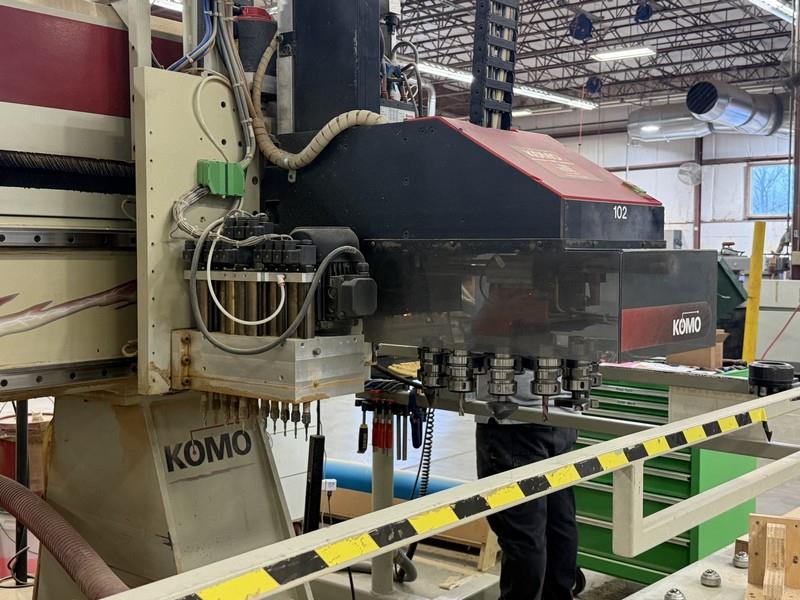

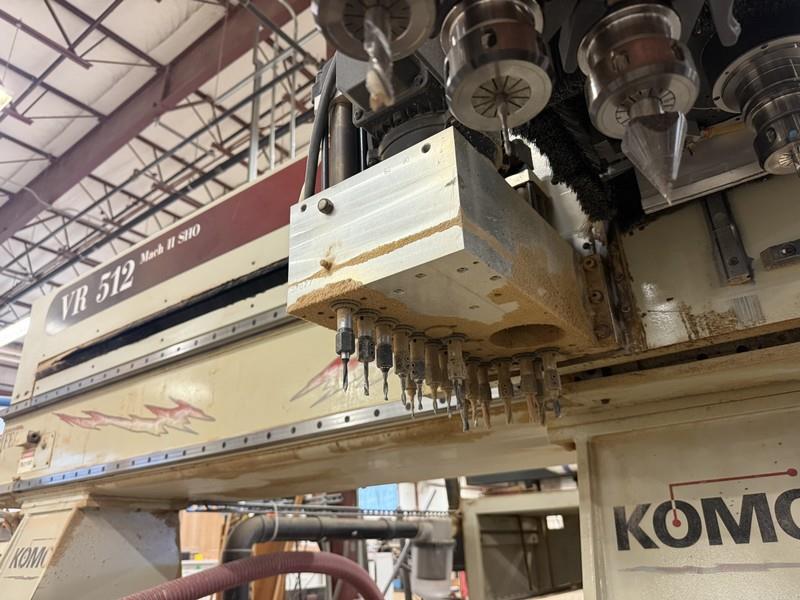

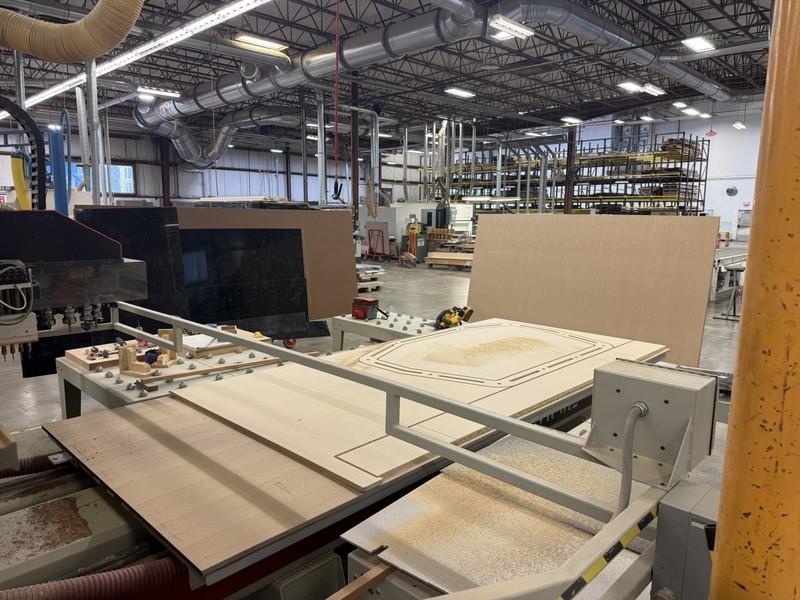

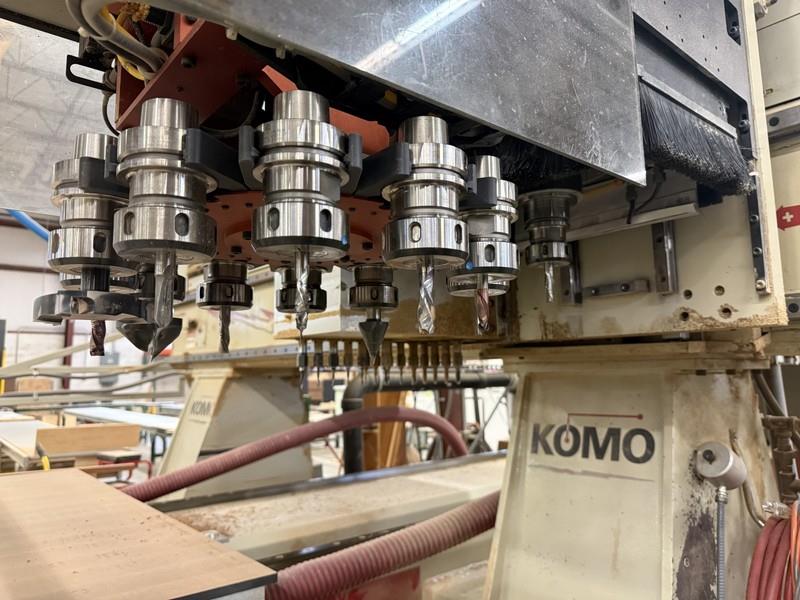

KOMO VR 512 MACH II SHO with ATC & Boring; Standard Features- 11"; (279mm) Programmable Z Axis- 12 Pocket Automatic Tool changer with Aggregate Capability- Automatic Tool Length Measurement- Universal Grid Fixture Table- Komo-GE Fanuc Panel i Control with HVI Servo System and Integrated PC- Closed-loop Counterbalance System (minimizes air consumption) Construction- Trapezoidal, Finite Element Analysis -designed columns for superior rigidity in cut- Heavy-duty contour linear rail system with matched bearing trucks- Non-rotating ball screw system for maximum acceleration and deceleration at high cutting feed ratesTechnical Data- Number of Tables: 1- Table Dimensions: 144"; x 60"; (3658mm x 1524mm)- Material: cast precision machined aluminum vacuum plenum- Four 1"; part locating pinsAxis Travels- X Axis: 159"; (4038mm)- Y Axis: 84"; (2133mm)- Z Axis: 11"; (279mm)Feed rate/Traverse- X & Y Axes: up to 3150 IPM (80,000 mm/min.) with standard HSHP- Z Axis: 600 IPM (15,240 mm/min)Positioning- ± 0.0004"; (0.01mm) unidirectional repeatability- ± 0.0008"; (0.02mm) unidirectional accuracySpindle 1- Quantity: 1- Type: 20 HP peak, 16 HP continuous duty, 4-pole- RPM: up to 24,000, fully programmable- Taper: HSK 63FSpindle 2- Quantity 1- 16 Spindle, Vertical Drill BlockAggregate-Capable ATC- Maximum Number of Tools: 12- Maximum Diameter: 6.5"; (165mm)- Maximum Weight: 12 lbs / 96 lbs total (5.4 kg / 43.5 kg)Part Programming Solution- One seat of router-CIM CAM Companion software Space (with guarding)Vacuum System- Kaeser Compressor model CSV 150- PSIa: 14.5 / 0.145 vac- Power: 40 HP, 230/460V, 3 PhFootprint- Height: 110"; (2794mm)- Width: 142.75"; (3626mm)- Depth: 314"; (7976mm)
