Description

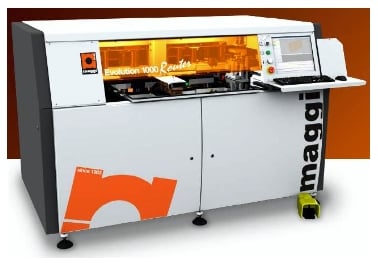

- Maggi Model Evolution 1000R CNC Machining Center
- Workpiece Dimensions:
- Min/Max (mm) X 300/10,000 mm
- Y 75/1000 mm (With grooving saw min. 120 mm)
- Z 8/60 mm
- Drilling Configuration:
- 11 Vertical Drills
- 6 Horizontal Drills (All on 32 mm Centers)
- 1 Saw Blade
- Router:
- (1) 3.6 kW Electrospindle, 18,000 RPM
- Grooving Saw X-Axis Only
- Positioning Speed:
- X 42 m/min
- Y 42 m/min (3 Brushless Servo Motors)
- Z 10 m/min
- Drilling Depth 60 mm Maximum

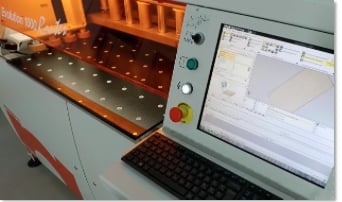

- PC:
- 17" Color Monitor
- OS Windows 7 Professional
- 2 GB Ram
- 500 GB HD
- (6) USB Ports

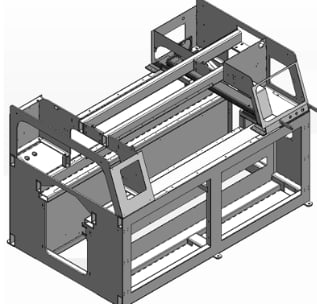

- Frame and Design:
- Heavy duty, 8mm thick, steel frame
- Built to withstand intensive work over time
- Quality components, like the brushless drive motors, ensure the greatest reliability and stability
- Software:
- CNC software, developed by TPA, a leading company in the field
- CAD 4 program for the creation of technical drawings
- Job list creation
- Axes management
- Diagnostics
- Machine data editors to visualize and manage the virtual tools available
- User friendly and compatable with most CAD programs since it is an open software
- Options:
- Motorized Automatic Side Aligner System
- Upgrade to TPA/CAD "PRO" CNC software on board
- Additional TPA/CAD "LIGHT" software license to create programs from remote work station
- Additional TPA/CAD "PRO" software license to create programs from remote work station
- Barcode Scanner with software
- Post Processor Specifications
Get Your Price from RT Machine!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Laguna #Smartshop-II, Pro CNC Router, 4' x8' table, 11 HP, 8 ATC, 24000 RPM, 2016
Category: Woodworking CNC Routers
Seller: Carolina Machinery Sales
Location: Monroe, NC
Mfr: Laguna
Model: SMARTSHOP-II
Year: 2016
LAGUNA HSD SMARTSHOP 4 X 8 CNC ROUTER (MCNC SS 48X96 ATC), 4' X 8' CUTTING AREA, 11 HP HSD ISO-30 ATC ELECTROSPINDLE (CERAMIC BEARINGS), 208-230V, 3 PHASE (24,000RPM), EIGHT (8) POSITION AUTOMATIC TOOL CHANGER (4 TOOL HOLDERS INCLUDED), TOOL CONE HOLDER - FOR EASY BIT CHANGING, 4' X 8' (PHENOLIC) - ...more
JUST ADDED!
Makita #RP2301FC, Router Table w/ Plunge Router, 3.25 HP, 9000-22,000 RPM, 120 Volt, sliding fence, insert plate, assorted saw blades
Category: Woodworking CNC Routers
Seller: Heavy Wall Consulting
Location: Long Beach, CA
Mfr: Makita
Model: RP2301FC
This is a router table setup built around a Makita RP2301FC 3-1/4 HP plunge router (120V, 9,000-22,000 RPM variable speed), mounted under a laminate-top table with a sliding fence and dust port on the fence face. The mounted, fence-guided table configuration provides more stable, repeatable edge and profile cuts than ...more
Laguna #Smart-Shop-M, CNC router, 60" x120" tbl., 24k RPM, 12 HP, 8 ATC, 2023
Category: Woodworking CNC Routers
Seller: Ex-Factory
Location: Charlotte, NC
Mfr: Laguna
Model: SMART-SHOP-M
Year: 2023
LAGUNA SMART SHOP MT Elite 5' X 10' CNC Router w/ ATC:60" x 120" Moving gantry, fixed table design in a front-to-back configuration with a 6-zone vacuum table with manual controls. -- : Machine travel 61" x 121" x 12" axis clearance under the gantry, Speeds of 2,000 IPM rapid travel with 1,800 IPM max. cutting ...more
Mintech #MR84, CNC Router, 4' x 8' table, vacuum table w/ t-slots, 5" max thick, 5.3 HP spindle, 30k RPM, water cooled, ER20 collet, Weihong cnc
Category: Woodworking CNC Routers
Seller: Southern Fabricating Mchy Sales
Location: Lithia, FL
Mfr: Mintech
Model: MR84
4’ X 8’ Router with Weihong CNC Control, 5.3 HP Spindle, Water Cooled Spindle with Speeds up to 30,000 RPM and ER20 Collet System, Working Range: 4’ X 8’, Z - Axis Travel: 7”, Max Material Thickness: 5”, Cutting Thickness: Up to 4”, Worktable Surface: Phenolic Composite Grid ...more

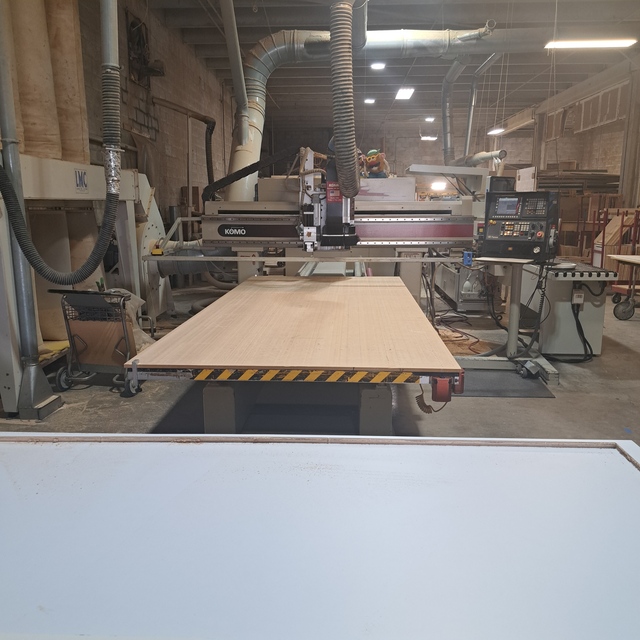

Komo #VR-510-Mach-II, CNC router, GE Fanuc Control, 135" X, 84" Y, 11" Z, 60" x 120" table, 18000 RPM, 2001
