Description

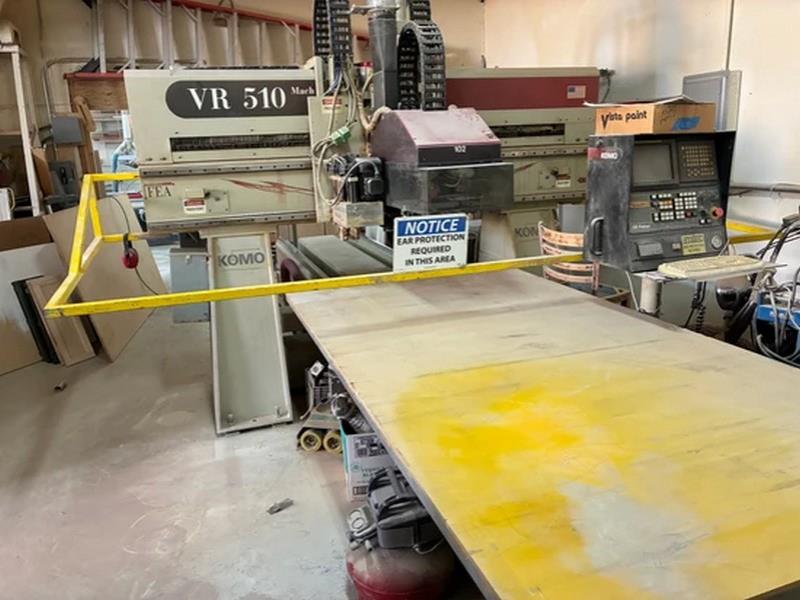

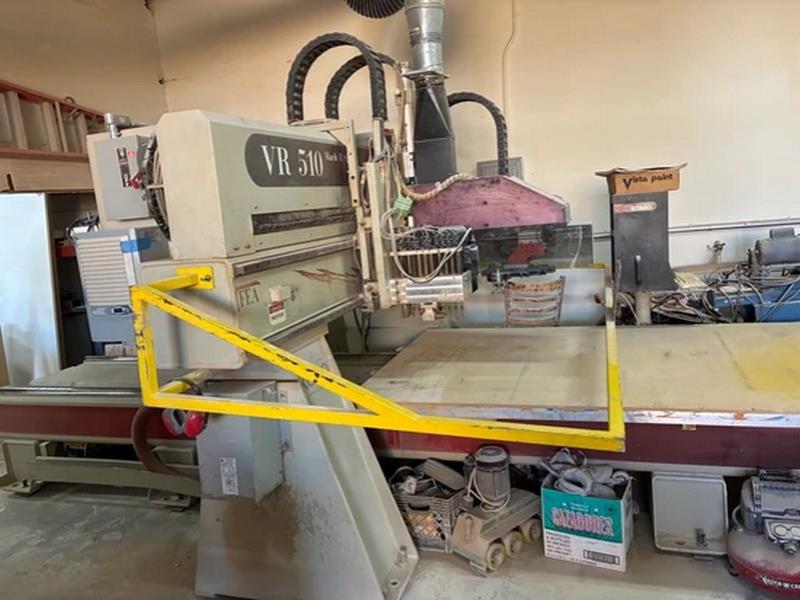

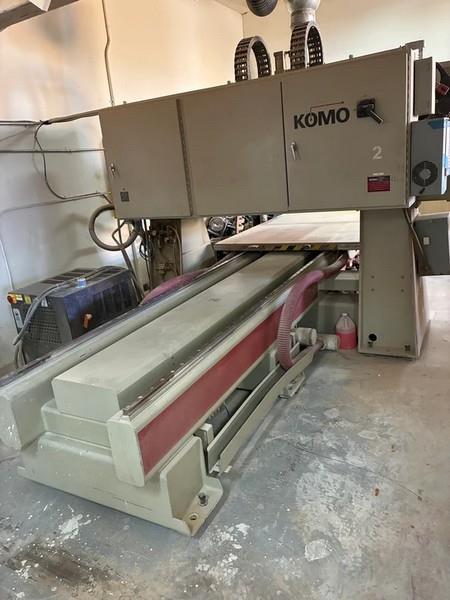

KOMO VR 510 MACH II S CNC Router with ATC & Boring:Heavy Duty "MACH II S" Model with 60" x 120" table, (4) parts location pins (2) vacuum zones, precision machined 2" solid aluminum table, spoil board ready. -- Equipped with:(1) 16 HP HSK-63F type ATC spindle, variable speed 6,000 - 24,000 RPM, with a traveling 12-position front mounted tool carousel that allows loading-and-changing of aggregates. Includes: Optional 20-spindle boring head with (14) vertical & (6) horizontal spindles. -- Closed loop:Servo drive system with precision ground pre-loaded ball screws driven by FANUC brushless AC Servo motors for positioning of +/- 0.001 on all axes with feed rates up to 3,150 IPM on the X- & Y-axes, 600 IPM on Z-axis. -- Axis travel:X-Axis travel 134", Y-axis 84", and Z-axis 15"; extended gantry bridge for full table coverage of all spindles, all axes ride on extra-large THK precision contour linear guideways, all positioning bearings serviced by an automatic lubrication system. -- Control:FANUC "180i" Series computer control w/10.4" high resolution CRT, 3-1/2" floppy and 1.6 GB hard drive, RS-232 ports, (MPG) handheld controller, full QWERTY keyboard and air conditioning system for temperature control. -- Features:(3) Axes simultaneous control, background editing, self-diagnostic, canned cycles, absolute & incremental programming, cutter & tool length compensation, feed rate & spindle speed override, inch/metric operation, and linear/circular & helical interpolation. -- Complete with: QUINCY vacuum pump, assorted tool holders and documentation
Approx 15 HP main router motor, drilling on X and Y axis, moving table on x axis with tooling located in bridge and moves on Y axis., 8 position rotary tool changer, 40 HP vacuum pump included, 480 volt 3phase.
Maggi Model Evolution 1000R CNC Machining Center Workpiece Dimensions: Min/Max (mm) X 300/10,000 mm Y 75/1000 mm (With grooving saw min. 120 mm) Z 8/60 mm Drilling Configuration: 11 Vertical Drills 6 Horizontal Drills (All on 32 mm Centers) 1 Saw Blade Router: (1) 3.6 kW Electrospindle, 18,000 RPM Grooving Saw X-Axis ...more
Weeke Optimat BHP008/Vantech 480 (commonly known as part of the Vantech 480/510 series) is a heavy-duty, German-engineered 3-axis flat table CNC router. Manufactured in 2013, it is highly sought after for automated, high-precision nested-based manufacturing in the woodworking and cabinetry industries.Why the Vantech ...more
