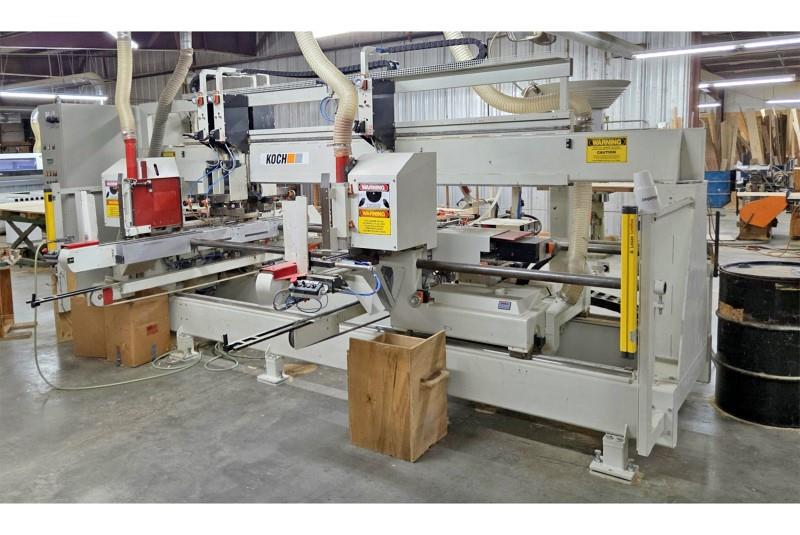

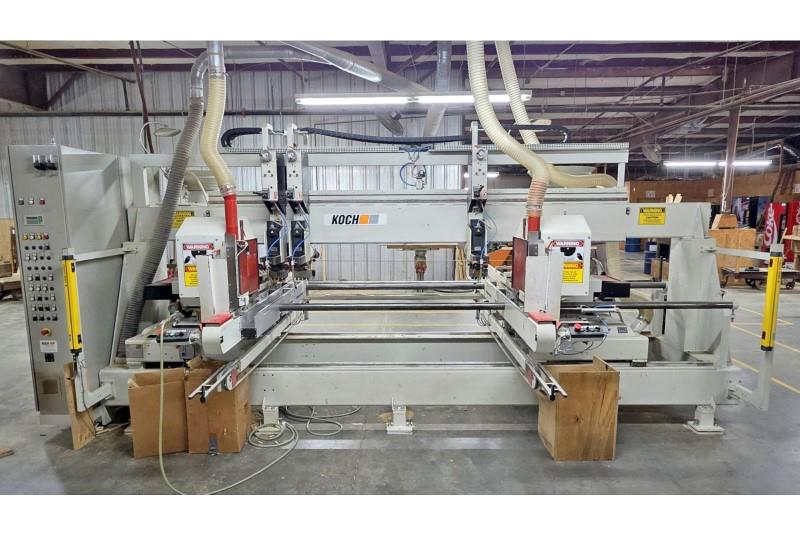

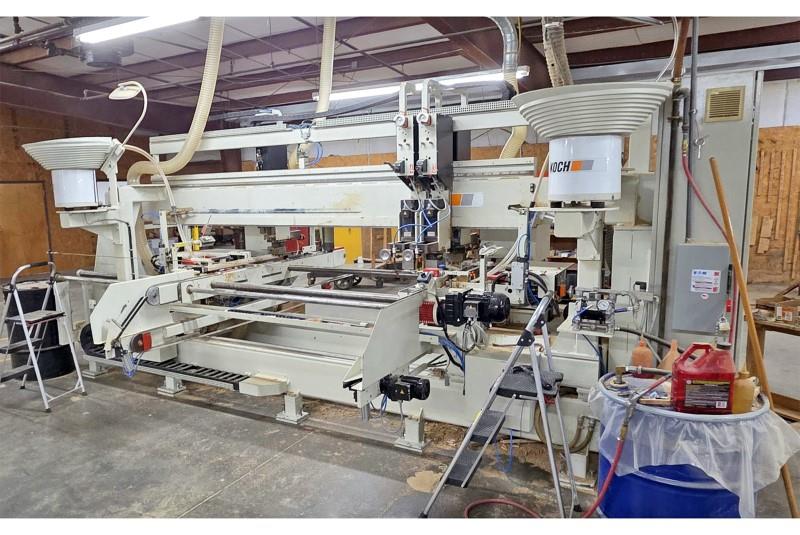

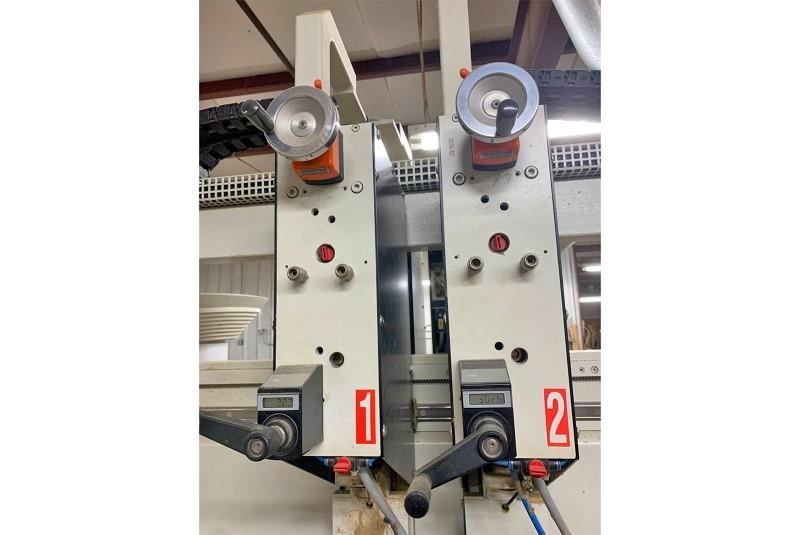

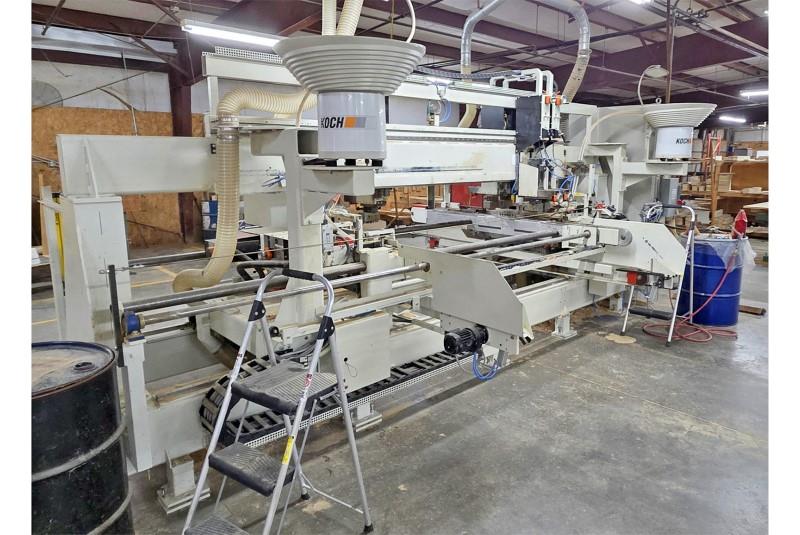

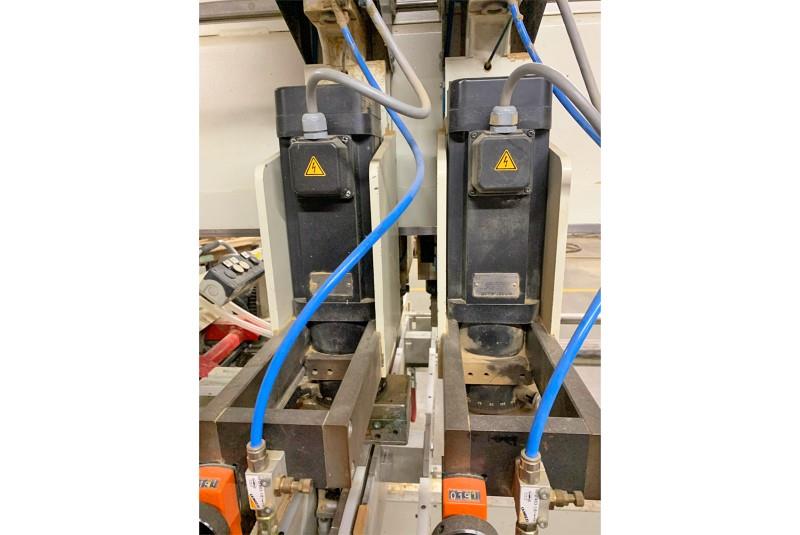

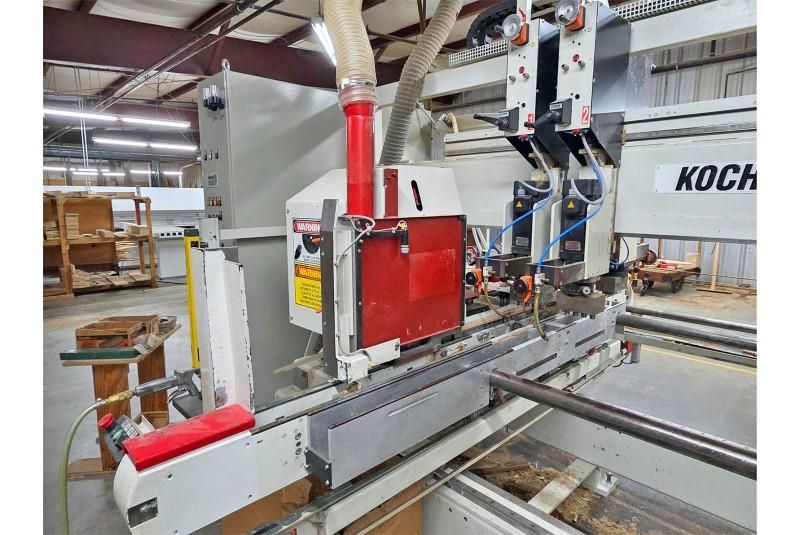

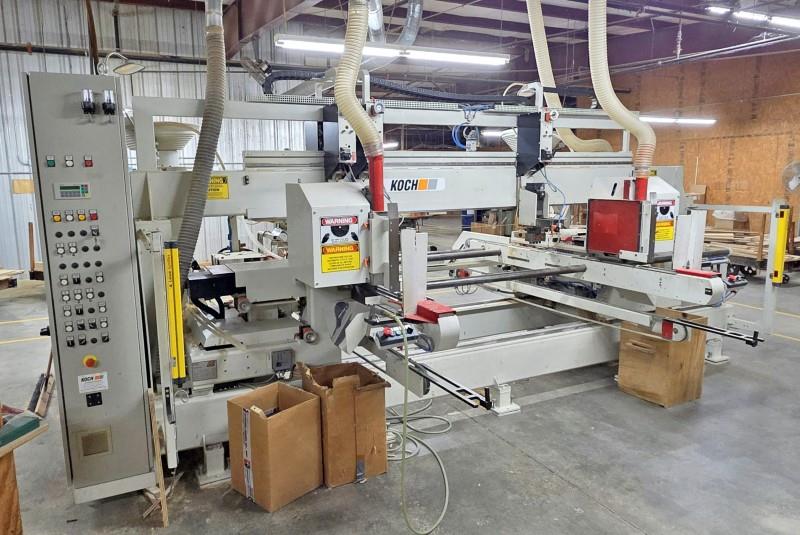

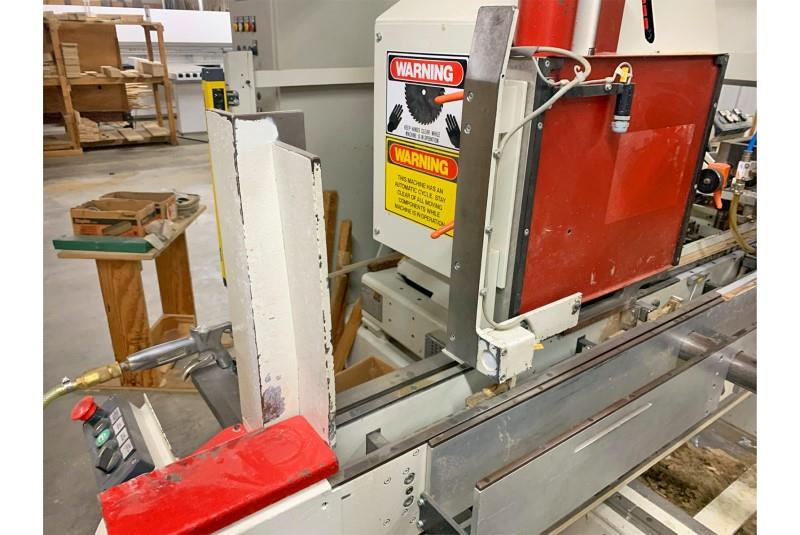

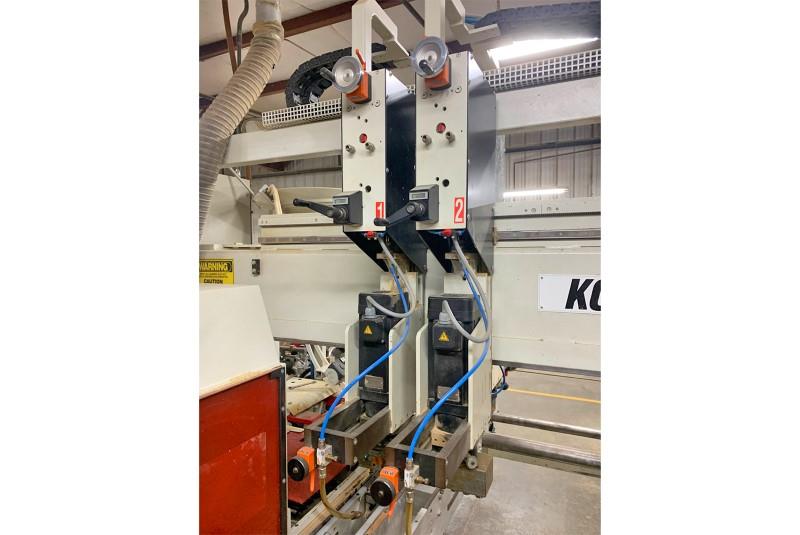

Koch #SBD-B, feed thru double end trim, bore & dowel boring machine, 1.18" x 9.8" x 98.4" capacity, 2005

KOCH SBD-B BORING MACH. (FEED THRU DBL END TRIM, BORE & DOWEL): -- Specifications:0.6" - 1.18" (15 - 30 mm) Material thickness; 0.9" - 9.8" (23 - 250 mm) width; & 4.7" - 98.4" (120 - 2,500 mm) length cap.; -- Working pass height 36.2" (920 mm); Capacity of approx 25 Work Cycles/Min. -- Features:Motorized opening with digital setting. Automatic hopper feed with hydraulic stock feed beam and automatic return conveyor to operator. -- Each side equipped with: Trim saw units, Boring units with horizontal and vertical drilling, & Dowel insertion. -- Linear path control for stock transport with low profile machine bed and linear guides. Fixed stock stops. -- Adjustable working stations with Manual & motorized adjustments. -- Horizontal Drilling:Each side with (1) 2.7 HP (2 kW) - 3,400 RPM Boring unit. -- Each horizontal boring unit has a (6) Spindle Type D-1277 drilling chucks on 32 mm centers. -- Drilling Chucks hold 10 mm dia shank & 70 mm max bit length. -- Each head moving on linear guides with, drilling depth control, dust extractor hoods, blow-out jets to clean holes. -- Top Vertical Drilling:(4) Top Vertical Boring Units with rotating device. Each unit 2.7 HP (2 kW) - variable speed from 3,000 - 6,000 RPM. -- Each Drilling chuck with mechanical digital read out for manual finite adjustment with, KOCH's "QC" (quick change) system & rotating device. -- Drilling Chucks hold 10 mm dia drill bit shank & 70 mm max bit length. -- Each head moves on linear guides with, drilling depth control, dust extractor hoods, blow-out jets to clean holes. -- Each vertical unit can be equipped with "QC" Boring blocks (swivel 360) with pneumatic locking. -- All Vertical units are equipped with pneumatic locking & individual adjustment of the boring block. -- Distance position readouts on all heads for finite "X"/"Y" adjustments; and "Z" axis boring depth control. -- Doweling:With (4) total dowel Inserters, (2) inserter on each side, with vibrating dowel bowl feeders. -- Includes automatic dowel measurement, pressurized glue tank, & back-wash rinsing tank. -- NOTE:This machine is currently setup for 0.437" dia. x 1.75" long dowels (11 mm dia. x 44.45 mm long dowels). Other sizes & additional dowel injectors can be purchased from Koch, at additional cost. -- Operator & Machine Control:Beckoff SPS PLC for machine function & error diagnosis. -- Operating Features:Electrical digital setting with all drill stations arranged with readouts for "X"/"Y"/"Z" axis positioning. -- The stationary machine side is on the LH side (seen in transport direction) and not adjustable. -- The RH is adjustable via motorized movement along the "X" axis. -- The machine is equipped with Hopper Feed & has a part stack capacity of approx 9.8" (250 mm) & working capacity of approx 48 Pieces/Min. -- Stock infeed belts move the workpiece through an intermediate hopper to the stock support. Then the workpiece is transported through the working stations by means of transfer
