For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Jerry/ Ryan
847-58...> Show Seller's Phone Number 847-580-6800 Let the seller know you found their listing on Surplus Record!
Description

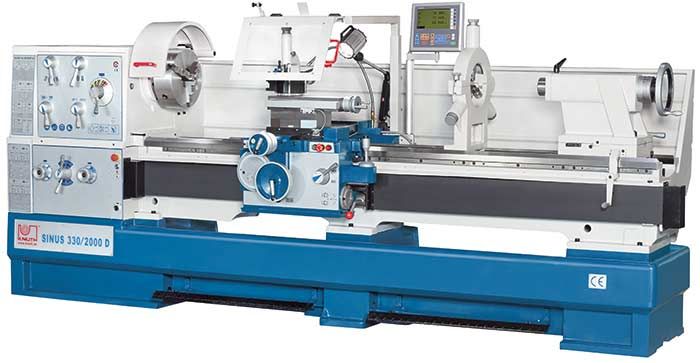

| Sinus 330/1500 D | Sinus 330/2000 D | Sinus 330/3000 D | Sinus 400/2000 D | Sinus 400/1500 D | Sinus 400/3000 D | |
|---|---|---|---|---|---|---|
| Working Area | ||||||
| Workpiece length (max.) | 59 in | 79 in | 118 in | 79 in | 59 in | 118 in |
| Turning diameter over bed | 26 in | 26 in | 26 in | 31 in | 31 in | 31 in |
| Turning- over support | 17 in | 17 in | 17 in | 22 in | 22 in | 22 in |
| Turning diameter without gap bridge | 35 in | 35 in | 35 in | 41 in | 41 in | 41 in |
| Gap bridge length | 13 in | |||||
| Bed width | 16 in | |||||
| Travels | ||||||
| Travel X-axis | 14.5 in | 14.5 in | 14.5 in | 16.5 in | 16.5 in | 16.5 in |
| Travel Z1-axis | 9 in | |||||
| Swing range of top slide | 45 | 45 | 45 | 70 | 70 | 70 |
| Headstock | ||||||
| Spindle speed | (16) 25 - 1,600 rpm | |||||
| Spindle bore | 4 in | |||||
| Spindle mount | D1-8 | |||||
| Spindle taper | MT 5 | |||||
| Rapid Feed | ||||||
| Rapid Feed X-axis | 78.74 in/min | |||||
| Rapid Feed Z-axis | 157.48 in/min | |||||
| Feed | ||||||
| Feed X-axis | (25) 0.00087 - 0.02913 in/R | |||||
| Feed Z-axis | (25) 0.00173 - 0.05827 in/R | |||||
| Tapping | ||||||
| Tapping, metric | (54) 0,45 - 120 mm | (54) 0,45 - 120 mm | (54) 0.02 - 5 in mm | (54) 0.018 - 4.72 in mm | (54) 0,45 - 120 mm | (54) 0.45 - 120 mm |
| Tapping, diametric | (42) 0,88 - 160 DP | |||||
| Tapping, module | (46) 0.01 - 2.36 in | |||||
| Tapping, withworth | (54) 7/16 - 80 TPI | |||||
| Tailstock | ||||||
| Tailstock quill diameter | 4 in | |||||
| Tailstock taper | MT 5 | |||||
| Tailstock quill stroke | 9 in | |||||
| Tailstock traverse adjustment | 0,5 in in | 0,5 in in | 12,5 in | 0,4 in in | 11 in | 11 in |
| Drive Capacity | ||||||
| Motor rating main drive | 10.1 Hp | |||||
| Measures and Weights | ||||||
| Overall dimensions (length x width x height) | 127x49x63 in | 147x49x63 in | 186x49x63 in | 148x45x76 in | 128x45x45 in | 187x45x76 in |
| Weight | 6,160 lbs | 6,380 lbs | 7,260 lbs | 7,700 lbs | 7,084 lbs | 8,514 lbs |
- Removable bridge for machining of large parts
- High accuracy and low-noise operation even at high cutting power
- Heavy and large bed
- Hardened guide ways (>HB 400)
- 4 in spindle capacity for machining of large parts
- Manual central lubrication
- clutch for soft startup with heavy parts
- Automatic lubrication of headstock and main drive
- Protected lead screw
- Overload protection for feed shaft and lead screw
- Support moves in linear and cross direction via rapid feed
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
- 3-axis position indicator
- 3-jaw chuck 13"
- 4-jaw chuck (15" diam.) face plate 23"
- face plate 20"
- dog plate

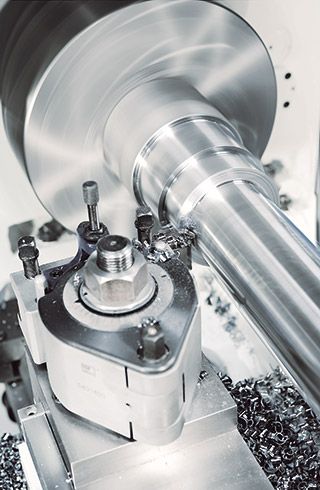

- quick tool changer head WD
- quick change tool holder WD1D 40180
- fixed splash guard (wall)
- coolant system
- steady and follow rests
- taper turning unit
- chuck guard
- LED work lamp
- reducing sleeves
- dead center
- operating tools
- operator instructions
