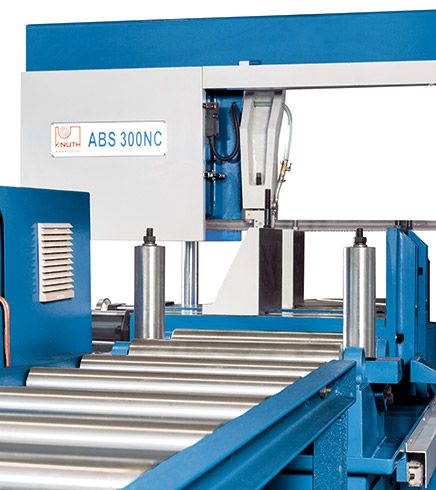

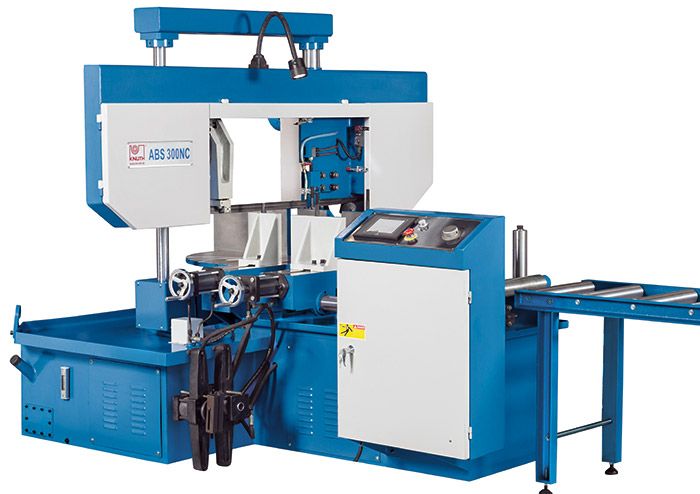

Knuth #ABS-300-NC, Fully Automatic Horizontal Band Saw

• Cutting angle settings 0 - 45
• Robust touch screen control panel
• Automatic workpiece feed

• Torsion-resistant dual-column construction
• Hydraulic saw frame feed via chrome-plated column guide
• Slightly inclined saw frame improves cutting performance and increases the service-life
• Dual hydraulic workpiece clamping
• Infinitely variable cutting speed
• Programmable automatic angle positioner can be set in 1 increments from 0 to 45
• Hydraulic bundle vise for both vises included with standard equipment
• Precise and stable saw band guides ensure high angular accuracy
• Automatic band breakage control
• Infinitely variable saw blade speed with settings shown on the display

Reliable Siemens SIMATIC S7-200 SMART PLC with rugged touchscreen input panel

In Manual Mode, all machine functions can be selected and adjusted via touchscreen

In Auto Mode, feed distance, cut angle, and number of cuts can be programmed within the respective configurations

Up to 5 different angle and distance settings can be linked within one automatic program cycle

The programmable automatic angle positioner can be set in 1 increments from 0- 45

Infinitely adjustable saw blade speed with settings shown on the display

Individual lengths and miter angles, and the number of required steps can be entered for each cut

Cut widths can be compensation centrally without considering the programmed workpiece lengths

All machine parameters can be checked by the operator via user-friendly menus

Quick fault diagnostics with clear fault description on the display

• siemens PLC control
• autom. cleaning brush
• feed roller table (6.5 feet)
• 1 saw blade
• touch screen monitor
• central lubrication
• automatic parts counter
• bundle vise
• chip conveyor
• coolant system
• operating tools
• operator manual
