Description

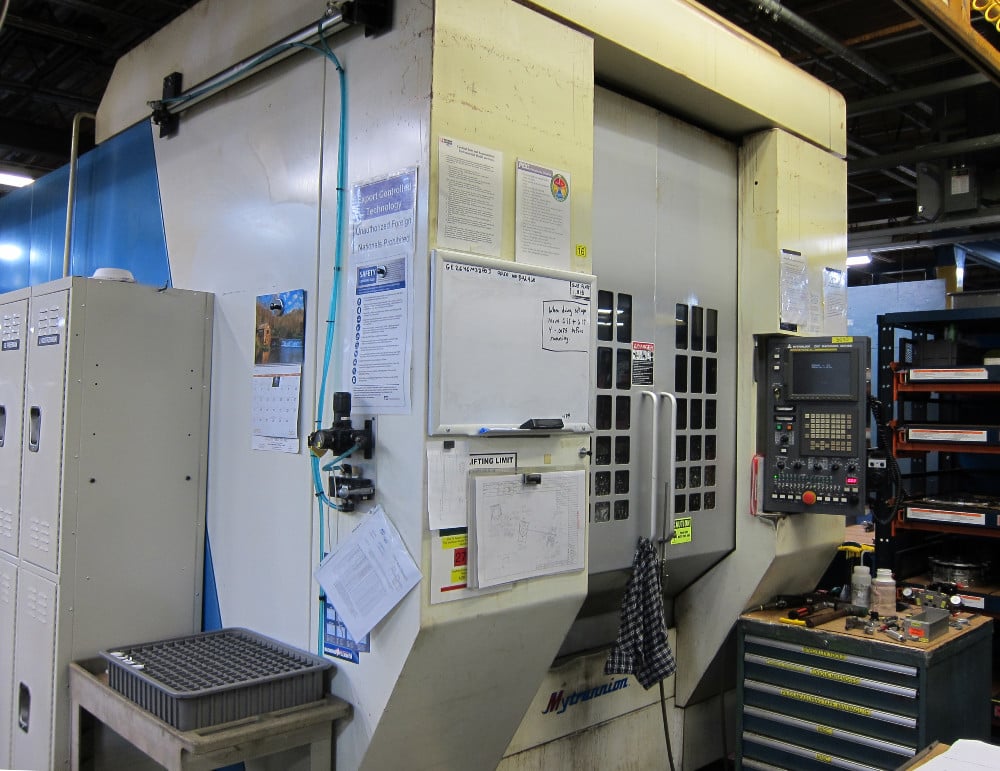

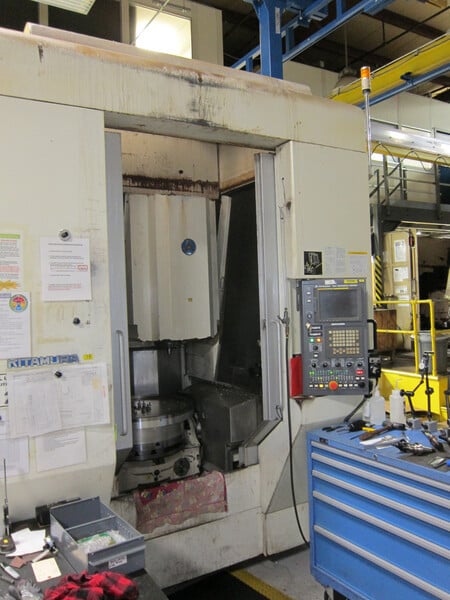

We have four (4) of these MyTrunnion's available. They are in very good working condition and are currently under Power at a Wilkes Barrie, Pennsylvania plant site.

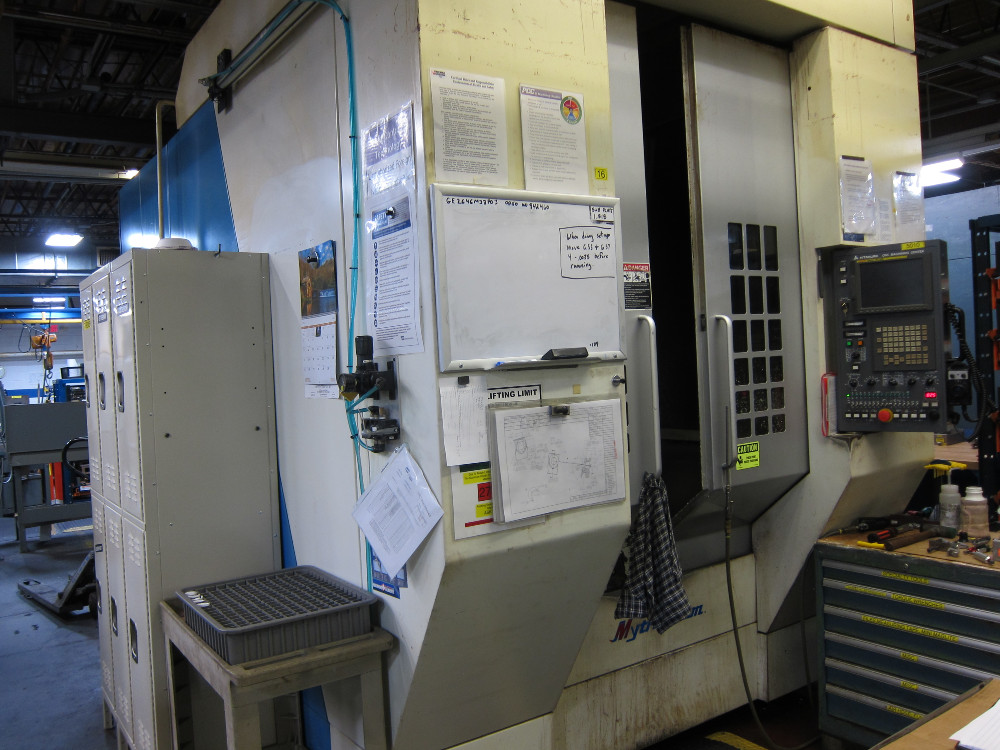

All are built new 2005 to 2007. Photos of some are above.
Re: #'s are 25879, 25880, 25894 and 26319.

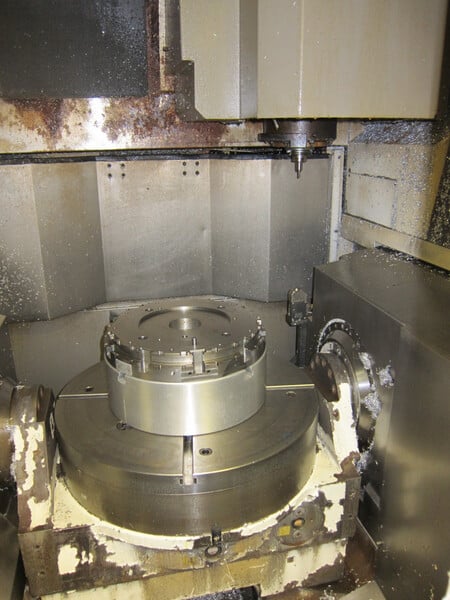

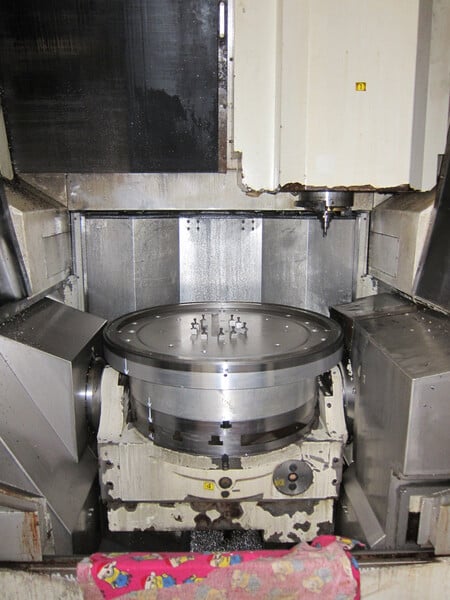

A Axis: 150° ( Table Tilt ) C Axis: 360° ( Table Rotate )
Max Weight on Table: 880 lbs T-Slot : 0.7″ X 3 Slots Table to Spindle Nose: 3.9″ – 23.6″ 32" X Axis, 29.3" Y Axis, 19.7" Z Axis,
Rapid A : 2000 Degree Per Minute Rapid C : 6000 Degree Per Minute Cutting Feedrate: 984 Inch Per Minute

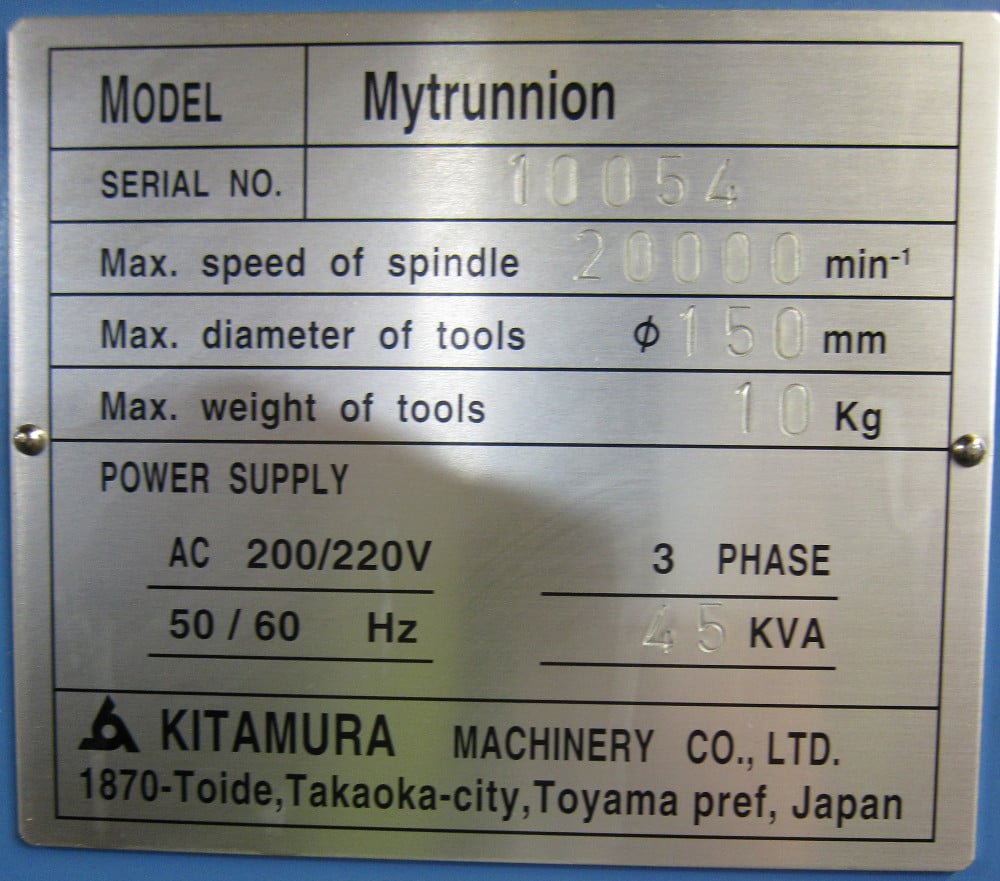

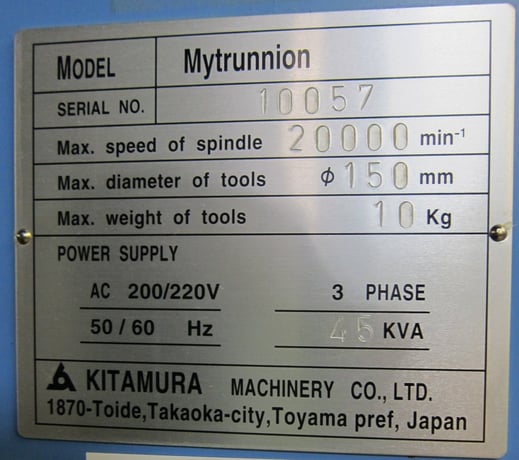

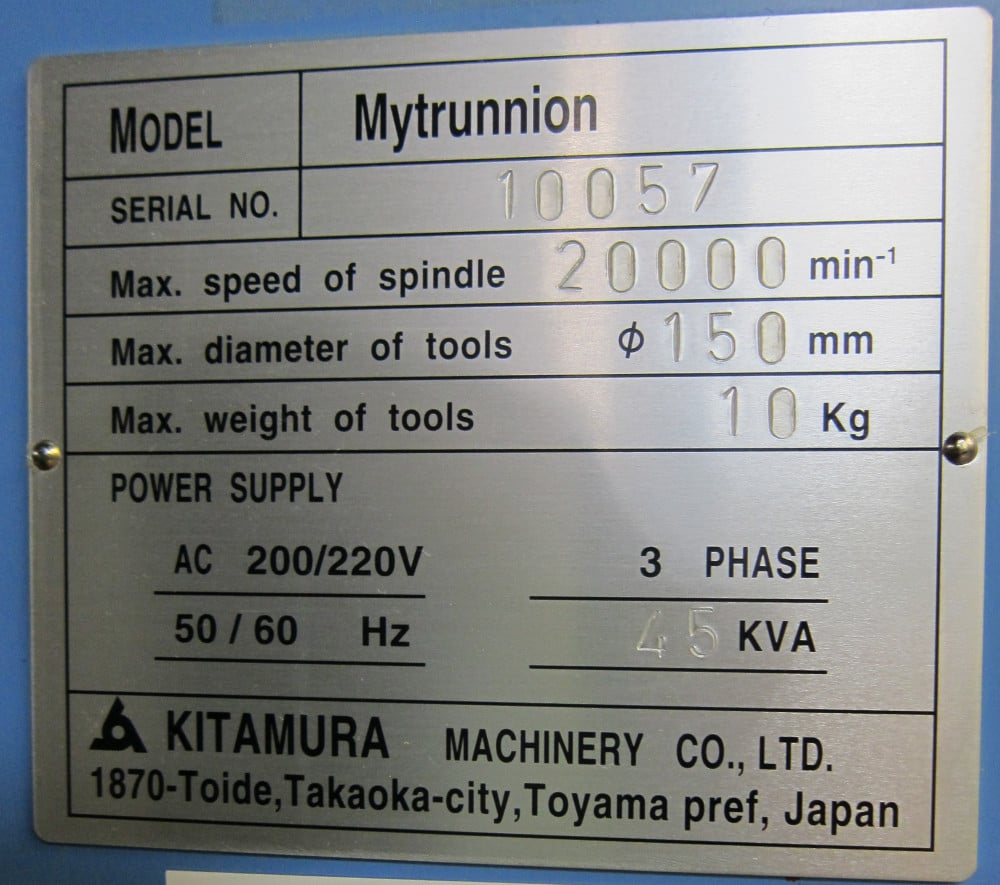

Max Tool Size: 5.91″ X 11.8″ Max Tool Weight: 22 lbs. Tool Change Time: 1.7 Second
Complete with:
Simultaneous 5 Axis Cutting 20,000 RPM High Precision Spindle Coolant through Spindle 50 position ATC Glass Scales on the Axis
Inquire Further with TrueForge Global Machinery Co!
