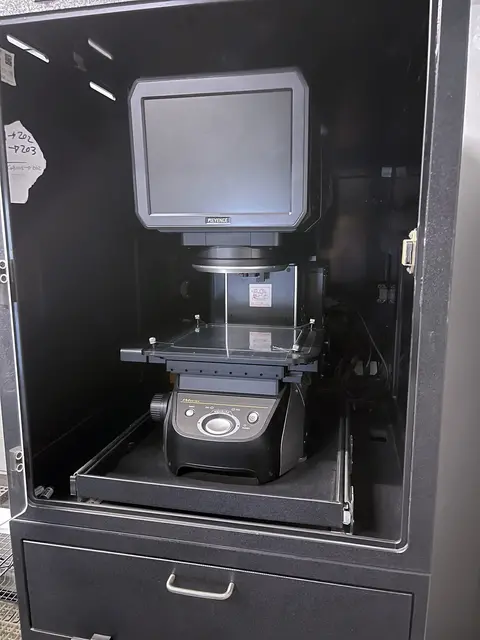

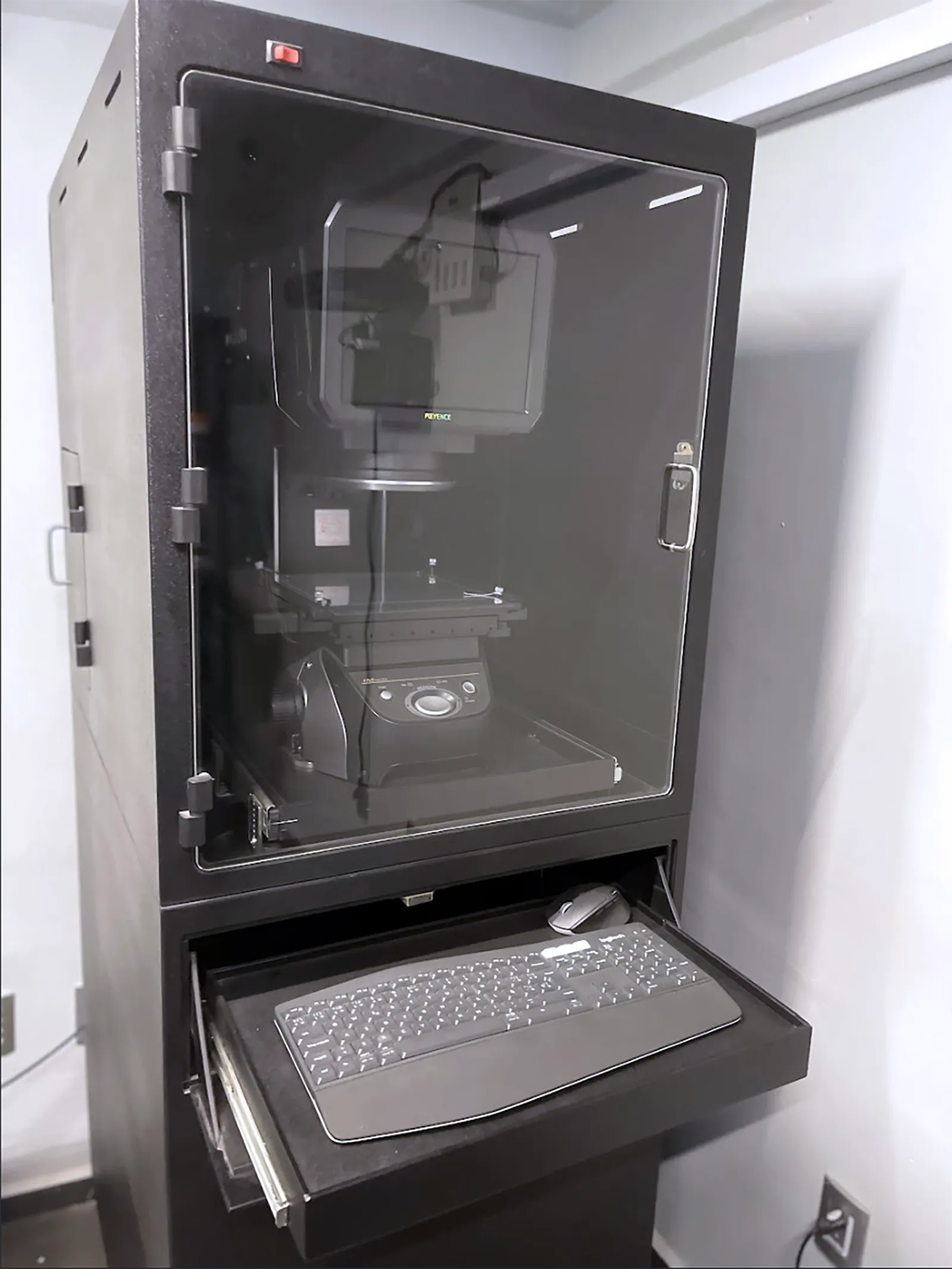

Keyence #IM-7010, image dimension measuring system, 2019

Description
The Keyence IM-7010 Measuring Machine (2019) is a high-speed optical inspection system engineered for automated, precise dimensional measurement in modern manufacturing environments. Ideal for quality control applications, it quickly measures stamped parts, machined components, resin molds, springs, and gears with exceptional accuracy. Designed to replace traditional microscopes and calipers, the IM-7010 delivers fast, repeatable inspection of internal diameters, external diameters, and complex geometries, improving production efficiency and reducing operator error in industrial QC processes.
MACHINE SPECIFICATION
Type:
Head : Model incorporating backlighting/fixed ring-illumination unit
Image Sensor: 1 6.6 mega pixel monochrome CMOS
Display: 10. 4 LCD monitor (XGA: 1024 × 768)
Receiver Lens: Double telecentric lens
Image: measurement
Field of view:
Field of view - Wide field measurement mode: 200 mm x 200 mm 7.87 × 7.87" (4x R50)
Field of view - High precision measurement mode: 125 × 125 mm 4.92 × 4.92"
Minimum Display Unit: 0.1 m
Repetition Accuracy:
W/o stage movement:
W/o stage movement-Wide field measurement mode: 1 m
W/o stage movement-High precision measurement mode: 0.5 m
With stage movement:
With Stage Movement Wide-Field Measurement Mode: 2 m
With stage movement-High precision measurement mode: 1.5 m
Measurement accuracy: (2)
W/o binding:
W/o binding/Wide-field measurement mode: 5 m *1
W/o binding-High precision measurement mode: 2 m*2
With binding:
With binding/Wide-field measurement mode: (7+0.02 L) m*3
With bindin-High precision measurement mode: (4+0.02L) m*4
External remote input: Non-voltage input (with and without contact)
External output: OK/NG/FAIL/MEAS
PhotoMos output:
Rated load 24 VDC 0.5 A:
ON resistance 50 m or lower:
Interface:
LAN:
RJ-45 (10BASE-T/100BASE-TX/1000BASE-T):
USB 3.1:
4 ports (rear: 4):
USB 2.0 series A:
2 ports (front: 2):
Record - Hard disk drive: 500 GB
Illumination system: Transparent
Telecentric transparent illumination:
Ring:
Four division ring illumination:
XY stage - Moving Range: 100 × 100 mm 3.94 × 3.94" (electric)
Withstand load: 5 kg
Z stage - Moving range: 75 mm 2.95" (electric)
Power Supply:
Power voltage: 100 to 240 VAC 50/60 Hz
Power Consumption: 430 VA or lower
Environmental resistance:
Pollution Degree: 2
Overvoltage Category: II
Ambient Temperature: +10 to +35 C 50 to 95 F
Relative Humidity: 20 to 80 % RH (No condensation)
Weight: Approx. 30 kg
