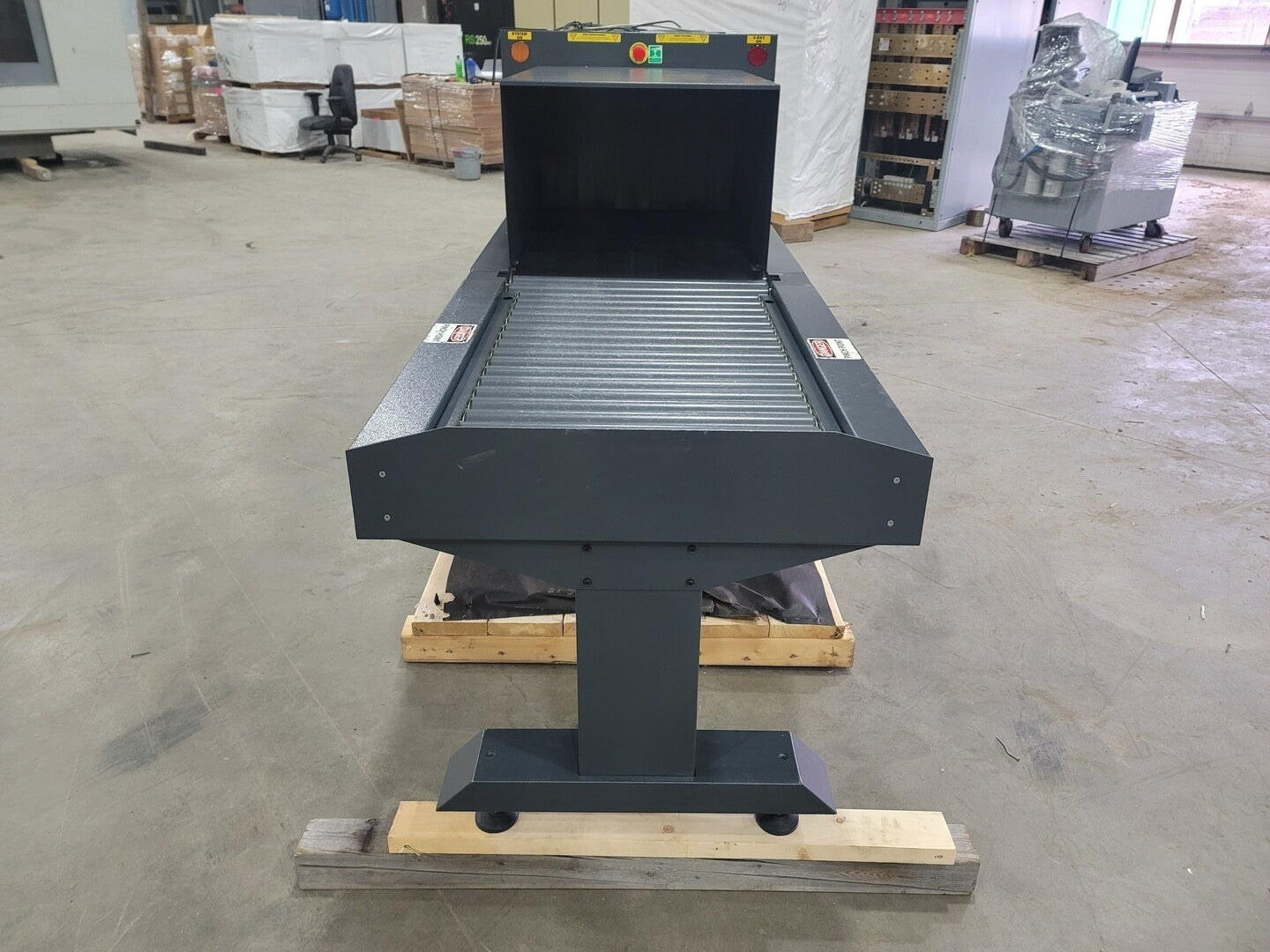

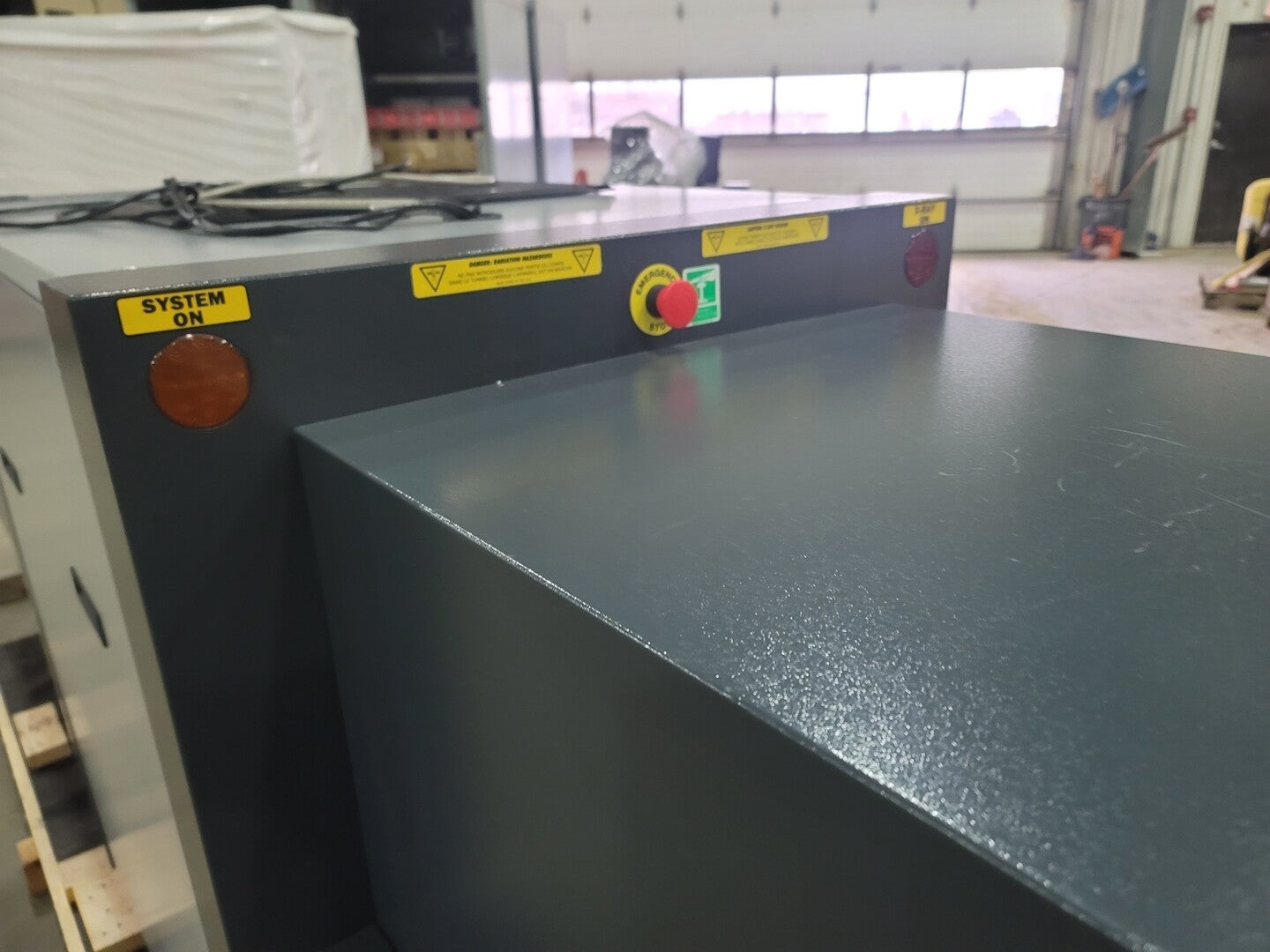

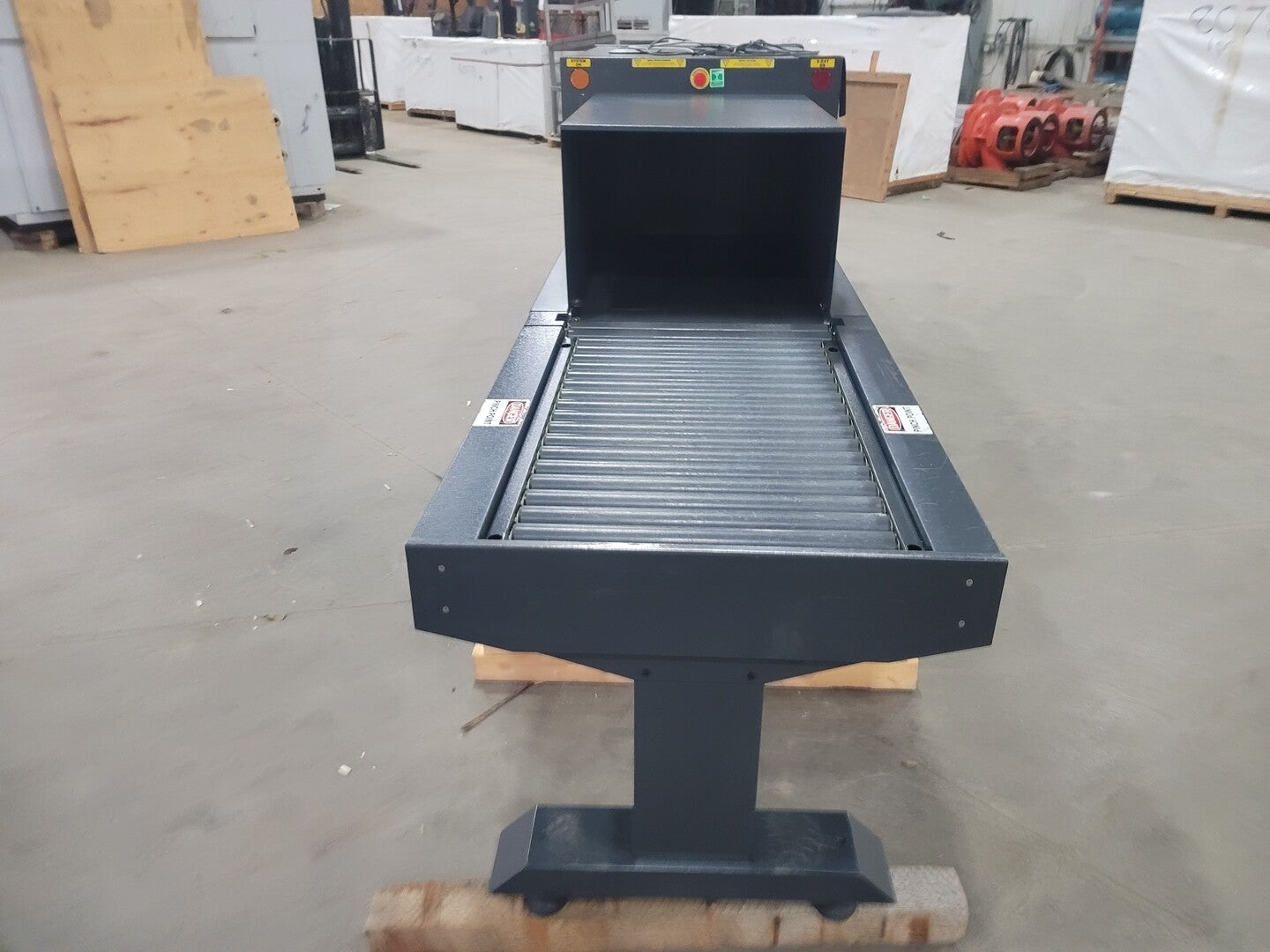

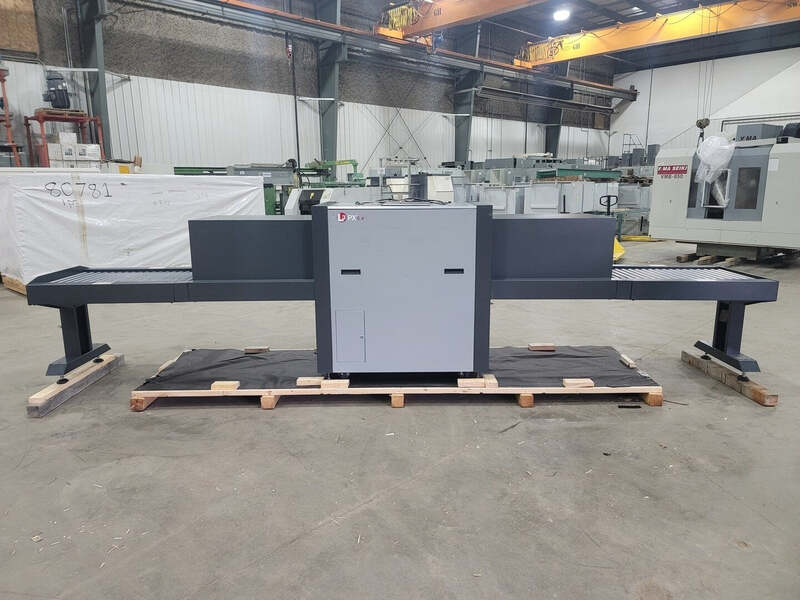

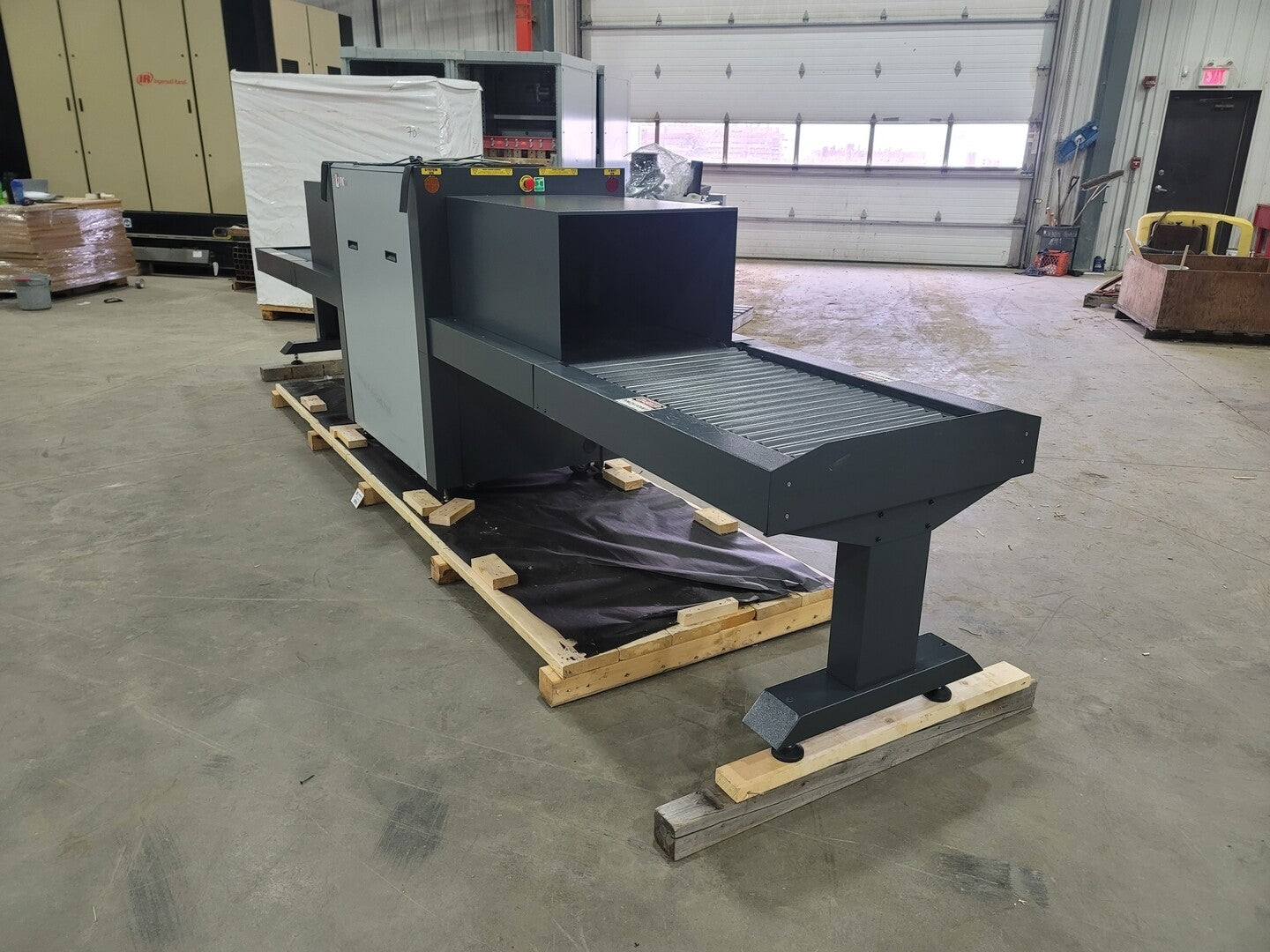

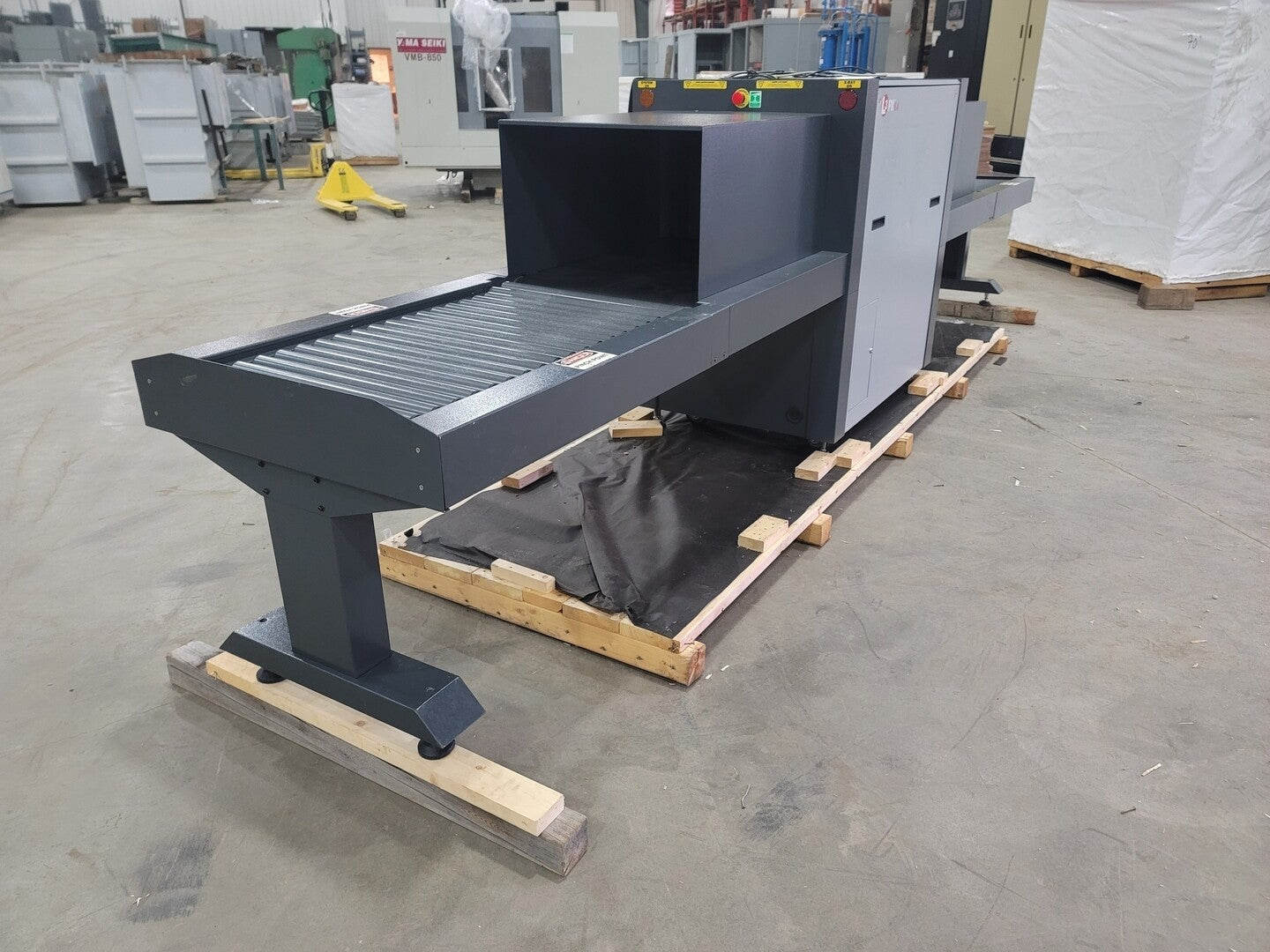

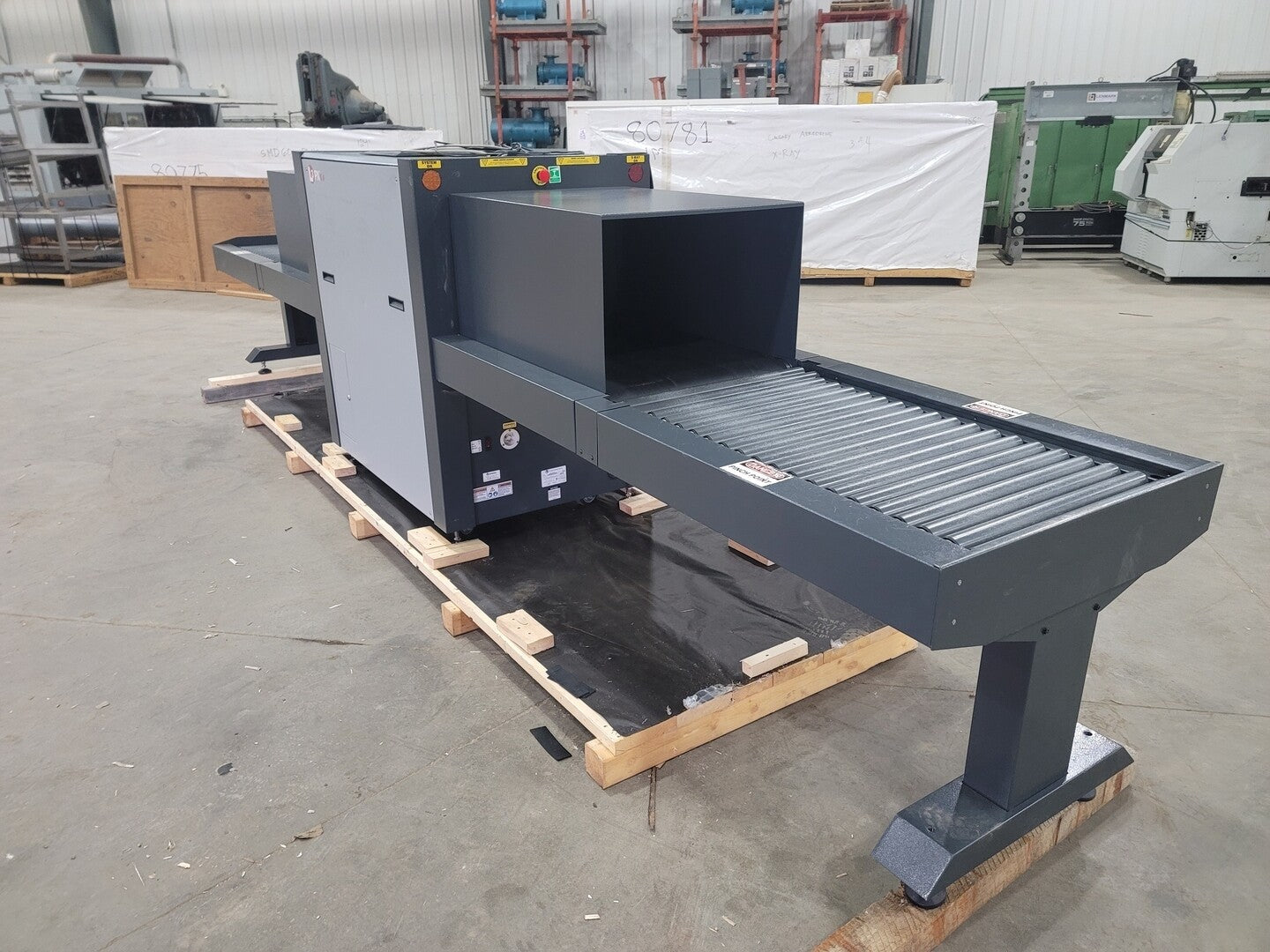

L3 Communication s #PX6.4, Mail & Parcel X-Ray Scanner, 64 cm width x 43 cm H Tunnel, 150 Tank KV, 2015

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 80784
Model: PX 6.4
Year: 2015
Condition: Used

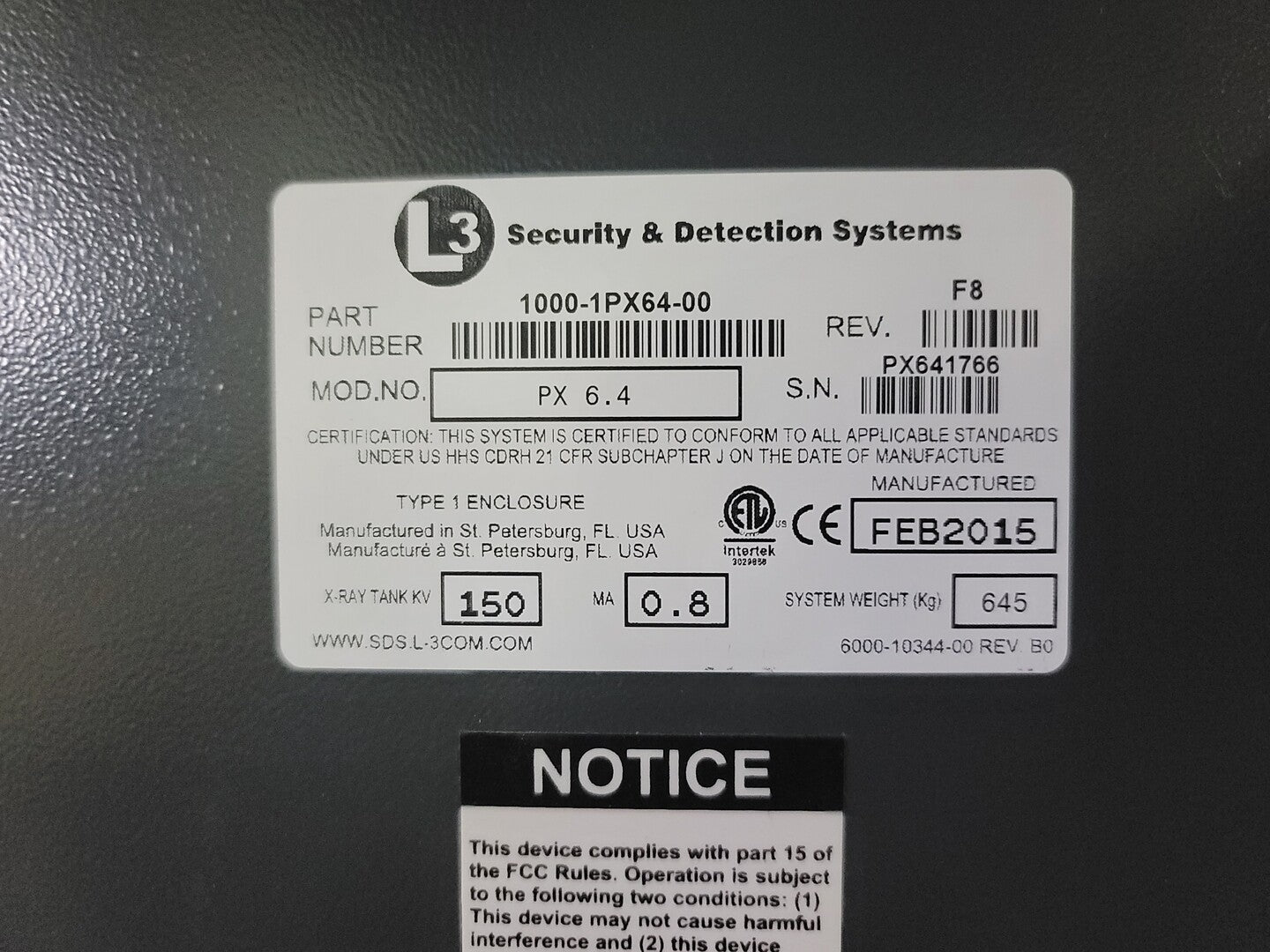

S/N: PX641766
Made In: UNITED STATES
Dimensions: 54.00 (H) x 42.00 (W) x 207.00 (L) inches
Additional Description:
Applications:-
- Threat Detection
- Manifest & Declaration Verification
- Contraband Detection
- Theft Prevention
- Regulatory Compliance/Inspection
General:-
Height: 1312 mm (51.7")
Width: 862 mm (34")
Length:-
- Short Conveyor: 1700 mm (67")
- Medium Conveyor: 2236 mm (88")
- Long Conveyor: 3030 mm (119.3")
Tunnel Opening: 640 mm (25.2") W x 430 mm (16.9") H
Conveyor Height: 775 to 835 mm (30.5" to 32.9")

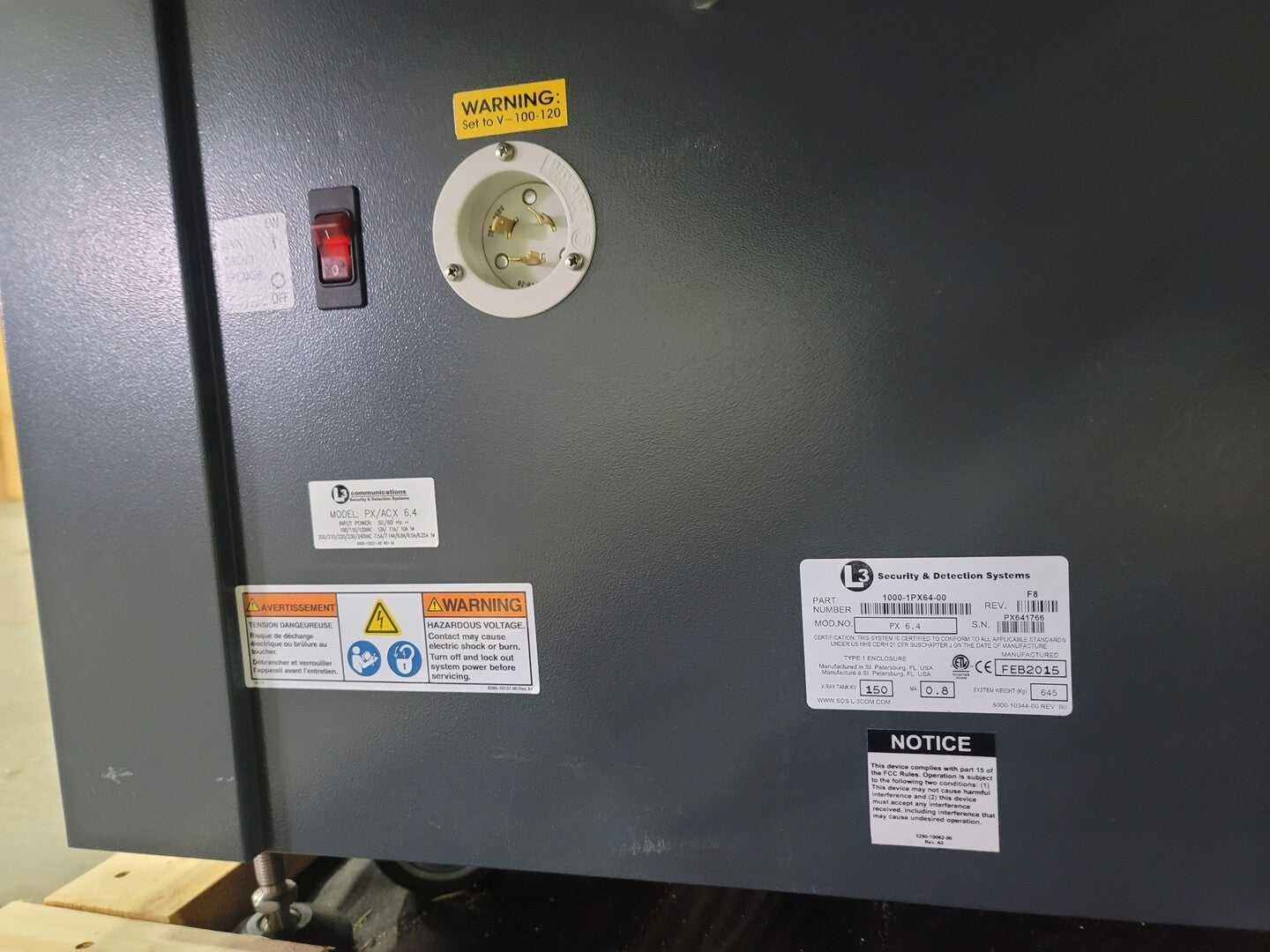

Power Requirements: 100-240 VAC, 1-Ph, +/-10%, 50/60 Hz, 1.0 kVA max
Conveyor Speed: 0.25 m per second +1/-2% @ 50/60 Hz
Conveyor Capacity: 100 kg (220 lb)
Scan Rate:>750 bags/hour (continuous mode), 400 bags/hour (2 level screening)
X-Ray:-
Voltage: 150 kV
Duty Cycle: 100%
Cooling: Sealed Oil Bath
Beam Orientation: Vertically Upward
Detector Configuration: 1152 photodiodes in L-shaped folded array configuration
Imaging and Performance:-
Resolution: 38 AWG standard, 40 AWG typical
Penetration: 38 mm of steel standard, 40 mm typical
Contrast Sensitivity: 4096 gray level stored
Display Monitor: 19" LCD Monitor
Penetration: 38 mm of steel standard, 42 mm typical
Environmental:-
Operating Temperature: 0 deg. C to 40 deg. C (32 deg. F to 104 deg. F)
Storage Temperature: -20 deg. C to 50 deg. C (-4 deg. F to 122 deg. F)
Humidity: 95% non-condensing
Airborne Noise Level: <70dB(A)
Accession Number 0612321-000
