For Sale by Blumberg Machinery Co
Description

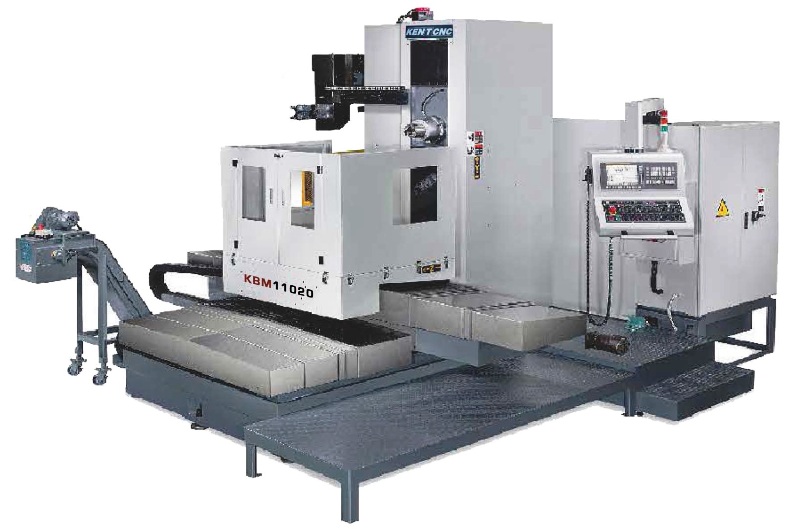

PRODUCT FEATURES
#50 taper spindle, 78.7 x 59 hardened and ground table top
Precision ACME screws in X, Y, Z, & W axes
X, Y, Z, & W axes driven by AC motor
Compact operation panel
Meehanite casting, with built in coolant reservoir in machine base
Coolant system
Centralized automatic lubrication
STANDARD ACCESSORIES
LINEAR SCALE ON X, Y, Z AXES
SPINDLE OIL COOLER
AUTOMATIC POWER OFF
HYDRAULIC UNIT
COOLANT SYSTEM
LUBRICATION SYSTEM
ALARM LAMP
WORK LAMP
M.P.G.
RS232C INTERFACE
HEAT EXCHANGER
CHIP CONVEYOR AND CART
LEVELING BOLTS & PADS
CONTROLLER MANUALS AND CIRCUIT DIAGRAM
OPERATION MANUALS
MACHINE INSPECTION LISTS
SPLASH GUARDS (AROUND WORK TABLE)
TOOL BOX
FANUC 0i-MD with STANDARD FUNCTION
OPTIONAL ACCESSORIES
Fanuc 0iMD Without ATC
Model | KBM-11022 |
Table size | 78.7 x 55(2000 x 1400 mm) |
T-Slots | 20 mm x 7 |
Maximum Loading | 15,432 lbs(7000 kg) |
Height From Ground | 48(1225 mm) |
X Axis Travel | 87(2200 mm) |
Y Axis Travel | 78.7(2000 mm) |
Z Axis Travel | 67(1700 mm) |
W Axis Travel | 22(550 mm) |
Distance Between Spindle Center to Working Table | 78.7(0-2000 mm) |
