For Sale by Lucas Precision LLC
Surplus Record Dealer Since 2022
Location: Cleveland, OH
Contact Jakub Sebor
Phone Number: 216...> Show Phone Number 216-296-7832
Let the seller know you found their listing on Surplus Record!
Description
X / Y / Z / W (travel along axes)
3500 / 2000 / 1250 / 800 mm

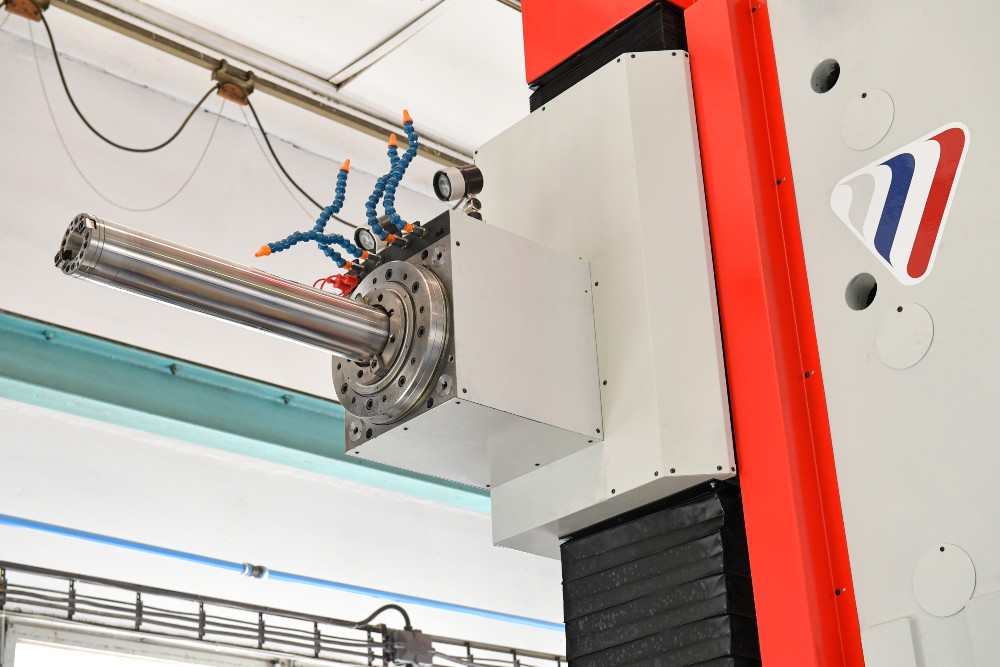

Spindle diameter
130 mm
Taper / Tool norm
SK50 / ISO50
Type and output of motor (S1)
FANUC 37 kW
CNC control system
FANUC FS 0i-MF Plus
Hand wheel for CNC system
HMOP type B
Control panel
Vertical panel with integrated keyboard and 15" LCD
CNC rotary table (size, design, load)
1800x1600 mm with one pinion and servo motor
12 tonnes max load, absolute angular measuring and B axis encoder
Linear scales
FAGOR, linear absolute for X, Y, Z axes
Standard accessories, units
Electrical cabinet with air-condition unit
Automatic surface oil greasing system
Hydraulic unit
Cooling unit for spindle bearings and their thermal conditioning
Service equipment
Remote diagnostics – prepared in electrical cabinet (connection done by customer)
Work lights
inside operator cabin, top light from column top cover
Operator safety
Operator cabin with integrated CNC panel
Documents
EC declaration of conformity, T°V certificate, Electrical inspection report
Machine technical documentation, service book-manual, control system documentation (according to type of CNC ordered)
Machine paint
Colour combination RAL 3003 (red) a 7035 (grey), optional colours upon customer’s request
3500 / 2000 / 1250 / 800 mm
Spindle diameter
130 mm
Taper / Tool norm
SK50 / ISO50
Type and output of motor (S1)
FANUC 37 kW
CNC control system
FANUC FS 0i-MF Plus
Hand wheel for CNC system
HMOP type B
Control panel
Vertical panel with integrated keyboard and 15" LCD
CNC rotary table (size, design, load)
1800x1600 mm with one pinion and servo motor
12 tonnes max load, absolute angular measuring and B axis encoder
Linear scales
FAGOR, linear absolute for X, Y, Z axes
Standard accessories, units
Electrical cabinet with air-condition unit
Automatic surface oil greasing system
Hydraulic unit
Cooling unit for spindle bearings and their thermal conditioning
Service equipment
Remote diagnostics – prepared in electrical cabinet (connection done by customer)
Work lights
inside operator cabin, top light from column top cover
Operator safety
Operator cabin with integrated CNC panel
Documents
EC declaration of conformity, T°V certificate, Electrical inspection report
Machine technical documentation, service book-manual, control system documentation (according to type of CNC ordered)
Machine paint
Colour combination RAL 3003 (red) a 7035 (grey), optional colours upon customer’s request
Get Your Price from Lucas Precision LLC!
