For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact David Valitt
Phone Number: 973...> Show Phone Number 973-497-7570
Let the seller know you found their listing on Surplus Record!
Description

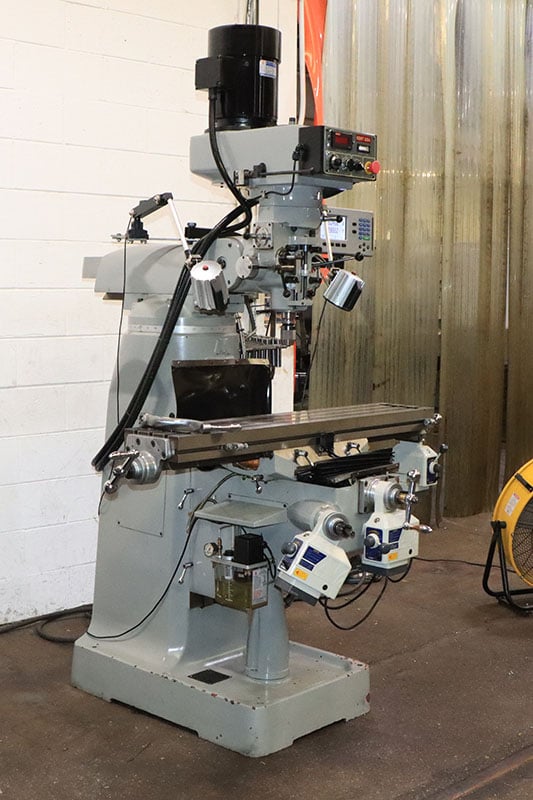

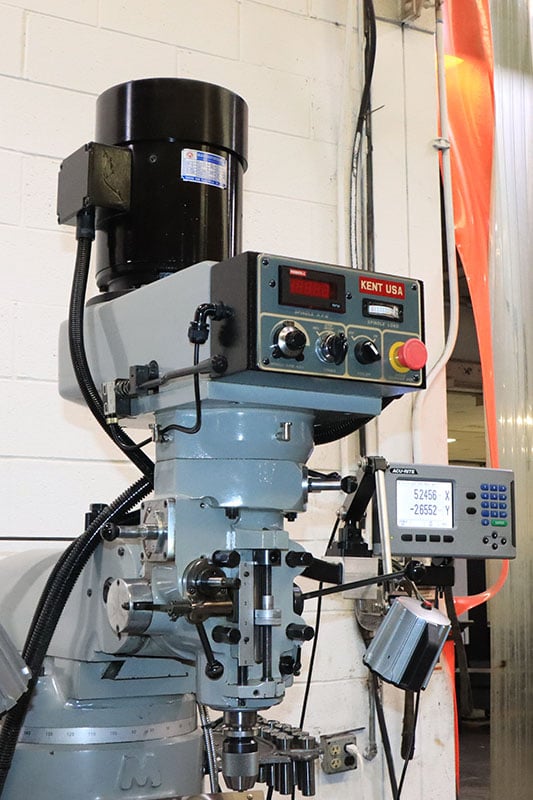

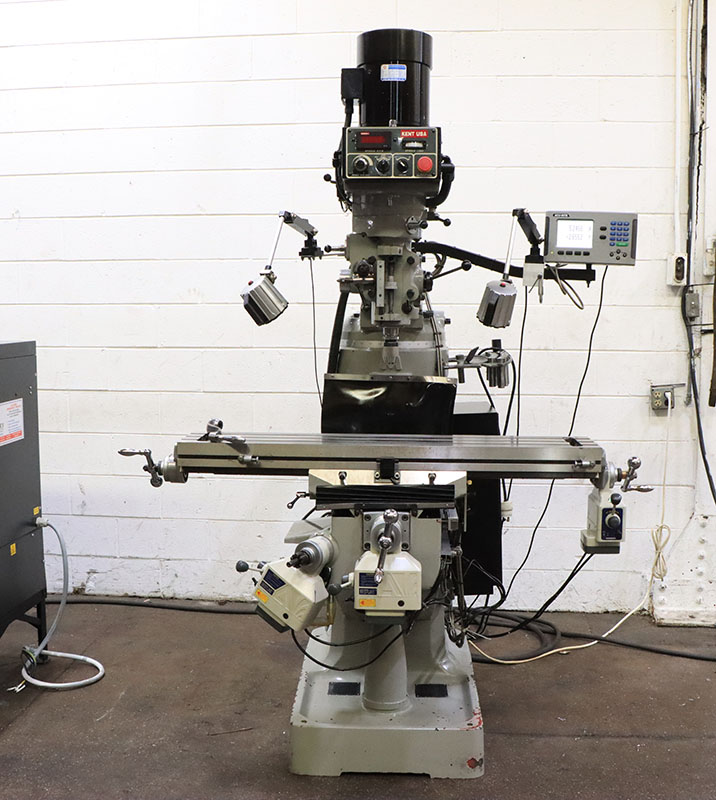

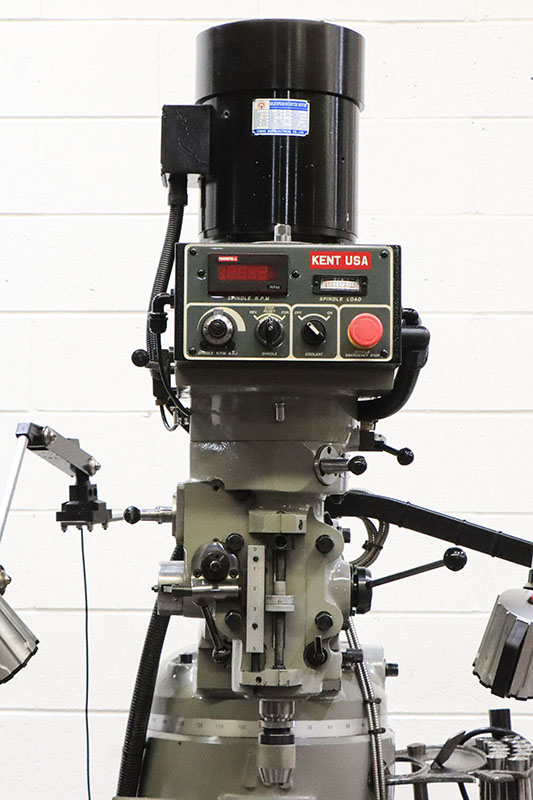

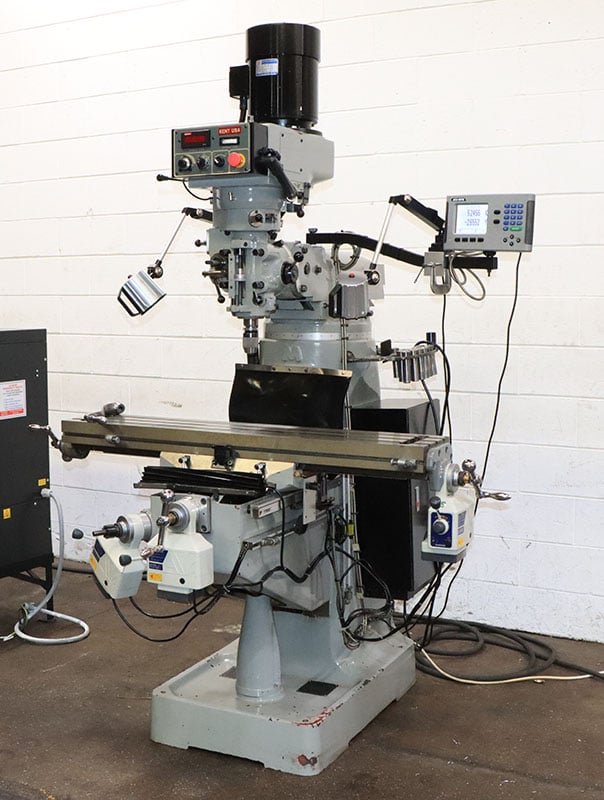

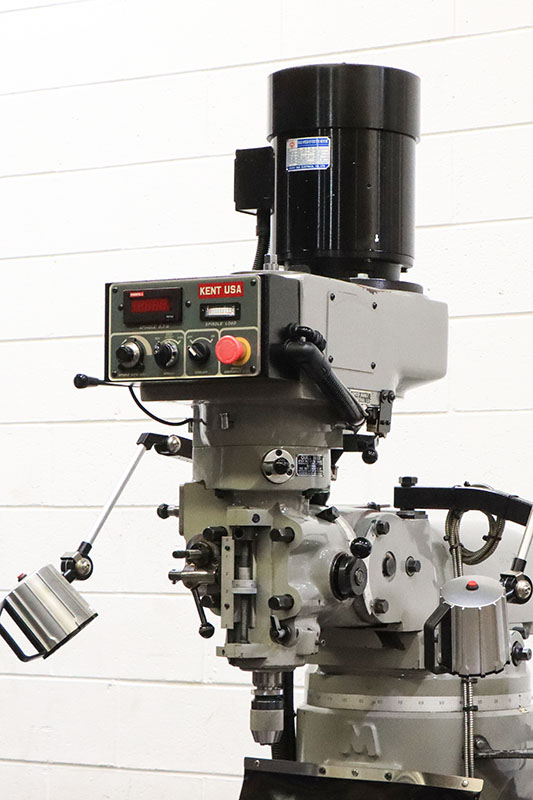

KENT VERTICAL MILLING MACHINE
MODEL: KTM-3VSF, S/N: 0312890,… MFG: 2014
SPECIFICATIONS:
TABLE WORKING SURFACE ......................... 9" X 49"
NUMBER OF T-SLOTS (WIDTH) .....................″ (5/8")
MAXIMUM TABLE LOAD CAPACITY ................... 750 LBS
RANGE: LONGITUDINAL, MANUAL (X) ...............″5"
CROSS (Y) ........................ 12"
VERTICAL, KNEE ................... 15"
QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 14.5"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ...............................″60 DEGREES
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................″-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM
SPINDLE TAPER ................................. R-8
MAXIMUM COLLET CAPACITY .......................″/4"
APPRROXIMATE DIMENSIONS .................. 75" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 2,600 LBS.
EQUIPPED WITH:
AC FREQUENCY INVERTER SPINDLE DRIVE
ACU-RITE TWO-AXIS DIGITAL READOUT
ALIGN POWER FEED FOR LONGITUDINAL TABLE TRAVEL
ALIGN POWER FEED FOR CROSS TABLE TRAVEL
ALIGN POWER FEED FOR KNEE VERTICAL TRAVEL
HARDENED AND GROUND DOVETAIL WAYS FOR X… Y AXES
MEEHANITE CASTING
WORKLIGHT
ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE…
