For Sale by KD Machinery
Description

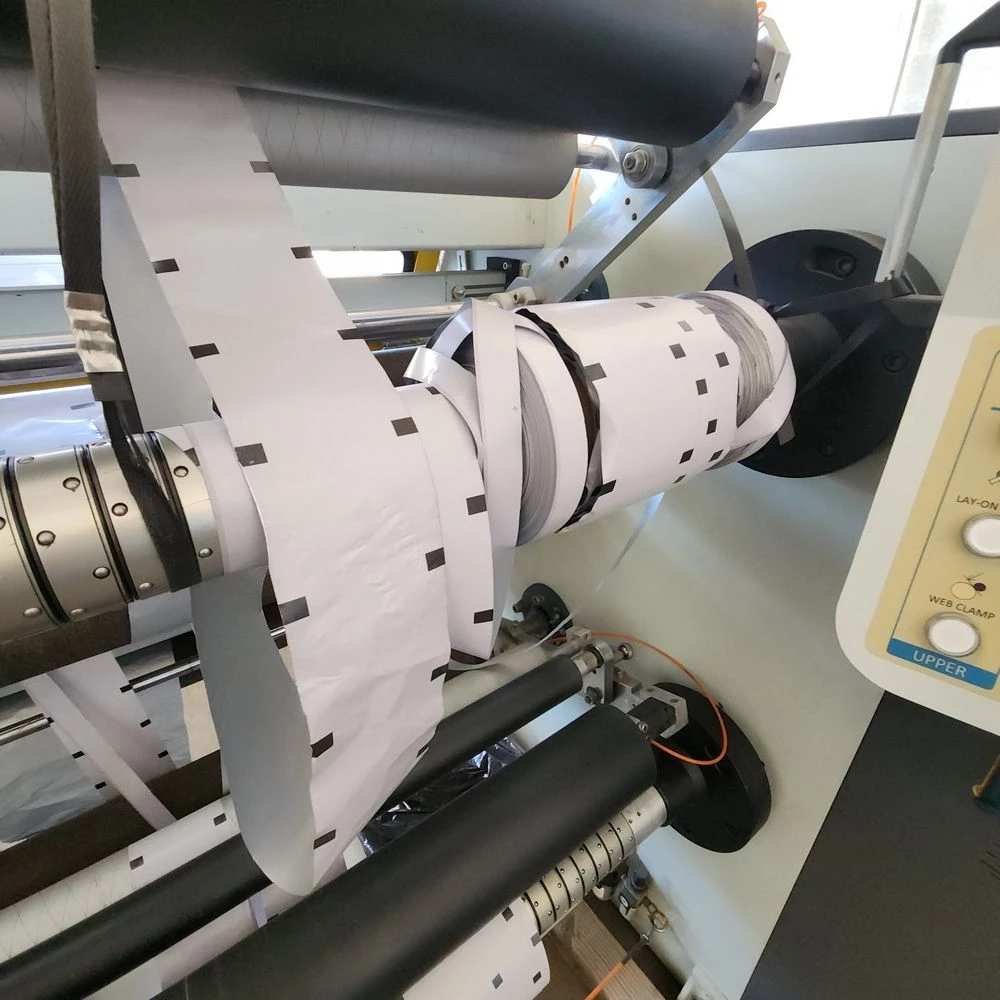

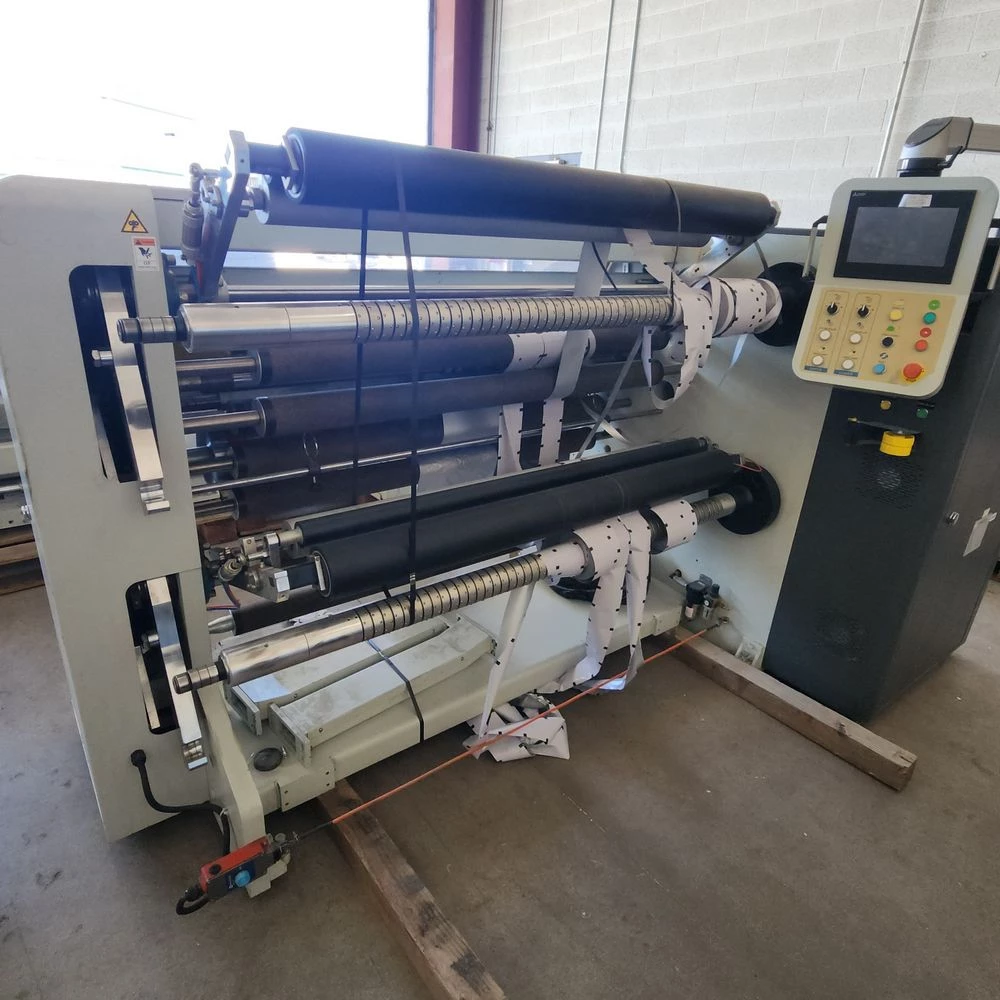

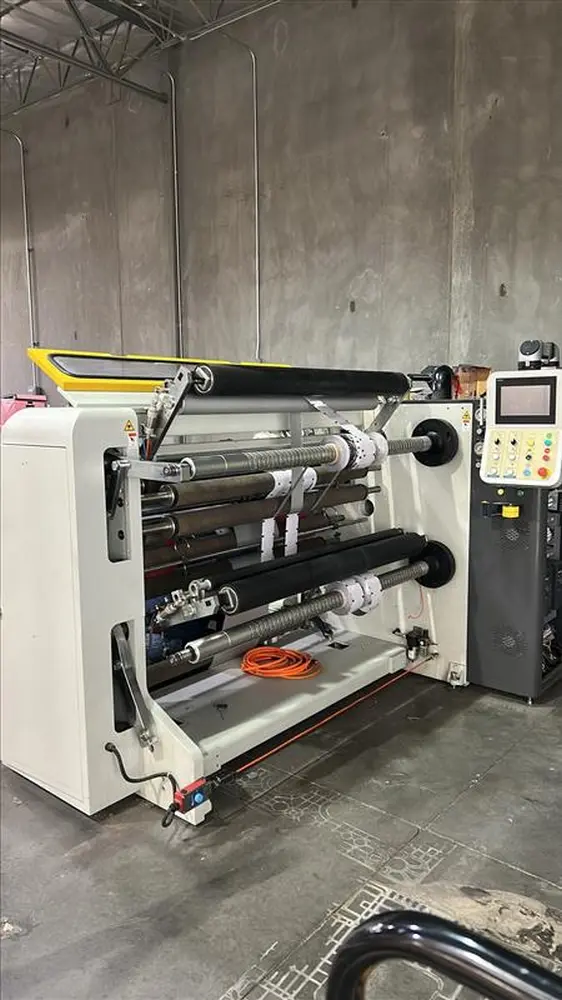

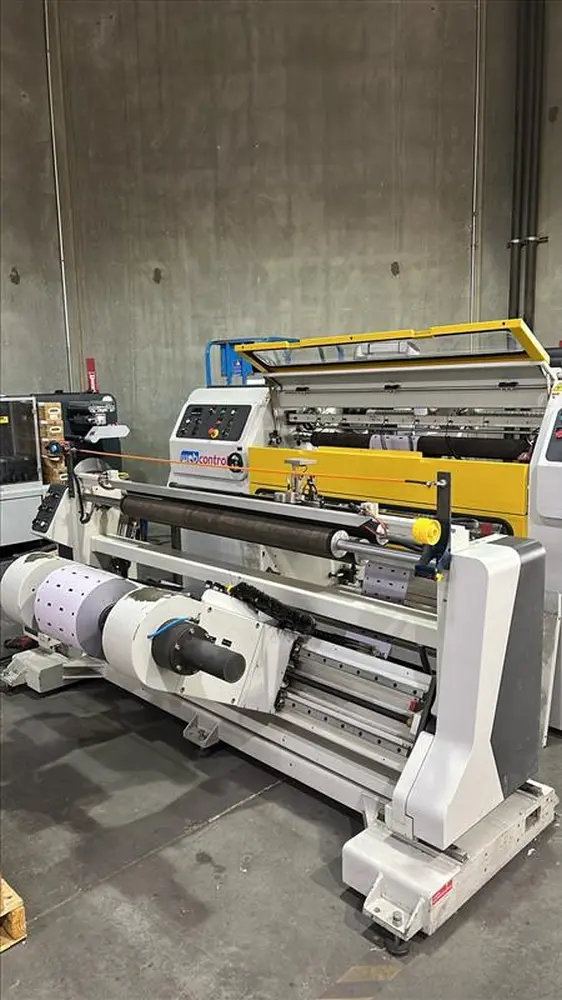

Used Karlville HS-Pro-1300 (2021) Slitter Rewinder for Sale. This unit handles a maximum web width of 1300 mm, with independent unwind roll diameter to 1000 mm and unwind roll weight to a maximum of 1,200 kg (2,645 lbs). Unwind and finished roll cores are 3″ I.D., with 6″ I.D. available as an option, and finished roll diameter runs to a maximum of 610 mm. Slit width is 50 mm and up, lower upon request. Knife options include shear, razor and pneumatic shear with a tangential web path. Winding tension is 0.5 pli to 2.5 pli standard, and maximum machine speed is 500 m/min depending on material type and quality. It runs shrink sleeve materials including PE, PP, PET, PVC films, papers and laminates, with rigid films 10~200 micron and soft films 12~300 micron. The machine can be seen under power for an inspection. Request a Quote for further details.
| Web Width | Max 1300 mm |
|---|---|
| Unwind Roll Diameter | 1000mm Independent |
| Unwind Roll Weight | Max 1,200 kg (2,645 Lbs) |
| Unwind Roll Cores | 3 I.D. / 6 I.D. (option) |
| Finished Roll Diameter | Max 610mm |
| Finished Roll Cores | 3 I.D. / 6 I.D. (option) |
| Slit Width | 50mm and Up (Lower Upon Request) |
| Knifes | Shear, Razor & Pneumatic Shear with Tangential Web Path |
| Winding Tension | 0.5 pli to 2.5 pli Standard |
| Machine Speed (Max) | 500 m/min (Depending on Material Type/Quality) |
| Shrink Sleeve Materials | Plastic Films Made from PE, PP, PET, PVC, Papers and Laminates (Depending on Material Type and Thickness)Rigid Films: 10~200 micron / Soft Films: 12~300 micron |
Get Your Price from KD Machinery!
