For Sale by Champion Machinery Inc
Surplus Record Dealer Since 2003
Location: Fort Mill, SC
Contact Trey Sprouse
Phone Number: 803...> Show Phone Number 803-548-8000
Let the seller know you found their listing on Surplus Record!
Description
Features:
- 8" Diameter Grinding Wheel
- 48" Maximum Grindable Cutter Length
- 78.74" Maximum Overall Cutter Length

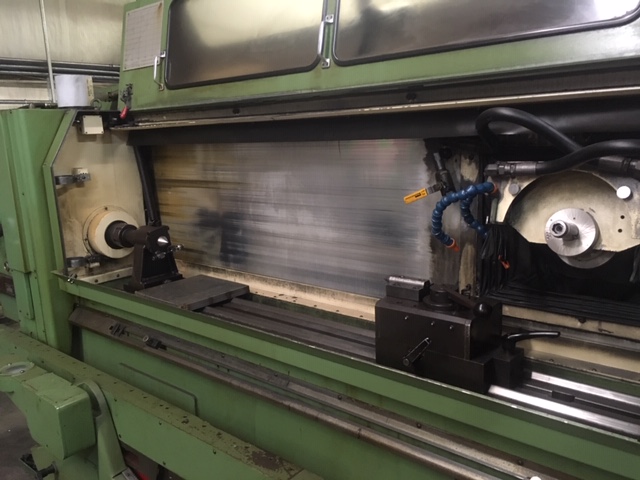

- 59.06" Table Travel
- 8.75" Centerline Height
- 0 - 30 ipm Grinding Speed, Infinitely Variable
- 216 ipm Constant Return Stroke Speed
- 0 -35 Degree Tooth Lead, Angle Infinitely Variable
- 36.02" to Infinite Tooth Lead, Infinitely Variable
- 2150/2860 rpm Grinding Wheel Speed
- 2.76" Axial Adjustment of Grinding Spindle
- 6.30" Vertical Adjustment of Grinding Support
- 5.12 - 6.30" Distance Between Grinding Wheel Edge & Centerline
- 12" Maximum Cutter Diameter (with 6" Grinding Wheel)

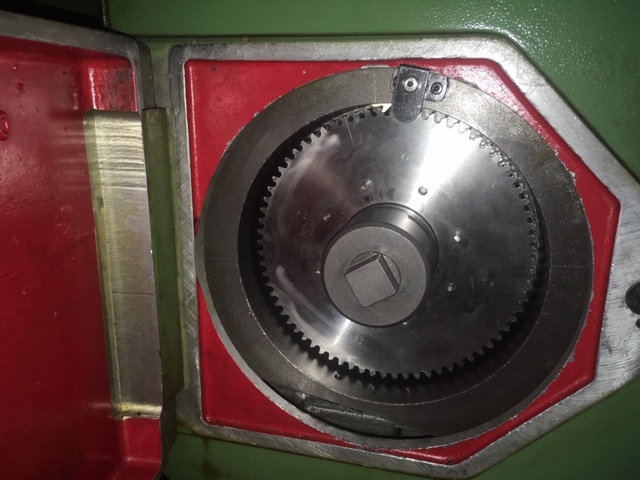

- MT #5 Taper, Indexing Unit Spindle
- 0.0008" Automatic Vertical Feed per Magnet Stroke
- 0.9999 Preselectable Feed Strokes
- 10 HP Grinding Motor
- 0.74 HP Table Feed Motor
- 0.74 HP Table Return Feed Motor
- 1.0 HP Support Rapid Traverse
- 0.16 HP Index Motor
- 0.9 HP Coolant Pump Motor
- 0.33 HP Vertical Lift Motor

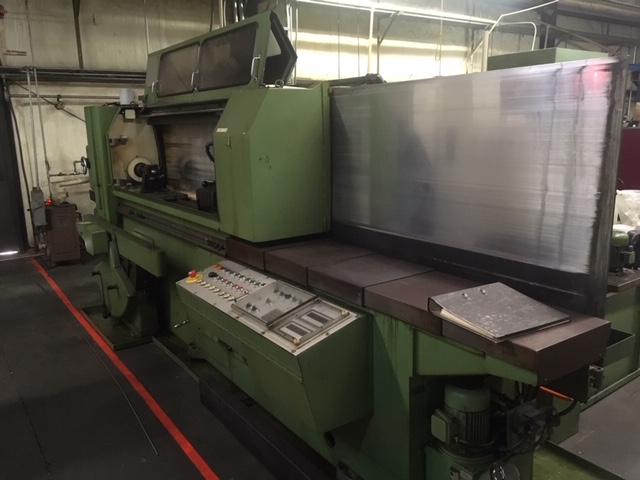

- 199.2" L x 57.7" D x 66.8" H Machine Dimensions
- 10100 lbs. Machine Weight

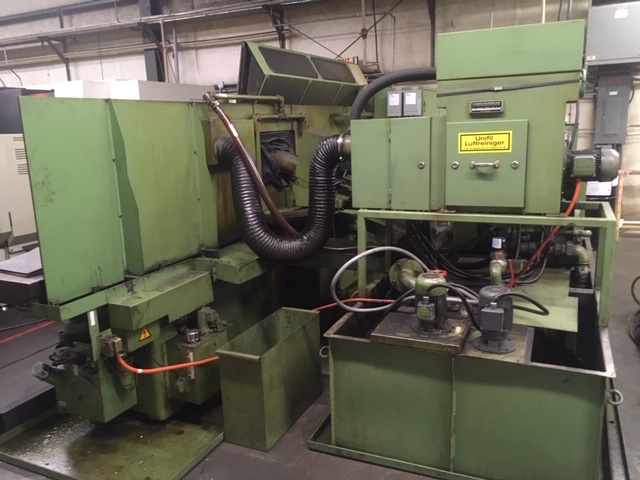

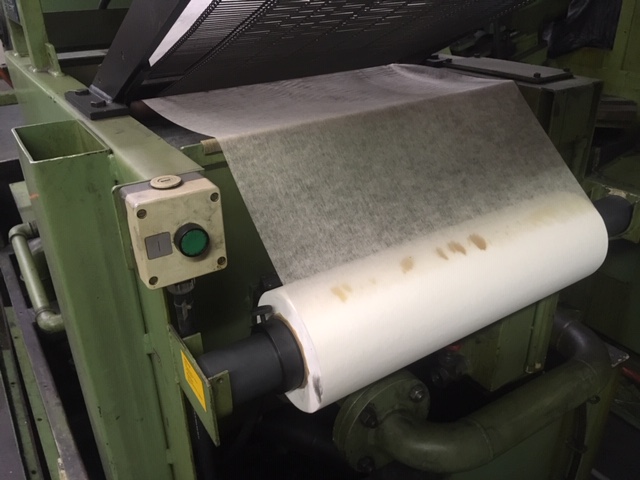

- Coolant System with Paper Filtration
- 8" Diamond Grinding Wheel
- Mechanically Rebuilt Three Years Ago
