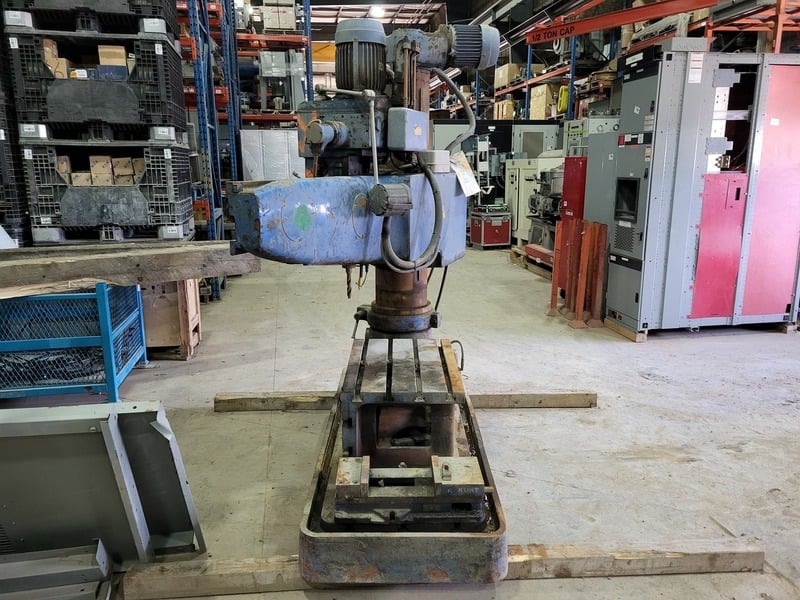

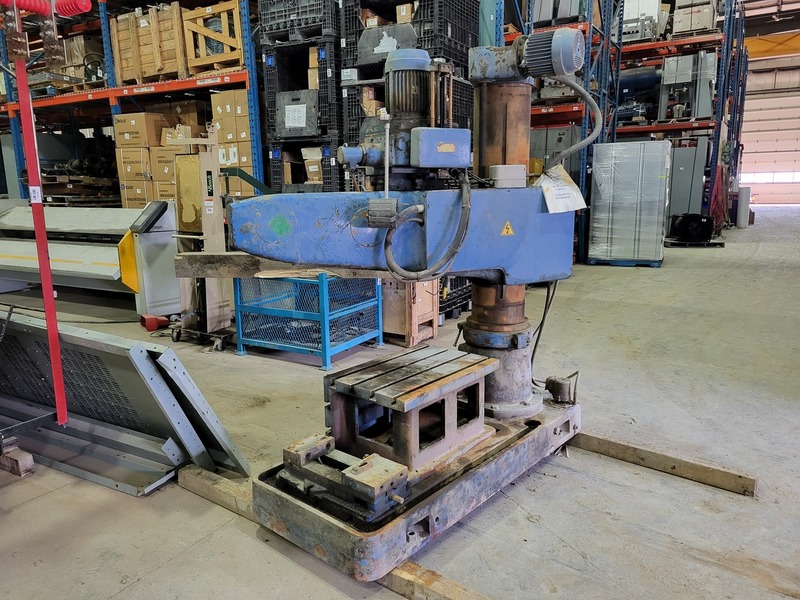

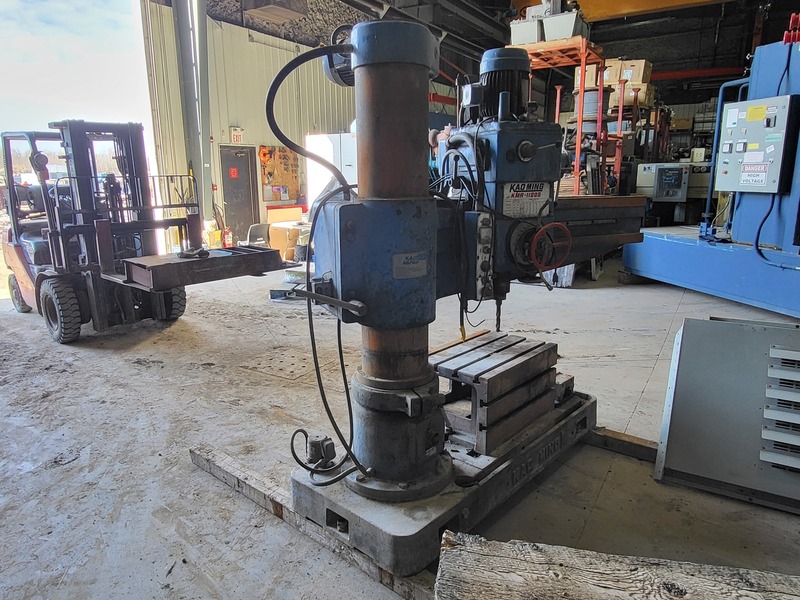

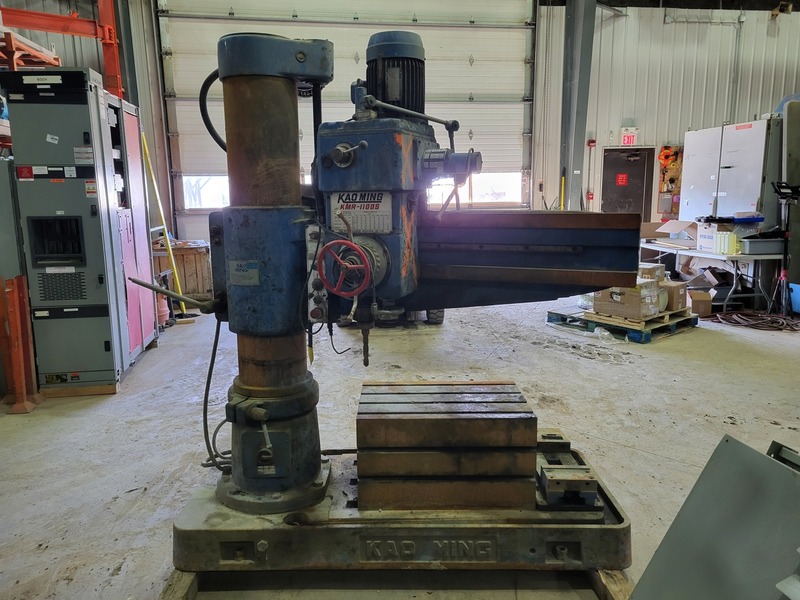

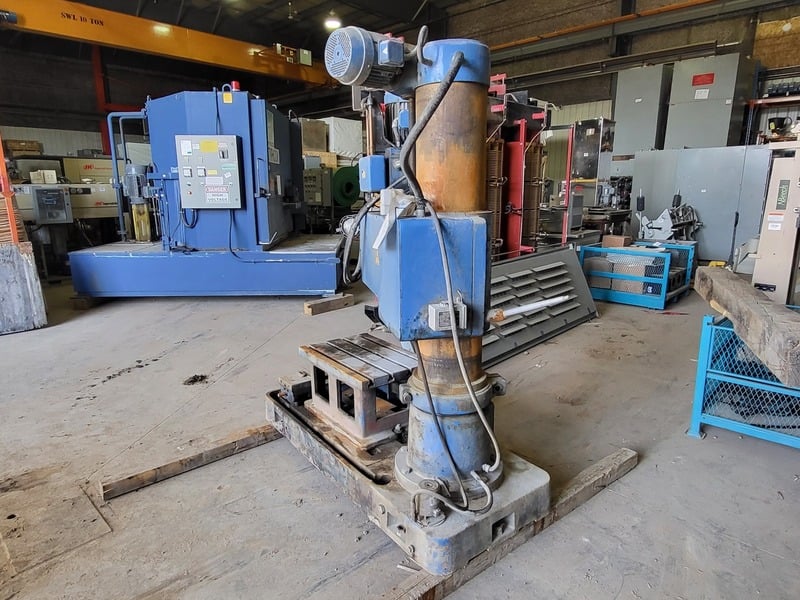

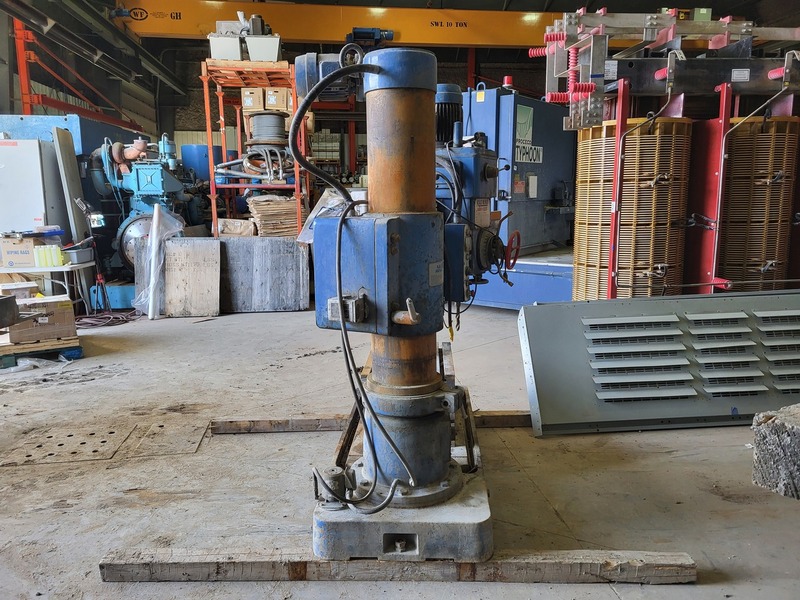

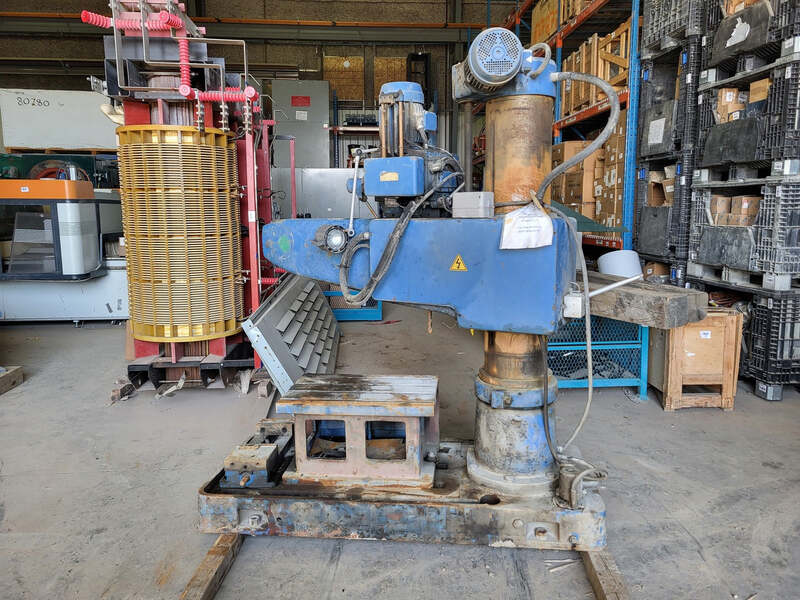

KAO Ming #KMR-1100S, Radial Arm Drilling Machine

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 154243
Model: KMR-1100S
Condition: Used
General Specifications:
Type: Radial Arm Drill
Arm Travel: 27.55"
Morse Taper: MT#4
Table Size: 19.68" x 29.52" x 15.74"
Electrical Specifications:
Horsepower: 3 hp
Voltage: 220 volts
Phase: 3-phase
Features Specifications:
Drive Type: Gear Drive
Coolant Pump: Yes
Made In: TAIWAN
Dimensions: 96.00 (H) x 50.00 (W) x 90.00 (L) inches
Additional Description:
Travels:
- Spindle head longitudinal travel: 768 mm // 30.25"
- Vertical arm travel: 700 mm // 27.55"
- Spindle center to column center: 505 - 1250 mm // 19.88 - 49.21''
- Spindle center to column face: 355 - 1100 mm // 13.97 - 43.30"
- Spindle end to work base surface: 345 - 1265 mm // 13.58 - 49.80"
- Work base surface area: 1260 x 760 mm // 49.60 x 29.92"
- Column diameter: 300 mm // 11.81"
- Column height: 2108 mm // 82.99"
- Max height spindle head to floor: 2503 mm // 98.54"
- Box table L x W x H: 500 x 750 x 400 mm // 19.68 x 29.52 x 15.74"
Spindle:
- Taper: MT4

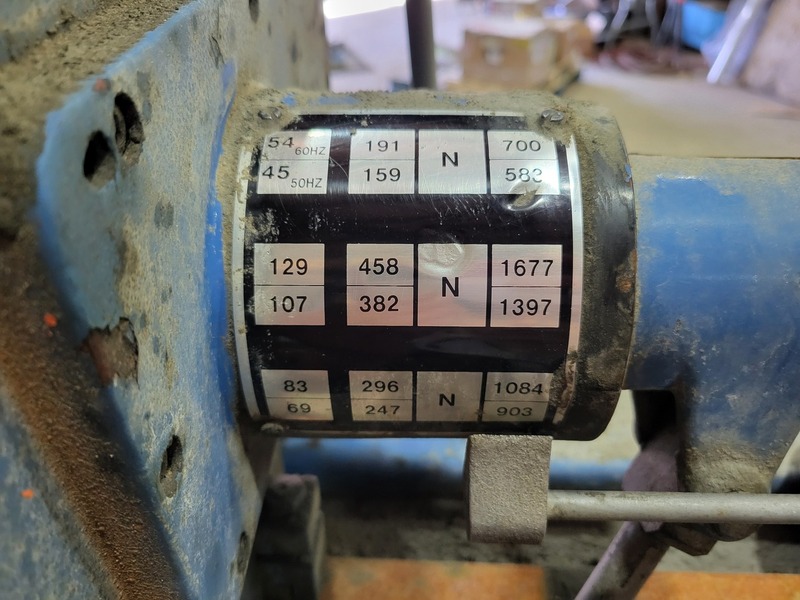

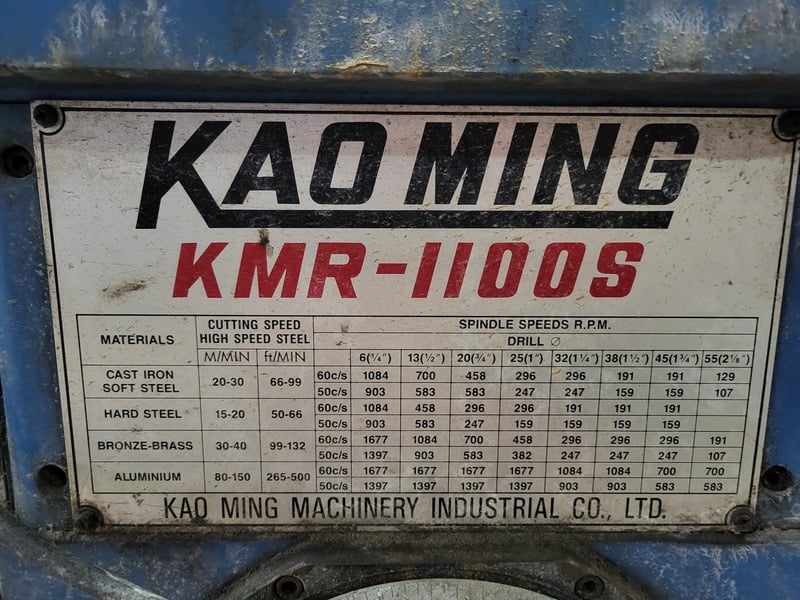

- Speed range: 49 - 1524 rpm
- Number of speeds: 9 steps
- Feed range: 0.1 / 0.22 / 0.35 mm/rev // 0.004 / 0.0088 / 0.014"/rev
- Number of feeds: 3-step
- Spindle travel: 220 mm // 8.66"
- Quill diameter: 80 mm // 3.14"
Working capacity:
- Drilling (cast iron / steel): 55 / 45 mm // 2.16" / 1.77"
- Boring (cast iron / steel): 150 / 100 mm // 5.90" / 3.93"
- Tapping (cast iron / steel): 38 / 25 mm // 1.49" / 0.98"
Motors:

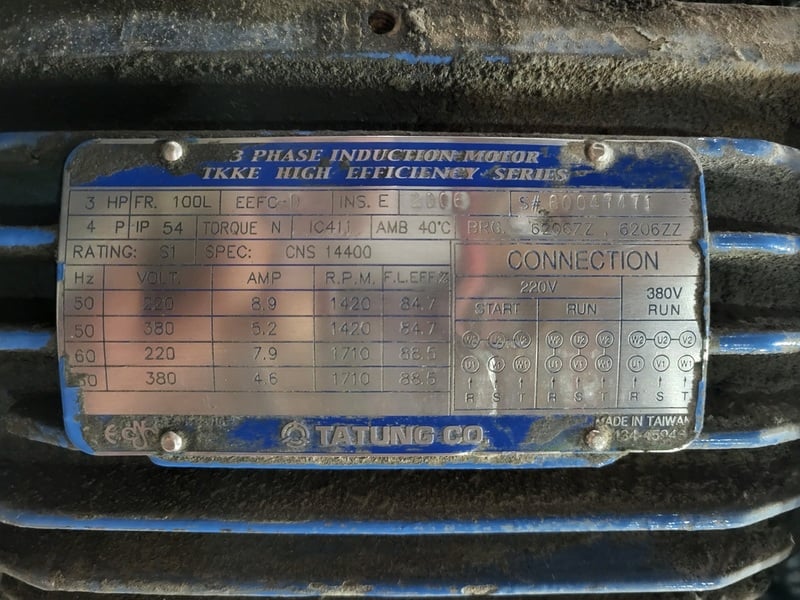

- Main spindle motor: 2.2kW // 3hp
- Arm elevating motor: 1.5kW // 2hp
