Description

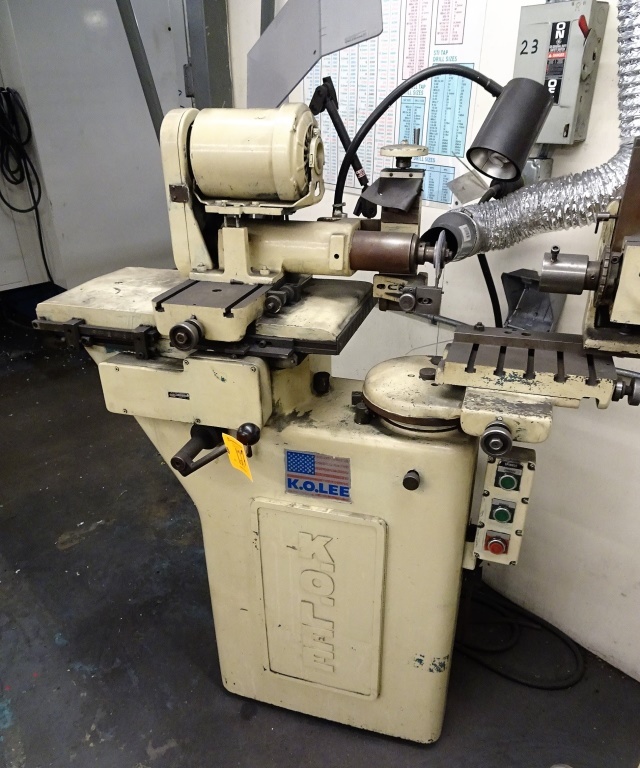

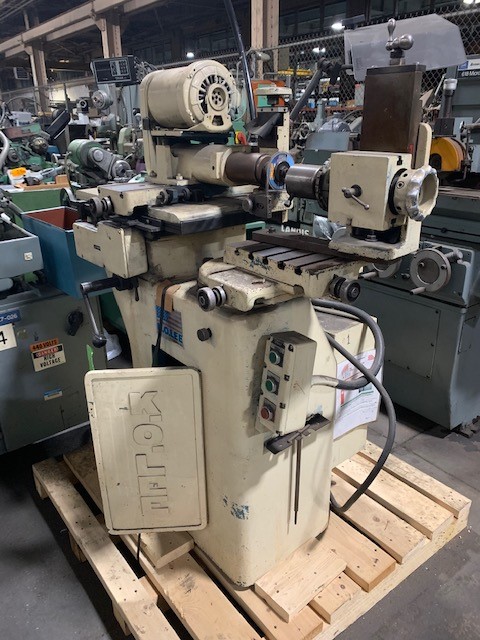

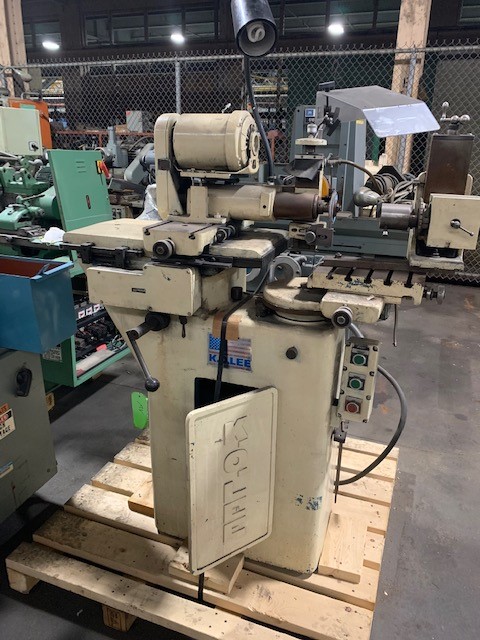

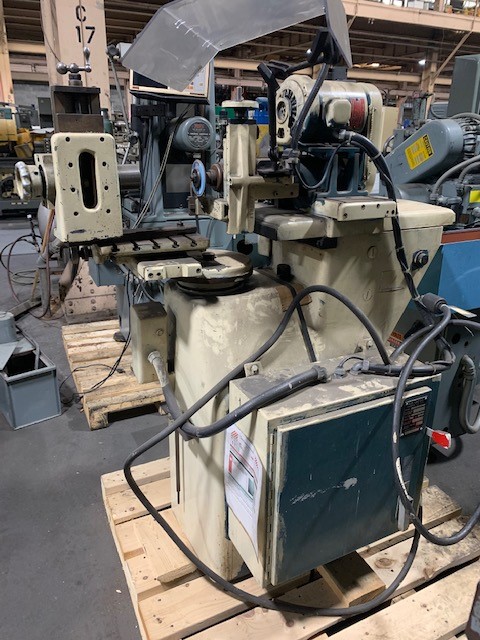

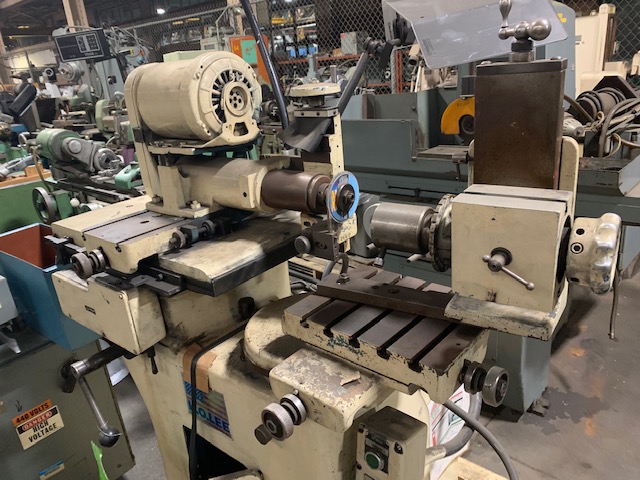

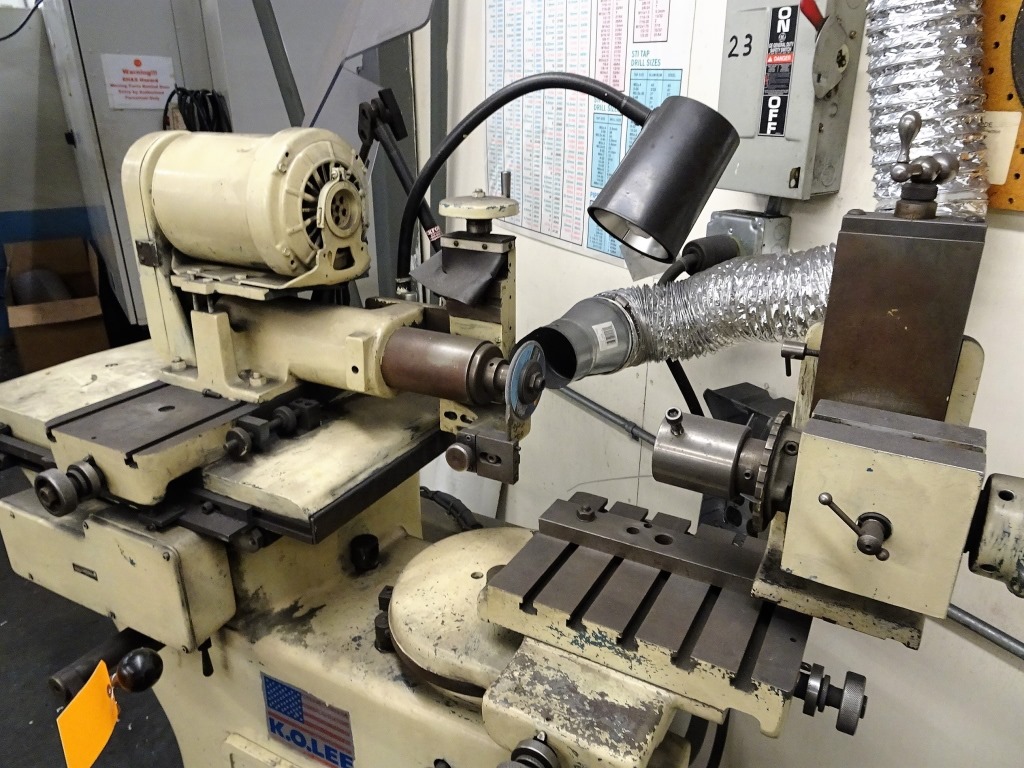

K.O. LEE RADIUS-TANGENT TOOL… CUTTER GRINDER
MODEL: RT″00… S/N: 25550… NEW: 1990
SPECIFICATIONS:
CAPACITY:
MAXIMUM CUTTER DIAMETER.......................... 12-3/4"
RADIUS-CONCAVE................................... 5-1/2"
RADIUS-CONVEX.................................... 5-1/2"
MAXIMUM LENGTH OF FLUTE ACCOMMODATED WITH
2" WHEEL SHAFT EXTENSION......................... 7"
WHEELHEAD MOVEMENTS:
LATERAL WHEELHEAD MOVEMENT....................... 7"
TRANSVERSE, QUICK ADJUSTMENT ON TEE BOLT SLIDE... 10-3/4"
TRANVERSE, FINE ADJUSTMENT SCREWFEED WITH
BACKLASH ELIMINATOR.............................. 1-3/4"
TRANVERSE TOTAL.................................. 12-1/2"
WORKTABLE MOVEMENTS:
PARALLEL TO CUTTER AXIS, FINE ADJUSTMENT,
SCREWFEED........................................ 2-1/8"
PARALLEL TO CUTTER AXIS, QUICK ADJUSTMENT, TEE
SLOT SLIDE....................................... 6"
PARALLEL TO CUTTER AXIS TOTAL.................... 8-1/8"
NORMAL TO CUTTER AXIS, QUICK ADJUSTMENT, TEE
SLOT SLIDE....................................... 10"
NORMAL TO CUTTER AXIS, FINE ADJUSTMENT........... 2-5/8"
NORMAL TO CUTTER AXIS TOTAL...................... 12-5/8"
WORKTABLE SIZE................................... 8" X 11"
VERTICAL MOVEMENT OF WORK HOLDER.................″"
ROTARY MOVEMENT OF WORKTABLE ON PRELOADED
TAPERED ROLLER BEARINGS (GRADUATED IN DEGREES)... 210 DEG.
CENTERLINE OF WHEELHEAD SPINDLE TO PIVOT POINT
OF WORKTABLE..................................... 7-3/4"
GRINDING WHEEL:
MINIMUM/MAXIMUM DIAMETER......................... 4"/6"
FACE/THICKNESS................................... 1/16"/1/4"
BORE............................................. 5/8"
SPINDLE:
SPEEDS WITH TWO STEP PULLEY...................... 5800/3800
APPROXIMATE WEIGHT: ............................. 1,150 LBS.
EQUIPPED WITH:
RT-390 INDENT ATTACHMENT
K.O.LEE WORKHEAD, INDEX PLATE… 5C COLLET DRAWBAR
VERTICAL SLIDE ADJUSTMENT W/HANDWHEEL FOR THE WORKHEAD
VERTICAL SLIDE ADJUSTMENT W/HANDWHEEL, WITH DRESSER, FOR THE GRINDING WHEEL
3/60/208-230-460 VOLTS, PRESENTLY WIRED FOR 208 VOLTS
* * EXCELLENT CONDITION… APPEARANCE - COMPLETE MACHINE * *
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
