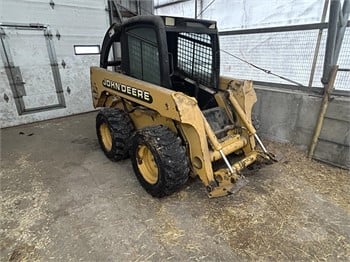

John Deere 250, Skid Steer, 2.9L Diesel Engine, 66" Bucket, 250 Amps, 2400 RPM, 18.5 hours

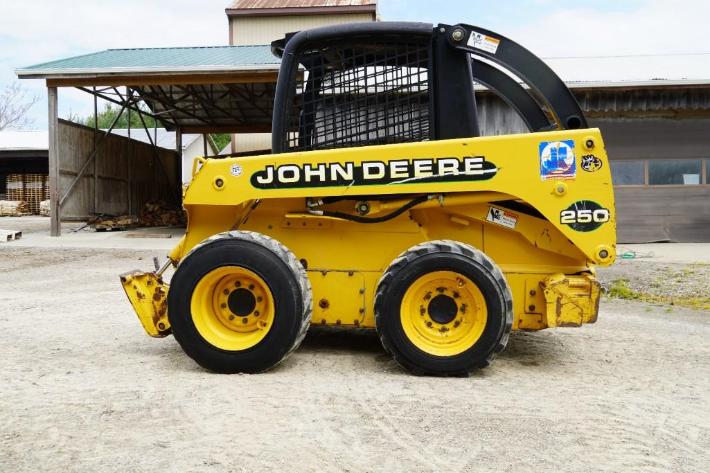

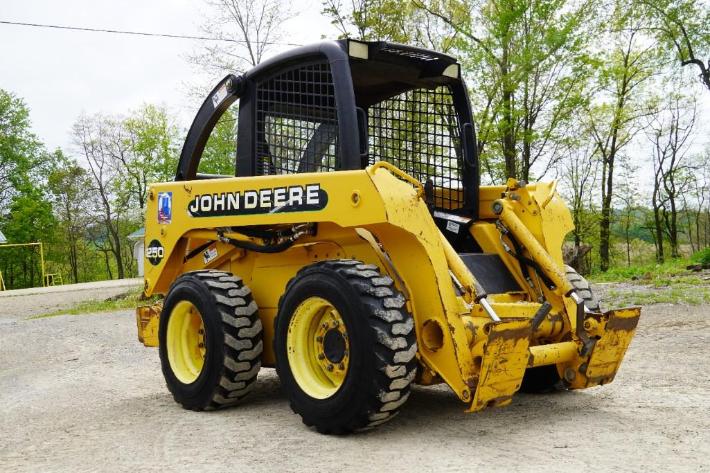

2001 John Deere 250A Skid Steer

For those who need to do small jobs around the farm or on the job site, the It is a very affordable option for someone interested in farming or landscaping. The low profile design of the JD 250 also provides excellent visibility, making it ideal for driving on uneven surfaces such as gravel roads or dirt trails.

SN: KV0250A251321
Meter reads: 18.5
hours Engine: John Deere 2.9L Fuel type: Diesel ROPS: Open 2 Speed:
Comes with a NEW 66" Bucket (Additional Bucket Type or attachment available at additional cost)
No Highflow: None A/C: No Heater: No Features and Notes:
Over $9000 spent on overhaul for parts alone, new brake system, 18.5 hours
on overhaul, low hours on new hydraulics, runs like new strong.

Net power: 61 hp
Power measured @: 2400 rpm
Max speed: 13.7 km/h
Displacement: 179 cu in
Number of cylinders: 3
Fuel capacity: 57 L
Ground clearance: 244 mm
Tipping load: 1633 kg

Horsepower 64.4 HP 48.0 kW
Lifting Capacity (35% Tipping) 1250 lbs 567.0 kg
Lifting Capacity (50% Tipping) 1750 lbs 793.8 kg
Operating Weight 6250 lbs 2835.0 kg
Tipping Load 3600 lbs 1632.9 kg
Lift Breakout Force 5500 lbs 2494.8 kg
Tilt Breakout Force 3100 lbs 1406.1 kg
Max. Travel Speed 6.7 mph 10.8 km

US Metric
Pump Flow 17.6 GPM 66.6 LPM
Relief Pressure 3100 psi 213.7 Bar
Optional Flow 30.1 GPM 113.9 LPM
Hydraulic Capacity 6.1 gal 23.0 L

John Deere 250 skid steer’s low profile also provides excellent visibility, making it ideal for driving on uneven surfaces like gravel roads or dirt trails.

How big is a JD 250 skid steer?
The JD 250 skid steer is 70 inches wide, 77 inches in height, and 126 inches in length
Engine Specs
Manufacturer John Deere
Model 3029t
Type Diesel
Cylinders 3
Emissions Tier I
Rated Speed 2400 RPM
Torque Power 1600 RPM
Combustion Direct injection
Compression Ratio 17.8:1
Firing Order 1-2-3
US Metric
Gross Power 64.4 HP 48.0 kW
Net Power 61.0 HP 45.5 kW
Displacement 179 cu in. 2933 cc
Bore 4.2 in. 10.6 cm
Stroke 4.3 in. 11.0 cm
Peak Torque 109 ft-lb 148.1 Nm
Coolant Capacity 2.8 gal 10.6 L
Engine Oil Capacity 2.0 gal 7.4 L
Fuel Tank Capacity 15.1 gal 57.0 L

Dimensions US Metric
Height 76.8 in. 195.0 cm
Bucket Hinge Pin 115.2 in. 292.5 cm
Width 69.9 in. 177.6 cm
Length 125.8 in. 319.6 cm
Dump Height 90.2 in. 229.0 cm
Dump Reach 28.1 in. 71.5 cm
Ground Clearance 9.6 in. 24.4 cm
Dump Angle 45°
Rollback Angle 35°
Departure Angle 27°
Tire Size
Front 12×16.5
Rear 12×16.5
