Iscar #IC908, drilling head inserts, TiAlN coated carbide, various diameters and packs

$290 USD

Request Formal Quote

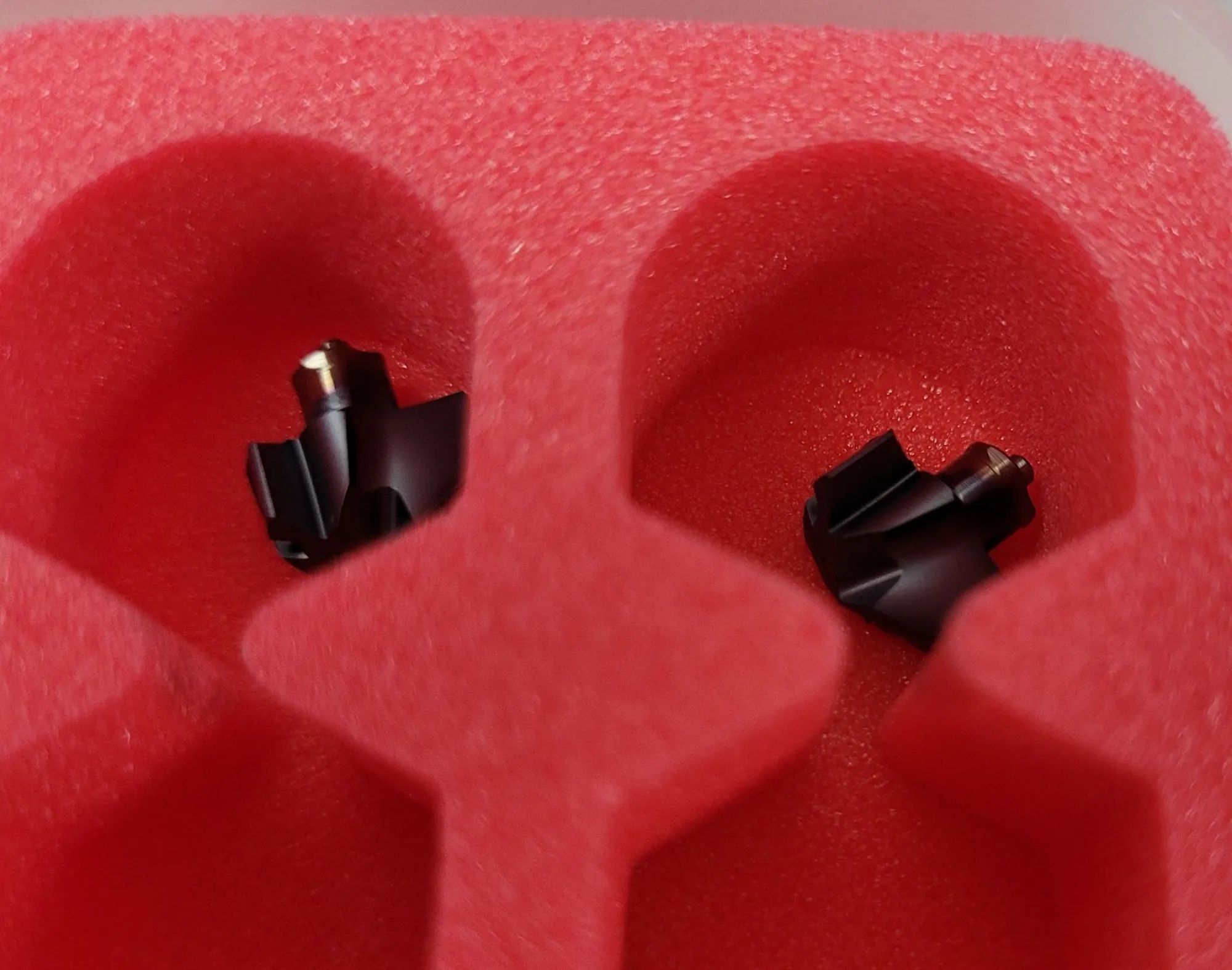

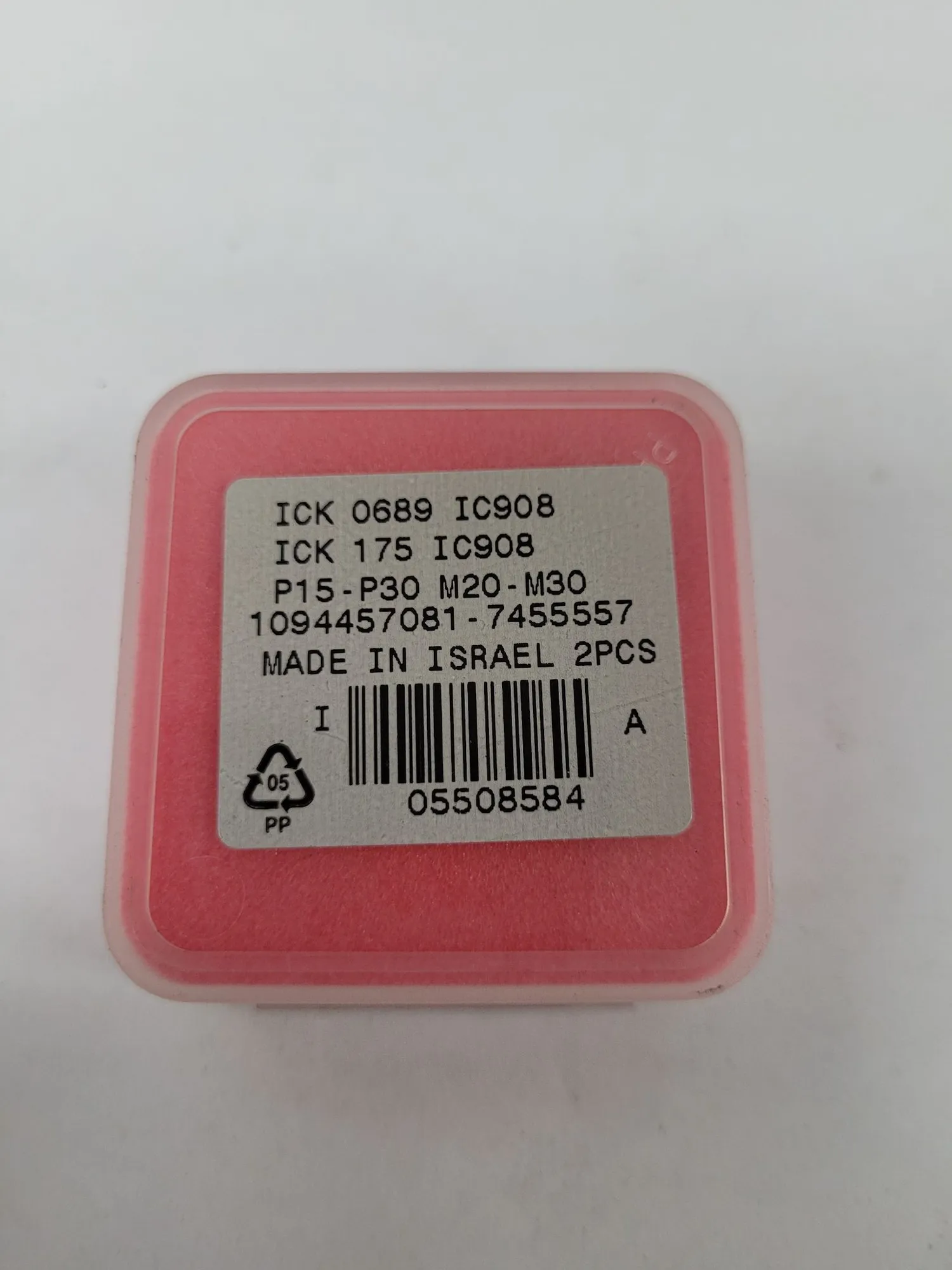

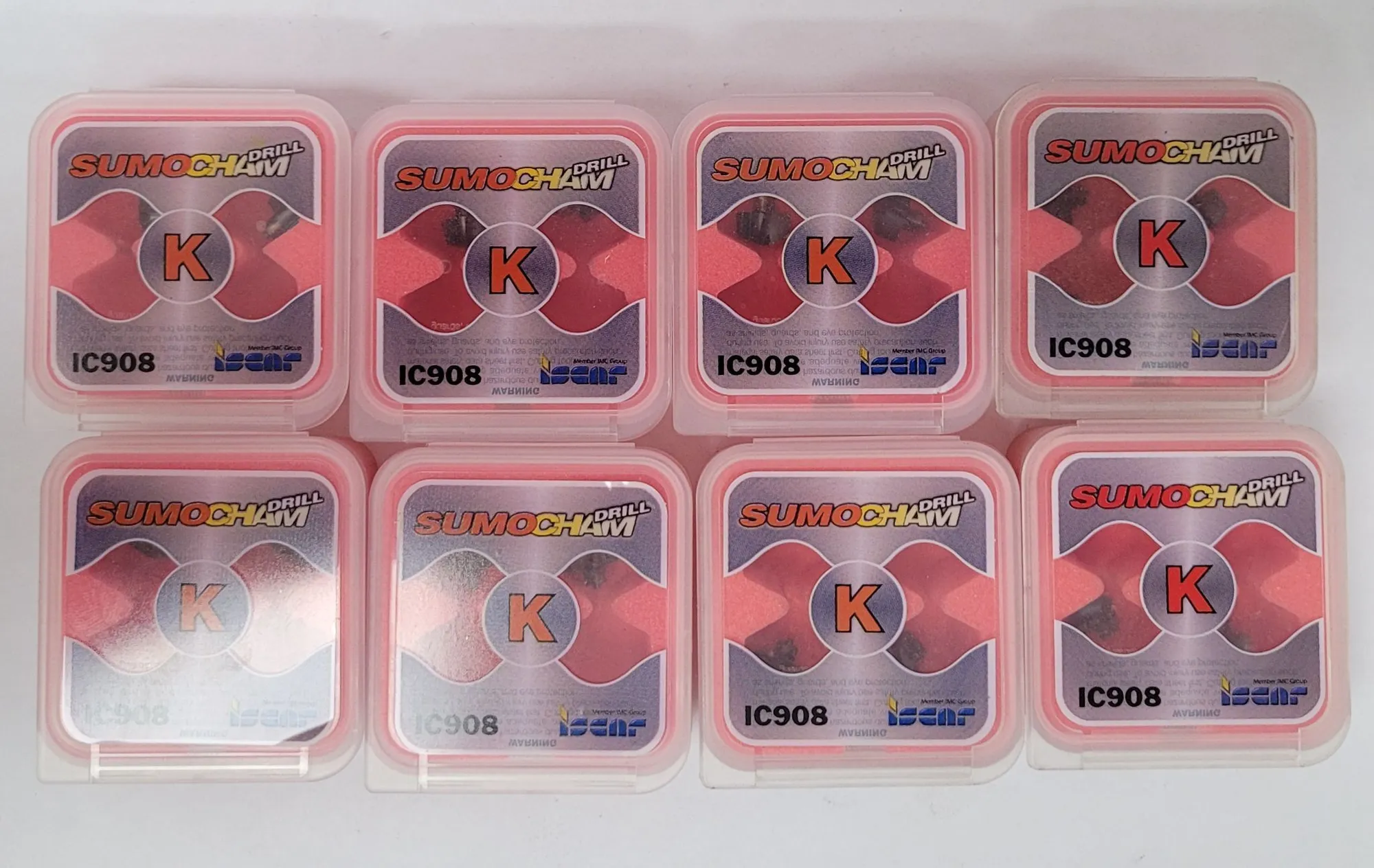

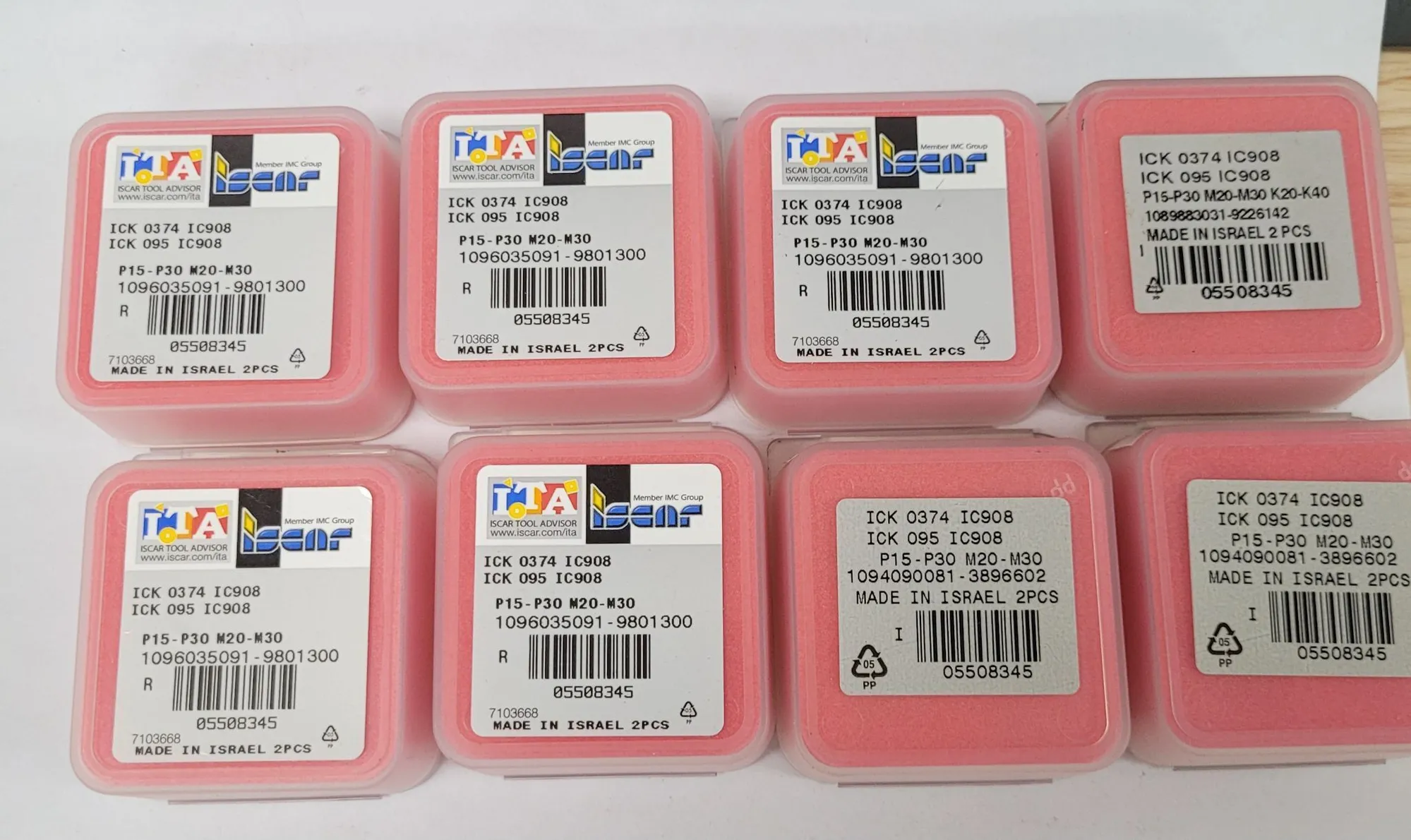

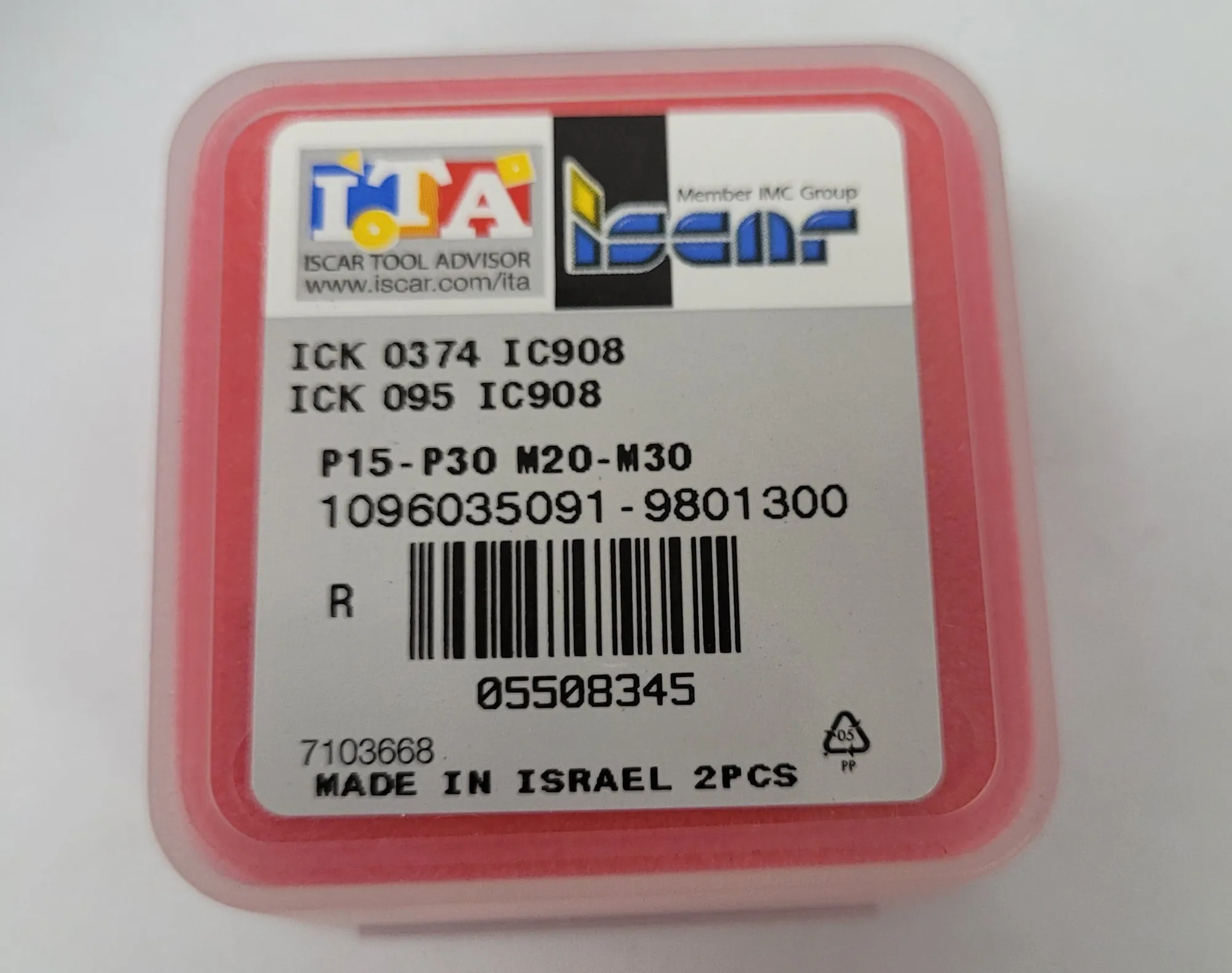

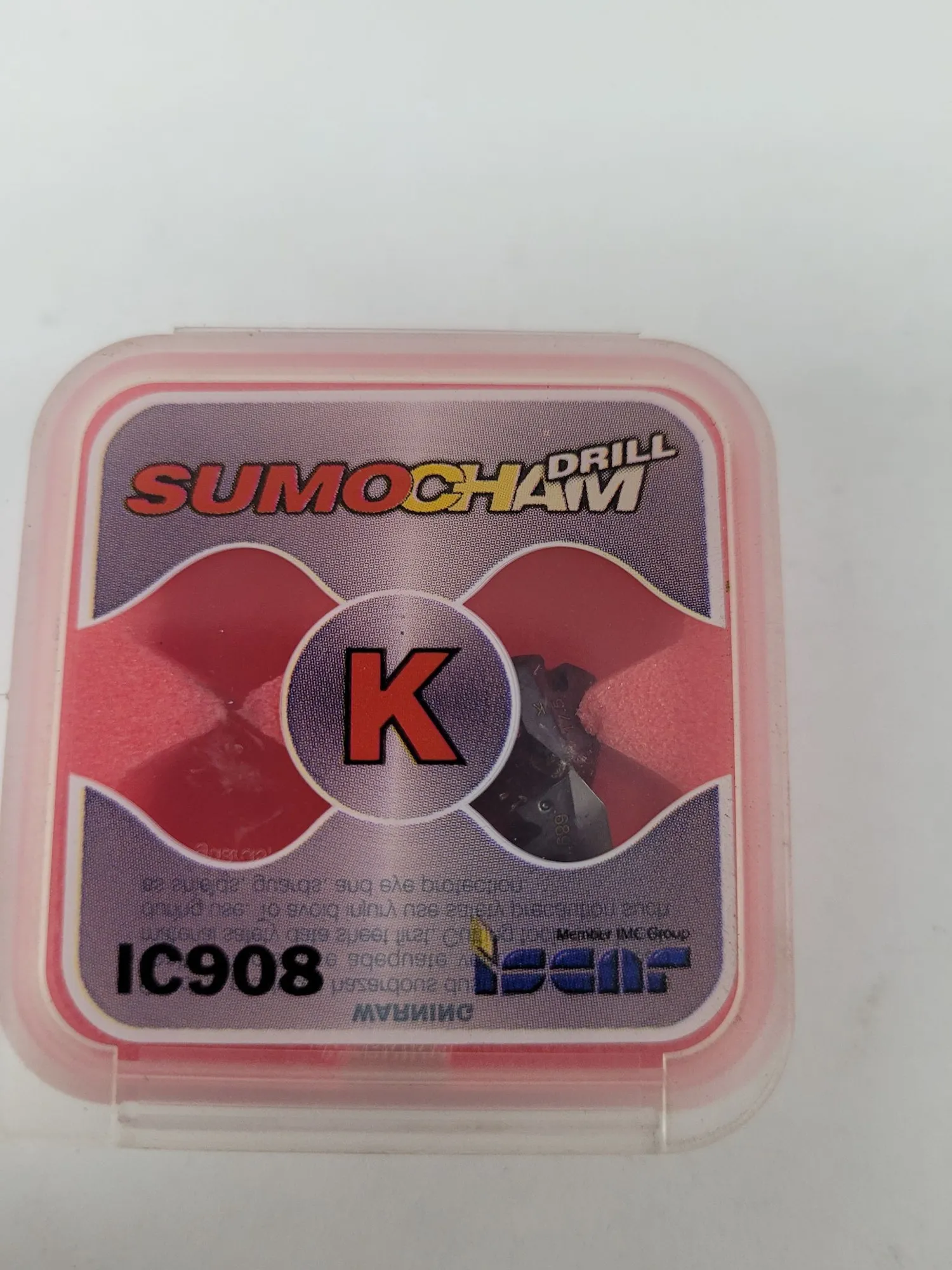

This offering includes ISCAR IC908 drilling inserts, consisting of nine total packs of two inserts. Eight packs contain ICK 0374 IC908 inserts, which feature a 0.374″ cutting diameter, 0.228″ insert thickness, and 0.08661″ point length. These specific inserts have a 140-degree point angle and a 30-degree chamfer angle, with a functional length of 0.142″. The grade is IC908, the tool type is drilling heads, and the coating is TiAlN. The insert seat size code is 9.0. Both the body material and the cutting edge material are carbide. The final pack contains ICK 0689 IC908 inserts, which have a 0.6890 decimal inch (17.50 mm) cutting diameter and utilize solid carbide tip material. The insert seat size is 17. These inserts have a functional length of 0.2301 decimal inches, a height of 0.39 decimal inches (10.00 mm), and an overall length/projection of 0.3901 decimal inches. Key features include web thinning and a 140-degree drill point angle with a helical flute type. All inserts are suitable for applications including chamfering, drilling, and gundrilling.
