Description

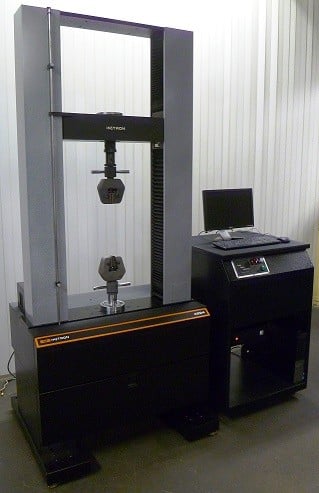

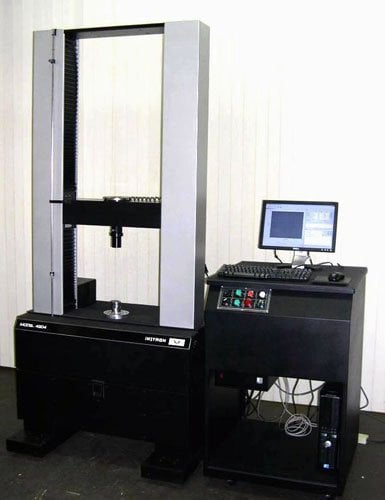

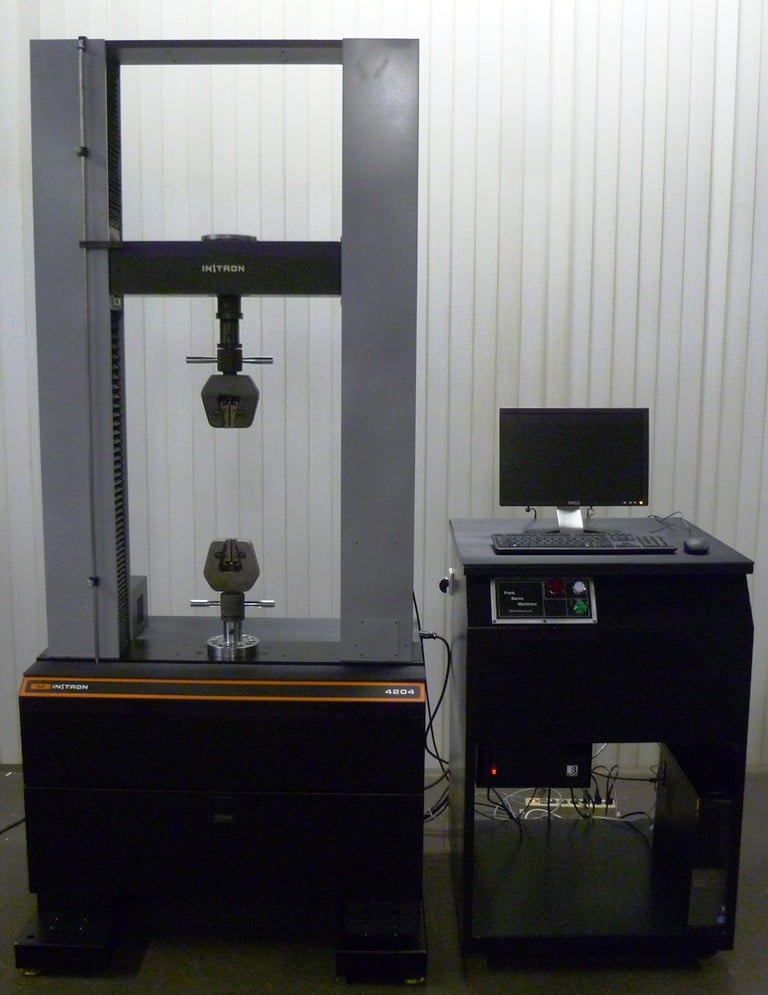

11.25K (50kN) Instron 4204 Floor Standing Tensile & Compression Testing System
Instron Model 4204
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 46"
Compression Testing Opening (Less Tooling): 46"
Distance Between Columns/Screws: 22"
Testing Stroke: 46"
Table Size (W x D): 22" x 7.75"
Testing Speed (IPM): .0002 – 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
Load Frame (W x D x H): 39.5" x 26" x 93"
Approximate Load Frame Weight (lbs): 1000
Electrical Requirements (V,Hz,PH): 200-240, 60, 1
EQUIPPED WITH:
- Computer System with Keyboard and Mouse.
- Microsoft Windows 11 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
- New AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
- 50kN Tensile & Compression Load Cell
FOB Warren, MI
30 Day Satisfaction Guarantee Return Privilege
1 Year Parts and Labor Warranty
*Representative Image
