Instron #1125, 22.5K (100kN), precision 2-screw tension & compression testing machine, 38" test opening, reconditioned, retrofitted

(1) Reconditioned 22,500 lbf (100 kN) Capacity Instron, Model 1125, Precision Two Screw Tension and
Compression Testing Machine.

Tension Testing Opening (Less Tooling): 38"
Compression Testing Opening (Less Tooling): 38"
Distance Between Columns/Screws: 22"
Testing Stroke: 38"
Table Size (W x D): 22" x 8"
Testing Speed (IPM): .0002 – 20 (2-Speed Clutched System)
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Control Console (W x D x H): 27.5" x 27" x 35"
Load Frame (W x D x H): 40" x 22" x 80"
Approximate Weight (Lbs): 1750
Electrical Requirements (V,Hz,PH): 230, 60, 1

EQUIPPED WITH:
• Computer System with Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis
and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB
Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and
Crosshead Jog Controller.

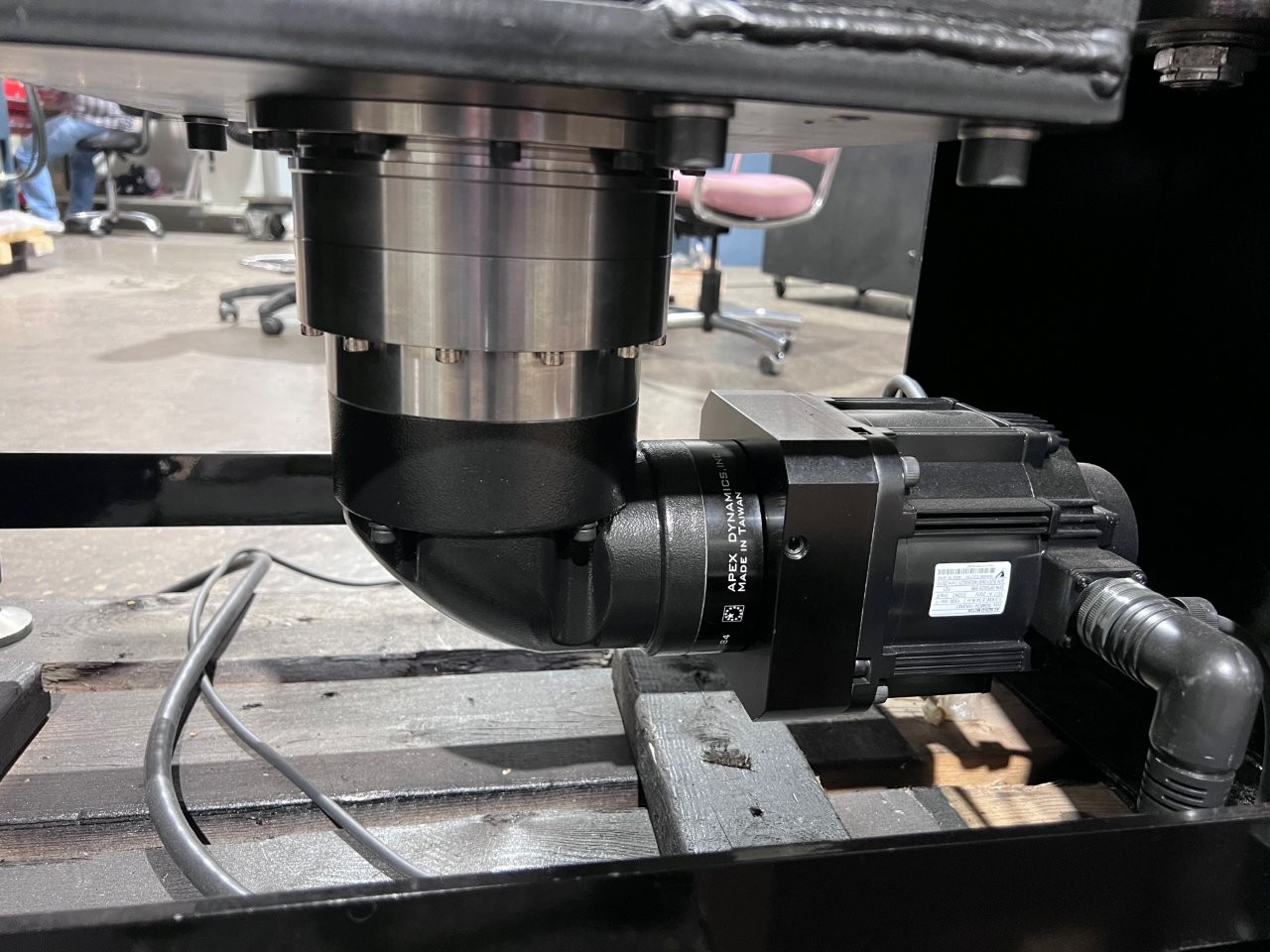

• New Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive
Controller for Precision Control of Testing Rates (Load, Position & Strain).
• 100kN Tension & Compression Load Cell

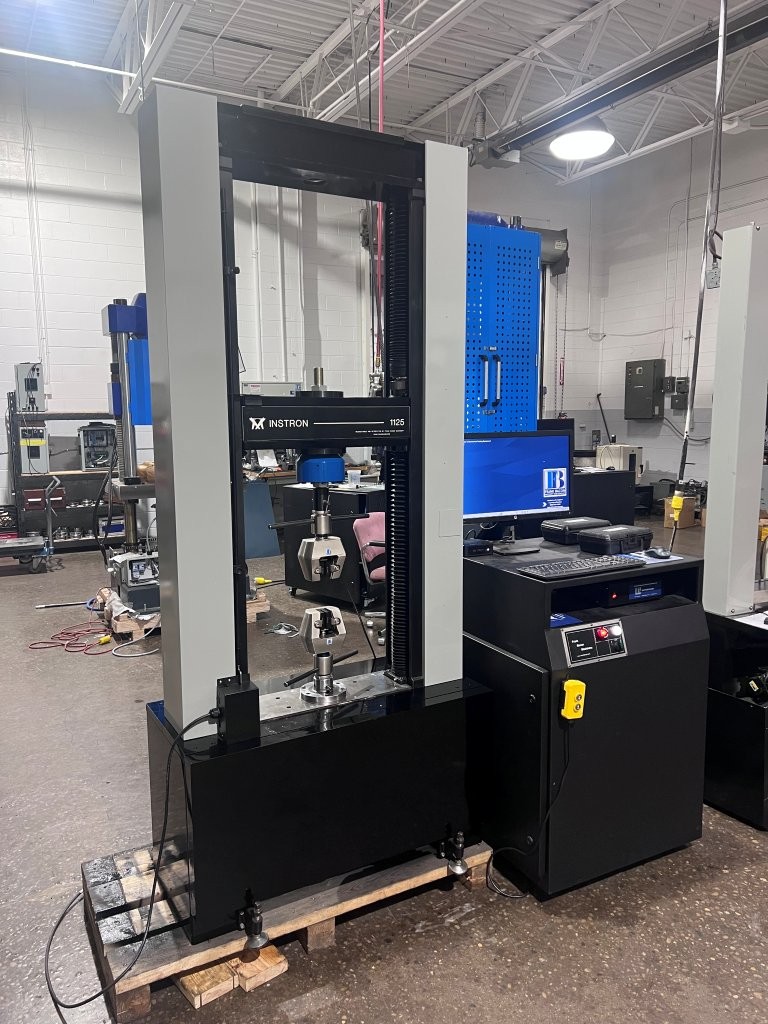

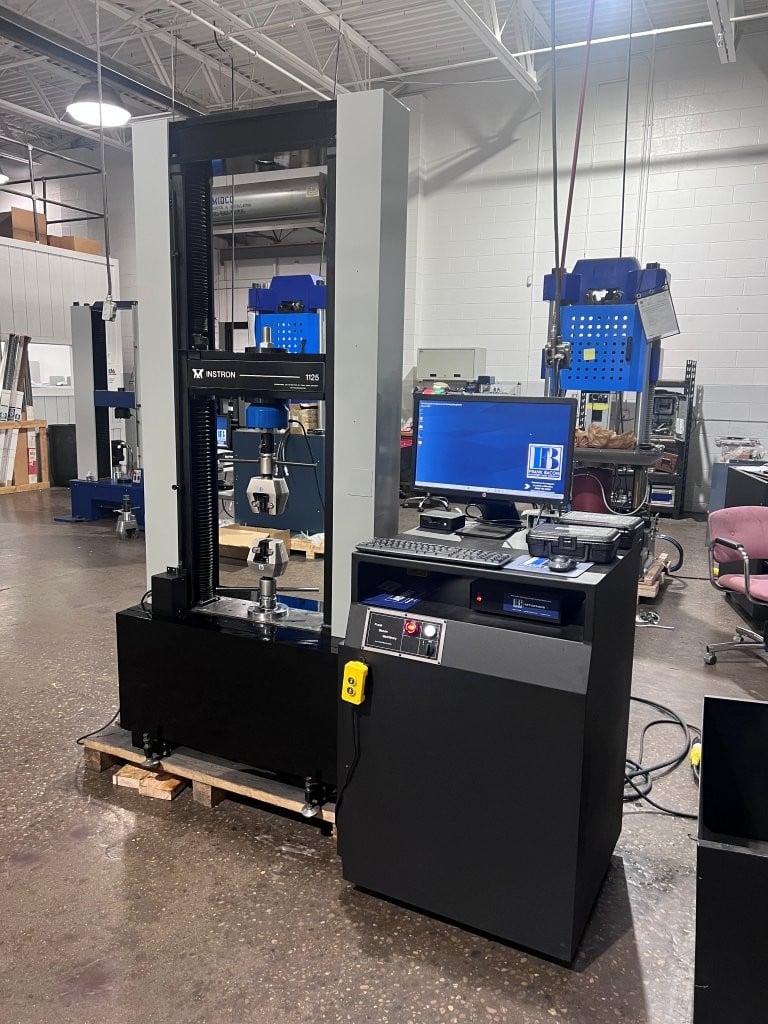

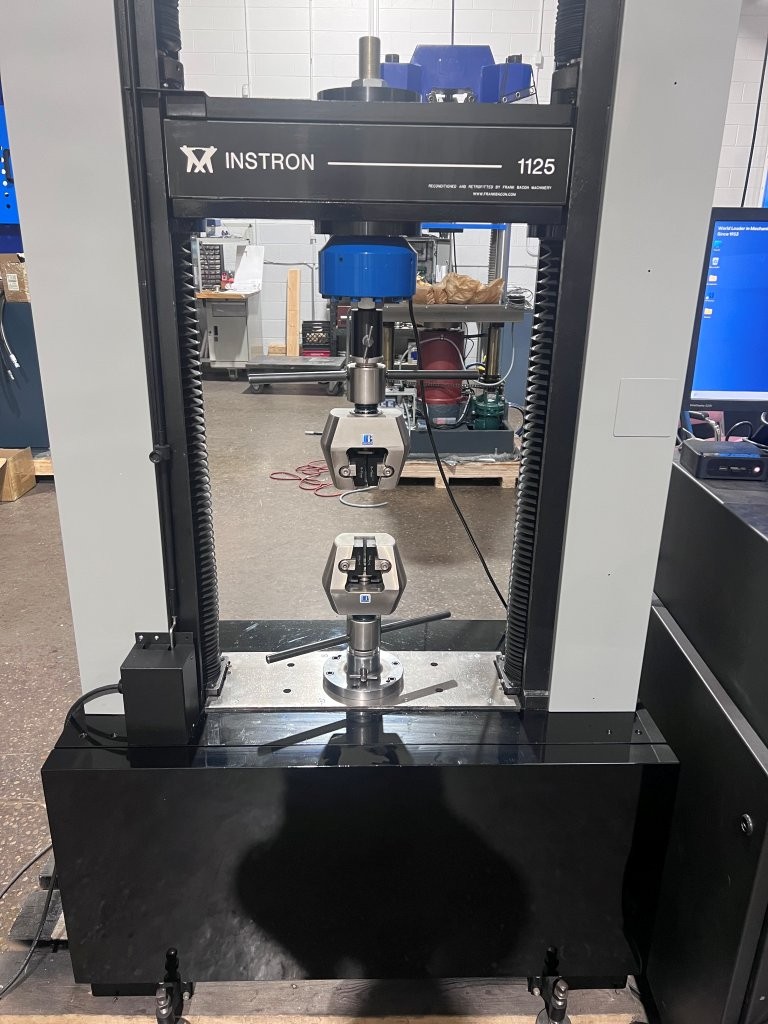

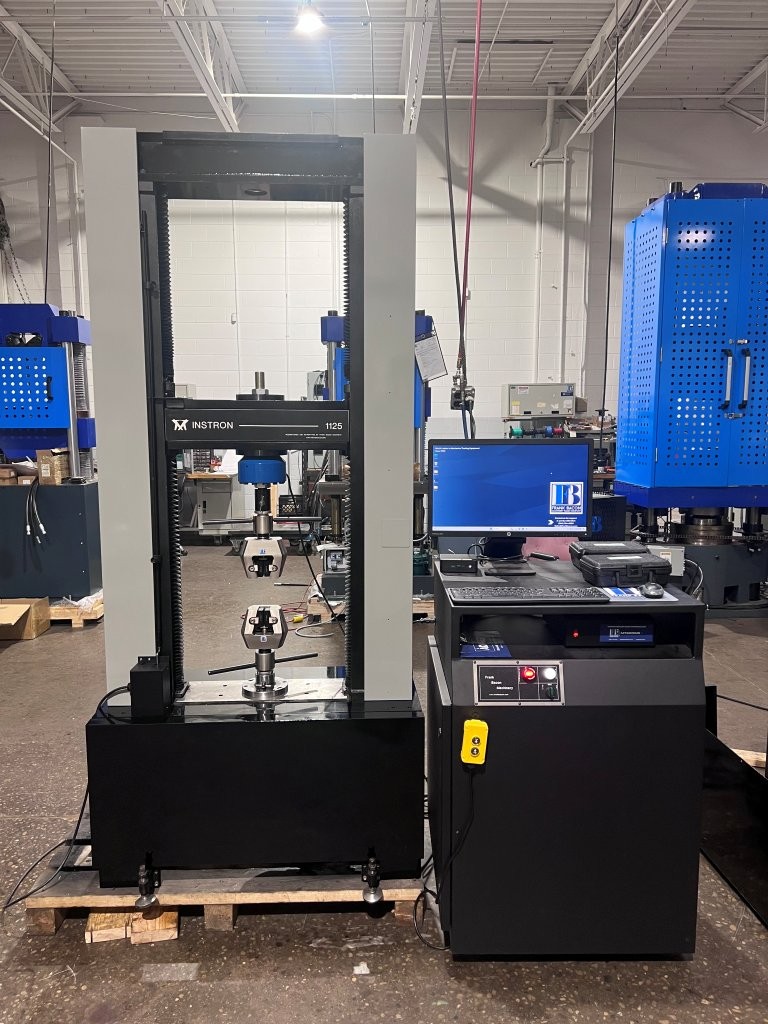

*Representative Images After Reconditioning
