I-T-E Electrical Products Circuit Breaker E43B030 480V Allis-Chalmers

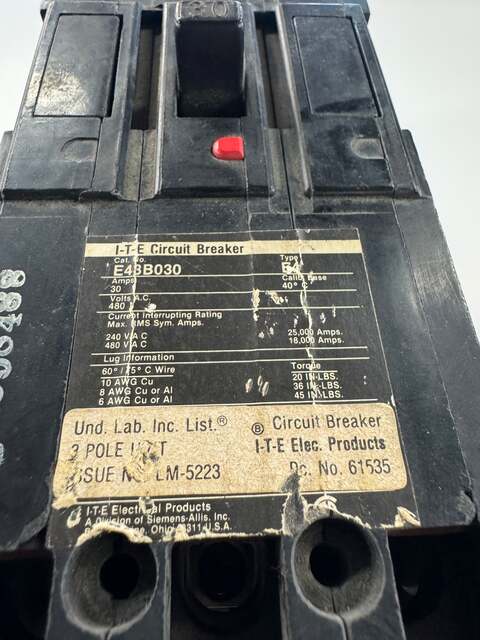

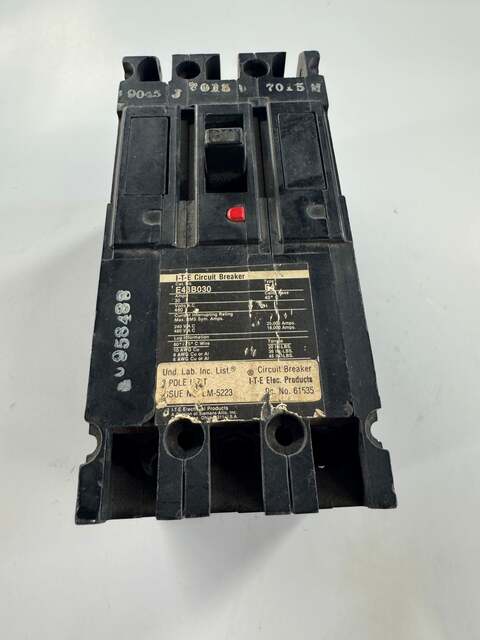

The I-T-E E43B030 is a molded case circuit breaker rated at 30 amps and 480 volts AC, configured as a 3-pole unit. Manufactured by I-T-E Electrical Products, a division of Siemens-Allis, Inc., this breaker carries catalog number E43B030 and is classified as Type E4. The current interrupting rating is 18,000 amps RMS symmetrical at 480V AC and 25,000 amps RMS symmetrical at 240V AC. The calibration base is 40 degrees C. Lug information as shown on the nameplate covers 60/75 degree C wire, with wire range accommodating 10 AWG copper, 8 AWG copper or aluminum, and 6 AWG copper or aluminum. Corresponding torque values are 20, 36, and 45 in-lbs respectively. The nameplate references UL listing under Issue No. LM-5223 and Doc. No. 61535. Serial number visible on the unit is 9958488. This is a bolt-on style breaker with a standard 3-pole configuration suited for industrial panel applications operating at 480V three-phase systems. The unit retains its original nameplate with all specification data legible.

Stock # 0426-02049
